7-30 — LOCK CYLINDER SET (#48729) — 21 parça

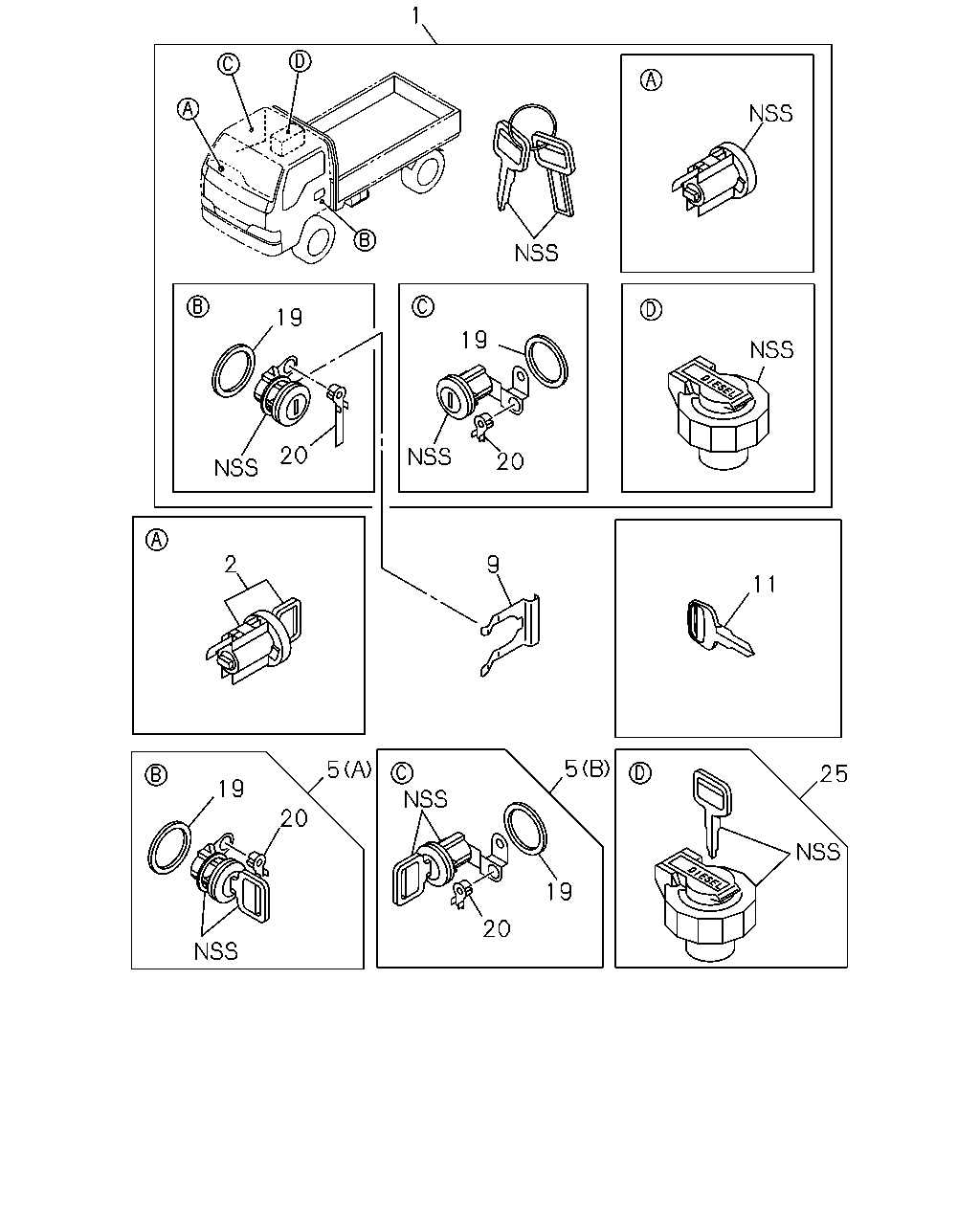

çizim 49805
1 19 19 20 20 2 9 11 5 5 25 19 20 19 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-97035-294-1 01 1 0009- ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97035-293-1 01 1 0009- ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97095-682-2 01 1 0009- ● ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-97095-684-2 01 1 0009- ● ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-97095-685-2 01 1 0009- ● ● ●
9 CLIP; DOOR LOCK 8-97898-277-0 02 1 0009- ● ● ●
11 KEY; BLANK
WO/NOTCH 		8-97076-337-0 AR 1 0009- ● ● ●
19 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0009- ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		8-97040-452-0 01 1 0009- ● ● ●
20 SNAP; DOOR LOCK CYL
BROWN 		8-97040-453-0 01 1 0009- ● ● ●
25 CAP; FUEL TANK,W/KEY
FUEL TANK CAP W/LOCK<N05> 		8-97095-686-2 01 1 0009- ● ● ●

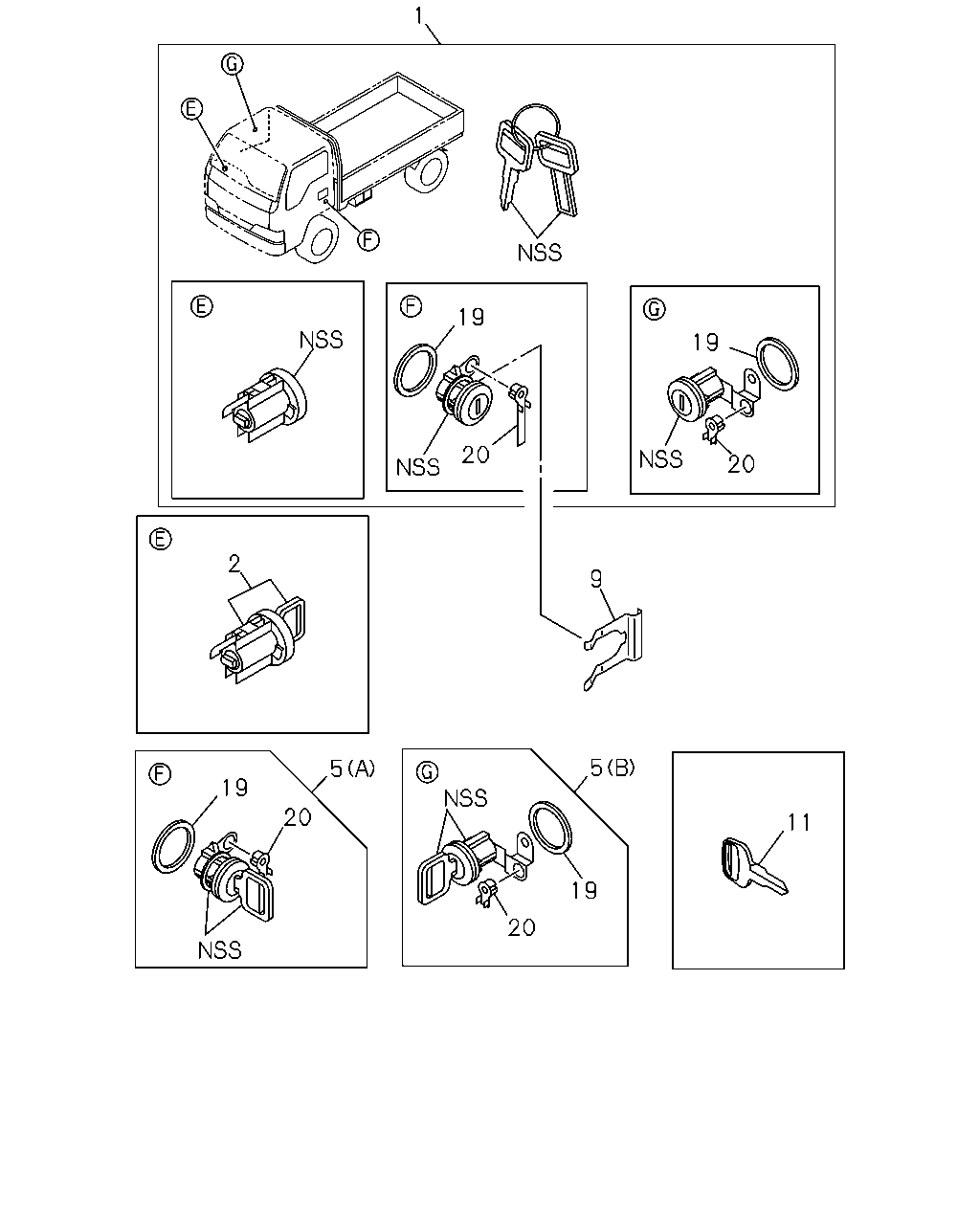

çizim 49931
1 19 19 20 20 2 9 5 5 19 20 11 19 20
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER SET; CAR LOCK
FUEL TANK CAP W/LOCK<N05> 		8-97035-294-1 01 1 0009- ● ● ●
1 CYLINDER SET; CAR LOCK
EXC. FUEL TANK CAP W/LOCK<N05> 		8-97035-293-1 01 1 0009- ● ● ●
2 BARREL ASM; W/KEY,STRG LOCK 8-97095-682-2 01 1 0009- ● ● ●
5 CYLINDER ASM; DOOR LOCK
(B) 		8-97095-684-2 01 1 0009- ● ● ●
5 CYLINDER ASM; DOOR LOCK
(A) 		8-97095-685-2 01 1 0009- ● ● ●
9 CLIP; DOOR LOCK 8-97898-277-0 02 1 0009- ● ● ●
11 KEY; BLANK
WO/NOTCH 		8-97076-337-0 AR 1 0009- ● ● ●
19 GASKET; DOOR LOCK CYL 8-94128-739-0 02 1 0009- ● ● ●
20 SNAP; DOOR LOCK CYL
YELLOW 		8-97040-452-0 01 1 0009- ● ● ●
20 SNAP; DOOR LOCK CYL
BROWN 		8-97040-453-0 01 1 0009- ● ● ●
