◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#48728) — 49 parça

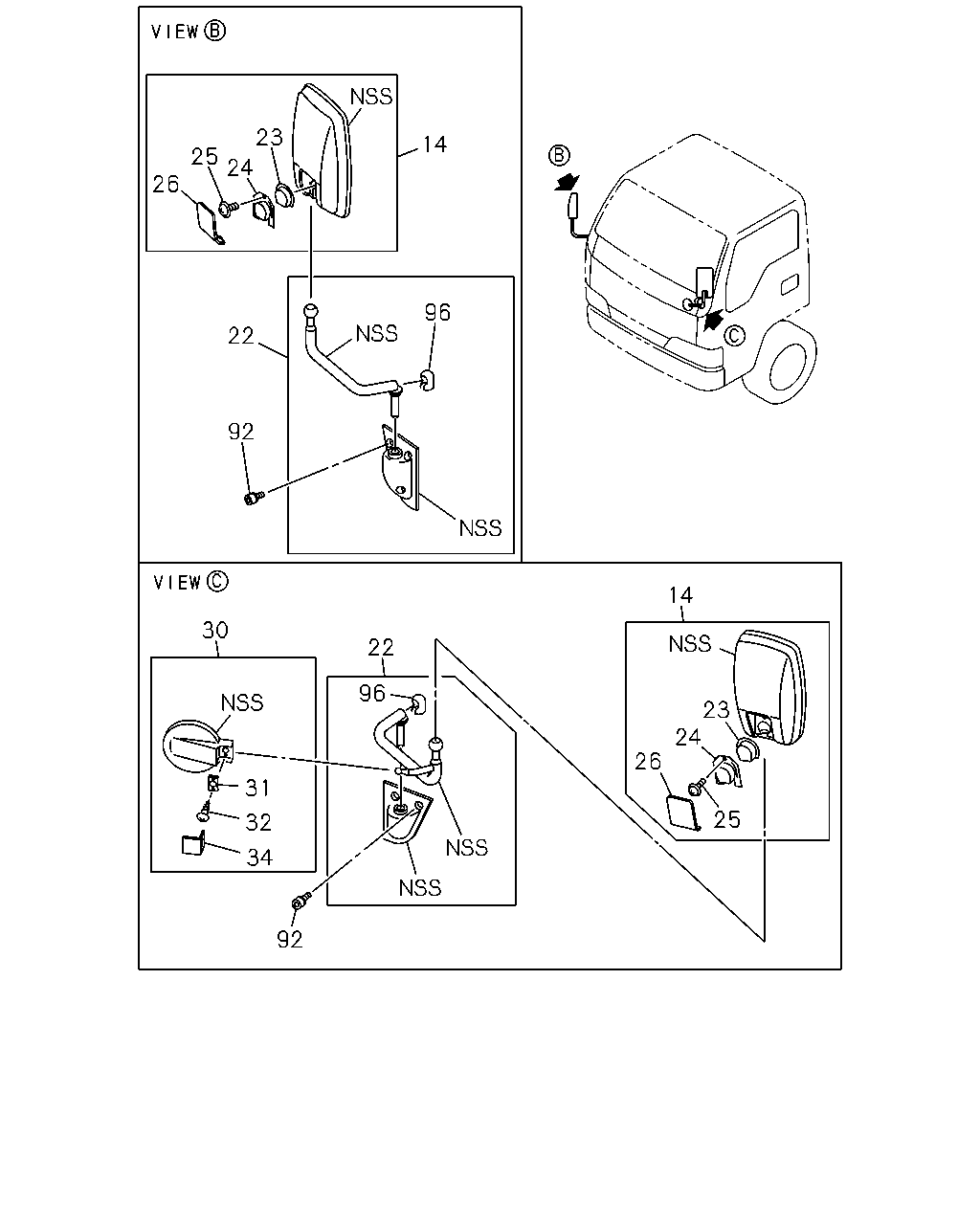

çizim 49708
23 14 25 24 26 96 22 92 14 30 22 96 23 24 26 31 25 32 34 92
BalonParca AdiParca NoAdetTipApplied Date A B C
13 MIRROR ASM; OUTSIDE RR VIEW
THA 		8-94262-543-3 01 1 0308- ● ● ●
14 MIRROR ASM; OUTSIDE
THA 		8-94262-543-3 01 1 0308- ● ● ●
14 MIRROR ASM; OUTSIDE
THA 		8-97917-088-0 02 1 0009- ● ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97866-944-2 01 1 0009- ● ● ●
22 STAY; OUTSIDE MIRROR
THA 		8-97917-095-0 01 1 0009- ● ● ●
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> THA 		8-97917-092-0 01 1 0009- ● ● ●
23 WASHER; OUTSIDE MIRROR
THA 		8-97918-674-0 02 1 0009- ● ● ●
24 HOLDER; OUTSIDE MIRROR
THA 		8-97918-675-0 02 1 0009- ● ● ●
25 SCREW; OUTSIDE MIRROR
THA 		8-97918-676-0 02 1 0009- ● ● ●
26 COVER; OUTSIDE MIRROR
THA 		8-97918-677-0 02 1 0009- ● ● ●
30 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0009- ● ● ●
31 PLATE; MIRROR
THA 		8-97857-597-1 01 1 0308- ● ● ●
31 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0009- ● ● ●
32 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0009- ● ● ●
34 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0009- ● ● ●
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0009- ● ● ●
96 CAP; MIRROR STAY
THA 		8-97917-112-0 02 1 0009- ● ● ●
155 STAY ASM; MIRROR 8-97868-237-1 01 1 0308- ● ● ●
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> THA 		8-97856-532-0 01 1 0209- ● ● ●
çizim 50254
14 23 25 24 26 22 96 92 14 23 24 22 26 96 25 92
BalonParca AdiParca NoAdetTipApplied Date A B C
13 MIRROR ASM; OUTSIDE RR VIEW
THA 		8-94262-543-3 01 1 0308- ● ● ●
14 MIRROR ASM; OUTSIDE
THA 		8-94262-543-3 01 1 0308- ● ● ●
14 MIRROR ASM; OUTSIDE
THA 		8-97917-088-0 02 1 0009- ● ● ●
22 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97866-944-2 01 1 0009- ● ● ●
22 STAY; OUTSIDE MIRROR
THA 		8-97917-095-0 01 1 0009- ● ● ●
22 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> THA 		8-97917-092-0 01 1 0009- ● ● ●
23 WASHER; OUTSIDE MIRROR
THA 		8-97918-674-0 02 1 0009- ● ● ●
24 HOLDER; OUTSIDE MIRROR
THA 		8-97918-675-0 02 1 0009- ● ● ●
25 SCREW; OUTSIDE MIRROR
THA 		8-97918-676-0 02 1 0009- ● ● ●
26 COVER; OUTSIDE MIRROR
THA 		8-97918-677-0 02 1 0009- ● ● ●
92 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 06 1 0009- ● ● ●
96 CAP; MIRROR STAY
THA 		8-97917-112-0 02 1 0009- ● ● ●
155 STAY ASM; MIRROR 8-97868-237-1 01 1 0308- ● ● ●
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> THA 		8-97856-532-0 01 1 0209- ● ● ●
çizim 51495
4 2 159 3 158 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> DARK GRAY THA 		8-97868-633-1 01 1 0209- ● ● ●
1 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97868-351-2 01 1 0009- ● ● ●
1 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> THA 		8-97917-031-0 01 1 0009- ● ● ●
2 SCREW; MIRROR TO BODY
M5X20 		5-09981-059-0 02 1 0009- ● ● ●
3 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35 		8-97867-849-0 01 1 0009- ● ● ●
3 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40 		8-94273-036-3 01 1 0009- ● ● ●
3 STOPPER; RR VIEW MIRROR
EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 		8-97859-098-2 01 1 0009- ● ● ●
3 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26 THA 		8-97916-546-0 01 1 0009- ● ● ●
4 GROMMET; SCREW,ROOM MIRROR
THA 		8-94279-039-0 01 1 0009- ● ● ●
13 MIRROR ASM; OUTSIDE RR VIEW
THA 		8-94262-543-3 01 1 0308- ● ● ●
155 STAY ASM; MIRROR 8-97868-237-1 01 1 0308- ● ● ●
158 LENS; ROOM LAMP
TRAY ROOF HEAD<7EJ> THA 		8-97917-211-0 01 1 0009- ● ● ●
158 LENS; ROOM LAMP
EXC. TRAY ROOF HEAD<7EJ> THA 		5-73117-108-1 01 1 0009- ● ● ●
159 BULB; ROOM LAMP
TRAY ROOF HEAD<7EJ> 24V 10W THA 		8-97917-213-0 01 1 0009- ● ● ●
159 BULB; ROOM LAMP
EXC. TRAY ROOF HEAD<7EJ> 24V 10W THA 		5-82194-030-0 01 1 0009- ● ● ●
162 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> THA 		8-97856-532-0 01 1 0209- ● ● ●
