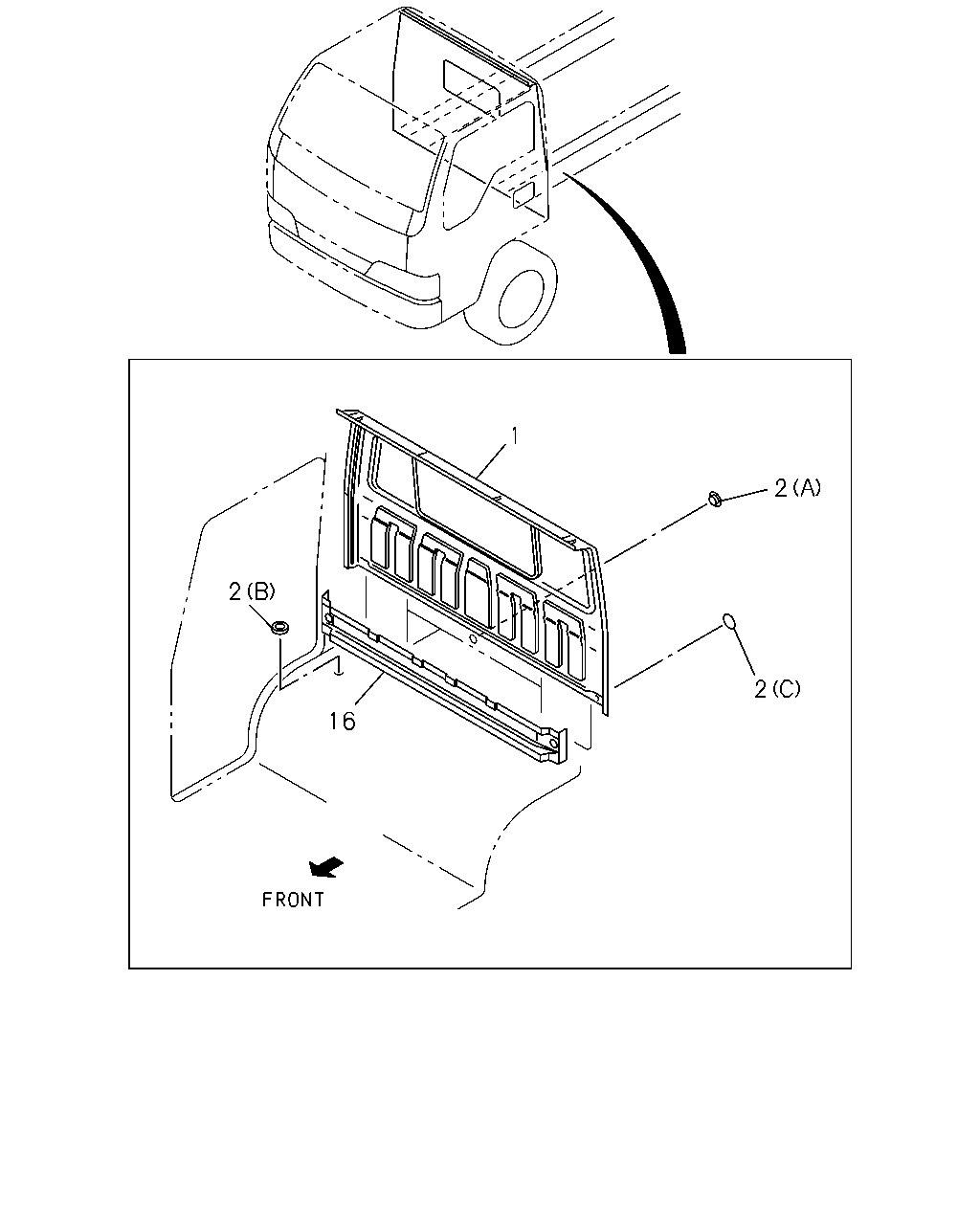

6-80 — BACK PANEL (#48722) — 13 parça

1 2 2 2 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PANEL; BACK OUTER 4HE1 ENG<RLY> KD CAB BREAKDOWN<RZV> CHARGE AIR COOLER<6PL> THA	8-97921-222-0	01	1	0009-	●
1	PANEL; BACK OUTER KD CAB BREAKDOWN<RZV> CHARGE AIR COOLER<6PL> THA	8-97921-222-0	01	1	0009-		●
1	PANEL; BACK OUTER 4HG1 ENG<RJH> KD CAB BREAKDOWN<RZV> THA	8-97916-408-0	01	1	0009-	●
1	PANEL; BACK OUTER KD CAB BREAKDOWN<RZV> THA	8-97916-408-0	01	1	0009-			●
1	PANEL; BACK OUTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> THA	8-97859-127-0	01	1	0009-	●
1	PANEL; BACK OUTER CHARGE AIR COOLER<6PL> THA	8-97859-127-0	01	1	0009-		●
2	GROMMET; LOCATION HOLE,BACK PANEL (A) OD=25 BLACK THA	1-76798-019-0	04	1	0009-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (C) OD=36 T=0.05 BLACK THA	5-76777-035-0	02	1	0009-	●	●	●
2	GROMMET; LOCATION HOLE,BACK PANEL (B) OD=16.2	8-94492-493-0	02	1	0009-	●	●	●
16	REINFORCEMENT; BACK OUTER PNL 4HG1 ENG<RJH> KD CAB BREAKDOWN<RZV> THA	8-97916-527-1	01	1	0009-	●
16	REINFORCEMENT; BACK OUTER PNL KD CAB BREAKDOWN<RZV> THA	8-97916-527-1	01	1	0009-			●
16	REINFORCEMENT; BACK OUTER PNL 4HE1 ENG<RLY> KD CAB BREAKDOWN<RZV> CHARGE AIR COOLER<6PL> THA	8-97921-439-0	01	1	0009-	●
16	REINFORCEMENT; BACK OUTER PNL KD CAB BREAKDOWN<RZV> CHARGE AIR COOLER<6PL> THA	8-97921-439-0	01	1	0009-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
