◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#48718) — 69 parça
çizim 12411
377 378 380 398 380 378
BalonParca AdiParca NoAdetTipApplied Date A B C
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0009-0303 ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0009-0303 ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304- ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304- ● ●
378 GASSET; LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 0009-0305 ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-671-0 01 1 0009-0305 ● ●
378 GASSET; LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97581-827-1 01 1 0306- ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-827-1 01 1 0306- ● ●
378 GASSET; LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 0009-0305 ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97850-672-1 01 1 0009-0305 ● ●
378 GASSET; LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97581-828-1 01 1 0306- ●
378 GASSET; LWR
MANUAL TILT CAB<RWZ> 		8-97581-828-1 01 1 0306- ● ●
380 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-090-2 01 1 0009- ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-090-2 01 1 0009- ● ●
380 BRACKET; HEAD LAMP
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-767-0 01 1 0009- ●
380 BRACKET; HEAD LAMP
MANUAL TILT CAB<RWZ> 		8-97850-767-0 01 1 0009- ● ●
398 BRACKET; PIPE SUPPORT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0009- ●
398 BRACKET; PIPE SUPPORT
MANUAL TILT CAB<RWZ> 		8-97850-318-1 01 1 0009- ● ●

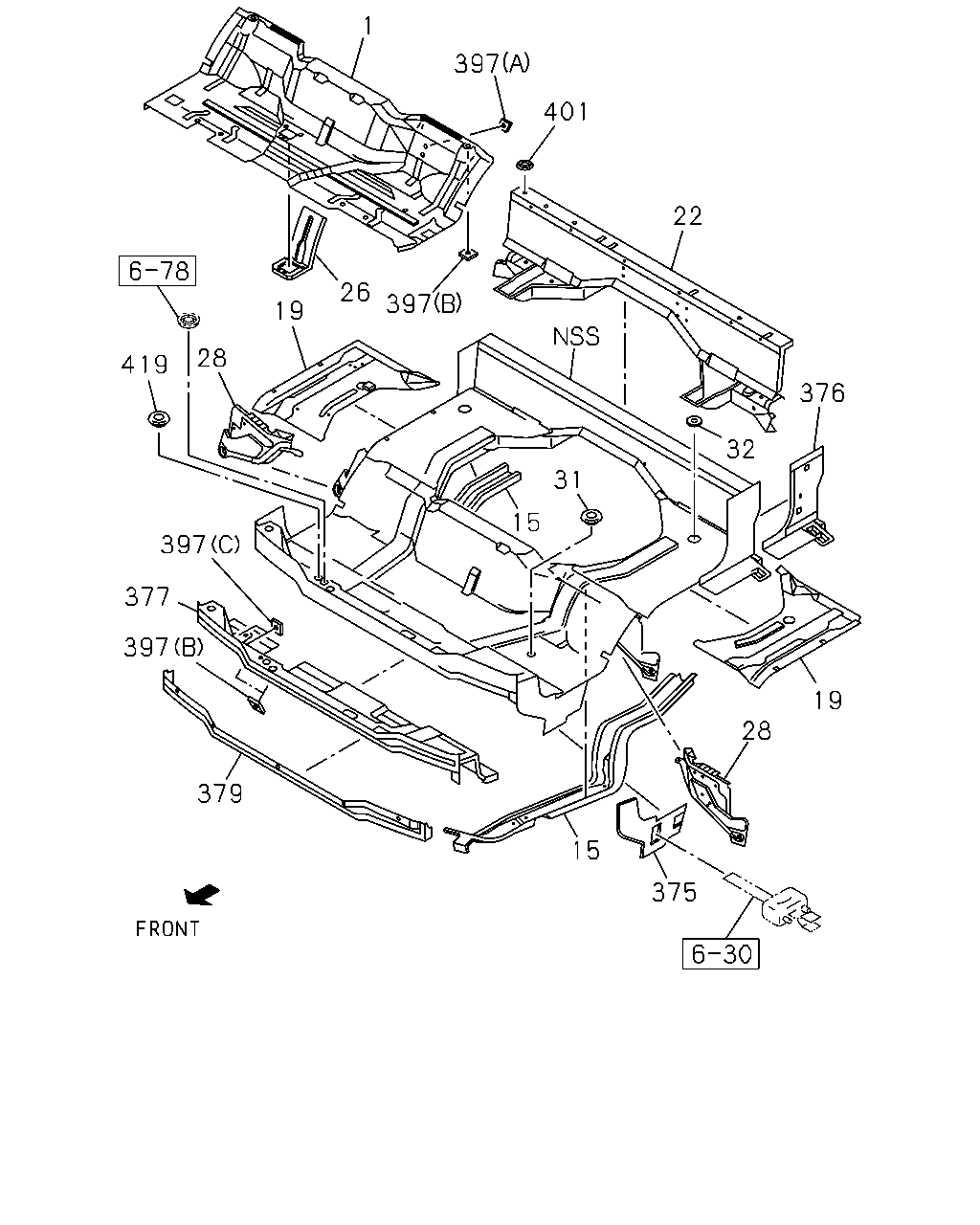

çizim 49625
1 397 401 22 26 397 19 28 419 376 32 31 15 397 377 397 19 28 379 15 375
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> THA 		8-97850-117-8 01 1 0009-0303 ●
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> THA 		8-97850-117-8 01 1 0009-0303 ● ●
1 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0304- ●
1 PANEL; FLOOR
MANUAL TILT CAB<RWZ> 		8-97581-801-0 01 1 0304- ● ●
15 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> THA 		8-97850-059-9 01 1 0009- ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> THA 		8-97850-059-9 01 1 0009- ● ●
15 FRAME; UNDER
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> THA 		8-97850-060-9 01 1 0009- ●
15 FRAME; UNDER
MANUAL TILT CAB<RWZ> THA 		8-97850-060-9 01 1 0009- ● ●
19 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 0009- ●
19 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-008-4 01 1 0009- ● ●
19 PANEL; FLOOR SIDE,REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0009- ●
19 PANEL; FLOOR SIDE,REAR
MANUAL TILT CAB<RWZ> 		8-97850-118-6 01 1 0009- ● ●
22 FRAME; FLOOR REAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-657-3 01 1 0009- ●
22 FRAME; FLOOR REAR
MANUAL TILT CAB<RWZ> 		8-97850-657-3 01 1 0009- ● ●
26 PANEL; GEAR CONT REINF
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0009- ●
26 PANEL; GEAR CONT REINF
MANUAL TILT CAB<RWZ> 		8-97850-140-3 01 1 0009- ● ●
28 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0009- ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-017-7 01 1 0009- ● ●
28 GUSSET; FLOOR PANEL SIDE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0009- ●
28 GUSSET; FLOOR PANEL SIDE
MANUAL TILT CAB<RWZ> 		8-97850-338-5 01 1 0009- ● ●
31 GROMMET; LOCATION HOLE,CAB FLOOR
OD=28.5 		8-94279-711-0 02 1 0009- ● ● ●
32 GROMMET; FLOOR PANEL,LOCATION HOLE
OD=53.5 		8-94356-253-0 02 1 0009- ● ● ●
375 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 0009- ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-086-4 01 1 0009- ● ●
375 CLOSING; PILLAR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 0009- ●
375 CLOSING; PILLAR
MANUAL TILT CAB<RWZ> 		8-97850-087-3 01 1 0009- ● ●
376 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0009- ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-320-6 01 1 0009- ● ●
376 CLOSING; PILLAR,LWR
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0009- ●
376 CLOSING; PILLAR,LWR
MANUAL TILT CAB<RWZ> 		8-97850-923-1 01 1 0009- ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0009-0303 ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97850-807-2 01 1 0009-0303 ● ●
377 RAIL ASM; MTG,FRT
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304- ●
377 RAIL ASM; MTG,FRT
MANUAL TILT CAB<RWZ> 		8-97997-638-0 01 1 0304- ● ●
379 PANEL
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0305- ●
379 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0305- ● ●
379 PANEL
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 0009-0307 ●
379 PANEL
MANUAL TILT CAB<RWZ> 		8-97850-129-2 01 1 0009-0307 ● ●
379 PANEL
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0308- ●
379 PANEL
MANUAL TILT CAB<RWZ> 		8-97581-640-0 01 1 0308- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0009- ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (A) M6 		9-09114-046-0 04 1 0009- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 04 1 0009- ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 04 1 0009- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0009- ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (C) M10 		9-09114-030-0 03 1 0009- ● ●
397 NUT; PIERCE
FLOOR REMOTE SHIFT<M11> MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 06 1 0009- ●
397 NUT; PIERCE
MANUAL TILT CAB<RWZ> (B) M8 		9-09114-048-0 06 1 0009- ● ●
401 GROMMET; HOLE
OD=24.5 T=7.5 		8-97224-683-0 01 1 0009- ● ● ●
401 GROMMET; HOLE
OD=12.1 		8-97898-423-0 01 1 0009- ● ● ●
419 GROMMET; CONT SHAFT,FLOOR PANEL
EXC. PTO TRANSMISSION SIDE<V66> OD=36 		1-09983-092-0 01 1 0009- ● ● ●
