6-47 — MUD GUARD AND INSULATOR (#48714) — 111 parça

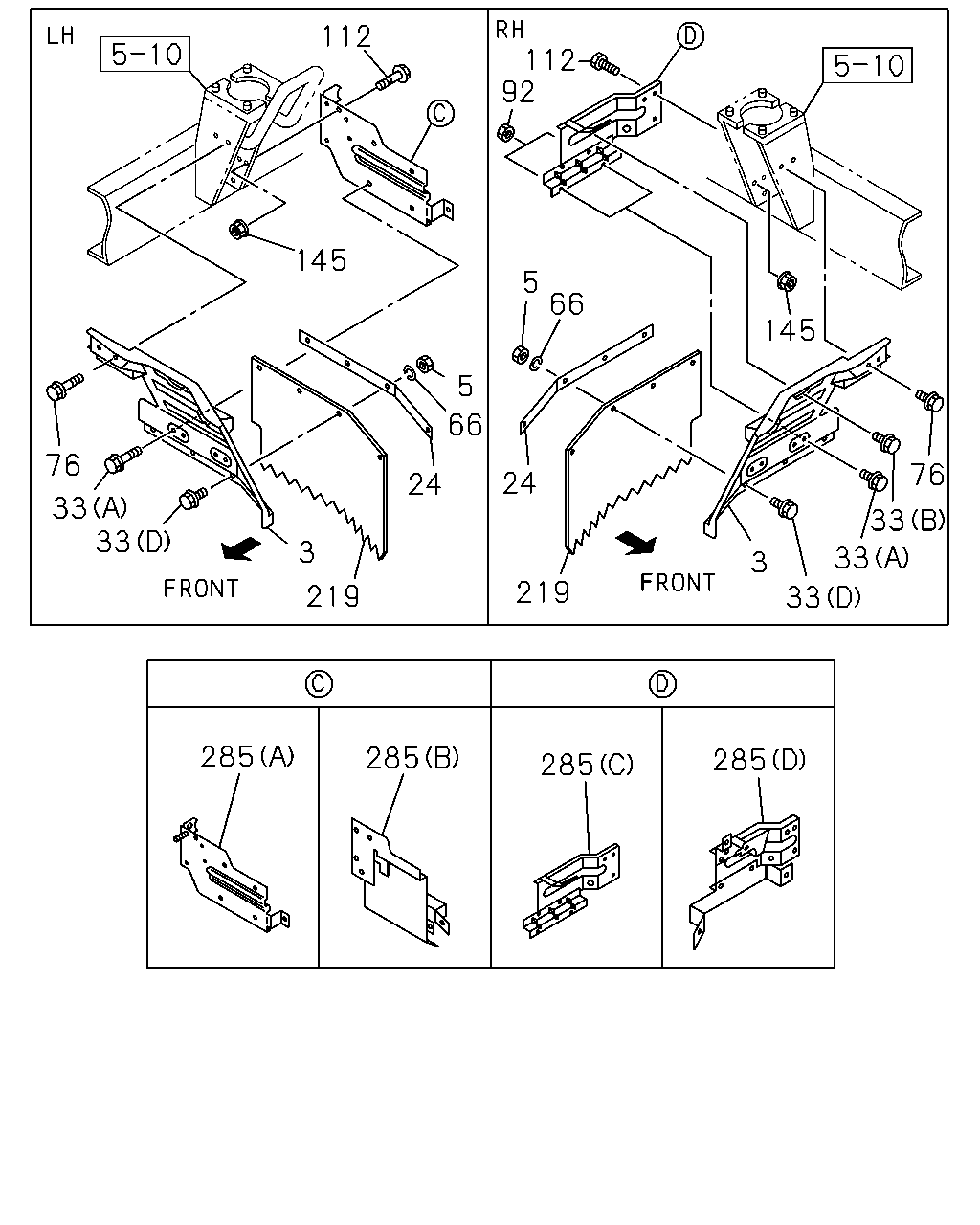

112 92 112 145 5 66 145 5 66 76 76 24 24 33 33 33 3 33 3 219 219 33 285 285 285 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97912-559-0	01	1	0009-	●
3	GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> THA	8-97912-559-0	01	1	0009-		●
3	GUARD; MUD,RR FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97912-560-0	01	1	0009-	●
3	GUARD; MUD,RR TIRE SIZE 8.25-16<7QP> THA	8-97912-560-0	01	1	0009-		●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> THA	8-97912-557-0	01	1	0009-	●	●
3	GUARD; MUD,RR THA	8-97912-557-0	01	1	0009-			●
3	GUARD; MUD,RR EXC. TIRE SIZE 8.25-16<7QP> THA	8-97912-558-0	01	1	0009-	●	●
3	GUARD; MUD,RR THA	8-97912-558-0	01	1	0009-			●
5	NUT; FLAP RUBBER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	06	1	0009-	●
5	NUT; FLAP RUBBER TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	06	1	0009-		●
5	NUT; FLAP RUBBER EXC. TIRE SIZE 8.25-16<7QP> M6	9-09111-406-0	08	1	0009-	●	●
5	NUT; FLAP RUBBER M6	9-09111-406-0	08	1	0009-			●
24	PLATE; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97914-748-1	02	1	0009-	●
24	PLATE; MUD COVER TIRE SIZE 8.25-16<7QP> THA	8-97914-748-1	02	1	0009-		●
24	PLATE; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-499-1	02	1	0009-	●	●
24	PLATE; MUD COVER THA	8-97916-499-1	02	1	0009-			●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0009-	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0009-		●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0009-	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0009-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0009-	●	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0009-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0009-			●
66	WASHER; LK FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	06	1	0009-	●
66	WASHER; LK TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	06	1	0009-		●
66	WASHER; LK EXC. TIRE SIZE 8.25-16<7QP> ID=6.1	9-09150-506-0	08	1	0009-	●	●
66	WASHER; LK ID=6.1	9-09150-506-0	08	1	0009-			●
76	BOLT; MUD GUARD M8X20 FLANGE	0-28080-820-0	04	1	0009-	●	●	●
92	NUT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	05	1	0009-	●
92	NUT; MUD COVER TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	05	1	0009-		●
92	NUT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> M8 FLANGE	0-91150-108-0	02	1	0009-	●	●
92	NUT; MUD COVER M8 FLANGE	0-91150-108-0	02	1	0009-			●
112	BOLT; BRKT FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	06	1	0009-	●
112	BOLT; BRKT TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	06	1	0009-		●
112	BOLT; BRKT EXC. TIRE SIZE 8.25-16<7QP> M8X25 FLANGE	0-28680-825-0	05	1	0009-	●	●
112	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	05	1	0009-			●
145	NUT; BRKT M8 FLANGE	0-91150-108-0	06	1	0009-	●	●	●
219	FLAP; MUD GUARD FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97913-999-2	02	1	0009-	●
219	FLAP; MUD GUARD TIRE SIZE 8.25-16<7QP> THA	8-97913-999-2	02	1	0009-		●
219	FLAP; MUD GUARD EXC. TIRE SIZE 8.25-16<7QP> THA	8-97916-762-0	02	1	0009-	●	●
219	FLAP; MUD GUARD THA	8-97916-762-0	02	1	0009-			●
285	BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D)	8-97147-235-0	01	1	0009-	●
285	BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (D)	8-97147-235-0	01	1	0009-		●
285	BRACKET; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B)	8-97180-529-0	01	1	0009-	●
285	BRACKET; MUD COVER TIRE SIZE 8.25-16<7QP> (B)	8-97180-529-0	01	1	0009-		●
285	BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (C)	8-97035-778-4	01	1	0009-	●	●
285	BRACKET; MUD COVER (C)	8-97035-778-4	01	1	0009-			●
285	BRACKET; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (A)	8-97092-037-2	01	1	0009-	●	●
285	BRACKET; MUD COVER (A)	8-97092-037-2	01	1	0009-			●

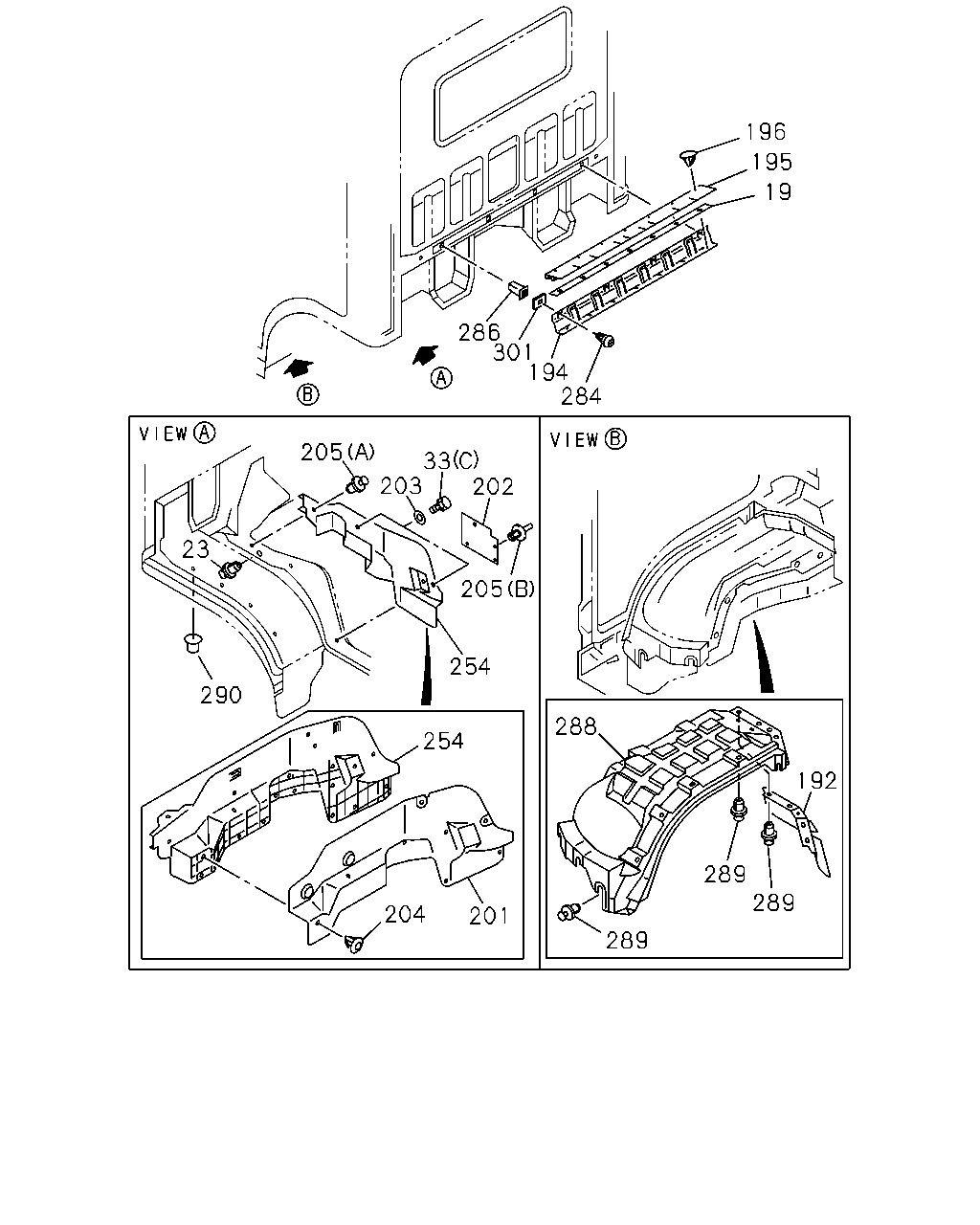

196 195 19 286 301 194 284 205 33 203 202 23 205 254 290 288 254 192 289 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	SHEET; HEAT PROTECTOR,CAB BACK 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ>	8-97856-016-0	01	1	0009-	●
19	SHEET; HEAT PROTECTOR,CAB BACK CHARGE AIR COOLER<6PL>	8-97856-016-0	01	1	0009-		●
23	FASTENER; MUD COVER OD=8.3	8-94279-989-0	10	1	0009-0207	●	●	●
23	FASTENER; MUD COVER OD=8.3	8-97997-832-0	10	1	0208-	●	●	●
33	BOLT; MUD COVER FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0009-	●
33	BOLT; MUD COVER TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	06	1	0009-		●
33	BOLT; MUD COVER (A) M8X20 FLANGE	0-28080-820-0	05	1	0009-	●	●	●
33	BOLT; MUD COVER (C) M6X25 FLANGE	0-28680-625-0	04	1	0009-	●	●	●
33	BOLT; MUD COVER (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	0009-	●	●	●
33	BOLT; MUD COVER EXC. TIRE SIZE 8.25-16<7QP> (D) M6X16 FLANGE	0-28080-616-0	08	1	0009-	●	●
33	BOLT; MUD COVER (D) M6X16 FLANGE	0-28080-616-0	08	1	0009-			●
192	SEAL; MUD COVER	8-97857-297-3	02	1	0009-	●	●	●
194	BRACKET; HEAT PROTECTOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ>	8-97853-797-1	01	1	0009-	●
194	BRACKET; HEAT PROTECTOR CHARGE AIR COOLER<6PL>	8-97853-797-1	01	1	0009-		●
195	PROTECTOR; HEAT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ>	8-97856-386-1	01	1	0009-	●
195	PROTECTOR; HEAT CHARGE AIR COOLER<6PL>	8-97856-386-1	01	1	0009-		●
196	CLIP; HEAT PROTECTOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ>	8-94244-922-0	07	1	0009-	●
196	CLIP; HEAT PROTECTOR CHARGE AIR COOLER<6PL>	8-94244-922-0	07	1	0009-		●
201	INSULATOR; VALANCE 4HG1 ENG<RJH>	8-97853-630-3	01	1	0009-	●
201	INSULATOR; VALANCE	8-97853-630-3	01	1	0009-			●
201	INSULATOR; VALANCE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97892-184-1	01	1	0009-	●
201	INSULATOR; VALANCE CHARGE AIR COOLER<6PL>	8-97892-184-1	01	1	0009-		●
201	INSULATOR; VALANCE	8-97853-631-3	01	1	0009-	●	●	●
202	RUBBER; MUD,VALANCE PANEL 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97892-185-0	01	1	0009-	●
202	RUBBER; MUD,VALANCE PANEL CHARGE AIR COOLER<6PL>	8-97892-185-0	01	1	0009-		●
203	WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	0009-	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	14	1	0009-0308	●	●	●
204	CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	0309-	●	●	●
205	FASTENER; MUD COVER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B)	5-09989-002-0	04	1	0009-	●
205	FASTENER; MUD COVER CHARGE AIR COOLER<6PL> (B)	5-09989-002-0	04	1	0009-		●
205	FASTENER; MUD COVER (A) D5.8 SCREW & GROMMET NYLON THA	8-94242-150-0	02	1	0009-	●	●	●
254	COVER; MUD,VALANCE 4HG1 ENG<RJH>	8-97853-358-3	01	1	0009-	●
254	COVER; MUD,VALANCE	8-97853-358-3	01	1	0009-			●
254	COVER; MUD,VALANCE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97892-183-0	01	1	0009-	●
254	COVER; MUD,VALANCE CHARGE AIR COOLER<6PL>	8-97892-183-0	01	1	0009-		●
254	COVER; MUD,VALANCE	8-97853-359-3	01	1	0009-	●	●	●
284	SCREW; HEAT PROTECTOR 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> VEHICLE CATEGORY NQR<7NQ> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0009-	●
284	SCREW; HEAT PROTECTOR CHARGE AIR COOLER<6PL> M5X16 W/PL WASHER TAPPING	8-94279-123-0	04	1	0009-		●
286	GROMMET; SCREW,HEAT PROTECTOR D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	0009-0101	●	●	●
286	GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●	●	●
288	LINER; TIRE HOUSE	8-97890-578-1	01	1	0009-0212	●	●	●
288	LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●
288	LINER; TIRE HOUSE	8-97890-579-1	01	1	0009-0212	●	●	●
288	LINER; TIRE HOUSE	8-97581-241-0	02	1	0301-	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	20	1	0009-0212	●	●	●
289	FASTENER; LINER OD=8.3	8-94279-989-0	18	1	0301-	●	●	●
290	NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	0009-	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	0009-0101	●	●	●
301	HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●	●	●

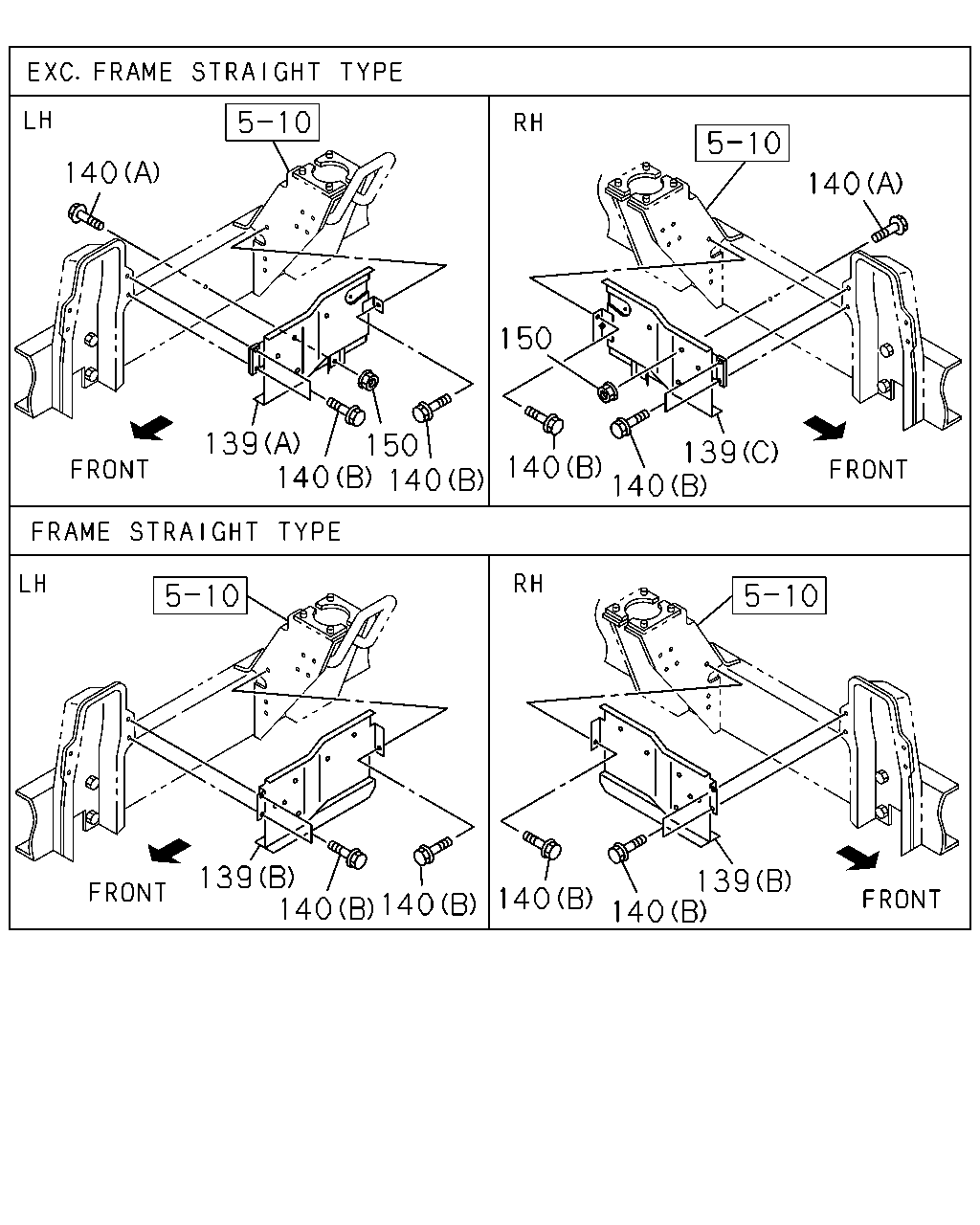

140 140 150 139 150 140 140 139 140 140 139 140 140 139 140 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
139	PANEL; SIDE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C)	8-97021-164-0	01	1	0009-	●
139	PANEL; SIDE (C)	8-97021-164-0	01	1	0009-			●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97171-996-0	01	1	0009-	●
139	PANEL; SIDE (B)	8-97171-996-0	01	1	0009-		●
139	PANEL; SIDE FRAME STRAIGHT TYPE<7KJ> (B)	8-97188-736-0	01	1	0009-	●
139	PANEL; SIDE (B)	8-97188-736-0	01	1	0009-		●
139	PANEL; SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97092-020-1	01	1	0009-	●
139	PANEL; SIDE (A)	8-97092-020-1	01	1	0009-			●
140	BOLT; SIDE PANEL (B) M8X20 FLANGE	0-28480-820-0	06	1	0009-	●	●	●
140	BOLT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
140	BOLT; SIDE PANEL (A) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
150	NUT; SIDE PANEL EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0009-	●
150	NUT; SIDE PANEL M8 FLANGE	0-91150-108-0	02	1	0009-			●
