◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#48713) — 14 parça

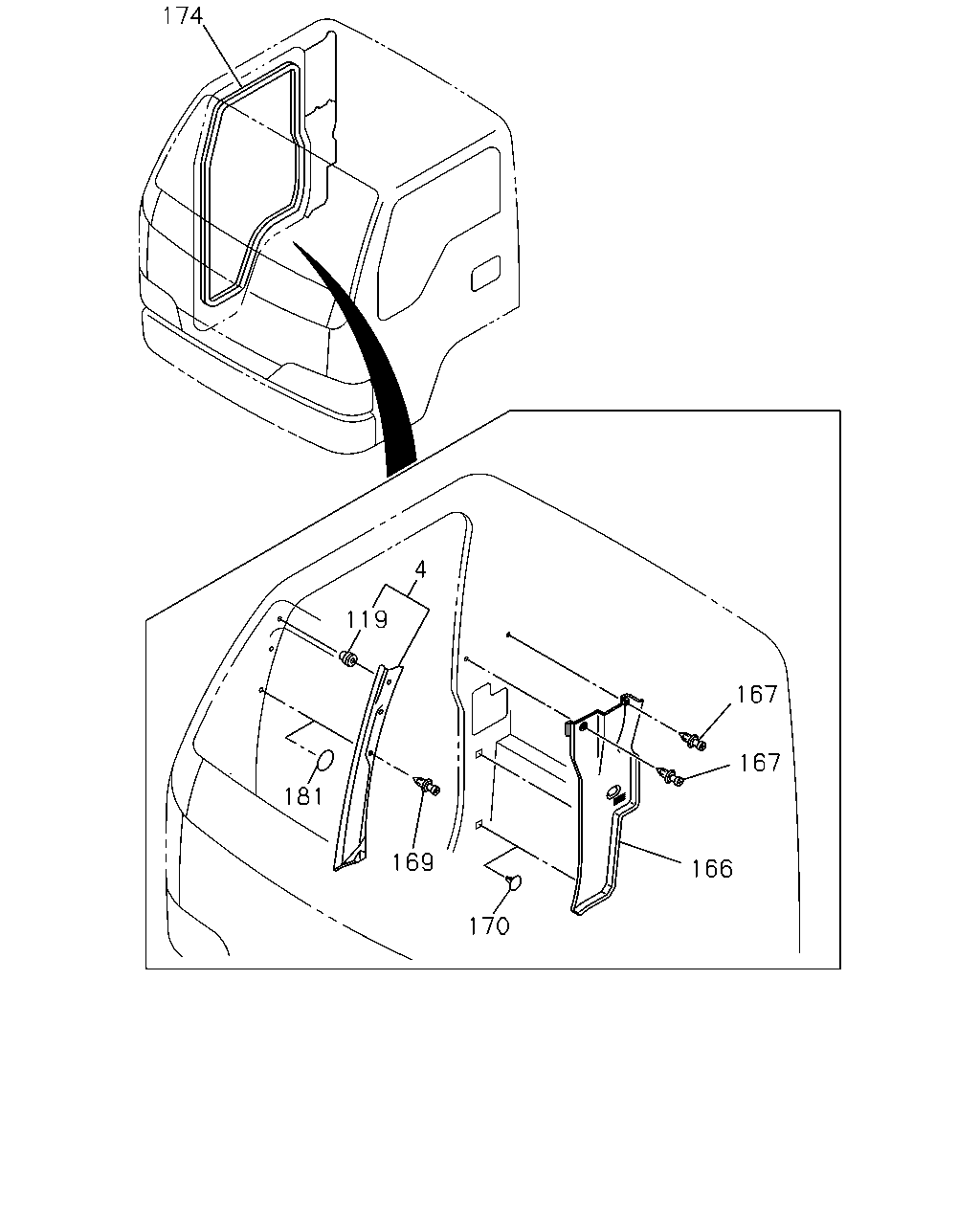

çizim 48347
174 119 167 167 181 169 166 170 4
BalonParca AdiParca NoAdetTipApplied Date A B C
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> THA 		8-97914-931-1 01 1 0009- ● ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> THA 		8-97914-941-1 01 1 0009- ● ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> THA 		8-97914-979-0 02 1 0009- ● ● ●
166 TRIM; RR PILLAR
DARK GRAY 		8-97857-803-0 01 1 0009-0208 ● ● ●
166 TRIM; RR PILLAR
DARK GRAY 		8-97868-653-3 01 1 0209- ● ● ●
166 TRIM; RR PILLAR
DARK GRAY 		8-97857-804-0 01 1 0009-0208 ● ● ●
166 TRIM; RR PILLAR
DARK GRAY 		8-97859-870-5 01 1 0209- ● ● ●
167 CLIP; TRIM,RR PILLAR
DARK GRAY 		8-97857-211-0 04 1 0009- ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 0009- ● ● ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 		8-94244-922-0 02 1 0009- ● ● ●
174 FINISHER; BODY SIDE
L=2982 DARK GRAY 		8-97857-205-4 01 1 0009- ● ● ●
174 FINISHER; BODY SIDE
L=2982 DARK GRAY 		8-97857-206-4 01 1 0009- ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE<729> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 0009- ● ● ●
181 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE<730>,BODY COLOR CARDINALRED<736>,BODY COLOR MARINE BLUE<890> EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
