◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#48706) — 15 parça

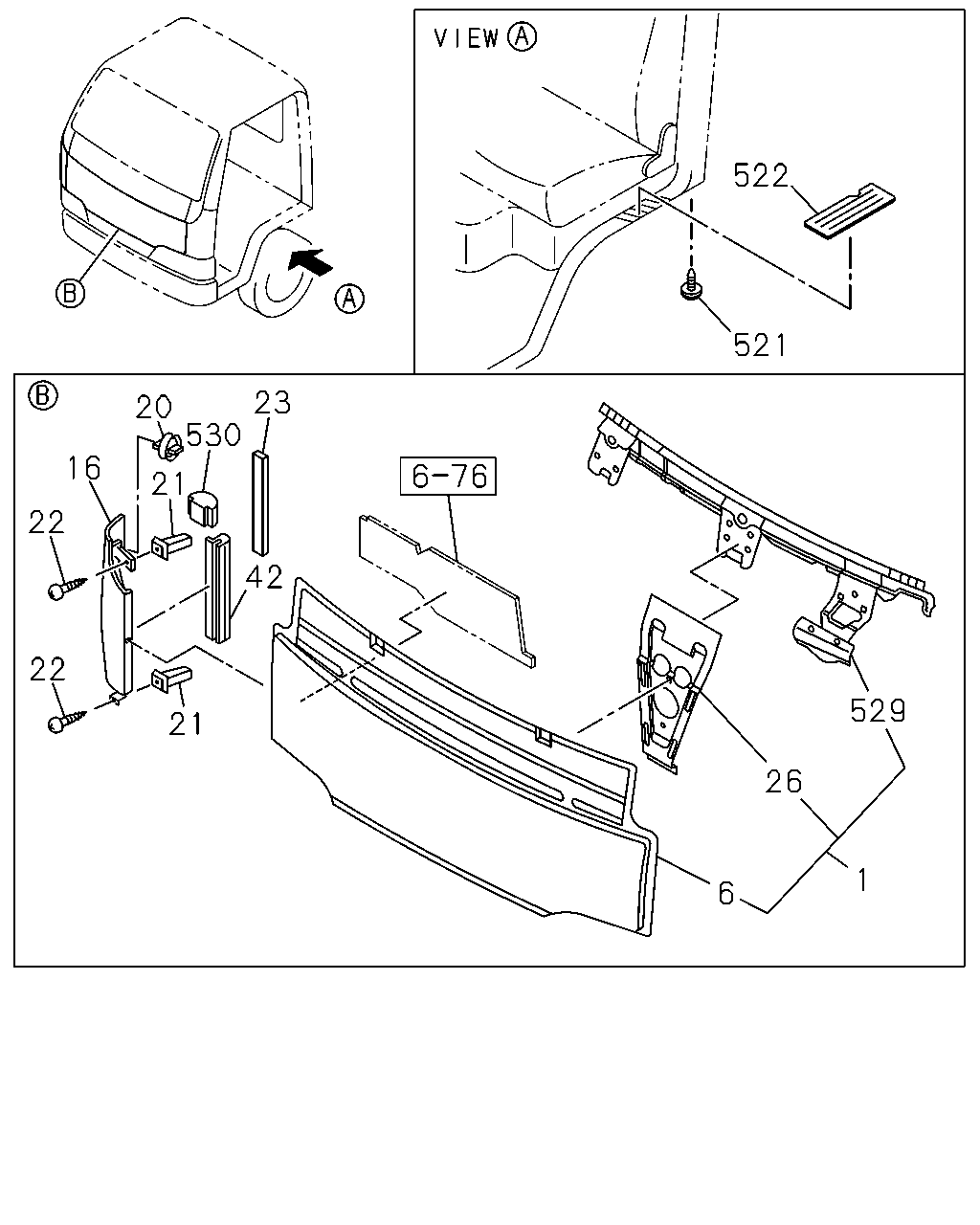

çizim 46988
522 521 23 530 20 16 21 22 42 22 529 21 26 1 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PANEL ASM; FRT
THA 		8-97916-249-0 01 1 0009- ● ● ●
6 PANEL; FRONT
THA 		8-97916-511-0 01 1 0009- ● ● ●
16 PANEL; FRONT,SIDE
THA 		8-97916-298-0 01 1 0009- ● ● ●
16 PANEL; FRONT,SIDE
THA 		8-97916-299-0 01 1 0009- ● ● ●
20 CLIP; FRT PANEL SIDE 8-94279-814-0 04 1 0009- ● ● ●
21 GROMMET; SCREW,FRT SIDE PANEL
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0009- ● ● ●
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0009- ● ● ●
23 PIECE; DIST,FRT PANEL SIDE
H=10 L=55 		8-97857-444-0 02 1 0009- ● ● ●
26 PANEL; REINF,FRT PANEL CENTER,INNER 8-97851-275-0 01 1 0009- ● ● ●
42 FINISHER; FRT PANEL,SIDE 8-97857-413-0 02 1 0009- ● ● ●
521 PLUG; HOLE,FENDER
MANUAL TILT CAB<RWZ> OD=15 L=14.5 		1-76378-157-0 03 1 0009-0304 ● ● ●
522 PROTECTOR; SILL SIDE
DARK GRAY 		8-97857-840-3 01 1 0009- ● ● ●
525 SEAL; FENDER
MANUAL TILT CAB<RWZ> OD=25 BLACK THA 		1-76798-019-0 03 1 0305- ● ● ●
529 REINFORCEMENT; PANEL
THA 		8-97867-730-0 01 1 0009- ● ● ●
530 STOPPER; FRT PANEL,SIDE 8-97856-589-0 02 1 0009- ● ● ●
