◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#48705) — 14 parça

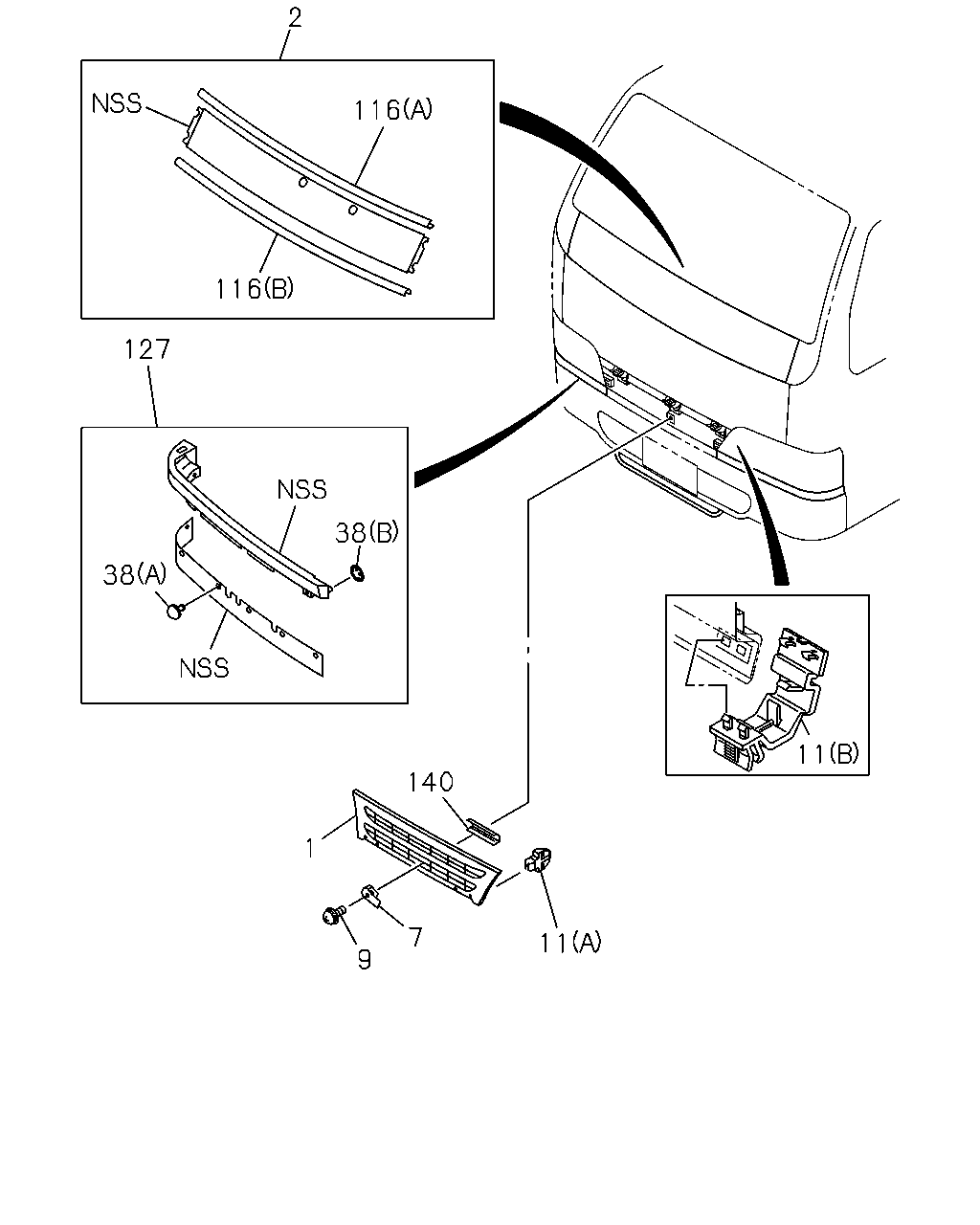

çizim 47217
2 116 116 127 38 38 11 140 1 7 11 9
BalonParca AdiParca NoAdetTipApplied Date A B C
1 GRILLE; RAD
BODY COLOR MARINE BLUE<890> THA 		8-97915-048-0 01 1 0009- ● ● ●
2 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-328-3 01 1 0009- ● ● ●
2 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-464-3 01 1 0009- ● ● ●
7 NUT; SPIRE,RAD GRILLE 8-97805-829-0 01 1 0009- ● ● ●
9 SCREW; RAD GRILLE
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 0009- ● ● ●
11 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 04 1 0009- ● ● ●
11 CLIP; RAD GRILLE
BODY COLOR MARINE BLUE<890> (A) THA 		8-97915-180-0 02 1 0009- ● ● ●
38 CLIP; GRILLE
BODY COLOR MARINE BLUE<890> (B) THA 		8-97915-181-0 01 1 0009- ● ● ●
38 CLIP; GRILLE
BODY COLOR MARINE BLUE<890> (A) THA 		8-97915-182-0 09 1 0009- ● ● ●
116 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-098-4 01 1 0009- ● ● ●
116 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-096-2 01 1 0009- ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE<890> THA 		8-97915-054-0 01 1 0009- ● ● ●
127 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE<890> THA 		8-97915-055-0 01 1 0009- ● ● ●
140 SEAL; RAD GRILLE
BODY COLOR MARINE BLUE<890> THA 		8-97915-179-0 01 1 0009- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
