6-01 — FRONT BUMPER (#48704) — 32 parça

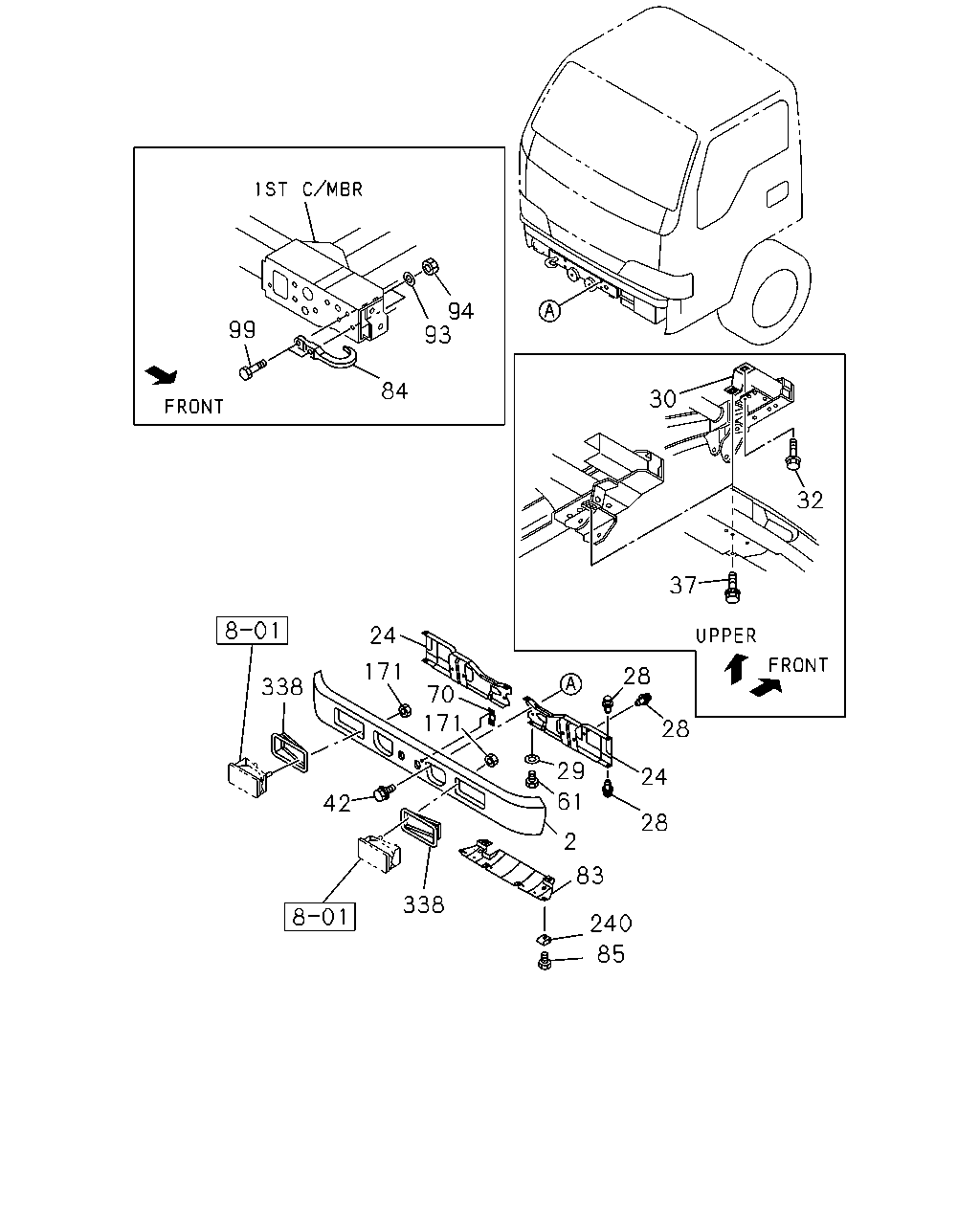

çizim 51831
94 93 99 84 30 32 37 24 171 28 70 171 338 28 29 24 61 42 28 2 83 338 240 85
BalonParca AdiParca NoAdetTipApplied Date A B C
2 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97196-162-0 01 1 0009-0206 ● ● ●
2 BUMPER; FRT,CENTER
FOG LAMP<T96> DARK GRAY 		8-97999-025-0 01 1 0207- ● ● ●
2 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97196-172-0 01 1 0009-0206 ● ● ●
2 BUMPER; FRT,CENTER
EXC. FOG LAMP<T96> DARK GRAY 		8-97999-013-0 01 1 0207- ● ● ●
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-671-4 01 1 0009- ● ● ●
24 BAR; FRT BUMPER
FOG LAMP<T96> 		8-97073-672-4 01 1 0009- ● ● ●
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-796-5 01 1 0009- ● ● ●
24 BAR; FRT BUMPER
EXC. FOG LAMP<T96> 		8-97039-797-5 01 1 0009- ● ● ●
28 FASTENER; BACK BAR
D5.8 SCREW & GROMMET NYLON THA 		8-94242-150-0 08 1 0009- ● ● ●
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 02 1 0009- ● ● ●
30 BRACKET; FRT BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97093-639-3 02 1 0009- ●
30 BRACKET; FRT BUMPER 8-97093-639-3 02 1 0009- ●
32 BOLT; BRKT,BUMPER
EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0009- ● ● ●
42 BOLT; BUMPER
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0009- ● ● ●
61 BOLT; BACK BAR
M8X18 W/LK WASHER 		0-50040-818-0 02 1 0009- ● ● ●
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0009- ● ● ●
83 GUIDE; AIR,FRT BUMPER 8-97076-719-2 01 1 0009- ● ● ●
84 HOOK
FRAME STRAIGHT TYPE<7KJ> THA 		8-97918-519-0 01 1 0009- ●
84 HOOK
THA 		8-97918-519-0 01 1 0009- ●
84 HOOK
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97918-518-0 01 1 0009- ●
84 HOOK
THA 		8-97918-518-0 01 1 0009- ●
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER THA 		8-97012-072-0 04 1 0009- ● ● ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0009- ● ● ●
94 NUT; HOOK
M14 		9-99110-514-0 02 1 0009- ● ● ●
99 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0009- ● ● ●
171 NUT; BACK BAR
FOG LAMP<T96> M8 FLANGE 		1-09464-018-1 06 1 0009- ● ● ●
171 NUT; BACK BAR
EXC. FOG LAMP<T96> M8 FLANGE 		1-09464-018-1 02 1 0009- ● ● ●
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT 		8-97210-973-1 04 1 0009- ● ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-837-0 01 1 0009- ● ● ●
338 BEZEL; FOG LAMP
FOG LAMP<T96> DARK GRAY 		8-97866-838-0 01 1 0009- ● ● ●
