◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 5 - Frame, Cab Mounting ▶ 5-15 - CAB MOUNTING; CAB SIDE ▶
5-15 — CAB MOUNTING; CAB SIDE (#48701) — 93 parça
çizim 11547
15 12 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> HYDRO BRAKE BOOSTER<7QQ> 		8-97188-906-2 01 1 0009- ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97188-906-2 01 1 0009- ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> HYDRO MASTER<7LT> 		8-97188-907-2 01 1 0009- ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97188-908-2 01 1 0009- ●
1 LEVER; TORSION BAR
MANUAL TILT CAB<RWZ> 		8-97188-908-2 01 1 0009- ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X50 		8-94401-729-1 06 1 0009-0111 ● ● ●
3 BOLT; LEVER
MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER 		8-97326-378-0 06 1 0112- ● ● ●
12 BAR; TORSION,UPR
MANUAL TILT CAB<RWZ> 		8-97261-871-0 01 1 0009- ● ● ●
15 RING; SNAP,TORSION BAR
MANUAL TILT CAB<RWZ> 		8-94258-173-0 02 1 0009- ● ● ●
çizim 12410
152
BalonParca AdiParca NoAdetTipApplied Date A B C
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=19 THA 		8-94279-055-0 02 1 0009-0210 ● ● ●
152 GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK THA 		1-76798-019-0 02 1 0211- ● ● ●
çizim 12987
17 275 16 17 275 275 18 275 18
BalonParca AdiParca NoAdetTipApplied Date A B C
16 DAMPER; DYNAMIC
4HG1 ENG<RJH> 		8-97031-817-2 01 1 0009- ●
16 DAMPER; DYNAMIC 8-97031-817-2 01 1 0009- ●
17 BOLT; DAMPER
4HG1 ENG<RJH> M8X35 FLANGE 		0-28680-835-0 02 1 0009- ●
17 BOLT; DAMPER
M8X35 FLANGE 		0-28680-835-0 02 1 0009- ●
18 NUT; DAMPER
4HG1 ENG<RJH> M8 		9-09110-408-0 02 1 0009- ●
18 NUT; DAMPER
M8 		9-09110-408-0 02 1 0009- ●
275 BRACKET; DYNAMIC DAMPER
4HG1 ENG<RJH> (A) 		8-97031-818-0 02 1 0009- ●
275 BRACKET; DYNAMIC DAMPER
(A) 		8-97031-818-0 02 1 0009- ●
275 BRACKET; DYNAMIC DAMPER
4HG1 ENG<RJH> (B) 		8-97032-026-0 02 1 0009- ●
275 BRACKET; DYNAMIC DAMPER
(B) 		8-97032-026-0 02 1 0009- ●

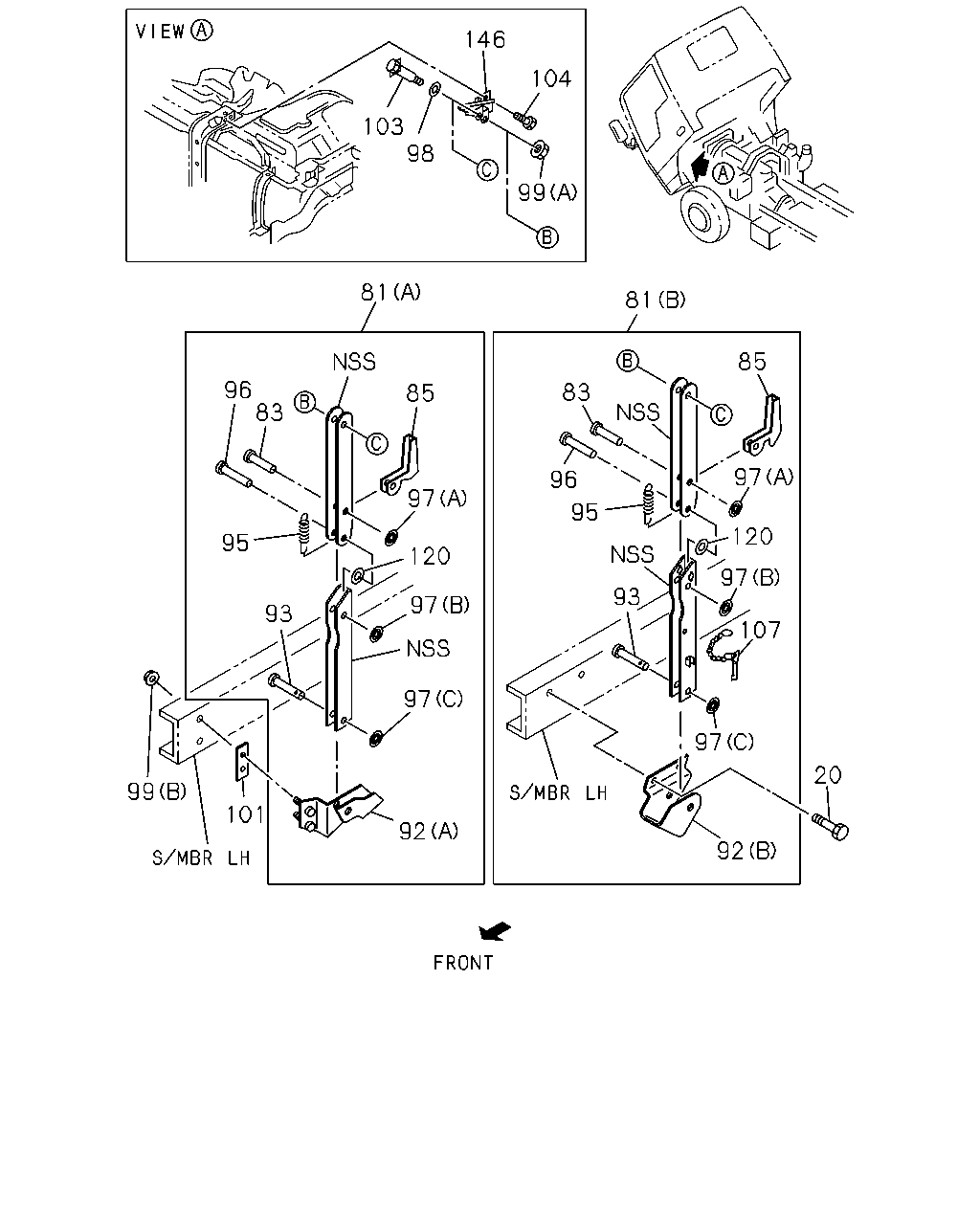

çizim 47253
146 104 103 98 99 81 81 85 96 83 83 85 97 96 97 95 120 95 120 97 93 97 93 107 97 97 20 99 101 92 92
BalonParca AdiParca NoAdetTipApplied Date A B C
20 BOLT
FRAME STRAIGHT TYPE<7KJ> M10X40 W/WASHER 		8-94411-010-0 02 1 0009- ●
20 BOLT
M10X40 W/WASHER 		8-94411-010-0 02 1 0009- ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97120-943-0 01 1 0009- ●
81 STAY ASM; CAB TILT
MANUAL TILT CAB<RWZ> (A) 		8-97120-943-0 01 1 0009- ●
81 STAY ASM; CAB TILT
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97073-880-1 01 1 0009- ●
81 STAY ASM; CAB TILT
(B) 		8-97073-880-1 01 1 0009- ●
83 PIN; JOINT,CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 0009- ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=8 L=32 		8-97039-548-0 01 1 0009- ●
83 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> OD=8 L=32 		8-97039-548-0 01 1 0009- ●
83 PIN; JOINT,CAB STAY
OD=8 L=32 		8-97039-548-0 01 1 0009- ●
85 LEVER; LOCK,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 0009- ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94331-481-0 01 1 0009- ●
85 LEVER; LOCK,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94331-481-0 01 1 0009- ●
85 LEVER; LOCK,CAB STAY 8-94331-481-0 01 1 0009- ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97096-653-0 01 1 0009- ●
92 BRACKET; CAB STAY TO FRAME
MANUAL TILT CAB<RWZ> (A) 		8-97096-653-0 01 1 0009- ●
92 BRACKET; CAB STAY TO FRAME
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97108-760-1 01 1 0009- ●
92 BRACKET; CAB STAY TO FRAME
(B) 		8-97108-760-1 01 1 0009- ●
93 PIN; CAB STAY
FRAME STRAIGHT TYPE<7KJ> OD=12 L=53 		8-97218-926-0 01 1 0009- ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=12 L=53 		8-97218-926-0 01 1 0009- ●
93 PIN; CAB STAY
MANUAL TILT CAB<RWZ> OD=12 L=53 		8-97218-926-0 01 1 0009- ●
93 PIN; CAB STAY
OD=12 L=53 		8-97218-926-0 01 1 0009- ●
95 SPRING; RETURN,CAB STAY
FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 0009- ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94160-167-2 01 1 0009- ●
95 SPRING; RETURN,CAB STAY
MANUAL TILT CAB<RWZ> 		8-94160-167-2 01 1 0009- ●
95 SPRING; RETURN,CAB STAY 8-94160-167-2 01 1 0009- ●
96 PIN; JOINT
FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 0009- ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> OD=10 L=36 		8-97096-661-0 01 1 0009- ●
96 PIN; JOINT
MANUAL TILT CAB<RWZ> OD=10 L=36 		8-97096-661-0 01 1 0009- ●
96 PIN; JOINT
OD=10 L=36 		8-97096-661-0 01 1 0009- ●
97 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0009- ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0009- ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0009- ●
97 NUT; CAB STAY PIN
(A) ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0009- ●
97 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0009- ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0009- ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0009- ●
97 NUT; CAB STAY PIN
(B) ID=9.9 PUSH NUT 		8-97022-566-0 01 1 0009- ●
97 NUT; CAB STAY PIN
FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0009- ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0009- ●
97 NUT; CAB STAY PIN
MANUAL TILT CAB<RWZ> (C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0009- ●
97 NUT; CAB STAY PIN
(C) ID=11.9 PUSH NUT 		8-97022-567-0 01 1 0009- ●
98 WASHER; CAB STAY
MANUAL TILT CAB<RWZ> ID=10.5 OD=28.0 		8-97184-701-0 01 1 0009- ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (A) M10 		8-97185-205-1 01 1 0009- ● ● ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M10 FLANGE 		0-91150-110-0 02 1 0009- ●
99 NUT; CAB STAY
MANUAL TILT CAB<RWZ> (B) M10 FLANGE 		0-91150-110-0 02 1 0009- ●
101 SPACER
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94121-864-1 01 1 0009- ●
101 SPACER
MANUAL TILT CAB<RWZ> 		8-94121-864-1 01 1 0009- ●
103 PIN; JOINT,CAB STAY
MANUAL TILT CAB<RWZ> M10X40 		8-97184-683-0 01 1 0009- ● ● ●
104 BOLT; CAB STAY BRKT
MANUAL TILT CAB<RWZ> M8X20 FLANGE 		0-28690-820-0 03 1 0009- ● ● ●
107 PIN; LK LEVER
FRAME STRAIGHT TYPE<7KJ> 		8-94331-482-0 01 1 0009- ●
107 PIN; LK LEVER 8-94331-482-0 01 1 0009- ●
120 WASHER; NYLON
FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 0009- ●
120 WASHER; NYLON
MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 OD=20 		8-97103-223-0 01 1 0009- ●
120 WASHER; NYLON
MANUAL TILT CAB<RWZ> ID=10 OD=20 		8-97103-223-0 01 1 0009- ●
120 WASHER; NYLON
ID=10 OD=20 		8-97103-223-0 01 1 0009- ●
146 BRACKET ASM; CAB STAY UPR
MANUAL TILT CAB<RWZ> THA 		8-97912-577-0 01 1 0009- ● ● ●

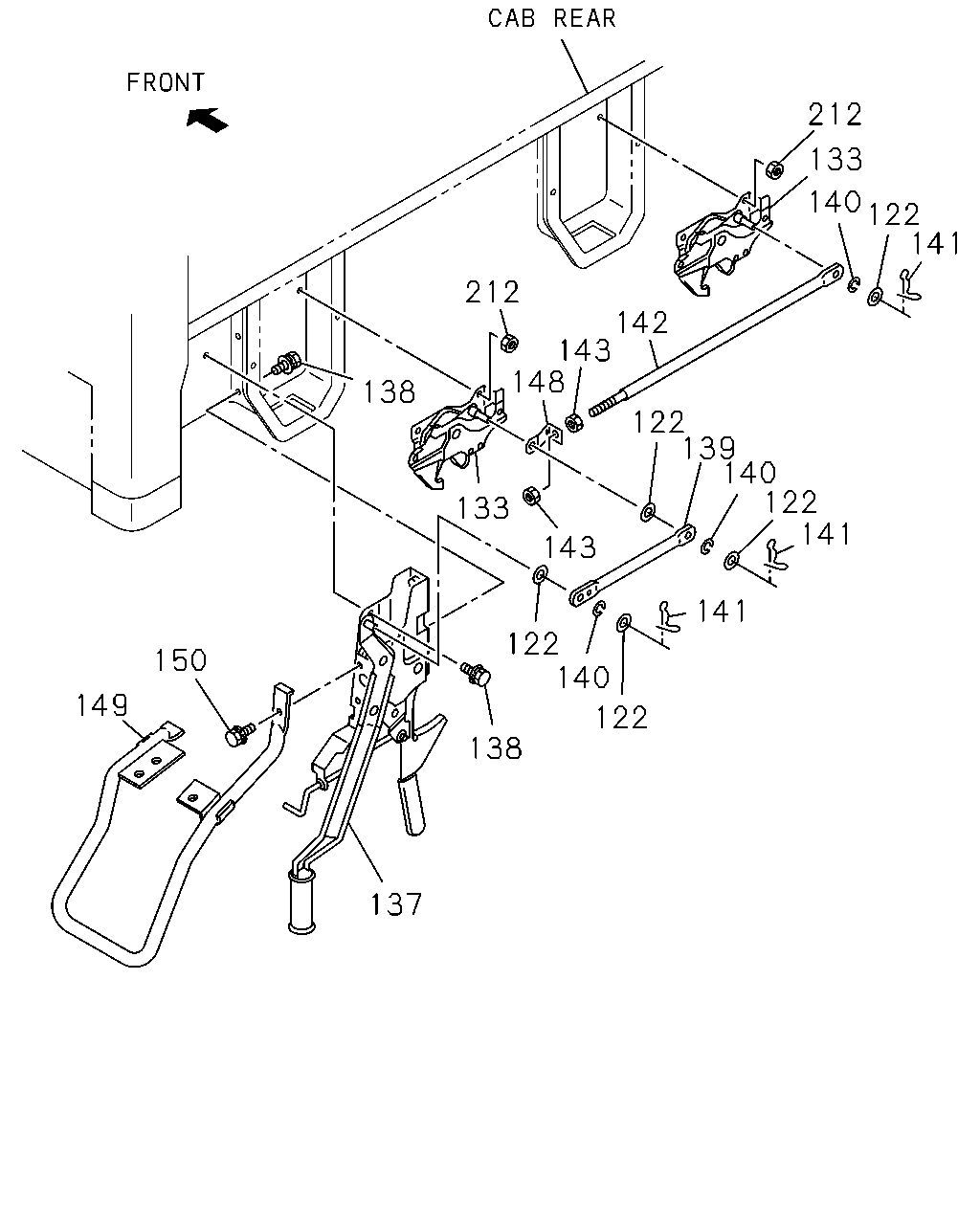

çizim 51990
212 133 140 122 141 212 142 143 148 138 122 139 140 122 141 133 143 141 122 140 150 149 122 138 137
BalonParca AdiParca NoAdetTipApplied Date A B C
122 WASHER; PL,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=12.5 OD=22 		8-94279-627-0 05 1 0009- ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-055-7 01 1 0009- ● ● ●
133 LOCK ASM; CAB
MANUAL TILT CAB<RWZ> 		8-97853-056-6 01 1 0009- ● ● ●
137 CONTROL UNIT; CAB LOCK
MANUAL TILT CAB<RWZ> 		8-97853-051-8 01 1 0009- ● ● ●
138 BOLT; CAB LOCK CONT UNIT
MANUAL TILT CAB<RWZ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0009- ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97853-053-1 01 1 0009-0302 ● ● ●
139 ROD; CAB LOCK,LEVER TO HOOK
MANUAL TILT CAB<RWZ> 		8-97997-597-0 01 1 0303- ● ● ●
140 WASHER; LK,CAB LOCK ROD
MANUAL TILT CAB<RWZ> ID=13 OD=22 		8-94279-629-0 03 1 0009- ● ● ●
141 PIN; SNAP,CAB LOCK ROD
MANUAL TILT CAB<RWZ> 		1-09987-158-1 03 1 0009- ● ● ●
142 ROD; HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		1-79718-581-0 01 1 0009- ● ● ●
143 NUT; JAW JOINT,HOOK TO HOOK
MANUAL TILT CAB<RWZ> M10 		1-09984-142-0 02 1 0009- ● ● ●
148 JOINT; JAW,HOOK TO HOOK
MANUAL TILT CAB<RWZ> 		8-97856-106-0 01 1 0009- ● ● ●
149 HANDLE; TILT
MANUAL TILT CAB<RWZ> THA 		8-97912-575-0 01 1 0009- ● ● ●
150 BOLT; TILT HANDLE
MANUAL TILT CAB<RWZ> M8X25 FLANGE 		0-28680-825-0 03 1 0009- ● ● ●
212 NUT; BRKT,CAB LOCK
MANUAL TILT CAB<RWZ> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 08 1 0009- ● ● ●
