5-10 — CAB MOUNTING; FRAME SIDE (#48700) — 69 parça

7 1 7 20 1 20 104 7 23 105 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-358-1	01	1	0009-	●	●	●
1	BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97101-359-0	01	1	0009-	●	●	●
7	BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0009-	●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0009-			●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0009-	●	●	●
20	RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97095-148-0	02	1	0009-	●	●	●
23	NUT; MTG BRKT MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	02	1	0009-	●
23	NUT; MTG BRKT MANUAL TILT CAB<RWZ> M12 FLANGE	0-91150-112-0	02	1	0009-		●
104	BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0009-	●	●	●
105	BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0009-	●	●	●

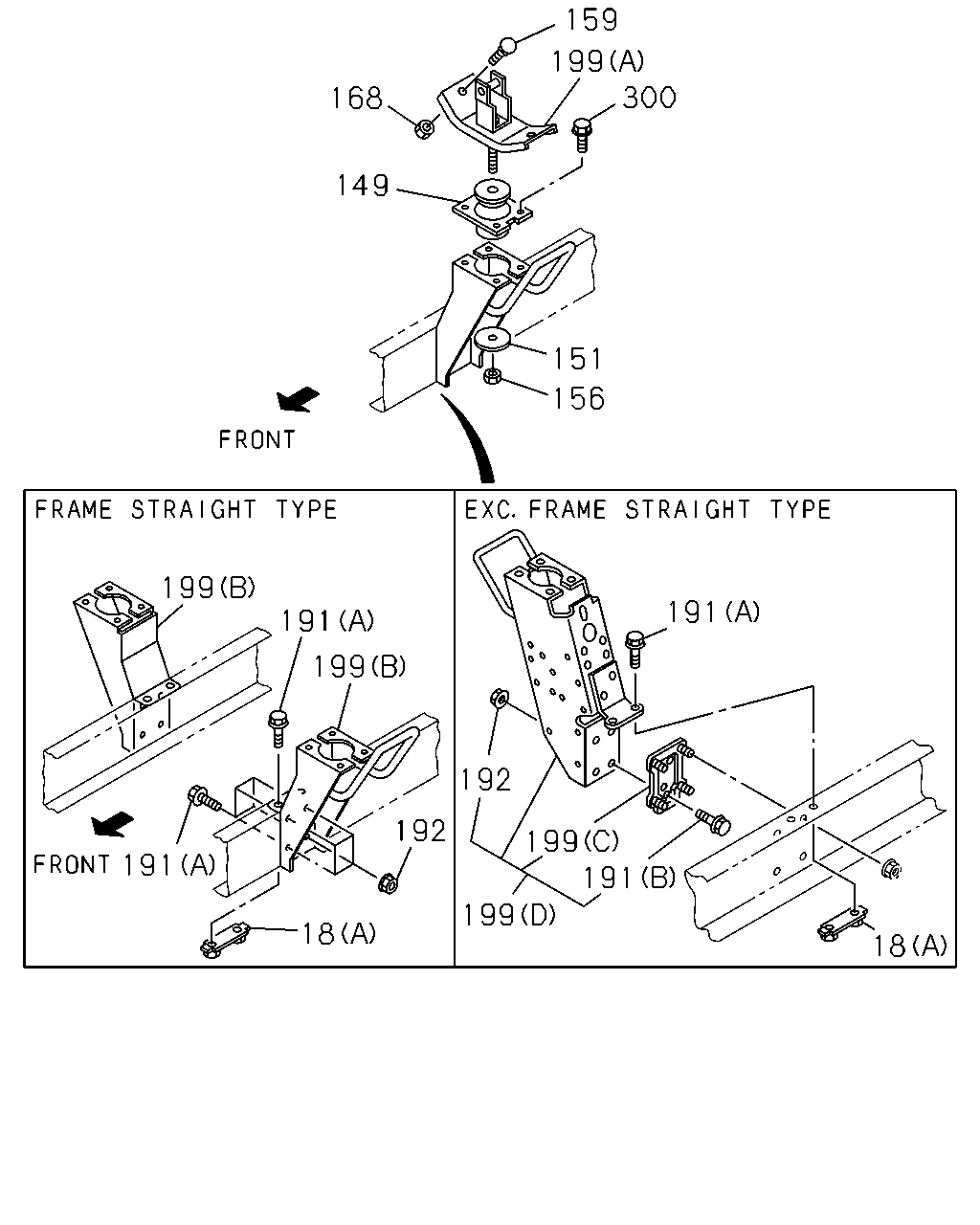

159 199 300 168 149 151 156 199 191 191 199 192 192 199 191 191 199 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-139-2	01	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-140-2	01	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0009-	●	●	●
18	PLATE; MTG BRKT FIX FRAME STRAIGHT TYPE<7KJ> (D)	8-97130-348-1	01	1	0009-	●
18	PLATE; MTG BRKT FIX (D)	8-97130-348-1	01	1	0009-			●
18	PLATE; MTG BRKT FIX (A)	8-97034-139-2	02	1	0009-	●	●	●
149	RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> THA	8-97916-740-0	02	1	0009-	●	●	●
151	WASHER; CAB MTG,RR UPR MANUAL TILT CAB<RWZ> ID=16.4 OD=62	8-97034-382-0	02	1	0009-	●	●	●
156	NUT; CAB MTG RR MANUAL TILT CAB<RWZ> M16	9-99111-416-0	02	1	0009-	●	●	●
159	RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0009-	●	●	●
168	NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> M8 FLANGE	0-91150-108-0	04	1	0009-	●	●	●
191	BOLT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> (A) M12X40 FLANGE	0-28681-240-0	08	1	0009-	●
191	BOLT; BRKT FIX (A) M12X40 FLANGE	0-28681-240-0	08	1	0009-			●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (A) M12X40 FLANGE	0-28681-240-0	04	1	0009-	●
191	BOLT; BRKT FIX (A) M12X40 FLANGE	0-28681-240-0	04	1	0009-		●
191	BOLT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> (B) M12X30 FLANGE	0-28681-230-0	04	1	0009-	●
191	BOLT; BRKT FIX (B) M12X30 FLANGE	0-28681-230-0	04	1	0009-		●
192	NUT; BRKT FIX MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	04	1	0009-	●
192	NUT; BRKT FIX MANUAL TILT CAB<RWZ> M12 FLANGE	0-91150-112-0	04	1	0009-		●
192	NUT; BRKT FIX FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	08	1	0009-	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	08	1	0009-			●
192	NUT; BRKT FIX EXC. FRAME STRAIGHT TYPE<7KJ> M12 FLANGE	0-91150-112-0	12	1	0009-	●
192	NUT; BRKT FIX M12 FLANGE	0-91150-112-0	12	1	0009-		●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> (B) THA	8-97912-867-3	01	1	0009-	●
199	BRACKET; CAB RR MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> THA	8-97326-514-0	01	1	0212-	●
199	BRACKET; CAB RR MTG CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> THA	8-97326-514-0	01	1	0212-			●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0009-	●	●	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97326-520-0	01	1	0212-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> THA	8-97326-520-0	01	1	0212-		●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> THA	8-97326-513-0	01	1	0212-	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> THA	8-97326-513-0	01	1	0212-			●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> THA	8-97326-512-0	01	1	0212-	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> THA	8-97326-512-0	01	1	0212-			●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. HYDRO BRAKE BOOSTER<7QQ> THA	8-97326-511-0	01	1	0212-	●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97172-533-2	01	1	0009-0211	●
199	BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> (B)	8-97172-533-2	01	1	0009-0211			●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> THA	8-97326-510-0	01	1	0212-	●
199	BRACKET; CAB RR MTG EXC. TIRE SIZE 8.25-16<7QP> THA	8-97326-510-0	01	1	0212-			●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97326-522-0	01	1	0212-	●
199	BRACKET; CAB RR MTG THA	8-97326-522-0	01	1	0212-		●
199	BRACKET; CAB RR MTG 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> (B) THA	8-97920-936-1	01	1	0009-	●
199	BRACKET; CAB RR MTG CHARGE AIR COOLER<6PL> TIRE SIZE 8.25-16<7QP> (B) THA	8-97920-936-1	01	1	0009-			●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97917-244-1	01	1	0009-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97917-244-1	01	1	0009-	●
199	BRACKET; CAB RR MTG (C) THA	8-97917-244-1	01	1	0009-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (C) THA	8-97917-244-1	01	1	0009-		●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA	8-97910-254-1	01	1	0009-	●
199	BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (D) THA	8-97910-254-1	01	1	0009-		●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (B) THA	8-97912-868-4	01	1	0009-	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> EXC. CHARGE AIR COOLER<6PL> (B) THA	8-97912-868-4	01	1	0009-			●
199	BRACKET; CAB RR MTG FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> HYDRO BRAKE BOOSTER<7QQ> (B) THA	8-97920-937-2	01	1	0009-	●
199	BRACKET; CAB RR MTG TIRE SIZE 8.25-16<7QP> (B) THA	8-97920-937-2	01	1	0009-			●
199	BRACKET; CAB RR MTG EXC. FRAME STRAIGHT TYPE<7KJ> (D) THA	8-97910-255-1	01	1	0009-	●
199	BRACKET; CAB RR MTG (D) THA	8-97910-255-1	01	1	0009-		●
300	BOLT; MTG RUBBER M10X20 FLANGE	0-28681-020-0	08	1	0009-	●	●	●
