2-01 — CLUTCH (#487) — 274 parça

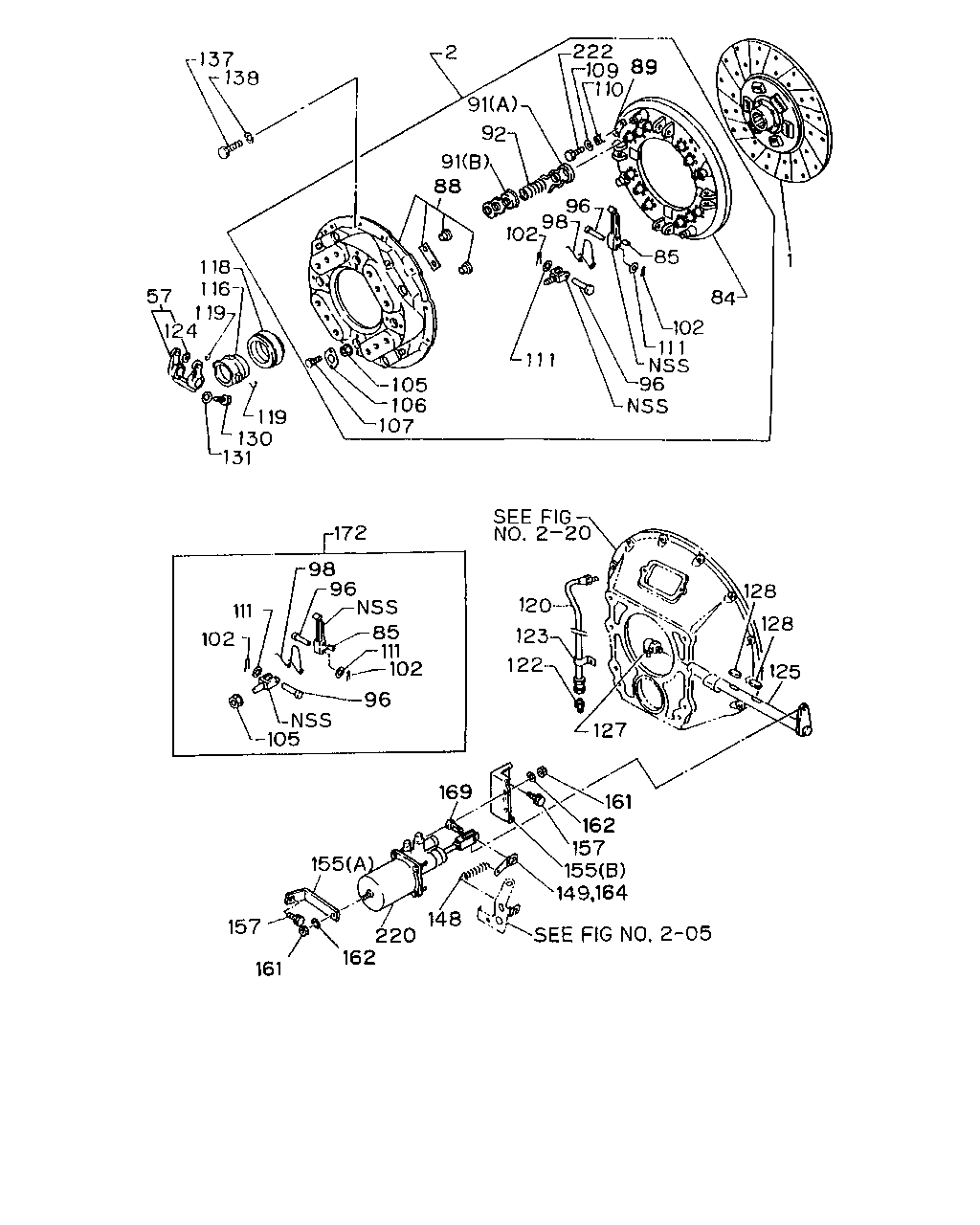

137 138 2 222 89 109 110 91 92 91 88 96 98 102 85 84 102 111 96 111 105 106 107 119 130 131 57 124 118 116 119 172 98 96 85 111 102 96 111 102 105 120 123 122 127 128 128 125 161 162 157 155 149 164 148 220 162 161 157 155 169 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 17"	1-31240-287-0	01	1	8902-9001	●
1	DISC; CLUTCH 17"	1-31240-542-0	01	1	9002-9011		●
1	DISC; CLUTCH 17"	1-31240-395-0	01	1	9012-		●
1	DISC; CLUTCH 10PC1 STD ENG(10L),6RA1TC ENG(19L),6RB1 TURBO ENG(33L) (A) FRONT 14"	1-31240-327-0	01	1	8712-9001			●	●
1	DISC; CLUTCH 10PC1 STD ENG(10L),6RA1TC ENG(19L),6RB1 TURBO ENG(33L) (B) REAR 14"	1-31240-328-0	01	1	8712-9001			●	●
1	DISC; CLUTCH 6RB1TC ENG(30L) (A) FRONT 14"	1-31240-348-0	01	1	8712-			●	●	●	●
1	DISC; CLUTCH 6RB1TC ENG(30L) (B) REAR 14"	1-31240-349-0	01	1	8712-			●	●	●	●
1	DISC; CLUTCH 6RA1TC ENG(19L) (A) FRONT 14"	1-31240-327-0	01	1	9002-9003			●
1	DISC; CLUTCH 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) FRONT 14"	1-31240-327-0	01	1	9004-9306			●
1	DISC; CLUTCH 6RA1TC ENG(19L) (B) REAR 14"	1-31240-328-0	01	1	9002-9003			●
1	DISC; CLUTCH 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 14"	1-31240-328-0	01	1	9004-9306			●
1	DISC; CLUTCH 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (A) FRONT 14"	1-31240-554-0	01	1	9004-9306			●
1	DISC; CLUTCH 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B) REAR 14"	1-31240-555-0	01	1	9004-9306			●
2	PLATE ASM; PRESSURE,CLU	1-31220-221-0	01	1	8902-9001	●
2	PLATE ASM; PRESSURE,CLU	1-31220-227-1	01	1	9002-		●
2	PLATE ASM; PRESSURE,CLU 10PC1 STD ENG(10L)	1-31220-141-2	01	1	8712-9001				●
2	PLATE ASM; PRESSURE,CLU 6RA1TC ENG(19L),6RB1 TURBO ENG(33L)	1-31220-142-1	01	1	8712-9003			●	●
2	PLATE ASM; PRESSURE,CLU 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-31220-142-1	01	1	9004-9306			●
2	PLATE ASM; PRESSURE,CLU 6RB1TC ENG(30L)	1-31220-186-0	01	1	8712-9003			●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1TC ENG(30L)	1-31220-186-0	01	1	9004-9306			●		●	●
2	PLATE ASM; PRESSURE,CLU 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5)	1-31220-186-0	01	1	9004-9306			●
2	PLATE ASM; PRESSURE,CLU 6RB1TC ENG(30L)	1-31220-186-0	01	1	9307-			●		●
57	FORK; SHIFT,CLU	1-31341-029-0	01	1	8902-9001	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-		●
57	FORK; SHIFT,CLU	1-31341-020-0	01	1	8712-			●	●	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	8902-	●	●
84	PLATE; PRESSURE	1-31221-088-0	01	1	8712-			●	●	●	●
85	BUSHING; RELEASE LEVER	1-31239-003-0	08	1	8902-	●	●
88	COVER SUB ASM; CLU	1-31210-008-0	01	1	9002-		●
89	PLATE; STRAP	1-31229-005-0	12	1	8902-9001	●
91	SEAT; SPR (A)	1-31219-032-0	04	1	8902-	●	●
91	SEAT; SPR (B)	1-31219-033-0	04	1	8902-	●	●
92	SPRING; CLU	1-09580-273-0	12	1	8902-9001	●
92	SPRING; CLU	1-31214-026-0	12	1	9002-		●
92	SPRING; CLU	1-31214-043-0	06	1	8712-			●	●	●	●
96	PIN; RELEASE LEVER L=77	1-31232-010-0	08	1	8902-	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	8902-	●	●
98	SPRING; RETURN	1-31233-008-0	04	1	8712-			●	●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08113-022-0	08	1	8902-	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	8902-	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-002-0	04	1	8902-9007	●	●
106	PLATE; LK,LEVER SUPPORT	1-31239-019-0	04	1	9008-		●
107	BOLT; LK PLATE	1-31239-010-0	08	1	8902-9007	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	9008-		●
109	WASHER; LK,STRAP ID=12.2	9-09150-512-0	04	1	8902-	●	●
110	WASHER; SPECIAL,STRAP ID=12	1-31229-006-0	04	1	8902-	●	●
111	WASHER; PL,STRAP ID=14	9-09651-098-0	08	1	8902-	●	●
116	BLOCK; SHIFT,CLU	1-31321-039-0	01	1	8902-9001	●
116	BLOCK; SHIFT,CLU	1-31321-067-0	01	1	9002-9003		●
116	BLOCK; SHIFT,CLU	1-31321-073-2	01	1	9004-		●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	8902-9001	●
118	BEARING; CLU RELEASE	1-09820-080-0	01	1	9002-9003		●
118	BEARING; CLU RELEASE	9-00095-044-1	01	1	9004-		●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	8902-9001	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	8902-9001	●
119	SPRING; SHIFT FORK	1-31329-019-0	01	1	9002-		●
119	SPRING; SHIFT FORK	1-31329-018-0	01	1	9002-		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=500	1-09364-651-0	01	1	8902-	●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK PT1/8 STRAIGHT	9-09031-010-0	01	1	8902-	●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK	9-09917-576-0	01	1	8902-	●	●
124	BEARING; CAM,SHIFT FORK	1-31349-011-1	02	1	9002-		●
125	SHAFT; CLU	1-31342-202-0	01	1	8902-9001	●
125	SHAFT; CLU	1-31342-240-1	01	1	9002-		●
125	SHAFT; CLU (B)	1-31342-085-0	01	1	8712-9412			●	●	●	●
125	SHAFT; CLU (B)	1-31342-283-0	01	1	9501-			●		●
125	SHAFT; CLU (A)	1-31342-134-0	01	1	8712-9001			●	●	●	●
125	SHAFT; CLU (A)	1-31342-246-0	01	1	9307-9412			●		●
125	SHAFT; CLU (A)	1-31342-285-0	01	1	9501-			●		●
125	SHAFT; CLU (A)	1-31342-246-0	01	1	9002-9007			●		●	●
125	SHAFT; CLU COUNTER SHAFT BRAKE<BAP> (A)	1-31342-246-0	01	1	9008-9306			●
125	SHAFT; CLU CLUTCH BRAKE<BBG> (A)	1-31342-134-0	01	1	9008-9306			●		●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	8902-9412	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9501-		●	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	8902-9001	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-		●
128	KEY; FEATHER,CLU SHAFT	1-31349-007-0	02	1	8712-			●	●	●	●
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	8902-	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	8902-	●	●
131	WASHER; LK,SHIFT FORK ID=11.4	9-09850-072-0	02	1	8712-			●	●	●	●
137	BOLT; CLU COVER M10X25	9-02351-025-0	24	1	8902-9001	●
137	BOLT; CLU COVER M10X25	9-02351-025-0	12	1	9002-9002		●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9003-9504		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-		●
137	BOLT; CLU COVER M16X28	1-09087-026-0	08	1	8712-			●	●	●	●
138	WASHER; LK,CLU COVER	9-09150-510-0	12	1	8902-9504	●	●
138	WASHER; LK,CLU COVER	1-09500-020-0	08	1	8712-			●	●	●	●
148	SPRING; CLU RETURN	1-09583-212-0	01	1	8902-9001	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-		●
148	SPRING; CLU RETURN	9-09744-034-0	01	1	8712-			●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-		●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	8712-			●	●	●	●
155	BRACKET; MINIPACK (B)	1-31429-225-0	01	1	8902-9001	●
155	BRACKET; MINIPACK (A)	1-31429-273-0	01	1	8902-9001	●
155	BRACKET; MINIPACK (B)	1-31429-288-0	01	1	9002-		●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9002-		●
155	BRACKET; MINIPACK (D)	1-31429-215-0	01	1	8712-9001			●	●
155	BRACKET; MINIPACK (C)	1-31429-066-0	01	1	8712-9206			●	●	●	●
155	BRACKET; MINIPACK (C)	1-31429-344-0	01	1	9207-9306			●		●	●
155	BRACKET; MINIPACK (B)	1-31429-116-0	01	1	8712-9206			●	●	●	●
155	BRACKET; MINIPACK (D)	1-31429-343-0	01	1	9307-			●		●
155	BRACKET; MINIPACK (C)	1-31429-344-0	01	1	9307-			●		●
155	BRACKET; MINIPACK (D)	1-31429-300-0	01	1	9002-9006			●		●	●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (D)	1-31429-300-0	01	1	9007-9206			●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (D)	1-31429-343-0	01	1	9207-9306			●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (D)	1-31429-215-0	01	1	9007-9206			●		●	●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (D)	1-31429-342-0	01	1	9207-9306			●		●	●
157	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	03	1	8902-9002	●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9003-9205		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-		●
157	BOLT; BRKT M10X18	9-02051-018-0	01	1	8712-9001			●	●
157	BOLT; BRKT M10X25	9-02051-025-0	02	1	8712-9001			●	●
157	BOLT; BRKT M10X25 W/LK WASHER	9-01931-025-0	04	1	8712-9002			●	●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9003-9206			●		●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	05	1	9207-			●		●	●
157	BOLT; BRKT M10X18	9-02051-018-0	03	1	9002-9002			●		●	●
157	BOLT; BRKT M10X18	0-20801-018-0	03	1	9003-9006			●		●	●
157	BOLT; BRKT COUNTER SHAFT BRAKE<BAP> M10X18	0-20801-018-0	03	1	9007-9206			●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X18	0-20801-018-0	01	1	9007-9206			●		●	●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X25	0-20801-025-0	02	1	9007-9206			●		●	●
161	NUT; BRKT M10	9-09110-410-0	03	1	8902-9205	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-		●
161	NUT; BRKT CLUTCH BRAKE<BBG> M10	9-09110-510-0	02	1	9007-9206			●		●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	8712-9001			●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205		●	●		●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9206-9206			●		●	●
164	EYE; SPRING	1-31426-010-0	01	1	8712-9001	●
164	EYE; SPRING	1-31426-016-1	01	1	8712-			●	●	●	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	8902-9001	●
169	PIN; JOINT,MINIPACK	1-31424-001-1	01	1	9002-9312		●
169	PIN; JOINT,MINIPACK	1-31424-009-0	01	1	9401-		●
172	LEVER KIT; RELEASE,CLU	1-87830-526-1	01	1	8712-	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-257-0	01	1	8902-9001	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-344-0	01	1	9002-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-224-0	01	1	8712-9006			●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-351-0	01	1	9007-			●		●	●
222	BOLT; STRAP M12X30	1-09040-016-0	04	1	8902-	●	●

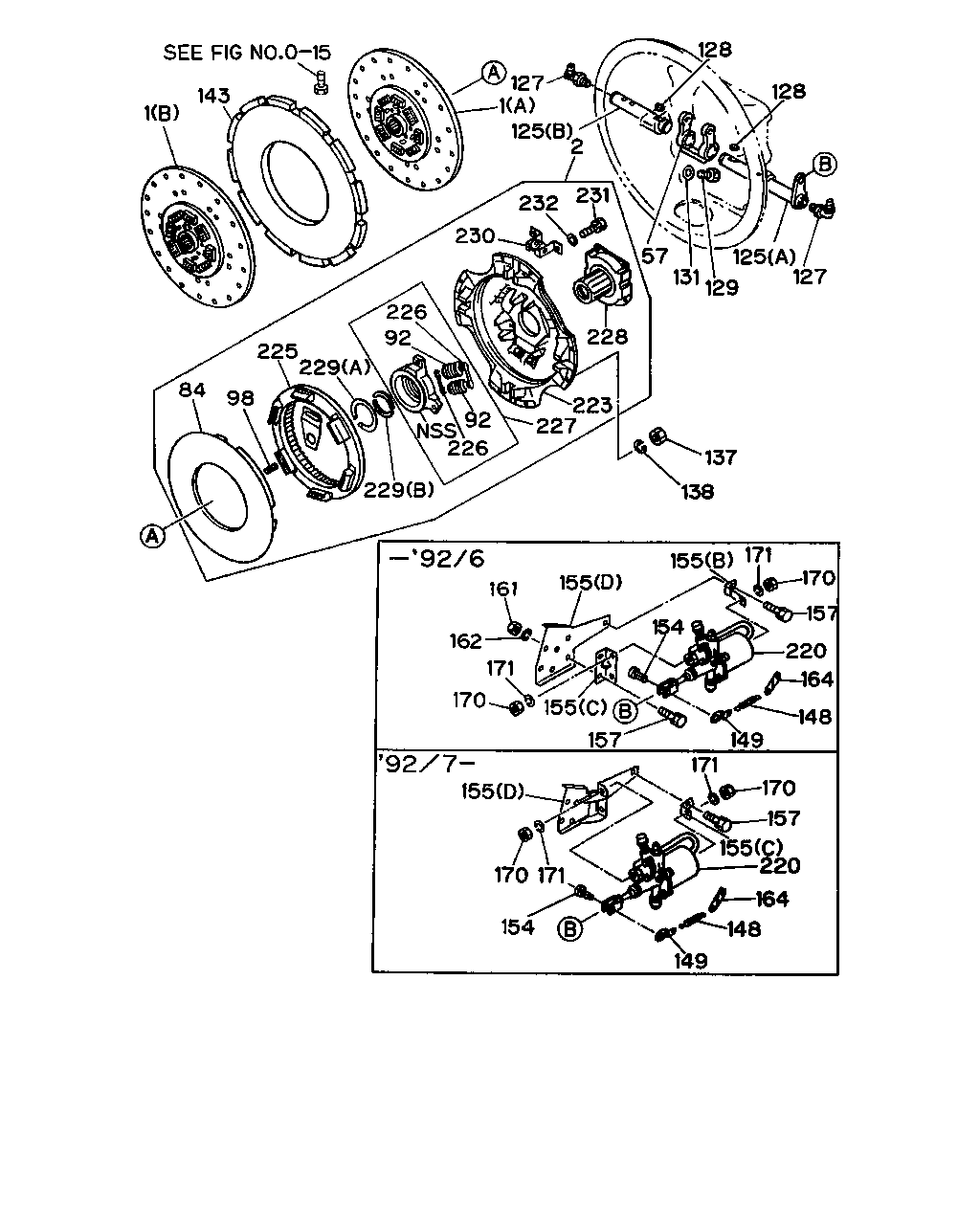

1 143 127 1 125 2 128 128 127 125 129 131 57 231 232 230 228 223 227 92 226 226 92 229 225 98 84 229 137 138 161 155 155 171 170 157 220 164 148 149 157 155 170 171 162 155 170 154 149 148 164 220 155 157 170 171

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	DISC; CLUTCH 17"	1-31240-287-0	01	1	8902-9001	●
1	DISC; CLUTCH 17"	1-31240-542-0	01	1	9002-9011		●
1	DISC; CLUTCH 17"	1-31240-395-0	01	1	9012-		●
1	DISC; CLUTCH 10PC1 STD ENG(10L),6RA1TC ENG(19L),6RB1 TURBO ENG(33L) (A) FRONT 14"	1-31240-327-0	01	1	8712-9001			●	●
1	DISC; CLUTCH 10PC1 STD ENG(10L),6RA1TC ENG(19L),6RB1 TURBO ENG(33L) (B) REAR 14"	1-31240-328-0	01	1	8712-9001			●	●
1	DISC; CLUTCH 6RB1TC ENG(30L) (A) FRONT 14"	1-31240-348-0	01	1	8712-			●	●	●	●
1	DISC; CLUTCH 6RB1TC ENG(30L) (B) REAR 14"	1-31240-349-0	01	1	8712-			●	●	●	●
1	DISC; CLUTCH 6RA1TC ENG(19L) (A) FRONT 14"	1-31240-327-0	01	1	9002-9003			●
1	DISC; CLUTCH 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) FRONT 14"	1-31240-327-0	01	1	9004-9306			●
1	DISC; CLUTCH 6RA1TC ENG(19L) (B) REAR 14"	1-31240-328-0	01	1	9002-9003			●
1	DISC; CLUTCH 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B) REAR 14"	1-31240-328-0	01	1	9004-9306			●
1	DISC; CLUTCH 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (A) FRONT 14"	1-31240-554-0	01	1	9004-9306			●
1	DISC; CLUTCH 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B) REAR 14"	1-31240-555-0	01	1	9004-9306			●
2	PLATE ASM; PRESSURE,CLU	1-31220-221-0	01	1	8902-9001	●
2	PLATE ASM; PRESSURE,CLU	1-31220-227-1	01	1	9002-		●
2	PLATE ASM; PRESSURE,CLU 10PC1 STD ENG(10L)	1-31220-141-2	01	1	8712-9001				●
2	PLATE ASM; PRESSURE,CLU 6RA1TC ENG(19L),6RB1 TURBO ENG(33L)	1-31220-142-1	01	1	8712-9003			●	●
2	PLATE ASM; PRESSURE,CLU 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-31220-142-1	01	1	9004-9306			●
2	PLATE ASM; PRESSURE,CLU 6RB1TC ENG(30L)	1-31220-186-0	01	1	8712-9003			●	●	●	●
2	PLATE ASM; PRESSURE,CLU 6RB1TC ENG(30L)	1-31220-186-0	01	1	9004-9306			●		●	●
2	PLATE ASM; PRESSURE,CLU 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5)	1-31220-186-0	01	1	9004-9306			●
2	PLATE ASM; PRESSURE,CLU 6RB1TC ENG(30L)	1-31220-186-0	01	1	9307-			●		●
57	FORK; SHIFT,CLU	1-31341-029-0	01	1	8902-9001	●
57	FORK; SHIFT,CLU	1-31340-059-1	01	1	9002-		●
57	FORK; SHIFT,CLU	1-31341-020-0	01	1	8712-			●	●	●	●
84	PLATE; PRESSURE	1-31221-041-0	01	1	8902-	●	●
84	PLATE; PRESSURE	1-31221-088-0	01	1	8712-			●	●	●	●
92	SPRING; CLU	1-09580-273-0	12	1	8902-9001	●
92	SPRING; CLU	1-31214-026-0	12	1	9002-		●
92	SPRING; CLU	1-31214-043-0	06	1	8712-			●	●	●	●
98	SPRING; RETURN	1-31233-001-0	04	1	8902-	●	●
98	SPRING; RETURN	1-31233-008-0	04	1	8712-			●	●	●	●
125	SHAFT; CLU	1-31342-202-0	01	1	8902-9001	●
125	SHAFT; CLU	1-31342-240-1	01	1	9002-		●
125	SHAFT; CLU (B)	1-31342-085-0	01	1	8712-9412			●	●	●	●
125	SHAFT; CLU (B)	1-31342-283-0	01	1	9501-			●		●
125	SHAFT; CLU (A)	1-31342-134-0	01	1	8712-9001			●	●	●	●
125	SHAFT; CLU (A)	1-31342-246-0	01	1	9307-9412			●		●
125	SHAFT; CLU (A)	1-31342-285-0	01	1	9501-			●		●
125	SHAFT; CLU (A)	1-31342-246-0	01	1	9002-9007			●		●	●
125	SHAFT; CLU COUNTER SHAFT BRAKE<BAP> (A)	1-31342-246-0	01	1	9008-9306			●
125	SHAFT; CLU CLUTCH BRAKE<BBG> (A)	1-31342-134-0	01	1	9008-9306			●		●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	8902-9412	●	●
127	NIPPLE; GREASE,CLU SHAFT PT1/8 ELBOW	9-09031-210-0	02	1	9501-		●	●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	8902-9001	●
128	KEY; FEATHER,CLU SHAFT	1-09735-045-0	02	1	9002-		●
128	KEY; FEATHER,CLU SHAFT	1-31349-007-0	02	1	8712-			●	●	●	●
129	BOLT; SHIFT FORK	1-09087-021-0	02	1	8712-			●	●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	8902-	●	●
131	WASHER; LK,SHIFT FORK ID=11.4	9-09850-072-0	02	1	8712-			●	●	●	●
137	BOLT; CLU COVER M10X25	9-02351-025-0	24	1	8902-9001	●
137	BOLT; CLU COVER M10X25	9-02351-025-0	12	1	9002-9002		●
137	BOLT; CLU COVER M10X25	0-23801-025-0	12	1	9003-9504		●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	9505-		●
137	BOLT; CLU COVER M16X28	1-09087-026-0	08	1	8712-			●	●	●	●
138	WASHER; LK,CLU COVER	9-09150-510-0	12	1	8902-9504	●	●
138	WASHER; LK,CLU COVER	1-09500-020-0	08	1	8712-			●	●	●	●
143	PLATE; INTERMEDIATE 10PC1 STD ENG(10L),6RA1TC ENG(19L),6RB1 TURBO ENG(33L)	1-31221-025-0	01	1	8712-9306			●	●
143	PLATE; INTERMEDIATE 6RB1TC ENG(30L)	1-31221-058-0	01	1	8712-			●		●	●
148	SPRING; CLU RETURN	1-09583-212-0	01	1	8902-9001	●
148	SPRING; CLU RETURN L=137.7	1-09583-284-0	01	1	9002-9102		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	9103-		●
148	SPRING; CLU RETURN	9-09744-034-0	01	1	8712-			●	●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	9002-		●
149	EYE; SPRING,RETURN SPRING	1-31426-019-1	01	1	8712-			●	●	●	●
154	PIN; JAW JOINT	1-31424-001-1	01	1	8712-9312			●	●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	9401-			●		●
155	BRACKET; MINIPACK (B)	1-31429-225-0	01	1	8902-9001	●
155	BRACKET; MINIPACK (A)	1-31429-273-0	01	1	8902-9001	●
155	BRACKET; MINIPACK (B)	1-31429-288-0	01	1	9002-		●
155	BRACKET; MINIPACK (A)	1-31429-289-1	01	1	9002-		●
155	BRACKET; MINIPACK (D)	1-31429-215-0	01	1	8712-9001			●	●
155	BRACKET; MINIPACK (C)	1-31429-066-0	01	1	8712-9206			●	●	●	●
155	BRACKET; MINIPACK (C)	1-31429-344-0	01	1	9207-9306			●		●	●
155	BRACKET; MINIPACK (B)	1-31429-116-0	01	1	8712-9206			●	●	●	●
155	BRACKET; MINIPACK (D)	1-31429-343-0	01	1	9307-			●		●
155	BRACKET; MINIPACK (C)	1-31429-344-0	01	1	9307-			●		●
155	BRACKET; MINIPACK (D)	1-31429-300-0	01	1	9002-9006			●		●	●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (D)	1-31429-300-0	01	1	9007-9206			●
155	BRACKET; MINIPACK COUNTER SHAFT BRAKE<BAP> (D)	1-31429-343-0	01	1	9207-9306			●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (D)	1-31429-215-0	01	1	9007-9206			●		●	●
155	BRACKET; MINIPACK CLUTCH BRAKE<BBG> (D)	1-31429-342-0	01	1	9207-9306			●		●	●
157	BOLT; BRKT M10X20 W/LK WASHER	9-01931-020-0	03	1	8902-9002	●	●
157	BOLT; BRKT M10X20 W/LK WASHER	0-50051-020-0	03	1	9003-9205		●
157	BOLT; BRKT M10X18 FLANGE	0-28181-018-0	03	1	9206-		●
157	BOLT; BRKT M10X18	9-02051-018-0	01	1	8712-9001			●	●
157	BOLT; BRKT M10X25	9-02051-025-0	02	1	8712-9001			●	●
157	BOLT; BRKT M10X25 W/LK WASHER	9-01931-025-0	04	1	8712-9002			●	●	●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	04	1	9003-9206			●		●	●
157	BOLT; BRKT M10X25 W/LK WASHER	0-50051-025-0	05	1	9207-			●		●	●
157	BOLT; BRKT M10X18	9-02051-018-0	03	1	9002-9002			●		●	●
157	BOLT; BRKT M10X18	0-20801-018-0	03	1	9003-9006			●		●	●
157	BOLT; BRKT COUNTER SHAFT BRAKE<BAP> M10X18	0-20801-018-0	03	1	9007-9206			●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X18	0-20801-018-0	01	1	9007-9206			●		●	●
157	BOLT; BRKT CLUTCH BRAKE<BBG> M10X25	0-20801-025-0	02	1	9007-9206			●		●	●
161	NUT; BRKT M10	9-09110-410-0	03	1	8902-9205	●	●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	03	1	9206-		●
161	NUT; BRKT CLUTCH BRAKE<BBG> M10	9-09110-510-0	02	1	9007-9206			●		●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	8712-9001			●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9002-9205		●	●		●	●
162	WASHER; LK,BRKT ID=10.2	9-09150-510-0	03	1	9206-9206			●		●	●
164	EYE; SPRING	1-31426-010-0	01	1	8712-9001	●
164	EYE; SPRING	1-31426-016-1	01	1	8712-			●	●	●	●
170	NUT; BOOSTER FIX M8	9-09110-408-0	03	1	8712-			●	●	●	●
171	WASHER; LK,BOOSTER FIX ID=8.2	9-09150-508-0	03	1	8712-			●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-257-0	01	1	8902-9001	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-344-0	01	1	9002-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-224-0	01	1	8712-9006			●	●	●	●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-351-0	01	1	9007-			●		●	●
223	COVER; CLU	1-31211-030-0	01	1	8712-			●	●	●	●
225	RING; ADJUSTING	1-31239-022-0	01	1	8712-			●	●	●	●
226	PIVOT	1-31239-023-0	06	1	8712-			●	●	●	●
227	RETAINER 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-31239-024-0	01	1	9201-9306			●
227	RETAINER 6RB1TC ENG(30L)	1-31239-025-0	01	1	9201-9306			●		●	●
227	RETAINER 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5)	1-31239-025-0	01	1	9201-9306			●
227	RETAINER	1-31239-025-0	01	1	9307-			●		●
228	BEARING; RELEASE 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5)	1-31320-038-0	01	1	9201-9306			●
228	BEARING; RELEASE 6RB1TC ENG(30L)	1-31320-039-0	01	1	9201-9306			●		●	●
228	BEARING; RELEASE 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5)	1-31320-039-0	01	1	9201-9306			●
228	BEARING; RELEASE	1-31320-039-0	01	1	9307-			●		●
229	RING (A)	1-31239-028-0	01	1	8712-			●	●	●	●
229	RING 6RA1TC ENG(19L) EXC. NEW ZEALAND EQUIPMENT(PK5) (B)	1-31239-026-0	02	1	9201-9306			●
229	RING (B)	1-31239-027-0	02	1	9307-			●		●
229	RING 6RB1TC ENG(30L) (B)	1-31239-027-0	02	1	9201-9306			●		●	●
229	RING 6RA1TC ENG(19L) NEW ZEALAND EQUIPMENT(PK5) (B)	1-31239-027-0	02	1	9201-9306			●
230	ADJUSTER	1-31239-029-0	01	1	8712-			●	●	●	●
231	BOLT; ADJUSTER	1-31239-030-0	02	1	8712-			●	●	●	●
232	WASHER; ADJUSTER	1-31239-031-0	02	1	8712-			●	●	●	●

142 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	C	D	E	F
139	BRAKE; CLU 10PC1 STD ENG(10L),6RA1TC ENG(19L),6RB1 TURBO ENG(33L)	1-31259-036-0	01	1	8712-9001	●	●
139	BRAKE; CLU 6RB1TC ENG(30L)	1-31259-038-0	01	1	8712-9001	●	●
139	BRAKE; CLU CLUTCH BRAKE<BBG> NEW ZEALAND EQUIPMENT(PK5)	1-31259-037-0	01	1	9009-9306	●
139	BRAKE; CLU 6RA1TC ENG(19L) CLUTCH BRAKE<BBG> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-31259-036-0	01	1	9007-9306	●
139	BRAKE; CLU 6RB1TC ENG(30L)	1-31259-038-0	01	1	9007-9008	●		●	●
139	BRAKE; CLU 6RA1TC ENG(19L) CLUTCH BRAKE<BBG> NEW ZEALAND EQUIPMENT(PK5)	1-31259-038-0	01	1	9007-9008	●
139	BRAKE; CLU 6RB1TC ENG(30L) CLUTCH BRAKE<BBG> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-31259-038-0	01	1	9009-9306	●		●	●
142	PLATE; ANTI RATTLE 6RB1TC ENG(30L)	1-31229-018-0	04	1	8712-8908	●	●
142	PLATE; ANTI RATTLE 6RB1TC ENG(30L)	1-31229-049-0	04	1	8909-	●		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
