Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#48699) — 330 parça

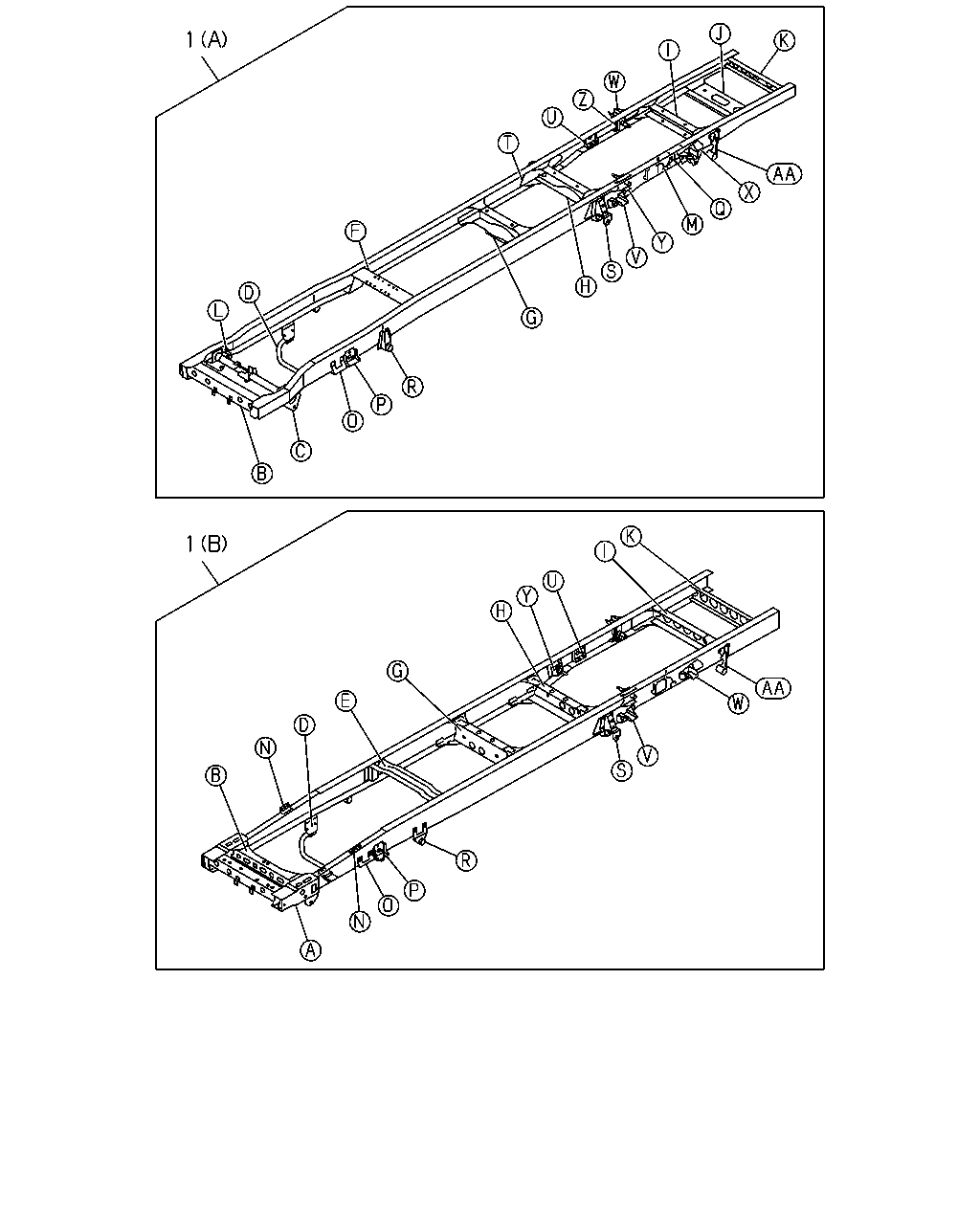

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	FRAME ASM 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97917-044-0	01	1	0009-	●
1	FRAME ASM (A) THA	8-97917-045-0	01	1	0009-		●
1	FRAME ASM 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97917-046-1	01	1	0009-	●
1	FRAME ASM 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97920-996-0	01	1	0009-	●
1	FRAME ASM (B) THA	8-97920-997-0	01	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●

105 215 215 215 105 215 201 131 325 130 132 201 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
105	BRACKET; RR SPR,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97915-065-0	01	1	0009-	●
105	BRACKET; RR SPR,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97915-065-0	01	1	0009-	●
105	BRACKET; RR SPR,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97915-065-0	01	1	0009-	●
105	BRACKET; RR SPR,RR THA	8-97915-065-0	01	1	0009-		●	●
105	BRACKET; RR SPR,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97915-072-0	01	1	0009-	●
105	BRACKET; RR SPR,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97915-072-0	01	1	0009-	●
105	BRACKET; RR SPR,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97915-072-0	01	1	0009-	●
105	BRACKET; RR SPR,RR THA	8-97915-072-0	01	1	0009-		●	●
130	MEMBER; CROSS,END 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-496-0	01	1	0009-	●
130	MEMBER; CROSS,END (A) THA	8-97916-496-0	01	1	0009-		●
130	MEMBER; CROSS,END 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97913-618-0	01	1	0009-	●
130	MEMBER; CROSS,END 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97913-618-0	01	1	0009-	●
130	MEMBER; CROSS,END (B) THA	8-97913-618-0	01	1	0009-			●
131	BOLT; END C/MBR M10X25 FLANGE	0-28691-025-0	08	1	0009-			●
132	NUT; END C/MBR M10 FLANGE	0-91150-110-0	08	1	0009-			●
201	GUSSET; C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-747-0	02	1	0009-	●
201	GUSSET; C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97914-747-0	02	1	0009-	●
201	GUSSET; C/MBR THA	8-97914-747-0	02	1	0009-			●
215	BUSHING; BRKT,RR SPRING 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97184-699-1	04	1	0009-	●
215	BUSHING; BRKT,RR SPRING 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97184-699-1	04	1	0009-	●
215	BUSHING; BRKT,RR SPRING 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97184-699-1	04	1	0009-	●
215	BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	0009-		●	●
325	EXTENSION; FRAME THA	8-97912-457-3	01	1	0009-			●
325	EXTENSION; FRAME THA	8-97912-458-1	01	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●

214 140 142 103 51 229 31 31 39 31 39 31 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	BUSHING; FRT SPR,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97184-699-1	04	1	0009-	●
31	BUSHING; FRT SPR,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97184-699-1	04	1	0009-	●
31	BUSHING; FRT SPR,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97184-699-1	04	1	0009-	●
31	BUSHING; FRT SPR,RR	8-97184-699-1	04	1	0009-		●	●
39	BRACKET; FRT SPR,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B)	8-97079-495-1	02	1	0009-	●
39	BRACKET; FRT SPR,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B)	8-97079-495-1	02	1	0009-	●
39	BRACKET; FRT SPR,RR (B)	8-97079-495-1	02	1	0009-			●
39	BRACKET; FRT SPR,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97046-283-1	02	1	0009-	●
39	BRACKET; FRT SPR,RR (A)	8-97046-283-1	02	1	0009-		●
51	BRACKET; ENG SUPPORT,OUTER 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-811-0	02	1	0009-	●
51	BRACKET; ENG SUPPORT,OUTER 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97916-811-0	02	1	0009-	●
51	BRACKET; ENG SUPPORT,OUTER 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97916-811-0	02	1	0009-	●
51	BRACKET; ENG SUPPORT,OUTER THA	8-97916-811-0	02	1	0009-		●	●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) THA	8-97205-237-1	02	1	0009-	●
103	STOPPER; SUB SPR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) THA	8-97205-237-1	02	1	0009-	●
103	STOPPER; SUB SPR (A) THA	8-97205-237-1	02	1	0009-			●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97223-749-0	04	1	0009-	●
103	STOPPER; SUB SPR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97223-749-0	04	1	0009-	●
103	STOPPER; SUB SPR (B) THA	8-97223-749-0	04	1	0009-			●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97205-236-0	02	1	0009-	●
103	STOPPER; SUB SPR (C) THA	8-97205-236-0	02	1	0009-		●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) FRT THA	8-97223-749-0	02	1	0009-	●
103	STOPPER; SUB SPR (B) FRT THA	8-97223-749-0	02	1	0009-		●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) RR THA	8-97223-751-0	02	1	0009-	●
103	STOPPER; SUB SPR (B) RR THA	8-97223-751-0	02	1	0009-		●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) THA	8-97205-229-0	02	1	0009-	●
140	BRACKET; S/ABS,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) THA	8-97205-229-0	02	1	0009-	●
140	BRACKET; S/ABS,RR (C) THA	8-97205-229-0	02	1	0009-			●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (D) L=770 THA	8-97205-304-0	02	1	0009-0011	●
140	BRACKET; S/ABS,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) L=770 THA	8-97205-304-0	02	1	0009-0011	●
140	BRACKET; S/ABS,RR (D) L=770 THA	8-97205-304-0	02	1	0009-0011			●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97302-512-0	02	1	0012-	●
140	BRACKET; S/ABS,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97302-512-0	02	1	0012-	●
140	BRACKET; S/ABS,RR THA	8-97302-512-0	02	1	0012-			●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97205-223-0	01	1	0009-	●
140	BRACKET; S/ABS,RR (B) THA	8-97205-223-0	01	1	0009-		●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97205-228-0	01	1	0009-	●
140	BRACKET; S/ABS,RR (A) THA	8-97205-228-0	01	1	0009-		●
142	BRACKET; FLEX HOSE,BRAKE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-199-1	01	1	0009-	●
142	BRACKET; FLEX HOSE,BRAKE THA	8-97205-199-1	01	1	0009-		●
214	BRACKET; GEAR CONT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-210-0	01	1	0009-	●
214	BRACKET; GEAR CONT THA	8-97205-210-0	01	1	0009-		●
229	REINFORCEMENT; S/ABS RR,FRAME 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-441-0	01	1	0009-	●
229	REINFORCEMENT; S/ABS RR,FRAME THA	8-97205-441-0	01	1	0009-		●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●

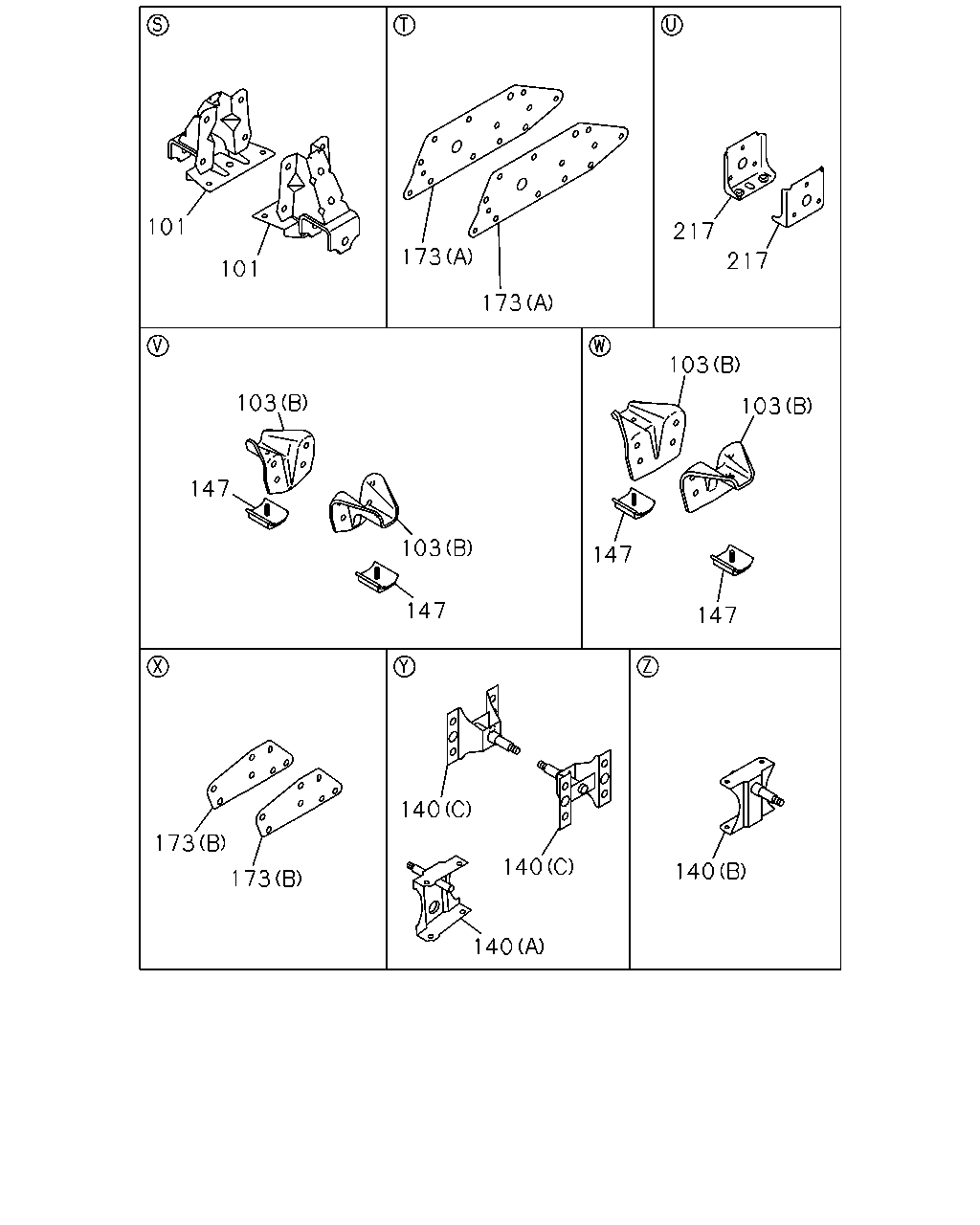

101 217 173 217 101 173 103 103 103 147 103 147 147 147 140 173 140 140 173 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
101	BRACKET; RR SPR,FRT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-912-0	02	1	0009-	●
101	BRACKET; RR SPR,FRT 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97205-912-0	02	1	0009-	●
101	BRACKET; RR SPR,FRT 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97205-912-0	02	1	0009-	●
101	BRACKET; RR SPR,FRT THA	8-97205-912-0	02	1	0009-		●	●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) THA	8-97205-237-1	02	1	0009-	●
103	STOPPER; SUB SPR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) THA	8-97205-237-1	02	1	0009-	●
103	STOPPER; SUB SPR (A) THA	8-97205-237-1	02	1	0009-			●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97223-749-0	04	1	0009-	●
103	STOPPER; SUB SPR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97223-749-0	04	1	0009-	●
103	STOPPER; SUB SPR (B) THA	8-97223-749-0	04	1	0009-			●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) THA	8-97205-236-0	02	1	0009-	●
103	STOPPER; SUB SPR (C) THA	8-97205-236-0	02	1	0009-		●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) FRT THA	8-97223-749-0	02	1	0009-	●
103	STOPPER; SUB SPR (B) FRT THA	8-97223-749-0	02	1	0009-		●
103	STOPPER; SUB SPR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) RR THA	8-97223-751-0	02	1	0009-	●
103	STOPPER; SUB SPR (B) RR THA	8-97223-751-0	02	1	0009-		●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) THA	8-97205-229-0	02	1	0009-	●
140	BRACKET; S/ABS,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) THA	8-97205-229-0	02	1	0009-	●
140	BRACKET; S/ABS,RR (C) THA	8-97205-229-0	02	1	0009-			●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (D) L=770 THA	8-97205-304-0	02	1	0009-0011	●
140	BRACKET; S/ABS,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D) L=770 THA	8-97205-304-0	02	1	0009-0011	●
140	BRACKET; S/ABS,RR (D) L=770 THA	8-97205-304-0	02	1	0009-0011			●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97302-512-0	02	1	0012-	●
140	BRACKET; S/ABS,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97302-512-0	02	1	0012-	●
140	BRACKET; S/ABS,RR THA	8-97302-512-0	02	1	0012-			●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97205-223-0	01	1	0009-	●
140	BRACKET; S/ABS,RR (B) THA	8-97205-223-0	01	1	0009-		●
140	BRACKET; S/ABS,RR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97205-228-0	01	1	0009-	●
140	BRACKET; S/ABS,RR (A) THA	8-97205-228-0	01	1	0009-		●
147	RUBBER; SUB SPRING 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97254-387-0	04	1	0009-	●
147	RUBBER; SUB SPRING 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97254-387-0	04	1	0009-	●
147	RUBBER; SUB SPRING 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97254-387-0	04	1	0009-	●
147	RUBBER; SUB SPRING	8-97254-387-0	04	1	0009-		●	●
173	STIFFENER; RR SPRING 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-484-0	01	1	0009-	●
173	STIFFENER; RR SPRING (A) THA	8-97916-484-0	01	1	0009-		●
173	STIFFENER; RR SPRING 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-778-1	01	1	0009-	●
173	STIFFENER; RR SPRING (A) THA	8-97916-778-1	01	1	0009-		●
173	STIFFENER; RR SPRING 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97916-487-0	02	1	0009-	●
173	STIFFENER; RR SPRING (B) THA	8-97916-487-0	02	1	0009-		●
217	BRACKET; HELPER RUBBER,RR SPRING 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-266-0	02	1	0009-	●
217	BRACKET; HELPER RUBBER,RR SPRING 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97917-266-0	02	1	0009-	●
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97917-266-0	02	1	0009-	●
217	BRACKET; HELPER RUBBER,RR SPRING THA	8-97917-266-0	02	1	0009-		●	●
217	BRACKET; HELPER RUBBER,RR SPRING 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-94258-963-0	02	1	0202-	●
217	BRACKET; HELPER RUBBER,RR SPRING THA	8-94258-963-0	02	1	0202-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●

42 34 34 80 80 188 74 344 74 74 344 74

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
34	MEMBER; CROSS,3RD 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-483-0	01	1	0009-	●
34	MEMBER; CROSS,3RD (A) THA	8-97916-483-0	01	1	0009-		●
34	MEMBER; CROSS,3RD 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97913-624-0	01	1	0009-	●
34	MEMBER; CROSS,3RD 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97913-624-0	01	1	0009-	●
34	MEMBER; CROSS,3RD (B) THA	8-97913-624-0	01	1	0009-			●
42	MEMBER; CROSS,ENG MTG 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97917-520-0	01	1	0009-	●
42	MEMBER; CROSS,ENG MTG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-487-0	01	1	0009-	●
42	MEMBER; CROSS,ENG MTG THA	8-97917-487-0	01	1	0009-		●
42	MEMBER; CROSS,ENG MTG 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97080-868-0	01	1	0009-	●
42	MEMBER; CROSS,ENG MTG	8-97080-868-0	01	1	0009-			●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-875-0	02	1	0009-0108	●
74	GUSSET; 4TH C/MBR THA	8-97118-875-0	02	1	0009-0108			●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-876-0	02	1	0009-0108	●
74	GUSSET; 4TH C/MBR THA	8-97118-876-0	02	1	0009-0108			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER THA	8-97916-660-1	02	1	0009-	●
74	GUSSET; 4TH C/MBR (A) RH UPPER,LH LOWER THA	8-97916-660-1	02	1	0009-		●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER THA	8-97916-814-1	02	1	0009-	●
74	GUSSET; 4TH C/MBR (A) RH LOWER,LH UPPER THA	8-97916-814-1	02	1	0009-		●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97118-875-1	01	1	0109-	●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-875-1	01	1	0109-	●
74	GUSSET; 4TH C/MBR THA	8-97118-875-1	01	1	0109-			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97118-876-1	01	1	0109-	●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-876-1	01	1	0109-	●
74	GUSSET; 4TH C/MBR THA	8-97118-876-1	01	1	0109-			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) LH UPPER THA	8-97914-490-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) LH UPPER THA	8-97914-490-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR (B) LH UPPER THA	8-97914-490-0	01	1	0009-			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) RH UPPER THA	8-97914-491-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) RH UPPER THA	8-97914-491-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR (B) RH UPPER THA	8-97914-491-0	01	1	0009-			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) RH LOWER THA	8-97914-492-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) RH LOWER THA	8-97914-492-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR (B) RH LOWER THA	8-97914-492-0	01	1	0009-			●
74	GUSSET; 4TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) LH LOWER THA	8-97914-493-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) LH LOWER THA	8-97914-493-0	01	1	0009-	●
74	GUSSET; 4TH C/MBR (B) LH LOWER THA	8-97914-493-0	01	1	0009-			●
80	BRACKET; C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97205-176-0	02	1	0009-	●
80	BRACKET; C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97205-176-0	02	1	0009-	●
80	BRACKET; C/MBR THA	8-97205-176-0	02	1	0009-			●
188	BRACKET; SUPPORT,CTR BRG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97083-157-1	01	1	0009-	●
188	BRACKET; SUPPORT,CTR BRG	8-97083-157-1	01	1	0009-		●
344	MEMBER; CROSS,4TH 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97910-429-0	01	1	0009-	●
344	MEMBER; CROSS,4TH (A) THA	8-97910-429-0	01	1	0009-		●
344	MEMBER; CROSS,4TH 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97914-744-0	01	1	0009-	●
344	MEMBER; CROSS,4TH 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97914-744-0	01	1	0009-	●
344	MEMBER; CROSS,4TH (B) THA	8-97914-744-0	01	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 176 316 118 317

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
118	NUT; STOPPER 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0009-0109	●
118	NUT; STOPPER 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8 FLANGE	0-91150-108-0	02	1	0009-0109	●
118	NUT; STOPPER 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M8 FLANGE	0-91150-108-0	02	1	0009-0109	●
118	NUT; STOPPER M8 FLANGE	0-91150-108-0	02	1	0009-0109		●	●
118	NUT; STOPPER 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8 LOCK NUT	9-09131-508-0	02	1	0110-	●
118	NUT; STOPPER 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8 LOCK NUT	9-09131-508-0	02	1	0110-	●
118	NUT; STOPPER 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M8 LOCK NUT	9-09131-508-0	02	1	0110-	●
118	NUT; STOPPER M8 LOCK NUT	9-09131-508-0	02	1	0110-		●	●
176	BOLT; C/MBR,ENG MTG 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M10X25 FLANGE	0-28081-025-0	08	1	0009-	●
176	BOLT; C/MBR,ENG MTG 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M10X25 FLANGE	0-28081-025-0	08	1	0009-	●
176	BOLT; C/MBR,ENG MTG 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M10X25 FLANGE	0-28081-025-0	08	1	0009-	●
176	BOLT; C/MBR,ENG MTG M10X25 FLANGE	0-28081-025-0	08	1	0009-		●	●
316	BOLT; STIFFENER 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M12X35 W/LK WASHER	0-50041-235-0	16	1	0009-	●
316	BOLT; STIFFENER 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M12X35 W/LK WASHER	0-50041-235-0	16	1	0009-	●
316	BOLT; STIFFENER M12X35 W/LK WASHER	0-50041-235-0	16	1	0009-			●
317	NUT; STIFFENER 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M12 FLANGE	0-91150-212-0	16	1	0009-	●
317	NUT; STIFFENER 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M12 FLANGE	0-91150-212-0	16	1	0009-	●
317	NUT; STIFFENER M12 FLANGE	0-91150-212-0	16	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
376	RIVET; FRAME (A) D8X22 TAPER END	9-06750-822-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (B) D8X26 TAPER END	9-06750-826-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (C) D8X30 TAPER END	9-06750-830-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (J) D11X30 TAPER END	9-06751-130-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (K) D12X30 TAPER END	9-06751-230-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (L) D12X34 TAPER END	9-06751-234-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (M) D12X36 TAPER END	9-06751-236-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (N) D12X38 TAPER END	9-06751-238-0	AR	1	0009-	●	●	●
376	RIVET; FRAME (O) D12X40 TAPER END	9-06751-240-0	AR	1	0009-	●	●	●

75 345 75 75 345 75 198 139 198 139 198 198 201 201 130 130 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-875-0	02	1	0009-0108	●
75	GUSSET; 5TH C/MBR THA	8-97118-875-0	02	1	0009-0108			●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-876-0	02	1	0009-0108	●
75	GUSSET; 5TH C/MBR THA	8-97118-876-0	02	1	0009-0108			●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER THA	8-97916-485-0	02	1	0009-	●
75	GUSSET; 5TH C/MBR (A) RH UPPER,LH LOWER THA	8-97916-485-0	02	1	0009-		●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER THA	8-97916-486-0	02	1	0009-	●
75	GUSSET; 5TH C/MBR (A) RH LOWER,LH UPPER THA	8-97916-486-0	02	1	0009-		●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97118-875-1	01	1	0109-	●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-875-1	01	1	0109-	●
75	GUSSET; 5TH C/MBR THA	8-97118-875-1	01	1	0109-			●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97118-876-1	01	1	0109-	●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97118-876-1	01	1	0109-	●
75	GUSSET; 5TH C/MBR THA	8-97118-876-1	01	1	0109-			●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) LH LOWER THA	8-97914-490-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) LH LOWER THA	8-97914-490-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR (B) LH LOWER THA	8-97914-490-0	01	1	0009-			●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) RH LOWER THA	8-97914-491-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) RH LOWER THA	8-97914-491-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR (B) RH LOWER THA	8-97914-491-0	01	1	0009-			●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) RH UPPER THA	8-97914-492-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) RH UPPER THA	8-97914-492-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR (B) RH UPPER THA	8-97914-492-0	01	1	0009-			●
75	GUSSET; 5TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) LH UPPER THA	8-97914-493-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) LH UPPER THA	8-97914-493-0	01	1	0009-	●
75	GUSSET; 5TH C/MBR (B) LH UPPER THA	8-97914-493-0	01	1	0009-			●
130	MEMBER; CROSS,END 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-496-0	01	1	0009-	●
130	MEMBER; CROSS,END (A) THA	8-97916-496-0	01	1	0009-		●
130	MEMBER; CROSS,END 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97913-618-0	01	1	0009-	●
130	MEMBER; CROSS,END 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97913-618-0	01	1	0009-	●
130	MEMBER; CROSS,END (B) THA	8-97913-618-0	01	1	0009-			●
137	BRACKET; SPARE TIRE 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-235-1	01	1	0009-	●
137	BRACKET; SPARE TIRE THA	8-97205-235-1	01	1	0009-		●
139	MEMBER; CROSS,6TH 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97917-051-0	01	1	0009-	●
139	MEMBER; CROSS,6TH THA	8-97917-051-0	01	1	0009-		●
139	MEMBER; CROSS,6TH 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97913-619-0	01	1	0009-	●
139	MEMBER; CROSS,6TH 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97913-619-0	01	1	0009-	●
139	MEMBER; CROSS,6TH THA	8-97913-619-0	01	1	0009-			●
198	GUSSET; 6TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-94258-069-1	02	1	0009-	●
198	GUSSET; 6TH C/MBR THA	8-94258-069-1	02	1	0009-		●
198	GUSSET; 6TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH LOWER,LH UPPER THA	8-97916-485-0	02	1	0009-	●
198	GUSSET; 6TH C/MBR (A) RH LOWER,LH UPPER THA	8-97916-485-0	02	1	0009-		●
198	GUSSET; 6TH C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) RH UPPER,LH LOWER THA	8-97916-486-0	02	1	0009-	●
198	GUSSET; 6TH C/MBR (A) RH UPPER,LH LOWER THA	8-97916-486-0	02	1	0009-		●
198	GUSSET; 6TH C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97914-746-0	02	1	0009-	●
198	GUSSET; 6TH C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97914-746-0	02	1	0009-	●
198	GUSSET; 6TH C/MBR (B) THA	8-97914-746-0	02	1	0009-			●
201	GUSSET; C/MBR 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-747-0	02	1	0009-	●
201	GUSSET; C/MBR 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97914-747-0	02	1	0009-	●
201	GUSSET; C/MBR THA	8-97914-747-0	02	1	0009-			●
345	MEMBER; CROSS,5TH 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97910-430-0	01	1	0009-	●
345	MEMBER; CROSS,5TH (A) THA	8-97910-430-0	01	1	0009-		●
345	MEMBER; CROSS,5TH 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97914-744-0	01	1	0009-	●
345	MEMBER; CROSS,5TH 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97914-744-0	01	1	0009-	●
345	MEMBER; CROSS,5TH (B) THA	8-97914-744-0	01	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●

331 331 437 2 2 219 219 17 17 24 20 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>	8-97106-560-2	01	1	0009-	●
2	MEMBER; CROSS,1ST	8-97106-560-2	01	1	0009-			●
2	MEMBER; CROSS,1ST 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97912-909-0	01	1	0009-	●
2	MEMBER; CROSS,1ST (A) THA	8-97912-909-0	01	1	0009-		●
2	MEMBER; CROSS,1ST 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) THA	8-97920-938-0	01	1	0009-	●
2	MEMBER; CROSS,1ST (B) THA	8-97920-938-0	01	1	0009-			●
2	MEMBER; CROSS,1ST 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97100-041-1	01	1	0309-	●
2	MEMBER; CROSS,1ST THA	8-97100-041-1	01	1	0309-		●
2	MEMBER; CROSS,1ST 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97913-622-1	01	1	0009-	●
17	GUSSET; 1ST C/MBR 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-470-0	02	1	0009-	●
17	GUSSET; 1ST C/MBR THA	8-97916-470-0	02	1	0009-		●
20	MEMBER; CROSS,2ND 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97912-897-0	01	1	0009-	●
20	MEMBER; CROSS,2ND THA	8-97912-897-0	01	1	0009-		●
24	BRACKET; FRT SPR,FRT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97915-063-0	01	1	0009-	●
24	BRACKET; FRT SPR,FRT THA	8-97915-063-0	01	1	0009-		●
24	BRACKET; FRT SPR,FRT 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97915-064-0	01	1	0009-	●
24	BRACKET; FRT SPR,FRT THA	8-97915-064-0	01	1	0009-		●
219	BRACKET; BACK BAR,FRT BUMPER,FRAME SID 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-205-0	01	1	0009-	●
219	BRACKET; BACK BAR,FRT BUMPER,FRAME SID THA	8-97205-205-0	01	1	0009-		●
219	BRACKET; BACK BAR,FRT BUMPER,FRAME SID 4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97205-206-0	01	1	0009-	●
219	BRACKET; BACK BAR,FRT BUMPER,FRAME SID THA	8-97205-206-0	01	1	0009-		●
331	BRACKET; STRG UNIT 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97205-174-0	01	1	0009-	●
331	BRACKET; STRG UNIT 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97205-174-0	01	1	0009-	●
331	BRACKET; STRG UNIT THA	8-97205-174-0	01	1	0009-			●
331	BRACKET; STRG UNIT 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97205-175-0	01	1	0009-	●
331	BRACKET; STRG UNIT 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97205-175-0	01	1	0009-	●
331	BRACKET; STRG UNIT THA	8-97205-175-0	01	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
372	BRACKET 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97139-128-0	02	1	0009-	●
372	BRACKET THA	8-97139-128-0	02	1	0009-			●
437	MEMBER; CROSS,BUMPER 4HG1 ENG<RJH> FLOOR REMOTE SHIFT<M11> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97912-911-1	01	1	0009-	●
437	MEMBER; CROSS,BUMPER 4HE1 ENG<RLY> M/T MXA5S<RNA> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97912-911-1	01	1	0009-	●
437	MEMBER; CROSS,BUMPER THA	8-97912-911-1	01	1	0009-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
