4-50 — FRONT SUSPENSION (#48691) — 56 parça

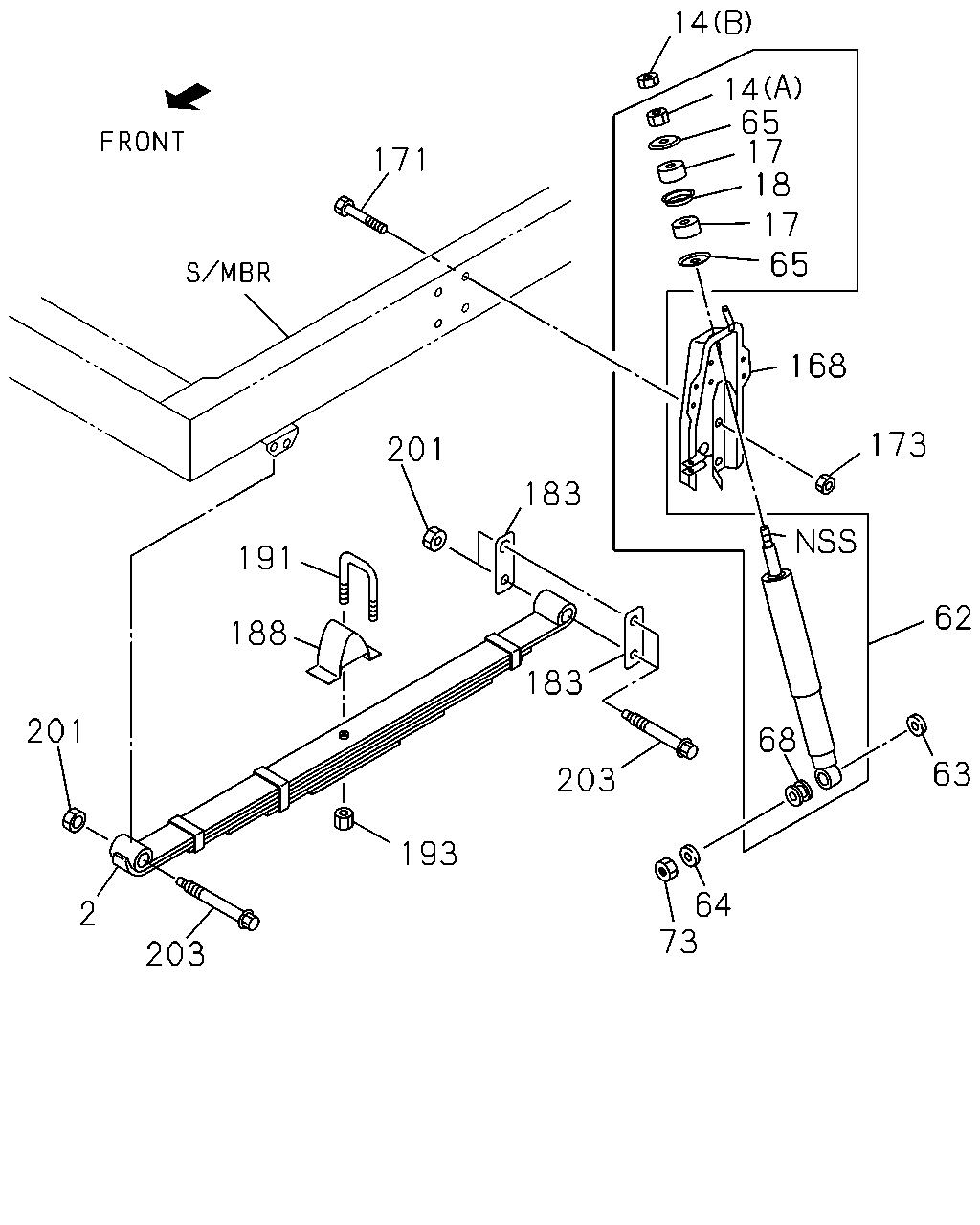

çizim 48009
14 65 17 18 17 65 171 168 173 201 183 191 62 188 183 201 68 63 203 193 64 73 2 203 14
BalonParca AdiParca NoAdetTipApplied Date A B C
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> 7-LEAF THA 		8-97910-226-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-97910-226-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> 7-LEAF THA 		8-97910-230-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 7-LEAF THA 		8-97910-230-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97914-750-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97914-750-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97914-751-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97914-751-0 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97096-544-2 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97096-544-2 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97122-381-2 01 1 0009- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. TIRE SIZE 8.25-16<7QP> 6-LEAF THA 		8-97122-381-2 01 1 0009- ●
14 NUT; S/ABS,UPR
(B) THA 		8-97914-952-0 02 1 0009-0307 ● ● ●
14 NUT; S/ABS,UPR
(A) THA 		8-97915-859-0 02 1 0009- ● ● ●
17 BUSHING; RUBBER,S/ABS
THA 		8-97913-678-0 04 1 0009- ● ● ●
18 WASHER; CENTERING,S/ABS
THA 		8-97913-681-0 02 1 0009- ● ● ●
62 ABSORBER ASM; SHOCK,FRT
TIRE SIZE 8.25-16<7QP> THA 		8-97914-509-0 02 1 0009- ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. TIRE SIZE 8.25-16<7QP> THA 		8-97915-710-0 02 1 0009- ● ●
62 ABSORBER ASM; SHOCK,FRT
THA 		8-97915-710-0 02 1 0009- ●
63 WASHER; PL,S/ABS,LWR
ID=21 OD=40 		9-09164-620-0 02 1 0009- ● ● ●
64 WASHER; S/ABS,LWR
ID=15.0 		9-51679-012-0 02 1 0009- ● ● ●
65 WASHER; S/ABS
THA 		8-97914-146-0 04 1 0009- ● ● ●
68 BUSHING; S/ABS
THA 		8-97915-860-0 02 1 0009- ● ● ●
73 NUT; BRKT,SHOCK
M14 		9-99110-414-0 02 1 0009- ● ● ●
168 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ> 		8-97102-611-2 01 1 0009- ●
168 BRACKET; S/ABS,FRT SUSP 8-97102-611-2 01 1 0009- ●
168 BRACKET; S/ABS,FRT SUSP
FRAME STRAIGHT TYPE<7KJ> 		8-97240-796-1 01 1 0009- ●
168 BRACKET; S/ABS,FRT SUSP 8-97240-796-1 01 1 0009- ●
168 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94162-750-3 01 1 0009-0106 ●
168 BRACKET; S/ABS,FRT SUSP 8-94162-750-3 01 1 0009-0106 ●
168 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97316-008-0 01 1 0107- ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-008-0 01 1 0107- ●
168 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-94162-751-4 01 1 0009-0106 ●
168 BRACKET; S/ABS,FRT SUSP 8-94162-751-4 01 1 0009-0106 ●
168 BRACKET; S/ABS,FRT SUSP
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97316-009-0 01 1 0107- ●
168 BRACKET; S/ABS,FRT SUSP 8-97316-009-0 01 1 0107- ●
171 BOLT; S/ABS BRKT
M12X35 FLANGE 		0-28681-235-0 08 1 0009- ● ● ●
173 NUT; S/ABS
M12 		8-94139-015-0 08 1 0009- ● ● ●
183 SHACKLE; FRT SUSP
THA 		8-97916-536-0 04 1 0009- ● ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRAME STRAIGHT TYPE<7KJ> THA 		8-97914-243-0 02 1 0009- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97914-243-0 02 1 0009- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97916-763-0 02 1 0009- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
THA 		8-97916-763-0 02 1 0009- ●
191 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> EXC. TIRE SIZE 8.25-16<7QP> L=135 THA 		9-51171-073-2 04 1 0009- ●
191 U-BOLT; FRT SPR
EXC. TIRE SIZE 8.25-16<7QP> L=135 THA 		9-51171-073-2 04 1 0009- ●
191 U-BOLT; FRT SPR
G.V.W. 7.5-8.0TON<RPY> EXC. FRAME STRAIGHT TYPE<7KJ> L=105 THA 		8-97916-749-0 04 1 0009- ●
191 U-BOLT; FRT SPR
L=105 THA 		8-97916-749-0 04 1 0009- ●
191 U-BOLT; FRT SPR
G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> TIRE SIZE 8.25-16<7QP> L=165 THA 		8-97913-488-0 04 1 0009- ●
191 U-BOLT; FRT SPR
TIRE SIZE 8.25-16<7QP> L=165 THA 		8-97913-488-0 04 1 0009- ●
193 NUT; U BOLT
G.V.W. 7.5-8.0TON<RPY> M14 FLANGE 		8-94137-483-0 08 1 0009- ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0009- ●
193 NUT; U BOLT
G.V.W. 8.0-8.5TON<RPZ> M16 		1-09440-028-1 08 1 0009- ●
193 NUT; U BOLT
M16 		1-09440-028-1 08 1 0009- ●
201 NUT; PIN LK
M16 FLANGE 		8-97147-389-0 06 1 0009- ● ● ●
203 PIN; SPR TO SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16X122 FLANGE 		8-97076-850-2 06 1 0009- ● ● ●
203 PIN; SPR TO SHACKLE
KD PREPARATORY PACK<6HF> L=122 THA 		8-97916-533-0 06 1 0009- ● ● ●
