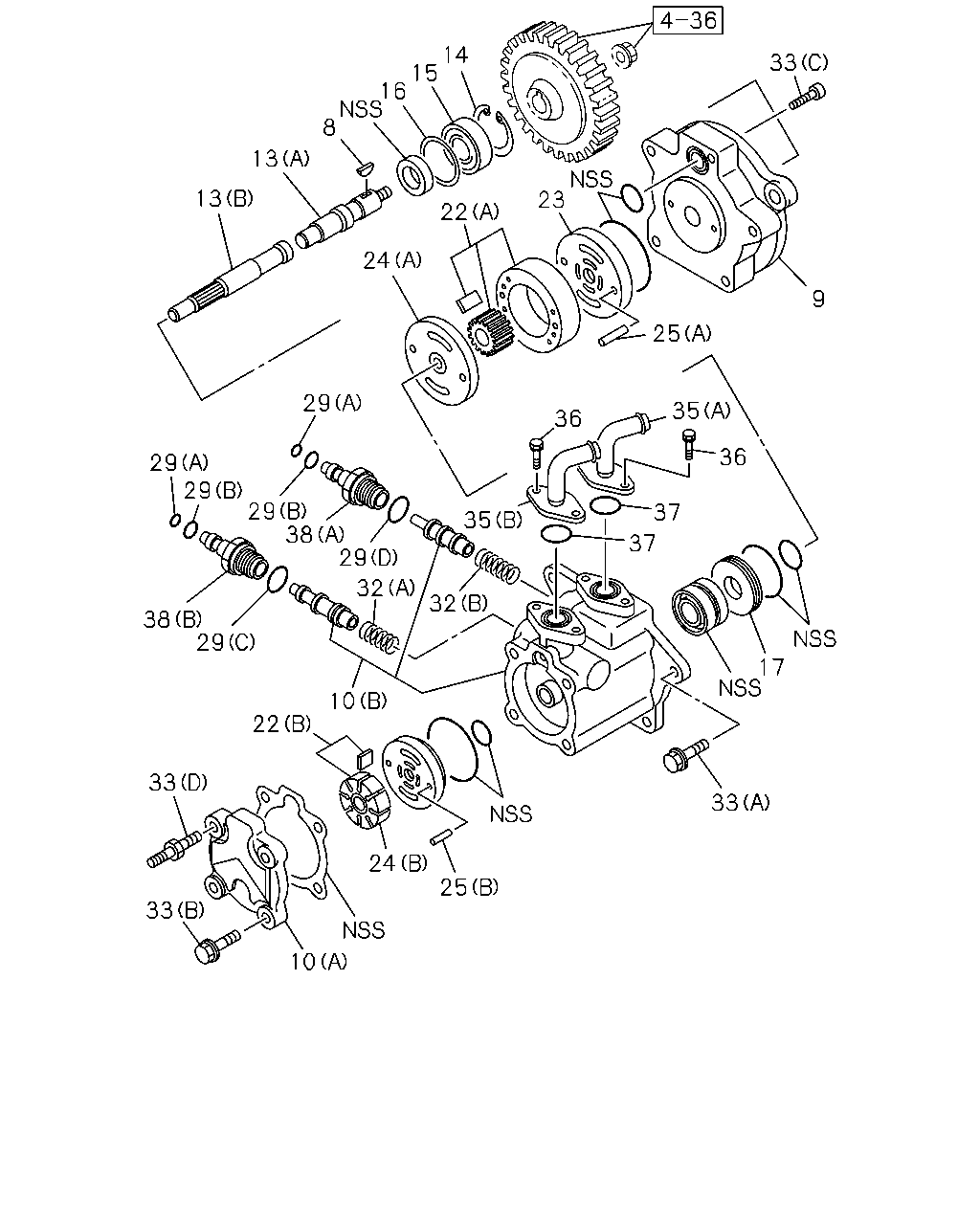

4-42 — POWER STEERING OIL PUMP (#48690) — 147 parça

14 15 16 8 33 13 23 13 22 24 9 25 29 35 36 36 29 29 29 38 37 35 37 29 32 32 38 29 17 10 22 33 33 24 5 33 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-780-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-778-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: C = 8-97258-461-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-764-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97258-461-0	8-97182-095-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-213-0, E = 8-97357-215-0	8-97369-595-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97182-097-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-766-0	01	1	-
13	SHAFT KIT; RET (A) ASM PART: C = 8-97258-461-0	8-97182-096-0	01	1	-
13	SHAFT KIT; RET (B) ASM PART: C = 8-97258-461-0	8-97182-105-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-257-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-264-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97075-578-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-768-0	01	1	-
17	RING; RET ASM PART: C = 8-97258-461-0	8-97182-106-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-092-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97182-102-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: C = 8-97258-461-0	8-97182-094-0	01	1	-
24	PLATE ASM; THRUST (A) ASM PART: C = 8-97258-461-0	8-97182-093-0	01	1	-
24	PLATE ASM; THRUST (B) ASM PART: C = 8-97258-461-0	8-97182-103-0	01	1	-
25	PIN; HSG,P/S (A) ASM PART: C = 8-97258-461-0	1-19519-052-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-94379-646-0	01	1	-
25	PIN; HSG,P/S (B) ASM PART: C = 8-97258-461-0	8-97182-104-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-581-0	01	1	-
29	GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-97258-461-0	9-09561-111-0	02	1	-
29	GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-97258-461-0	9-09561-113-0	02	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: C = 8-97258-461-0	9-48429-028-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: C = 8-97258-461-0	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP (A), THA ASM PART: C = 8-97258-461-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: C = 8-97258-461-0	9-19529-013-0	01	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97258-461-0	1-44519-119-0	04	1	-
33	BOLT; COVER (B) ASM PART: C = 8-97258-461-0	1-48119-054-0	02	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-585-0	01	1	-
33	BOLT; COVER (C) ASM PART: C = 8-97258-461-0	8-97182-100-0	01	1	-
33	BOLT; COVER (D) ASM PART: C = 8-97258-461-0	8-97182-110-0	02	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97091-932-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-101-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97258-420-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-664-0	02	1	-
36	BOLT; CONN,PIPE THA ASM PART: C = 8-97258-461-0	8-94461-139-1	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-292-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-777-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-775-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-97357-213-0, E = 8-97357-215-0	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-098-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97182-109-0	01	1	-

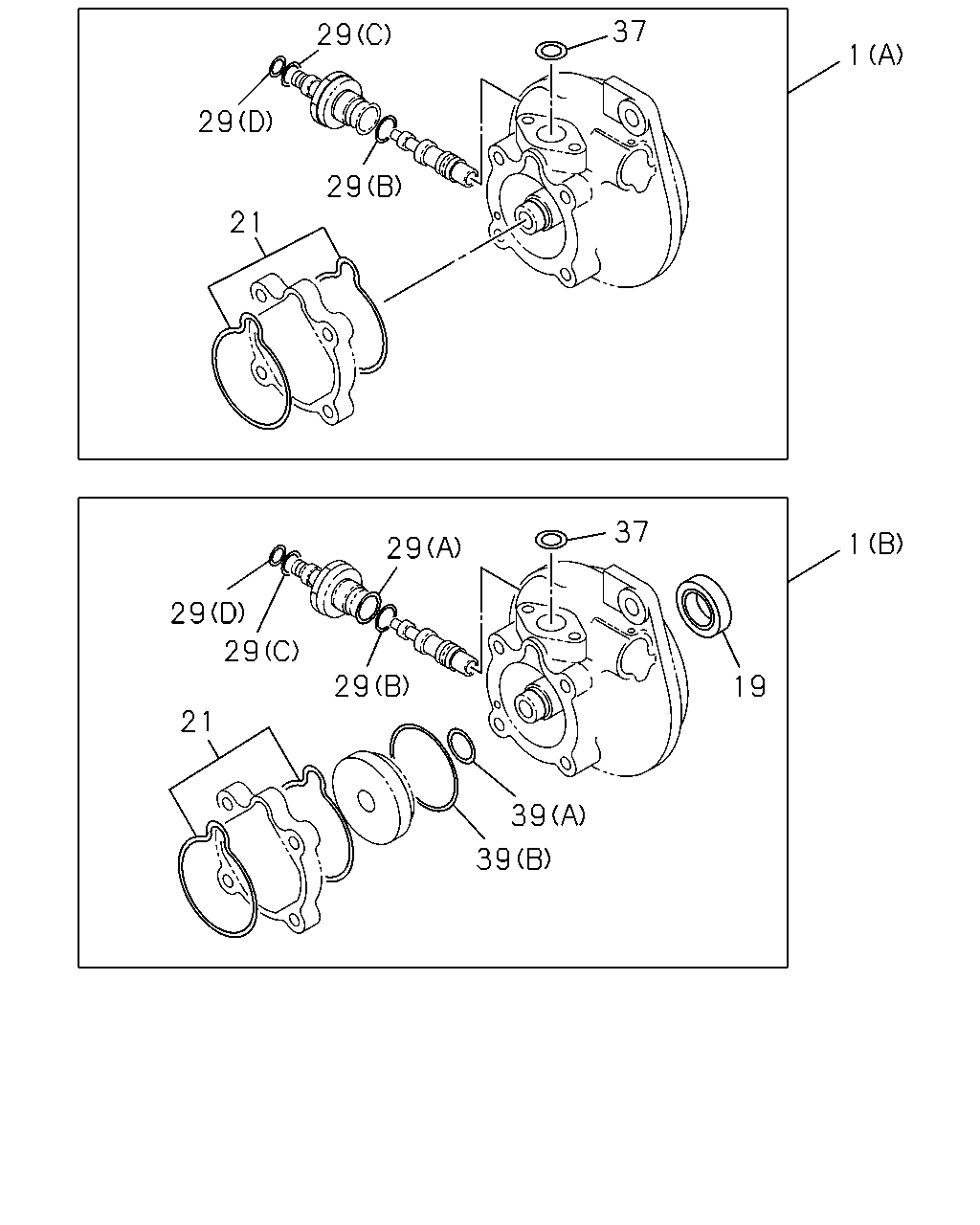

1 29 29 29 29 37 37 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

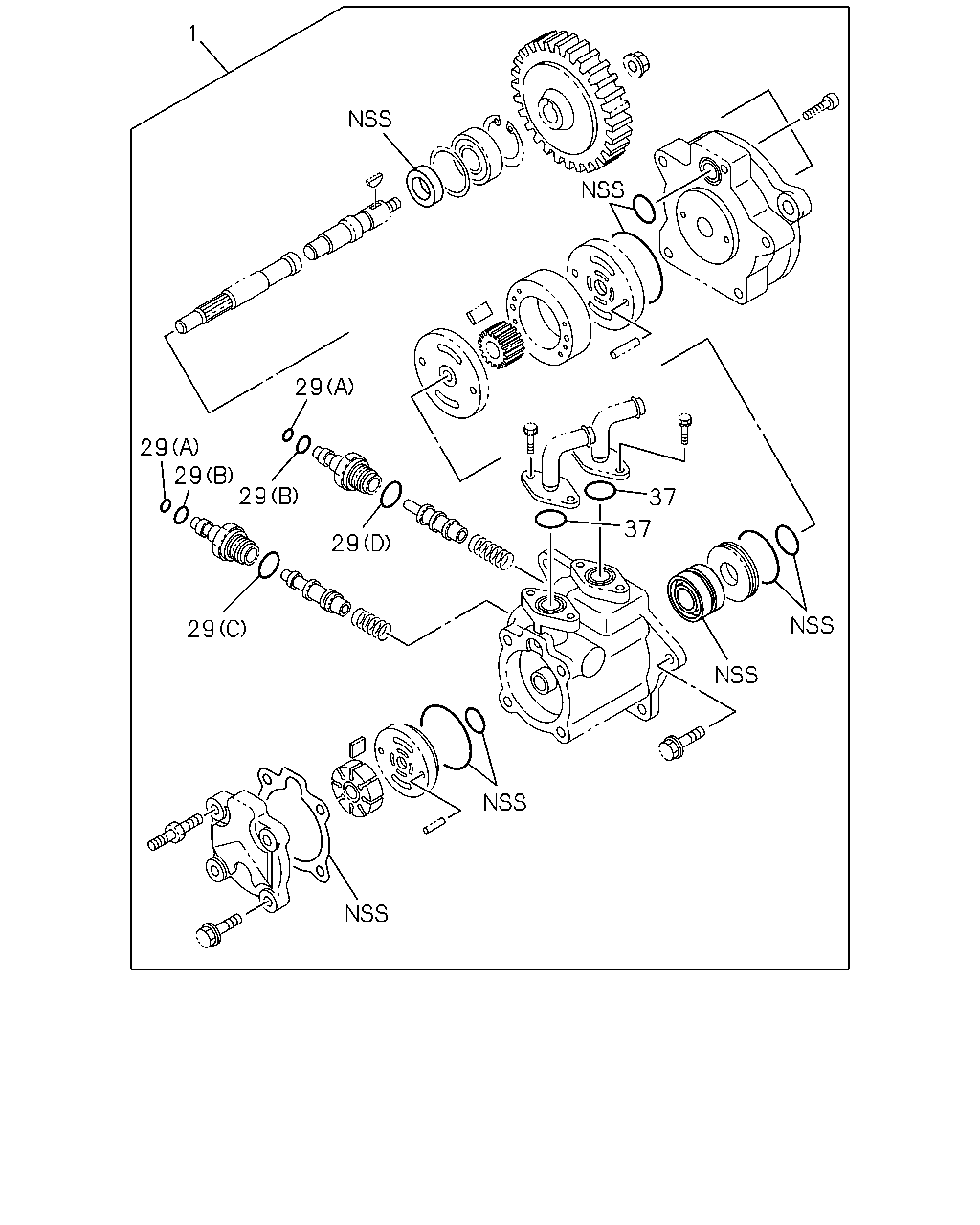

1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97258-461-0	8-97182-111-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-581-0	01	1	-
29	GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-97258-461-0	9-09561-111-0	02	1	-
29	GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-97258-461-0	9-09561-113-0	02	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: C = 8-97258-461-0	9-48429-028-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: C = 8-97258-461-0	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-292-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-777-0	01	1	-

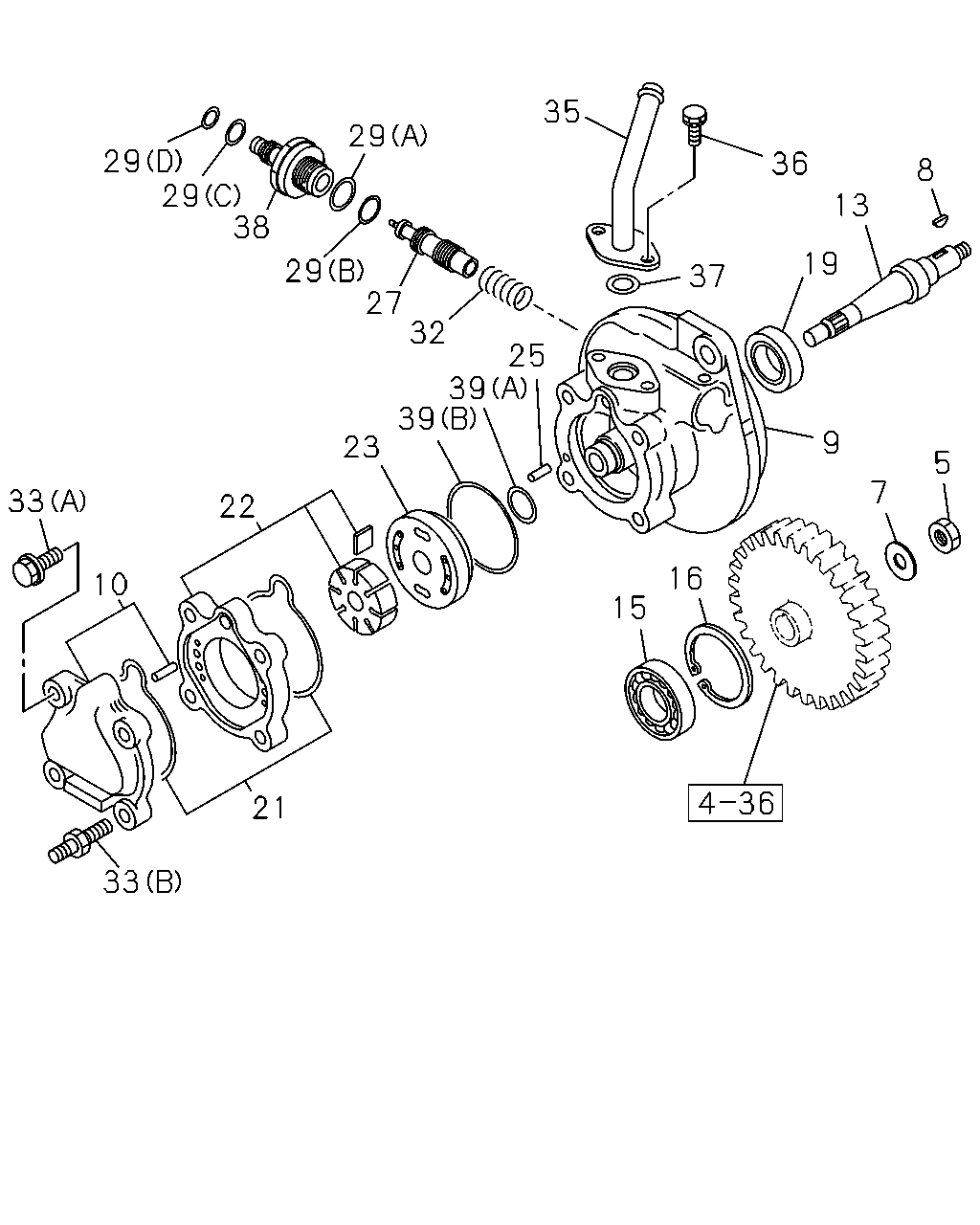

35 29 29 29 38 36 8 13 19 29 27 32 37 25 39 39 9 23 5 7 33 22 16 10 15 21 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	NUT; SHAFT,P/S PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-780-0	01	1	-
7	WASHER; SHAFT ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-779-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-778-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: C = 8-97258-461-0	9-19519-089-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-764-1	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97258-461-0	8-97182-095-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97357-213-0, E = 8-97357-215-0	8-97369-595-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-772-0	01	1	-
10	BODY ASM; RR,OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97182-097-0	01	1	-
10	BODY ASM; RR,OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-108-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-766-0	01	1	-
13	SHAFT KIT; RET (A) ASM PART: C = 8-97258-461-0	8-97182-096-0	01	1	-
13	SHAFT KIT; RET (B) ASM PART: C = 8-97258-461-0	8-97182-105-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-264-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97075-578-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-258-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-768-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97062-329-0	02	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97148-690-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-092-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97182-102-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97147-453-0	01	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: C = 8-97258-461-0	8-97182-094-0	01	1	-
25	PIN; HSG,P/S (A) ASM PART: C = 8-97258-461-0	1-19519-052-0	02	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-94379-646-0	01	1	-
25	PIN; HSG,P/S (B) ASM PART: C = 8-97258-461-0	8-97182-104-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: A = 8-97136-574-1, D = 8-97357-213-0	8-97075-587-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: B = 8-97136-597-0, E = 8-97357-215-0	8-97134-862-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-581-0	01	1	-
29	GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-97258-461-0	9-09561-111-0	02	1	-
29	GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-97258-461-0	9-09561-113-0	02	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: C = 8-97258-461-0	9-48429-028-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: C = 8-97258-461-0	9-88510-248-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-654-0	01	1	-
32	SPRING; OIL PUMP (A), THA ASM PART: C = 8-97258-461-0	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: C = 8-97258-461-0	9-19529-013-0	01	1	-
33	BOLT; COVER (A) ASM PART: C = 8-97258-461-0	1-44519-119-0	04	1	-
33	BOLT; COVER (B) ASM PART: C = 8-97258-461-0	1-48119-054-0	02	1	-
33	BOLT; COVER (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-773-0	03	1	-
33	BOLT; COVER (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-585-0	01	1	-
33	BOLT; COVER (C) ASM PART: C = 8-97258-461-0	8-97182-100-0	01	1	-
33	BOLT; COVER (D) ASM PART: C = 8-97258-461-0	8-97182-110-0	02	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97091-932-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-101-0	01	1	-
35	PIPE; HOSE CONN,OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97258-420-0	01	1	-
36	BOLT; CONN,PIPE ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-664-0	02	1	-
36	BOLT; CONN,PIPE THA ASM PART: C = 8-97258-461-0	8-94461-139-1	04	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-292-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-777-0	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97029-775-1	01	1	-
38	CONNECTOR; OIL PUMP ASM PART: D = 8-97357-213-0, E = 8-97357-215-0	8-97093-504-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: C = 8-97258-461-0	8-97182-098-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: C = 8-97258-461-0	8-97182-109-0	01	1	-
39	GASKET; OIL PUMP ASM PART: D = 8-97357-213-0, E = 8-97357-215-0	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-94379-648-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97147-441-0	01	1	-

37 29 1 29 29 21 37 1 29 29 29 29 19 21 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-583-0	01	1	-
1	REPAIR KIT; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-584-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97258-461-0	8-97182-111-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-97075-577-0	01	1	-
21	GASKET; FRT COVER TO BODY ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97062-329-0	02	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-658-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-659-0	01	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-94379-666-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97075-581-0	01	1	-
29	GASKET; PLUG TO VLV (A), ID=11.0 ASM PART: C = 8-97258-461-0	9-09561-111-0	02	1	-
29	GASKET; PLUG TO VLV (B), ID=13.0 ASM PART: C = 8-97258-461-0	9-09561-113-0	02	1	-
29	GASKET; PLUG TO VLV (C) ASM PART: C = 8-97258-461-0	9-48429-028-0	01	1	-
29	GASKET; PLUG TO VLV (D) ASM PART: C = 8-97258-461-0	9-88510-248-0	01	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: C = 8-97258-461-0	1-19519-292-0	02	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97029-777-0	01	1	-
39	GASKET; OIL PUMP ASM PART: D = 8-97357-213-0, E = 8-97357-215-0	8-94379-647-0	01	1	-
39	GASKET; OIL PUMP (B) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0	8-94379-648-0	01	1	-
39	GASKET; OIL PUMP (A) ASM PART: A = 8-97136-574-1, B = 8-97136-597-0, D = 8-97357-213-0, E = 8-97357-215-0	8-97147-441-0	01	1	-
