4-01 — PROPELLER SHAFT (#4869) — 98 parça

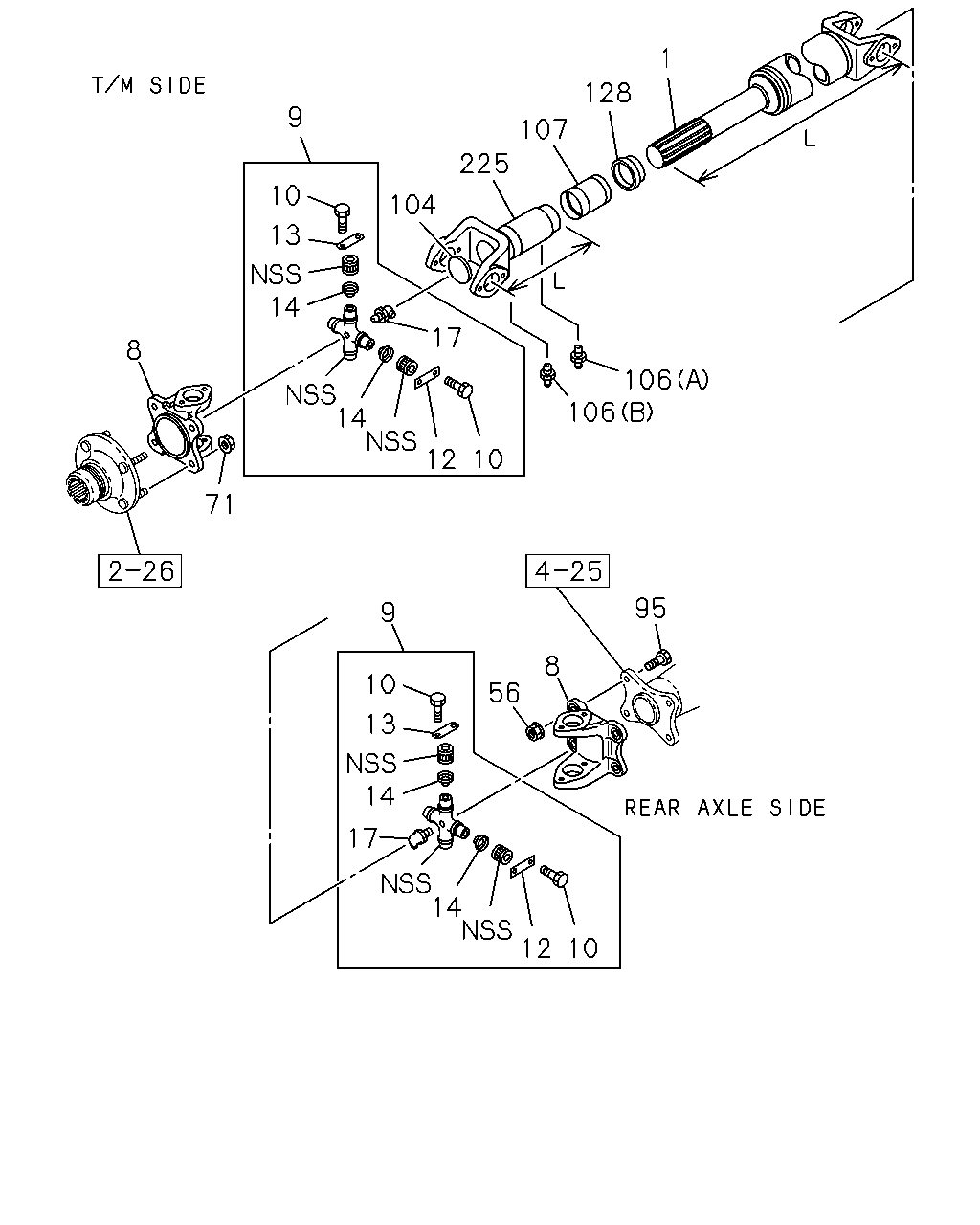

1 128 9 107 225 10 104 13 14 17 8 106 106 14 12 10 71 95 9 8 10 56 13 14 17 14 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L TYPE ENG<90L> FULLER M/T<X9B> P115 PROP SHAFT<C5X> L=835	1-37124-025-0	01	1	9611-9904
1	SHAFT; PROP L TYPE ENG<90L> FULLER M/T<X9B> P115 PROP SHAFT<C5X> L=890	1-37124-047-0	01	1	9905-
1	SHAFT; PROP L TYPE ENG<90L> MJA7U M/T(X6G) P115 PROP SHAFT<C5X> L=815	1-37124-143-0	01	1	9601-0004
1	SHAFT; PROP L TYPE ENG<90L> MJA7U M/T(X6G),MJD7R M/T(Y2X) P115 PROP SHAFT<C5X> L=815	1-37124-143-0	01	1	0005-
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=830	1-37124-060-0	01	1	9601-
1	SHAFT; PROP P90 PROP SHAFT<C5T> L=1052	1-37124-138-0	01	1	9601-
1	SHAFT; PROP V TYPE ENG<91L> MJA6A M/T(X6V) P115 PROP SHAFT<C5X> L=1140	1-37124-142-0	01	1	9601-
1	SHAFT; PROP V TYPE ENG<91L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=1045	1-37124-144-0	01	1	9601-
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	9601-9610
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	9611-9904
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> REAR	1-37211-068-1	01	1	9905-
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	02	1	9601-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X>	1-37211-068-1	01	1	9601-9904
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	9905-0004
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7R M/T(Y2X) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	0005-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X>	1-37211-069-2	01	1	9601-9904
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> FRONT	1-37211-069-2	01	1	9905-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X>	1-37300-093-0	AR	1	9601-
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-0	AR	1	9601-
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	9601-
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-009-0	AR	1	9601-
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	AR	1	9601-
13	COVER; FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37355-021-0	AR	1	9601-
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	AR	1	9601-
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X>	1-37249-133-0	AR	1	9601-
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	AR	1	9601-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	9601-
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9601-
56	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9601-
71	NUT; YOKE P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE	1-09449-065-0	08	1	9601-
71	NUT; YOKE P115 PROP SHAFT<C5X> ZF M/T<X9E> M14 FLANGE	1-09440-048-0	04	1	9601-9904
71	NUT; YOKE P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE	1-09440-048-0	04	1	9905-
71	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9601-
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9601-
95	BOLT; YOKE,FINAL P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9601-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X>	1-09600-049-0	01	1	9601-
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	9601-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B) PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT	1-09380-006-0	01	1	9601-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-
107	COVER; RET,SLEEVE P90 PROP SHAFT<C5T>	1-37249-132-1	01	1	9601-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X>	1-37247-020-0	01	1	9601-
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-019-0	01	1	9601-
225	YOKE; SLEEVE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	9601-9904
225	YOKE; SLEEVE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V) P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	9905-0004
225	YOKE; SLEEVE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7R M/T(Y2X) P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	0005-
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=332	1-37241-103-1	01	1	9601-
225	YOKE; SLEEVE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L=345	1-37241-107-1	01	1	9601-9904
225	YOKE; SLEEVE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> L=345	1-37241-107-1	01	1	9905-

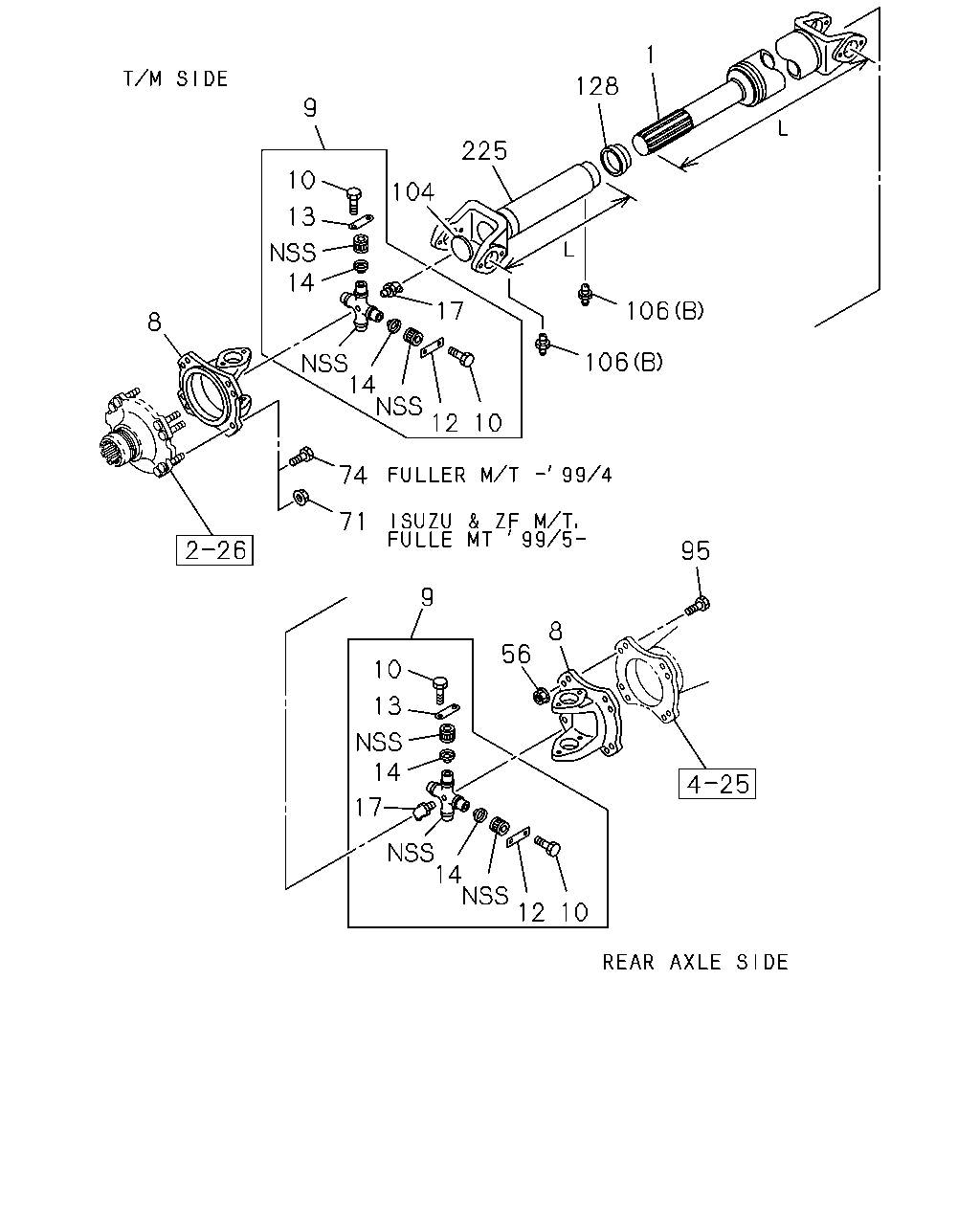

1 128 9 225 10 104 13 14 106 17 8 14 12 106 10 74 71 95 9 8 56 10 13 14 17 14 12 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP L TYPE ENG<90L> FULLER M/T<X9B> P115 PROP SHAFT<C5X> L=835	1-37124-025-0	01	1	9611-9904
1	SHAFT; PROP L TYPE ENG<90L> FULLER M/T<X9B> P115 PROP SHAFT<C5X> L=890	1-37124-047-0	01	1	9905-
1	SHAFT; PROP L TYPE ENG<90L> MJA7U M/T(X6G) P115 PROP SHAFT<C5X> L=815	1-37124-143-0	01	1	9601-0004
1	SHAFT; PROP L TYPE ENG<90L> MJA7U M/T(X6G),MJD7R M/T(Y2X) P115 PROP SHAFT<C5X> L=815	1-37124-143-0	01	1	0005-
1	SHAFT; PROP L TYPE ENG<90L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=830	1-37124-060-0	01	1	9601-
1	SHAFT; PROP P90 PROP SHAFT<C5T> L=1052	1-37124-138-0	01	1	9601-
1	SHAFT; PROP V TYPE ENG<91L> MJA6A M/T(X6V) P115 PROP SHAFT<C5X> L=1140	1-37124-142-0	01	1	9601-
1	SHAFT; PROP V TYPE ENG<91L> ZF M/T<X9E> P115 PROP SHAFT<C5X> L=1045	1-37124-144-0	01	1	9601-
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	9601-9610
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	9611-9904
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> REAR	1-37211-068-1	01	1	9905-
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-066-1	02	1	9601-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X>	1-37211-068-1	01	1	9601-9904
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	9905-0004
8	YOKE; FLANGE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7R M/T(Y2X) P115 PROP SHAFT<C5X>	1-37211-068-1	02	1	0005-
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X>	1-37211-069-2	01	1	9601-9904
8	YOKE; FLANGE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> FRONT	1-37211-069-2	01	1	9905-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X>	1-37300-093-0	AR	1	9601-
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T>	1-37300-091-0	AR	1	9601-
10	BOLT; UJT M10X20	9-02061-020-0	AR	1	9601-
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-009-0	AR	1	9601-
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37356-008-0	AR	1	9601-
13	COVER; FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37355-021-0	AR	1	9601-
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-020-0	AR	1	9601-
14	COVER; DUST,SPIDER P115 PROP SHAFT<C5X>	1-37249-133-0	AR	1	9601-
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T>	1-37249-131-0	AR	1	9601-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	AR	1	9601-
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9601-
56	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9601-
71	NUT; YOKE P115 PROP SHAFT<C5X> ISUZU M/T<X9A> M16 FLANGE	1-09449-065-0	08	1	9601-
71	NUT; YOKE P115 PROP SHAFT<C5X> ZF M/T<X9E> M14 FLANGE	1-09440-048-0	04	1	9601-9904
71	NUT; YOKE P115 PROP SHAFT<C5X> FULLER M/T<X9B>,ZF M/T<X9E> M14 FLANGE	1-09440-048-0	04	1	9905-
71	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9601-
74	BOLT; YOKE,TRANS P115 PROP SHAFT<C5X> FULLER M/T<X9B> M16X48	1-09000-383-0	08	1	9611-9904
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9601-
95	BOLT; YOKE,FINAL P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9601-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X>	1-09600-049-0	01	1	9601-
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T>	1-09600-067-0	01	1	9601-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B) PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (A) MT6 STRAIGHT	1-09380-006-0	01	1	9601-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	9601-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X>	1-37247-020-0	01	1	9601-
128	SEAL; SLEEVE P90 PROP SHAFT<C5T>	1-37247-019-0	01	1	9601-
225	YOKE; SLEEVE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),TRANSMISSION-FULLER RTL0147 13 OD(Y2P) P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	9601-9904
225	YOKE; SLEEVE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V) P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	9905-0004
225	YOKE; SLEEVE,PROP SHAFT MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7R M/T(Y2X) P115 PROP SHAFT<C5X> L=410	1-37241-105-1	01	1	0005-
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T> L=332	1-37241-103-1	01	1	9601-
225	YOKE; SLEEVE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N) P115 PROP SHAFT<C5X> L=345	1-37241-107-1	01	1	9601-9904
225	YOKE; SLEEVE,PROP SHAFT TRANSMISSION-ZF 16S151 OD(Y2N),TRANSMISSION-ZF 8S151 OD(Y3N),TRANSMISSION-FULLER RTLO149 13 OD(Y3Q) P115 PROP SHAFT<C5X> L=345	1-37241-107-1	01	1	9905-
