4-40 — STEERING UNIT (#48689) — 103 parça

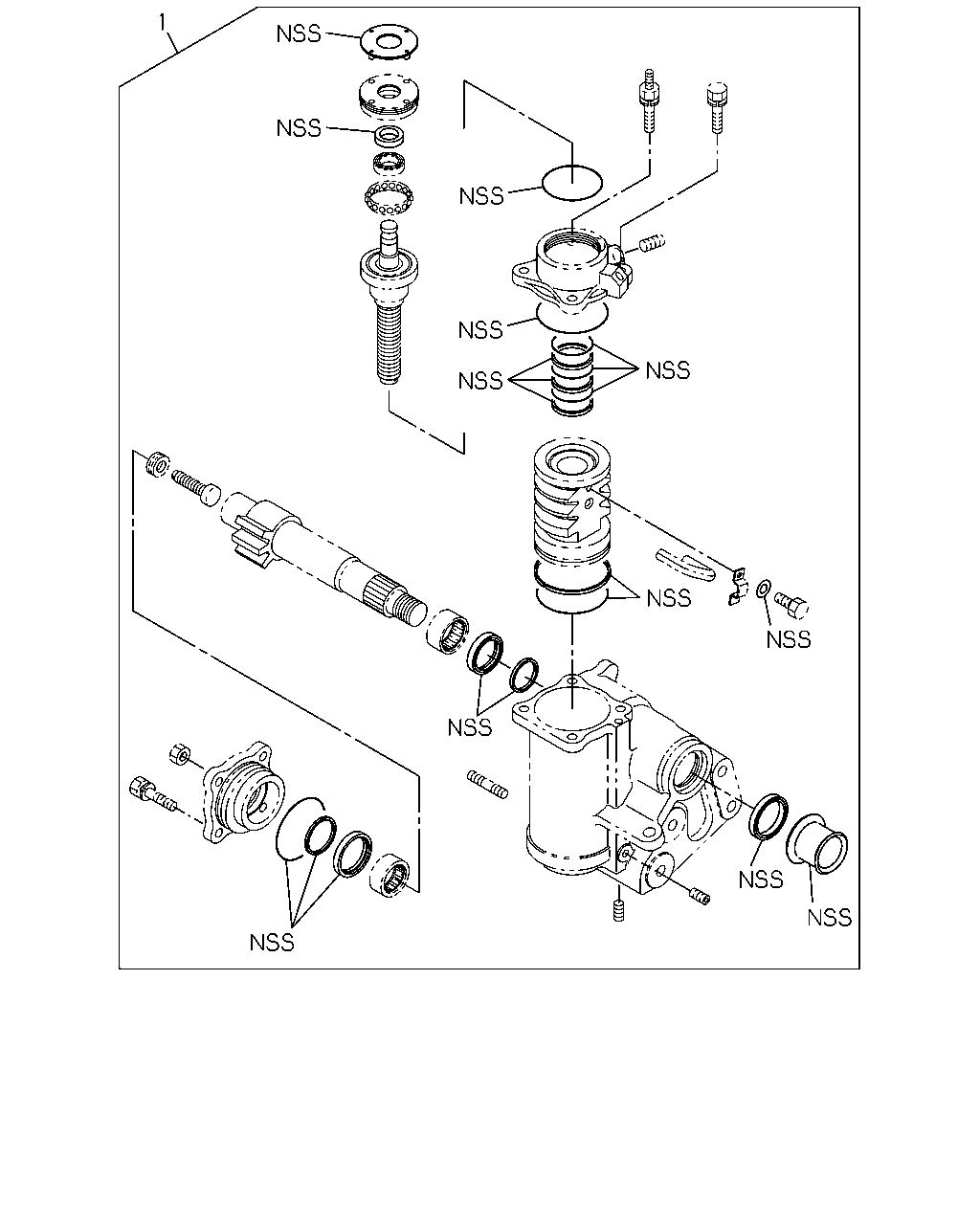

çizim 10070
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97218-594-3 		8-97218-601-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97264-442-0 01 1 -

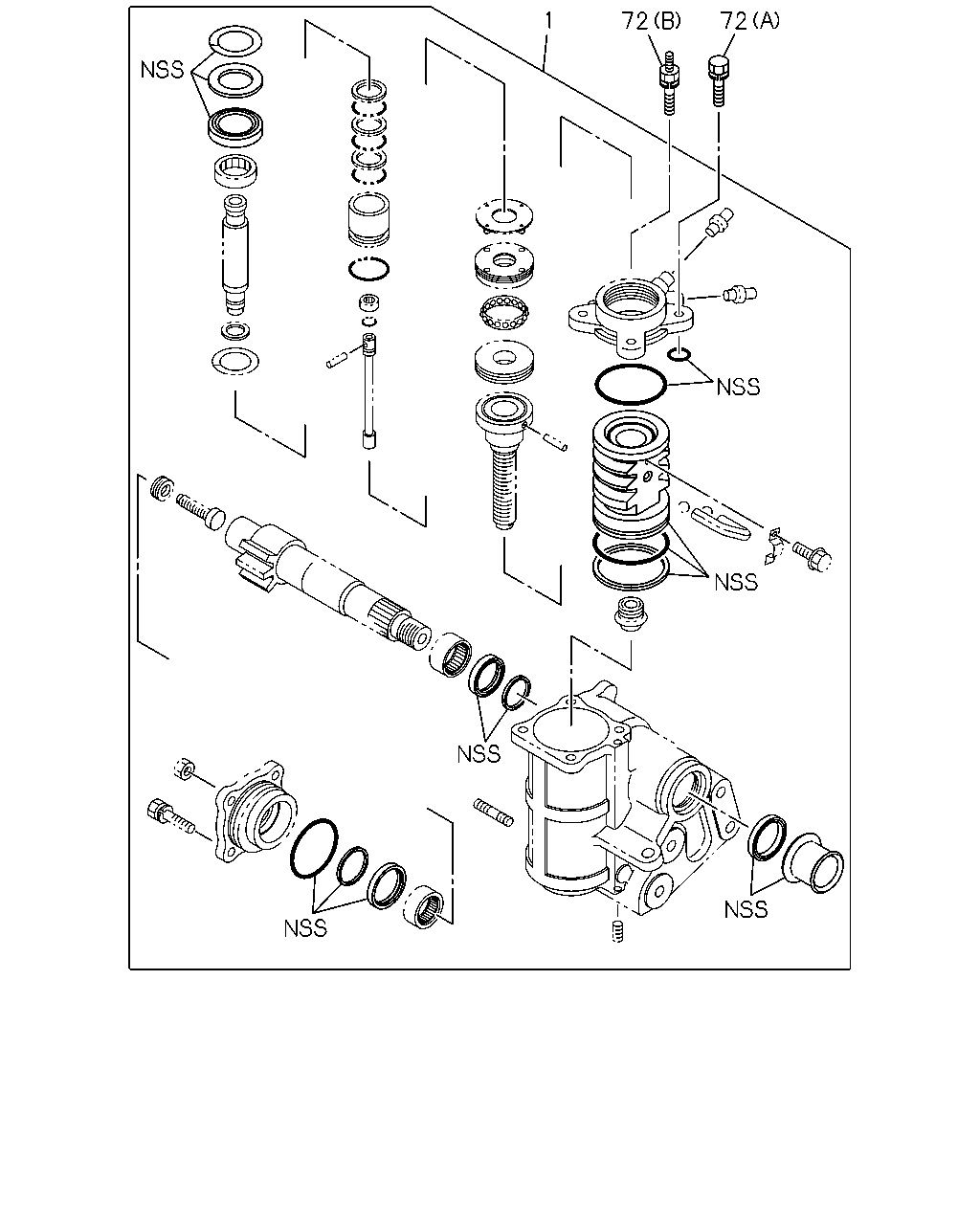

çizim 10418
1 72 72
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97218-594-3 		8-97218-601-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97264-442-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		1-44519-110-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97078-178-0 01 1 -

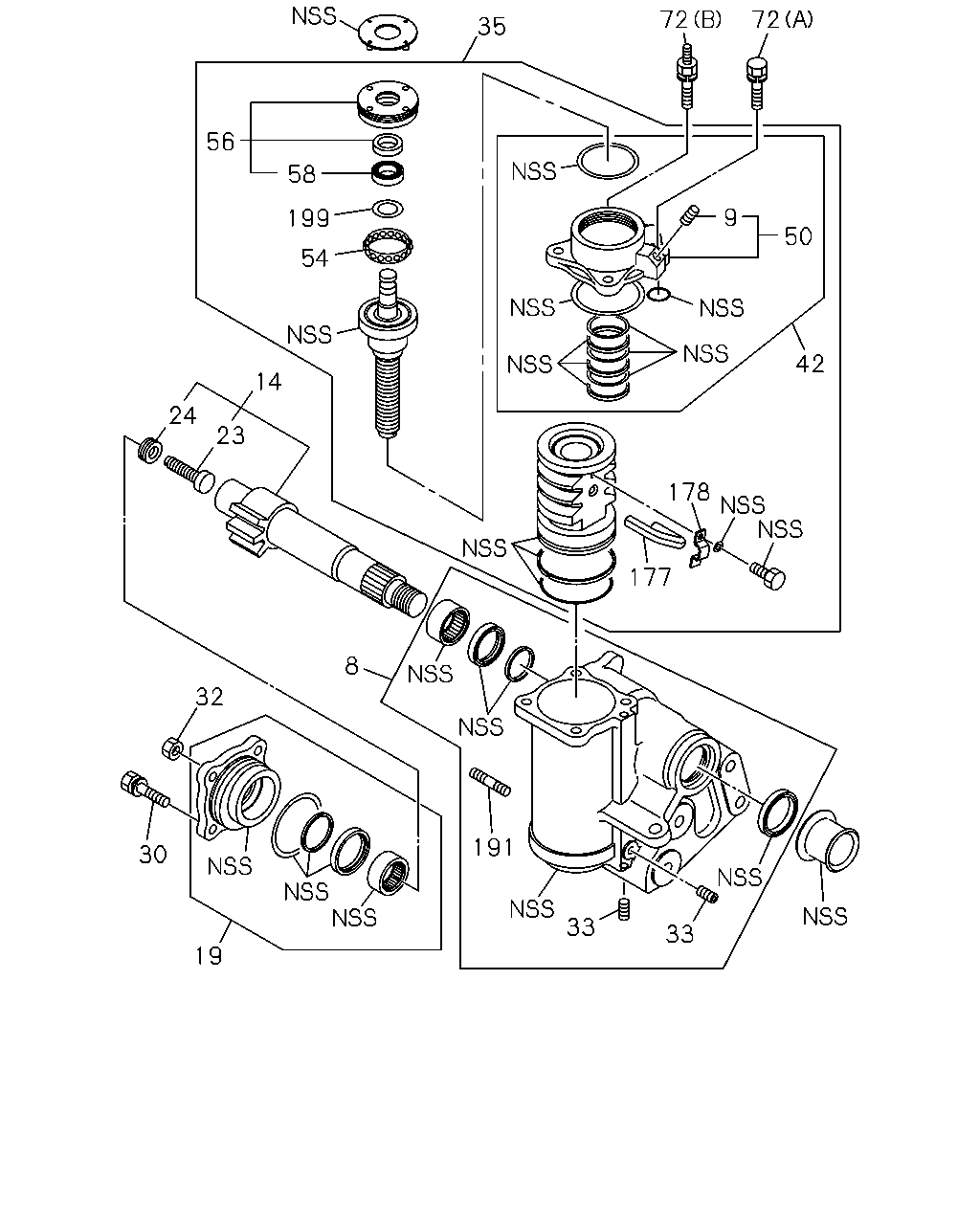

çizim 46882
72 72 35 56 58 9 199 50 54 42 14 24 23 178 177 8 32 19 30 33 33 19
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-275-0 		8-97108-216-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97119-776-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97224-871-0 		8-97226-608-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0 		8-97078-177-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-091-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97287-197-1 		8-97287-202-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-275-0 		8-97081-094-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97224-871-0 		8-97226-610-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X25 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-01911-025-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-100-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-820-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97218-597-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97251-840-0 		8-97264-467-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97287-197-1 		8-97287-200-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97078-175-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97078-176-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-810-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97076-364-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-812-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		1-44519-110-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97078-178-0 01 1 -
177 TUBE; BALL BRG STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97077-537-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-808-0 01 1 -
199 WASHER; WAVE,STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97201-812-0 01 1 -

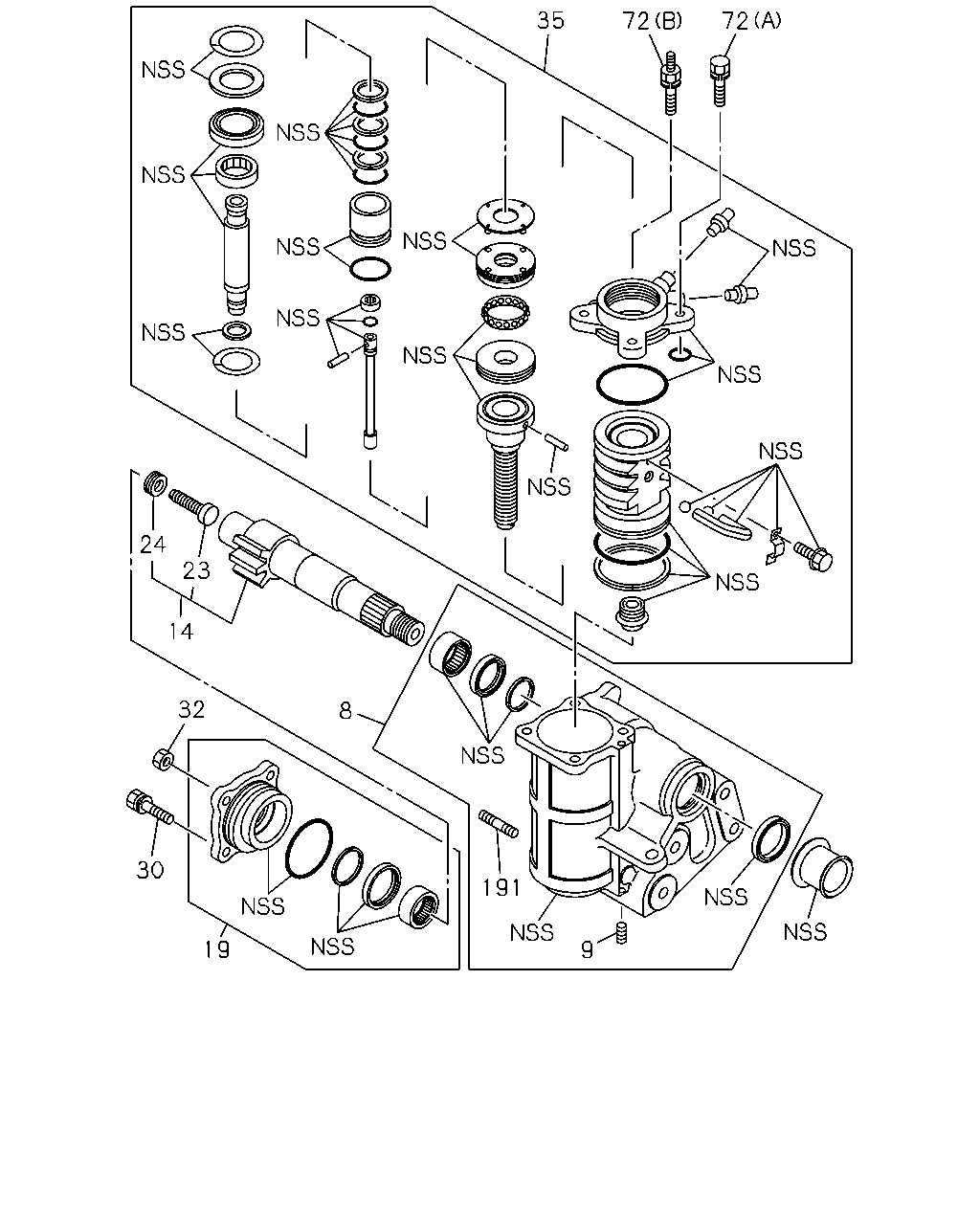

çizim 47725
35 72 72 24 23 14 32 8 30 191 19 9
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-275-0 		8-97108-216-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97119-776-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97224-871-0 		8-97226-608-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-820-0 02 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0 		8-97078-177-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-091-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97287-197-1 		8-97287-202-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-275-0 		8-97081-094-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97224-871-0 		8-97226-610-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44277-010-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X25 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-01911-025-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-100-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97218-597-1 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-97251-840-0 		8-97264-467-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: E = 8-97287-197-1 		8-97287-200-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		1-44519-110-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97078-178-0 01 1 -
191 STUD; STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97078-173-0 01 1 -
çizim 50835
69 26 68 66 44 43 55 9 43 7 14 13 22 8 30 23 32 25 26 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-09924-502-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97073-275-0 		8-97108-216-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97119-776-2 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97224-871-0 		8-97226-608-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97218-594-3 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-820-0 02 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97015-202-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0 		8-97078-177-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-091-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: E = 8-97287-197-1 		8-97287-202-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97073-275-0 		8-97081-094-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97224-871-0 		8-97226-610-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97015-209-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97218-594-3, D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44277-010-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.035 +0.015 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44279-013-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.065 +0.045 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44279-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.095 +0.075 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44279-015-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.125 +0.105 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44279-016-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=2.5 +0.155 +0.135 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-44279-017-0 01 1 -
26 GASKET; COVER,STRG UNIT
(A) ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-096-0 01 1 -
26 GASKET; COVER,STRG UNIT
(B) ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-098-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
M10X25 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-01911-025-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-97251-840-0, E = 8-97287-197-1 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97081-100-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-938-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-940-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-97108-221-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-939-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.05 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-942-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.07 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-943-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.08 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-944-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.10 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-945-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.20 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-946-0 01 1 -
68 SHIM; COVER STRG UNIT
T=0.50 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		8-94130-947-0 01 1 -
69 BOLT; COVER FIX STRG UNIT
M10X25 ASM PART: A = 8-97073-275-0, C = 8-97224-871-0 		9-01911-025-0 04 1 -
