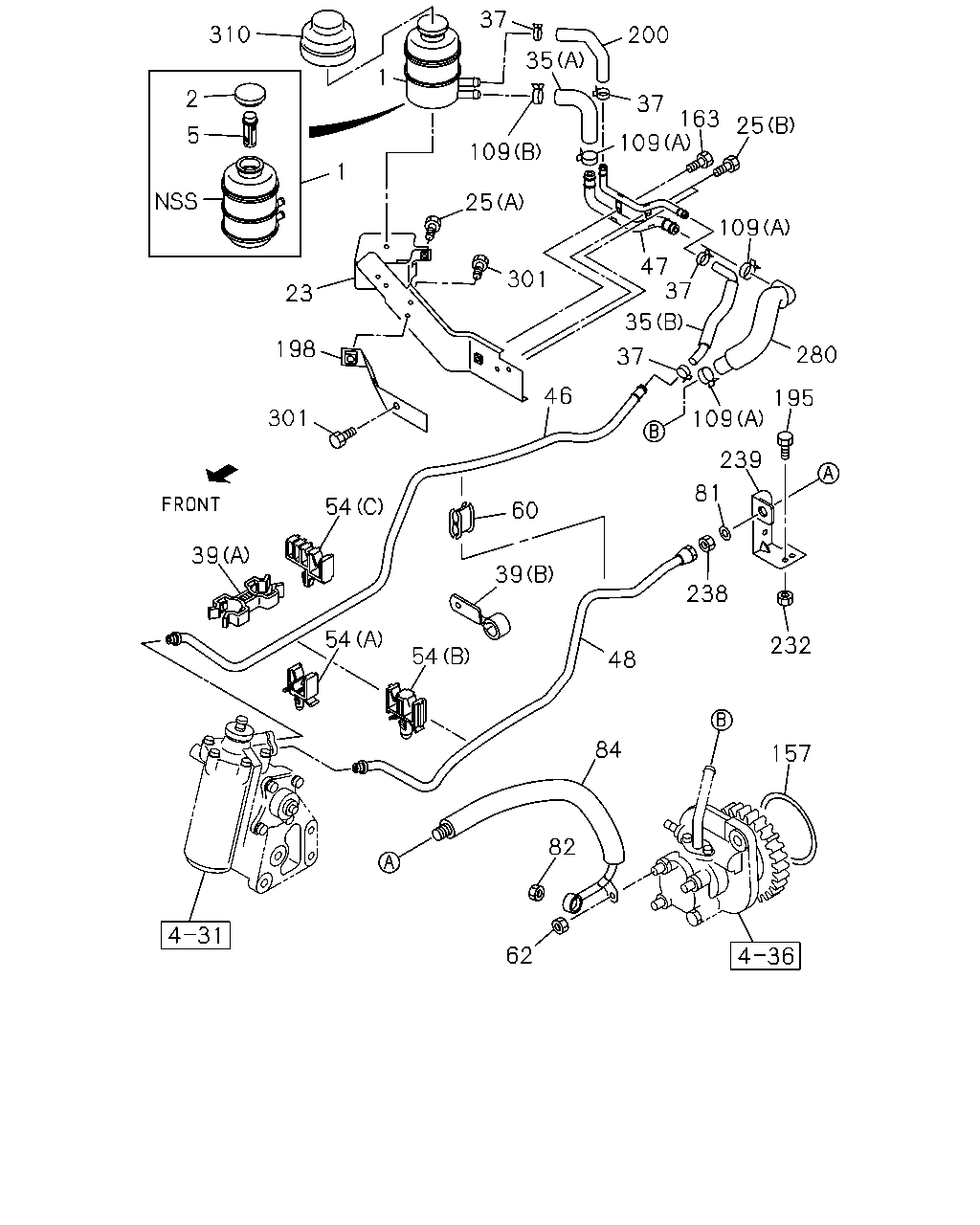

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#48687) — 90 parça

37 310 200 35 1 2 37 163 25 5 109 109 1 25 109 47 37 301 23 35 198 280 37 46 195 301 109 239 81 54 60 39 39 238 54 232 54 48 84 157 82 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0009-	●	●
1	TANK ASM; OIL,P/S	8-97107-987-0	01	1	0009-			●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0009-	●	●
2	CAP; OIL TANK,P/S	8-94146-153-2	01	1	0009-			●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0009-	●	●
5	STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0009-			●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97101-040-1	01	1	0009-	●	●
23	BRACKET; OIL TANK,P/S	8-97101-040-1	01	1	0009-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0009-	●	●
25	BOLT; OIL TANK BRKT (A) M6X20 FLANGE	0-28480-620-0	01	1	0009-			●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
25	BOLT; OIL TANK BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (A)	8-97080-108-1	01	1	0009-	●	●
35	HOSE; RETURN,P/S TANK (A)	8-97080-108-1	01	1	0009-			●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40> (B)	8-97096-949-1	01	1	0009-	●	●
35	HOSE; RETURN,P/S TANK (B)	8-97096-949-1	01	1	0009-			●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	04	1	0009-	●	●
37	CLIP; HOSE,P/S ID=16	8-94238-568-0	04	1	0009-			●
39	CLIP; FLEX HOSE 4HG1 ENG<RJH> TURBOCHARGER<K51> POWER STEERING<N40> (A) ID=22 & 22	8-94464-837-0	01	1	0009-	●
39	CLIP; FLEX HOSE POWER STEERING<N40> (A) ID=22 & 22	8-94464-837-0	01	1	0009-		●
39	CLIP; FLEX HOSE 4HE1 ENG<RLY> POWER STEERING<N40> (B) ID=28 L=60	1-09700-585-1	01	1	0009-	●
39	CLIP; FLEX HOSE (B) ID=28 L=60	1-09700-585-1	01	1	0009-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97096-455-0	01	1	0009-0009	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-97096-455-0	01	1	0009-0009			●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97262-198-0	01	1	0009-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK	8-97262-198-0	01	1	0009-			●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97064-720-2	01	1	0009-0009	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97064-720-2	01	1	0009-0009		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97257-365-0	01	1	0009-	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97257-365-0	01	1	0009-		●
47	PIPE; RETURN POWER STEERING<N40>	8-97040-001-2	01	1	0009-	●	●
47	PIPE; RETURN	8-97040-001-2	01	1	0009-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ>	8-97096-453-1	01	1	0009-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97096-453-1	01	1	0009-			●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97064-722-2	01	1	0009-	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97064-722-2	01	1	0009-		●
54	CLIP; OIL PIPE POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	01	1	0009-	●
54	CLIP; OIL PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0009-			●
54	CLIP; OIL PIPE POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0009-	●
54	CLIP; OIL PIPE (B) ID=10X2 H=37.5	8-97018-546-0	01	1	0009-			●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-	●
54	CLIP; OIL PIPE POWER STEERING<N40> (B) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-		●
54	CLIP; OIL PIPE 4HG1 ENG<RJH> POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10 & 4.8X3	8-97038-938-0	01	1	0009-	●
54	CLIP; OIL PIPE POWER STEERING<N40> (C) ID=10 & 4.8X3	8-97038-938-0	01	1	0009-		●
58	BOLT; CLIP 4HE1 ENG<RLY> POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0010-	●
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0010-			●
60	CLAMP; PIPE,RETURN POWER STEERING<N40> FRAME STRAIGHT TYPE<7KJ> ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-	●
60	CLAMP; PIPE,RETURN ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-			●
62	NUT; CLIP FIX POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
62	NUT; CLIP FIX M8 FLANGE	0-91150-108-0	01	1	0009-			●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-	●	●
81	WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0009-			●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M12 SELF LOCK	8-97028-390-1	01	1	0009-	●	●
82	NUT; FLEX HOSE,P/S M12 SELF LOCK	8-97028-390-1	01	1	0009-			●
84	HOSE; FLEX,P/S 4HG1 ENG<RJH> TURBOCHARGER<K51> POWER STEERING<N40>	8-97074-110-4	01	1	0009-	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97074-110-4	01	1	0009-		●
84	HOSE; FLEX,P/S 4HE1 ENG<RLY> POWER STEERING<N40>	8-97218-727-0	01	1	0009-0301	●
84	HOSE; FLEX,P/S	8-97218-727-0	01	1	0009-0301			●
84	HOSE; FLEX,P/S 4HE1 ENG<RLY> POWER STEERING<N40>	8-97358-336-0	01	1	0302-	●
84	HOSE; FLEX,P/S	8-97358-336-0	01	1	0302-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	03	1	0009-	●	●
109	CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	03	1	0009-			●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0009-	●	●
109	CLIP; RUBBER HOSE (B) ID=22	8-94382-401-0	01	1	0009-			●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HE1 ENG<RLY> FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF> HYDRO BRAKE BOOSTER<7QQ> ENGINE POWER N-SPEC(7QV)	8-97101-875-2	01	1	0009-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 4HG1 ENG<RJH> TURBOCHARGER<K51> POWER STEERING<N40>	8-97101-875-2	01	1	0009-	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). POWER STEERING<N40>	8-97101-875-2	01	1	0009-		●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). CHARGE AIR COOLER<6PL> EURO2 SPECIFICATION<7AF>	8-97101-875-2	01	1	0009-			●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
163	BOLT; OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0009-			●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●	●
195	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0009-			●
198	STAY; OIL TANK,POWER STEERING POWER STEERING<N40>	8-97081-778-1	01	1	0009-	●	●
198	STAY; OIL TANK,POWER STEERING	8-97081-778-1	01	1	0009-			●
200	HOSE; RUBBER,RETURN POWER STEERING<N40>	8-97080-109-0	01	1	0009-	●	●
200	HOSE; RUBBER,RETURN	8-97080-109-0	01	1	0009-			●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
232	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0009-			●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0009-	●	●
238	NUT; FLEX HOSE M16	8-94370-339-0	01	1	0009-			●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97033-926-2	01	1	0009-	●	●
239	BRACKET; FLEX HOSE	8-97033-926-2	01	1	0009-			●
280	HOSE; P/S OIL PUMP,INL 4HG1 ENG<RJH> POWER STEERING<N40>	8-97107-524-1	01	1	0009-	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97107-524-1	01	1	0009-		●
280	HOSE; P/S OIL PUMP,INL 4HE1 ENG<RLY> POWER STEERING<N40>	8-97218-729-0	01	1	0009-	●
280	HOSE; P/S OIL PUMP,INL	8-97218-729-0	01	1	0009-			●
301	BOLT; STAY,OIL TANK POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
301	BOLT; STAY,OIL TANK M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
310	COVER; OIL TANK POWER STEERING<N40>	8-97103-394-0	01	1	0009-	●	●
310	COVER; OIL TANK	8-97103-394-0	01	1	0009-			●
