◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#48684) — 52 parça

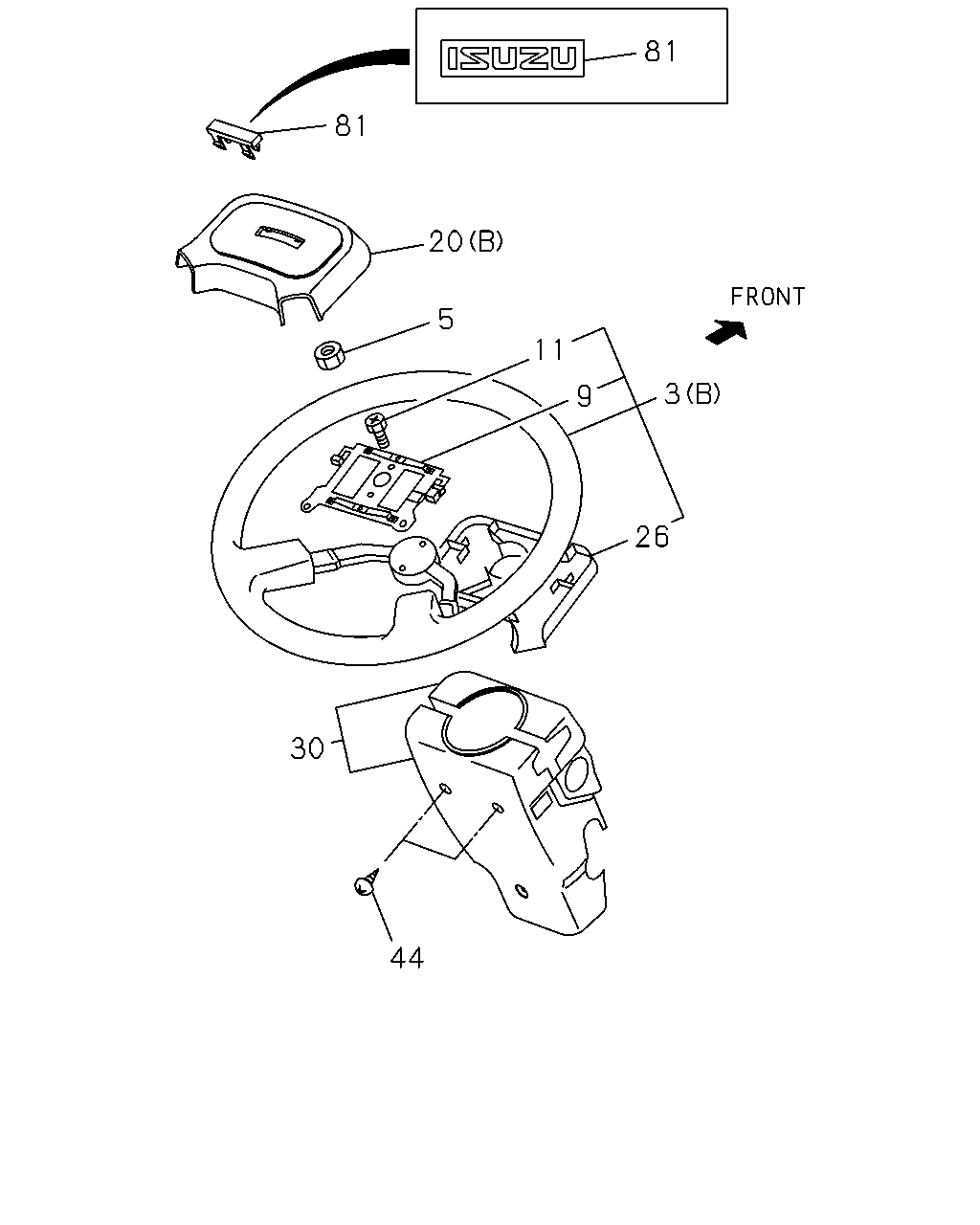

çizim 51172
81 81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B C
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 0009- ● ●
3 WHEEL; STRG
POWER STEERING<N40> (B) DARK GRAY 		8-97098-531-2 01 1 0009- ● ●
3 WHEEL; STRG
(B) DARK GRAY 		8-97098-531-2 01 1 0009- ●
3 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) THA 		8-97915-225-0 01 1 0009- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0009- ● ● ●
9 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 0009- ● ●
9 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0009- ● ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 0009- ●
11 SCREW; PLATE TO BUTTON
POWER STEERING<N40> 		8-97076-690-1 02 1 0009- ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 02 1 0009- ●
20 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 0009- ● ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> (B) DARK GRAY 		8-97098-526-0 01 1 0009- ● ●
20 SHROUD; PAD,STRG WHEEL
(B) DARK GRAY 		8-97098-526-0 01 1 0009- ●
20 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) THA 		8-97915-226-0 01 1 0009- ● ●
26 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 0009- ● ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 0009- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0009- ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97866-930-8 01 1 0009- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97857-532-8 01 1 0009- ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE<V66> EXC. TILT STEERING<N33> DARK GRAY 		8-97868-359-7 01 1 0009- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE<V66> THA 		8-97914-948-0 01 1 0009- ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0009- ● ● ●
81 EMBLEM; STRG WHEEL
POWER STEERING<N40> DARK GRAY 		8-97098-527-0 01 1 0009- ● ●
81 EMBLEM; STRG WHEEL
DARK GRAY 		8-97098-527-0 01 1 0009- ●

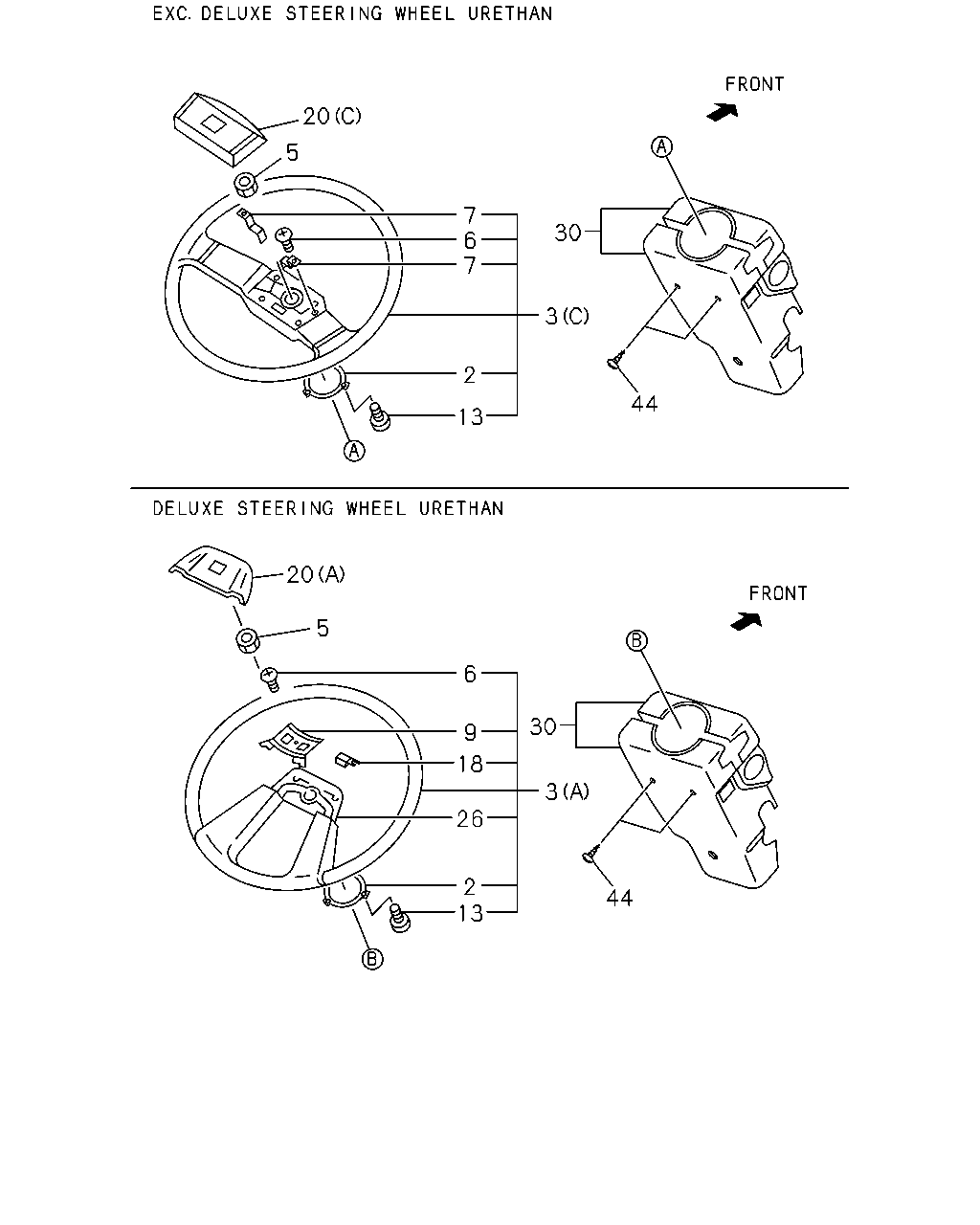

çizim 51798
20 5 7 6 7 30 3 2 44 13 20 5 6 30 9 18 3 26 2 13 44
BalonParca AdiParca NoAdetTipApplied Date A B C
2 RING; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-938-0 01 1 0009- ● ●
2 RING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> THA 		8-97915-937-0 01 1 0009- ● ●
3 WHEEL; STRG
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		1-44110-163-0 01 1 0009- ● ●
3 WHEEL; STRG
POWER STEERING<N40> (B) DARK GRAY 		8-97098-531-2 01 1 0009- ● ●
3 WHEEL; STRG
(B) DARK GRAY 		8-97098-531-2 01 1 0009- ●
3 WHEEL; STRG
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) THA 		8-97915-225-0 01 1 0009- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0009- ● ● ●
6 SCREW; HORN SPR CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		9-93090-308-0 02 1 0009- ● ●
6 SCREW; HORN SPR CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> THA 		8-97918-678-0 02 1 0009- ● ●
7 SPRING; HORN CONTACT
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> THA 		8-97915-936-0 01 1 0009- ● ●
9 PLATE; HORN CONTACT
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94437-939-0 01 1 0009- ● ●
9 PLATE; HORN CONTACT
POWER STEERING<N40> 		8-97076-688-1 01 1 0009- ● ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 0009- ●
13 SCREW; CONTACT RING
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> THA 		8-97918-678-0 03 1 0009- ● ●
13 SCREW; CONTACT RING
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> M3X10 TAPPING 		9-07076-310-0 03 1 0009- ● ●
18 CONDENSER ASM; STEERING WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		8-94462-321-0 01 1 0009- ● ●
20 SHROUD; PAD,STRG WHEEL
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> (A) DARK GRAY 		8-97154-485-0 01 1 0009- ● ●
20 SHROUD; PAD,STRG WHEEL
POWER STEERING<N40> (B) DARK GRAY 		8-97098-526-0 01 1 0009- ● ●
20 SHROUD; PAD,STRG WHEEL
(B) DARK GRAY 		8-97098-526-0 01 1 0009- ●
20 SHROUD; PAD,STRG WHEEL
EXC. DELUXE STEERING WHEEL URETHANE<N30>,POWER STEERING<N40> (C) THA 		8-97915-226-0 01 1 0009- ● ●
26 COVER; STRG WHEEL,LWR
DELUXE STEERING WHEEL URETHANE<N30> EXC. POWER STEERING<N40> 		1-44110-160-0 01 1 0009- ● ●
26 COVER; STRG WHEEL,LWR
POWER STEERING<N40> DARK GRAY 		8-97098-534-1 01 1 0009- ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0009- ●
30 COWL; STEERING
TILT STEERING<N33> PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97866-930-8 01 1 0009- ● ● ●
30 COWL; STEERING
TILT STEERING<N33> EXC. PTO TRANSMISSION SIDE<V66> DARK GRAY 		8-97857-532-8 01 1 0009- ● ● ●
30 COWL; STEERING
PTO TRANSMISSION SIDE<V66> EXC. TILT STEERING<N33> DARK GRAY 		8-97868-359-7 01 1 0009- ● ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33>,PTO TRANSMISSION SIDE<V66> THA 		8-97914-948-0 01 1 0009- ● ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0009- ● ● ●
