◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-25 - REAR FINAL DRIVE ▶
4-25 — REAR FINAL DRIVE (#48683) — 53 parça

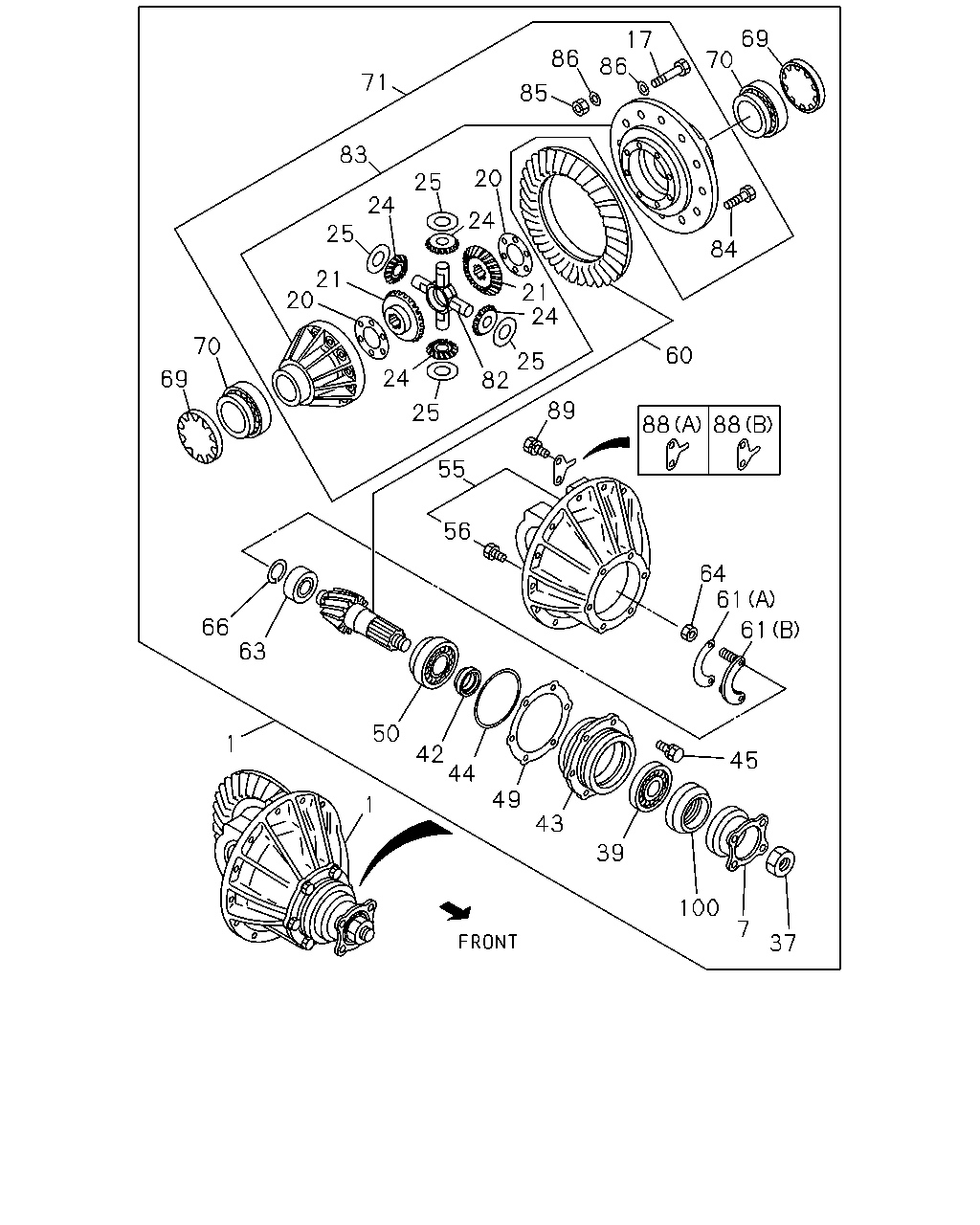

çizim 10539
69 70 17 86 86 71 85 83 20 25 24 24 21 24 25 84 21 20 70 60 25 82 24 69 89 25 88 88 55 56 64 61 66 61 63 50 1 42 44 45 49 1 43 39 100 7 37
BalonParca AdiParca NoAdetTipApplied Date A B C
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7<R42> 43/7 		8-97094-684-0 01 1 0009- ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/6<R43> 39/6 		8-97209-167-0 01 1 0009- ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7<GV1> 39/7 		8-97121-902-0 01 1 0009- ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8<RU1> 41/8 		8-97174-098-0 01 1 0009- ●
7 FLANGE; FINAL 8-97073-802-2 01 1 0009- ● ● ●
17 BOLT; DIFF CAGE SETTING 8-97047-295-0 12 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-073-0 AR 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-074-0 AR 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-075-0 AR 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-076-0 AR 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-077-0 AR 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-078-0 AR 1 0009- ● ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-079-0 AR 1 0009- ● ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-093-0 02 1 0009- ● ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-024-0 04 1 0009- ● ● ●
25 WASHER; THRUST,PINION 1-41552-020-0 04 1 0009- ● ● ●
37 NUT; DRIVING PINION
M30 FLANGE 		8-97047-146-0 01 1 0009- ● ● ●
39 BEARING; FINAL PINION
KOYO 		5-09812-062-1 01 1 0009- ● ● ●
39 BEARING; FINAL PINION
NSK 		5-09812-063-0 01 1 0009- ● ● ●
42 COLLAR; DIST,COLLAPSIBLE 8-97047-097-0 01 1 0009- ● ● ●
43 CAGE; FINAL PINION 8-97047-098-0 01 1 0009- ● ● ●
44 GASKET; PINION CAGE 8-97048-053-0 01 1 0009- ● ● ●
45 BOLT; FINAL PINION CAGE
M12X40 W/LK WASHER 		0-50071-240-0 06 1 0009- ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.12 		8-97047-298-0 AR 1 0009- ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.15 		8-97047-299-0 AR 1 0009- ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.20 		8-97047-300-0 AR 1 0009- ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.25 		8-97048-418-0 AR 1 0009- ● ● ●
49 SHIM; FINAL PINION CAGE
ID=142 T=0.50 		8-97048-419-0 AR 1 0009- ● ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0009- ● ● ●
55 CARRIER; DIFF 8-97094-637-0 01 1 0009- ● ● ●
56 BOLT; BRG CAP
M14X95 FLANGE 		1-09070-027-0 04 1 0009- ● ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/7<R42> 43/7 		8-97092-946-0 01 1 0009- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/6<R43> 39/6 		8-97209-168-0 01 1 0009- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7<GV1> 39/7 		8-97121-593-1 01 1 0009- ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8<RU1> 41/8 		8-97174-099-0 01 1 0009- ●
61 RETAINER; PILOT BRG,PINION
(A) W/STUD 		8-97047-149-0 01 1 0009- ● ● ●
61 RETAINER; PILOT BRG,PINION
(B) 		8-97047-150-0 01 1 0009- ● ● ●
63 BEARING; PINION PILOT
NSK 		8-97047-296-0 01 1 0009- ● ● ●
63 BEARING; PINION PILOT
KOYO 		8-97047-928-0 01 1 0009- ● ● ●
64 NUT; RET
M6 FLANGE 		0-91150-106-0 02 1 0009- ● ● ●
66 RING; SNAP,PILOT BRG 8-97047-297-0 01 1 0009- ● ● ●
69 NUT; ADJ,DIFF CAGE
M115 H=20 		1-41121-039-0 02 1 0009- ● ● ●
70 BEARING; DIFF CAGE
KOYO ID=66.7 OD=113 T=30 		9-00093-130-0 02 1 0009- ● ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97047-100-1 01 1 0009- ● ● ●
82 SPIDER; DIFF PINION 1-41521-035-0 01 1 0009- ● ● ●
83 CAGE ASM; DIFF 8-97047-117-1 01 1 0009- ● ● ●
84 BOLT; FINAL DRIVE GEAR
M16X30 		8-97047-147-0 12 1 0009- ● ● ●
85 NUT; DIFF CAGE SETTING
M12 		8-97065-214-0 12 1 0009- ● ● ●
86 WASHER; PL,DIFF CAGE SETTING
ID=12.5 OD=22 T=2 		8-97047-294-0 24 1 0009- ● ● ●
88 PLATE; LK,ADJ NUT
(B) 		8-97087-821-0 AR 1 0009- ● ● ●
88 PLATE; LK,ADJ NUT
(A) T=2.3 		9-41124-015-0 AR 1 0009- ● ● ●
89 BOLT; LK PLATE
M8X16 FLANGE 		0-28080-816-0 04 1 0009- ● ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97047-609-0 01 1 0009- ● ● ●
