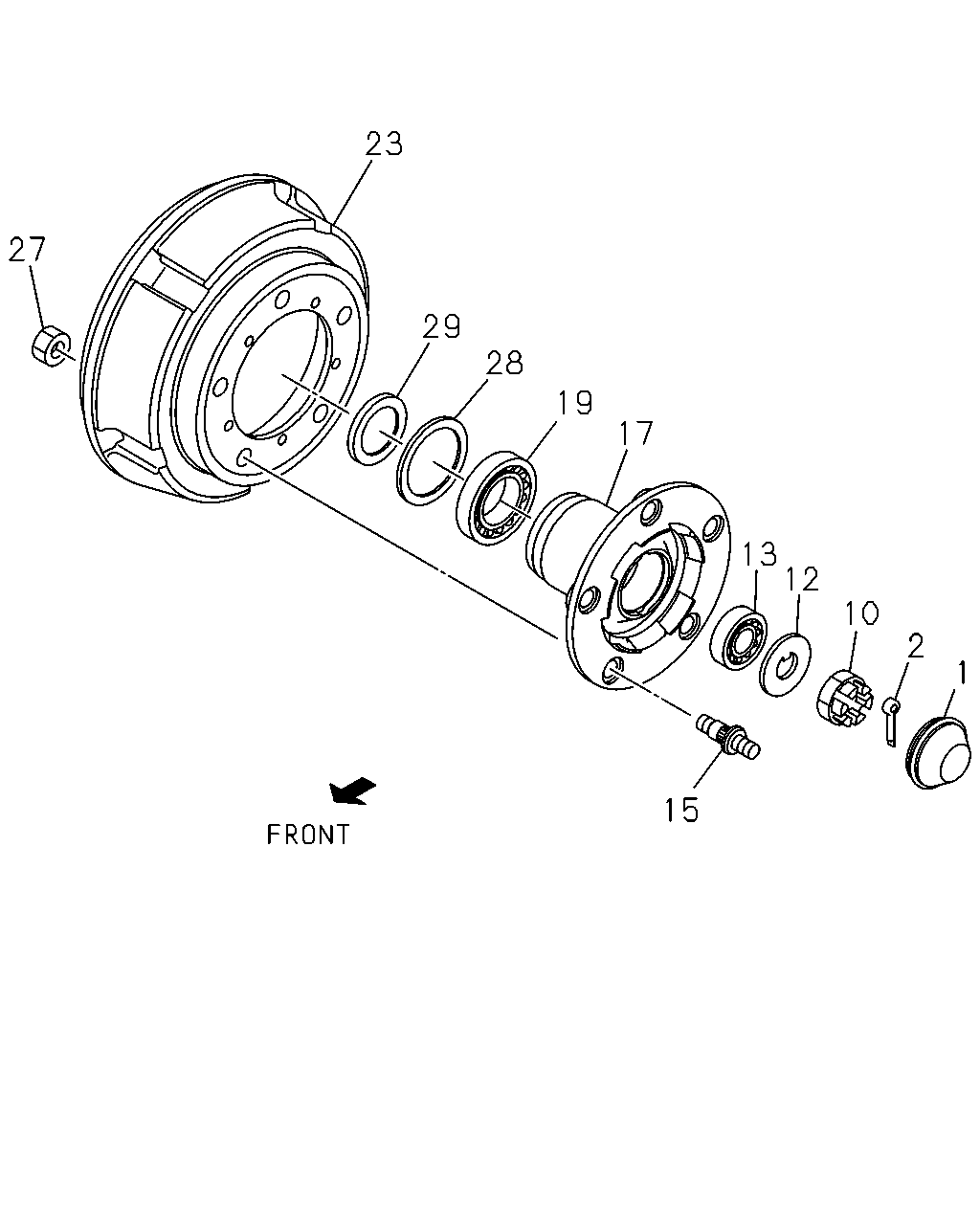

4-11 — FRONT HUB AND DRUM OR ROTOR (#48681) — 26 parça

23 27 29 28 19 17 13 12 10 2 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CAP; HUB,FRT AXLE	8-97012-619-0	02	1	0009-	●	●	●
2	PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	9-08115-040-0	02	1	0009-	●	●	●
10	NUT; FRT HUB BRG	8-94247-357-1	02	1	0009-	●	●	●
12	WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	0009-	●	●	●
13	BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	0009-	●	●	●
15	PIN; WHEEL,FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRAME STRAIGHT TYPE<7KJ> M20X28,M22X50 RH THREAD	8-97131-283-0	06	1	0009-	●		●
15	PIN; WHEEL,FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRAME STRAIGHT TYPE<7KJ> M20X28 LH THREAD,M22X50 RH THREAD	8-97131-284-0	06	1	0009-	●		●
15	PIN; WHEEL,FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ> M20X28,M22X57 RH THREAD	8-97081-584-1	06	1	0009-	●	●
15	PIN; WHEEL,FRT AXLE FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRAME STRAIGHT TYPE<7KJ> M20X28,M22X57 RH THREAD	8-97081-584-1	06	1	0009-	●		●
15	PIN; WHEEL,FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-1	06	1	0009-	●	●
15	PIN; WHEEL,FRT AXLE FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> FRAME STRAIGHT TYPE<7KJ> M20X28 LH THREAD,M22X57 RH THREAD	8-97081-585-1	06	1	0009-	●		●
17	HUB; FRT AXLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRAME STRAIGHT TYPE<7KJ> THA	8-97131-236-0	02	1	0009-	●		●
17	HUB; FRT AXLE EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97940-275-0	02	1	0009-	●
17	HUB; FRT AXLE THA	8-97940-275-0	02	1	0009-		●
17	HUB; FRT AXLE FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> THA	8-97940-276-0	02	1	0009-	●		●
19	BEARING; HUB INNER,FRT AXLE KOYO	8-94248-088-2	02	1	0210-	●	●	●
19	BEARING; HUB INNER,FRT AXLE KOYO	8-94248-088-2	02	1	0210-	●	●	●
19	BEARING; HUB INNER,FRT AXLE NSK	9-00093-149-0	02	1	0009-	●	●	●
23	DRUM; BRK,FRT FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> FRAME STRAIGHT TYPE<7KJ> THA	8-97188-115-0	02	1	0009-	●		●
23	DRUM; BRK,FRT EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97940-557-0	02	1	0009-	●
23	DRUM; BRK,FRT THA	8-97940-557-0	02	1	0009-		●
23	DRUM; BRK,FRT FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> THA	8-97940-558-0	02	1	0009-	●		●
27	NUT; WHEEL PIN,FRT AXLE M22	9-09110-522-0	12	1	0009-	●	●	●
28	SEAL; OIL,FRT HUB	8-94248-117-1	02	1	0009-	●	●	●
29	DISTANCE PIECE; HUB BRKT JBK	8-94246-302-0	02	1	0009-0105	●	●	●
29	DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	0009-	●	●	●
