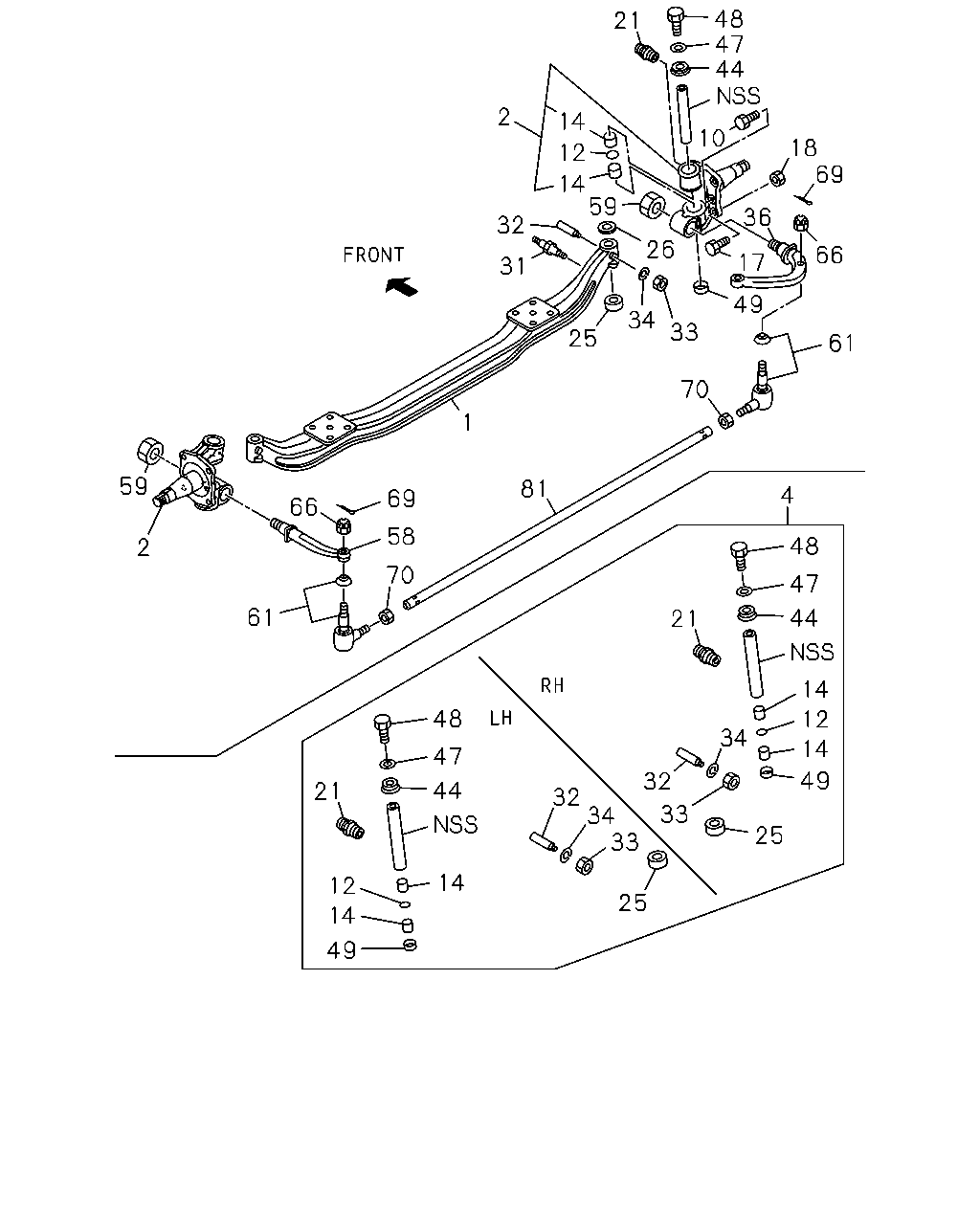

4-10 — FRONT AXLE (#48680) — 61 parça

48 47 44 21 2 14 10 18 69 12 14 59 36 32 26 66 17 31 49 34 33 25 61 70 1 59 81 4 69 66 58 48 2 70 47 61 44 21 14 48 12 34 14 47 49 32 44 21 32 34 33 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	AXLE; FRT FRAME STRAIGHT TYPE<7KJ>	8-97145-406-3	01	1	0009-	●
1	AXLE; FRT	8-97145-406-3	01	1	0009-		●
1	AXLE; FRT EXC. FRAME STRAIGHT TYPE<7KJ>	8-97137-588-3	01	1	0009-	●
1	AXLE; FRT	8-97137-588-3	01	1	0009-			●
2	KNUCKLE; FRT AXLE FRAME STRAIGHT TYPE<7KJ>	8-97230-683-0	01	1	0009-0009	●
2	KNUCKLE; FRT AXLE	8-97230-683-0	01	1	0009-0009		●
2	KNUCKLE; FRT AXLE FRAME STRAIGHT TYPE<7KJ>	8-97261-549-1	01	1	0009-	●
2	KNUCKLE; FRT AXLE	8-97261-549-1	01	1	0009-		●
2	KNUCKLE; FRT AXLE FRAME STRAIGHT TYPE<7KJ>	8-97230-684-0	01	1	0009-0009	●
2	KNUCKLE; FRT AXLE	8-97230-684-0	01	1	0009-0009		●
2	KNUCKLE; FRT AXLE FRAME STRAIGHT TYPE<7KJ>	8-97261-550-1	01	1	0009-	●
2	KNUCKLE; FRT AXLE	8-97261-550-1	01	1	0009-		●
2	KNUCKLE; FRT AXLE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97230-681-0	01	1	0009-0009	●
2	KNUCKLE; FRT AXLE	8-97230-681-0	01	1	0009-0009			●
2	KNUCKLE; FRT AXLE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97261-545-1	01	1	0009-	●
2	KNUCKLE; FRT AXLE	8-97261-545-1	01	1	0009-			●
2	KNUCKLE; FRT AXLE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97230-682-0	01	1	0009-0009	●
2	KNUCKLE; FRT AXLE	8-97230-682-0	01	1	0009-0009			●
2	KNUCKLE; FRT AXLE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97261-546-1	01	1	0009-	●
2	KNUCKLE; FRT AXLE	8-97261-546-1	01	1	0009-			●
4	KING PIN KIT	5-87831-608-1	01	1	0009-	●	●	●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0009-	●	●	●
12	GASKET; KNUCKLE	9-09561-230-0	02	1	0009-	●	●	●
14	BUSHING; KING PIN DAIDO	8-94107-672-2	04	1	0009-	●	●	●
14	BUSHING; KING PIN JBK	8-94127-925-2	04	1	0009-	●	●	●
17	BOLT; STOPPER KNUCKLE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> M12X24 EYE-BOLT	5-09000-208-1	03	1	0009-	●	●	●
17	BOLT; STOPPER KNUCKLE FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> M12X27.5	8-94433-409-1	03	1	0009-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	0009-	●	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	0009-	●	●	●
25	BEARING; THRUST,KING PIN	8-94248-883-2	01	1	0009-	●	●	●
25	BEARING; THRUST,KING PIN	8-97141-943-0	01	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=1.95	8-94168-490-0	01	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	0009-	●	●	●
26	SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	0009-	●	●	●
31	PIN; S/ABS,LWR	8-97145-460-0	02	1	0009-	●	●	●
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	0009-	●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0009-	●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0009-	●	●	●
36	ARM; KNUCKLE	8-97202-776-0	01	1	0009-	●	●	●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	0009-	●	●	●
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	0009-	●	●	●
48	BOLT; COVER M10X16	0-20801-016-0	02	1	0009-	●	●	●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0009-	●	●	●
58	ARM; TIE ROD	8-97138-304-0	01	1	0009-	●	●	●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	0009-	●	●	●
61	ROD END; TIE ROD	8-97222-509-0	01	1	0009-0205	●	●	●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0206-	●	●	●
61	ROD END; TIE ROD	8-97222-510-0	01	1	0009-0205	●	●	●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0206-	●	●	●
61	ROD END; TIE ROD	8-97142-100-1	01	1	0206-	●	●	●
61	ROD END; TIE ROD	8-97142-101-1	01	1	0206-	●	●	●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	0009-	●	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	0009-	●	●	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0009-	●	●	●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	0009-	●	●	●
81	ROD; TIE	8-97061-869-0	01	1	0009-	●	●	●
