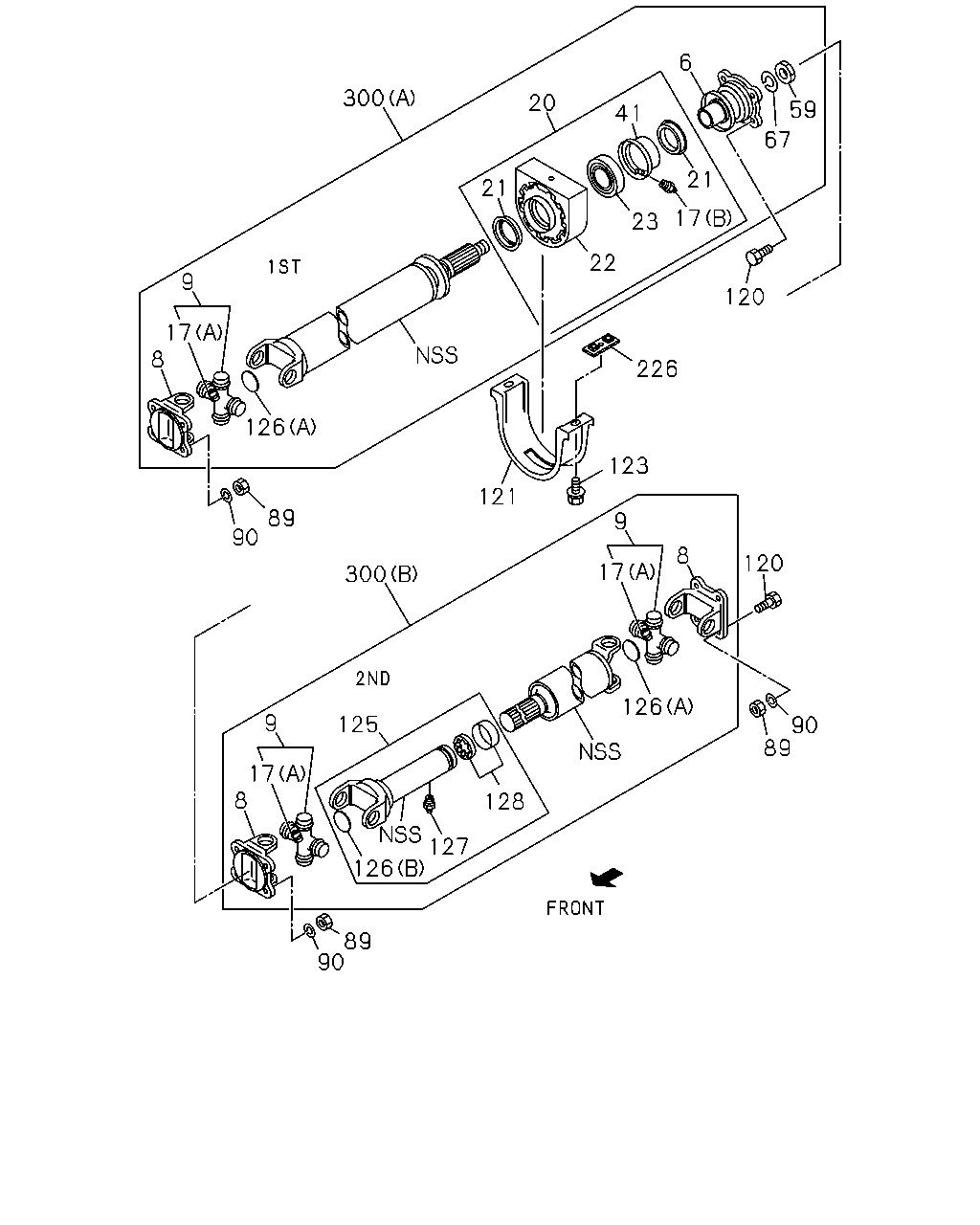

4-01 — PROPELLER SHAFT (#48679) — 134 parça

6 300 20 59 41 67 21 21 17 23 22 9 120 17 8 226 126 123 121 89 90 9 8 120 17 300 126 9 125 90 89 17 8 128 127 126 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97036-123-0	01	1	0009-0305	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97036-123-0	01	1	0009-0305	●
6	COUPLING ASM; DRIVER,PROP SHAFT THA	8-97036-123-0	01	1	0009-0305		●	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97036-123-0	01	1	0306-0306	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97036-123-0	01	1	0306-0306	●
6	COUPLING ASM; DRIVER,PROP SHAFT THA	8-97036-123-0	01	1	0306-0306		●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97036-123-0	01	1	0307-	●
6	COUPLING ASM; DRIVER,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97036-123-0	01	1	0307-	●
6	COUPLING ASM; DRIVER,PROP SHAFT THA	8-97036-123-0	01	1	0307-		●	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97225-254-0	01	1	0009-0305	●
8	YOKE; FLANGE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97225-254-0	01	1	0009-0305	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	01	1	0009-0305		●	●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97225-254-0	01	1	0306-0306	●
8	YOKE; FLANGE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97225-254-0	01	1	0306-0306	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	01	1	0306-0306		●
8	YOKE; FLANGE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97225-254-0	01	1	0307-	●
8	YOKE; FLANGE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97225-254-0	01	1	0307-	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	01	1	0307-		●	●
8	YOKE; FLANGE,PROP SHAFT THA	8-97225-254-0	02	1	0009-	●	●	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97080-505-0	01	1	0009-0305	●
9	JOURNAL ASM; PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97080-505-0	01	1	0009-0305	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	01	1	0009-0305		●	●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97080-505-0	01	1	0306-0306	●
9	JOURNAL ASM; PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97080-505-0	01	1	0306-0306	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	01	1	0306-0306		●
9	JOURNAL ASM; PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	8-97080-505-0	01	1	0307-	●
9	JOURNAL ASM; PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	8-97080-505-0	01	1	0307-	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	01	1	0307-		●	●
9	JOURNAL ASM; PROP SHAFT THA	8-97080-505-0	02	1	0009-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> (B) M6 STRAIGHT	9-09031-006-0	01	1	0009-0305	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> (B) M6 STRAIGHT	9-09031-006-0	01	1	0009-0305	●
17	NIPPLE; GREASE,PROP SHAFT (B) M6 STRAIGHT	9-09031-006-0	01	1	0009-0305		●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> M6 STRAIGHT	9-09031-006-0	01	1	0306-0306	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> M6 STRAIGHT	9-09031-006-0	01	1	0306-0306	●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	9-09031-006-0	01	1	0306-0306		●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> M6 STRAIGHT	9-09031-006-0	01	1	0307-	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> M6 STRAIGHT	9-09031-006-0	01	1	0307-	●
17	NIPPLE; GREASE,PROP SHAFT M6 STRAIGHT	9-09031-006-0	01	1	0307-		●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) PT1/8 ELBOW	9-09031-210-0	01	1	0009-0305	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> (A) PT1/8 ELBOW	9-09031-210-0	01	1	0009-0305	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	01	1	0009-0305		●	●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> PT1/8 ELBOW	9-09031-210-0	01	1	0306-0306	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> PT1/8 ELBOW	9-09031-210-0	01	1	0306-0306	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	01	1	0306-0306		●
17	NIPPLE; GREASE,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> PT1/8 ELBOW	9-09031-210-0	01	1	0307-	●
17	NIPPLE; GREASE,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> PT1/8 ELBOW	9-09031-210-0	01	1	0307-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	9-09031-210-0	01	1	0307-		●	●
17	NIPPLE; GREASE,PROP SHAFT (A) PT1/8 ELBOW	9-09031-210-0	02	1	0009-	●	●	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0009-0305	●
20	BEARING ASM; CTR,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0009-0305	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0009-0305		●	●
20	BEARING ASM; CTR,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0306-0306	●
20	BEARING ASM; CTR,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0306-0306	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0306-0306		●
20	BEARING ASM; CTR,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0307-	●
20	BEARING ASM; CTR,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0307-	●
20	BEARING ASM; CTR,PROP SHAFT W/NIPPLE;GREASE DOWN SIDE THA	5-37510-007-0	01	1	0307-		●	●
21	SEAL; OIL,CENTER BRG 4HG1 ENG<RJH> M/T MXA5T<RNQ> ID=49 THA	5-09625-067-1	02	1	0009-0305	●
21	SEAL; OIL,CENTER BRG 4HE1 ENG<RLY> M/T MXA5S<RNA> ID=49 THA	5-09625-067-1	02	1	0009-0305	●
21	SEAL; OIL,CENTER BRG ID=49 THA	5-09625-067-1	02	1	0009-0305		●	●
21	SEAL; OIL,CENTER BRG 4HG1 ENG<RJH> M/T MXA5T<RNQ> ID=49 THA	5-09625-067-1	02	1	0306-0306	●
21	SEAL; OIL,CENTER BRG 4HE1 ENG<RLY> M/T MXA5S<RNA> ID=49 THA	5-09625-067-1	02	1	0306-0306	●
21	SEAL; OIL,CENTER BRG ID=49 THA	5-09625-067-1	02	1	0306-0306		●
21	SEAL; OIL,CENTER BRG 4HG1 ENG<RJH> M/T MXA5T<RNQ> ID=49 THA	5-09625-067-1	02	1	0307-	●
21	SEAL; OIL,CENTER BRG 4HE1 ENG<RLY> M/T MXA5S<RNA> ID=49 THA	5-09625-067-1	02	1	0307-	●
21	SEAL; OIL,CENTER BRG ID=49 THA	5-09625-067-1	02	1	0307-		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	5-37516-005-1	01	1	0009-0305	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	5-37516-005-1	01	1	0009-0305	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	5-37516-005-1	01	1	0009-0305		●	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	5-37516-005-1	01	1	0306-0306	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	5-37516-005-1	01	1	0306-0306	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	5-37516-005-1	01	1	0306-0306		●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	5-37516-005-1	01	1	0307-	●
22	RUBBER; CUSHION,CENTER BRG,1ST 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	5-37516-005-1	01	1	0307-	●
22	RUBBER; CUSHION,CENTER BRG,1ST THA	5-37516-005-1	01	1	0307-		●	●
23	BEARING; CENTER,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> OD=80 THA	5-09800-068-0	01	1	0009-0305	●
23	BEARING; CENTER,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> OD=80 THA	5-09800-068-0	01	1	0009-0305	●
23	BEARING; CENTER,PROP SHAFT OD=80 THA	5-09800-068-0	01	1	0009-0305		●	●
23	BEARING; CENTER,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> OD=80 THA	5-09800-068-0	01	1	0306-0306	●
23	BEARING; CENTER,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> OD=80 THA	5-09800-068-0	01	1	0306-0306	●
23	BEARING; CENTER,PROP SHAFT OD=80 THA	5-09800-068-0	01	1	0306-0306		●
23	BEARING; CENTER,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> OD=80 THA	5-09800-068-0	01	1	0307-	●
23	BEARING; CENTER,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> OD=80 THA	5-09800-068-0	01	1	0307-	●
23	BEARING; CENTER,PROP SHAFT OD=80 THA	5-09800-068-0	01	1	0307-		●	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	5-37512-004-0	01	1	0009-0305	●
41	COVER; CENTER BRG,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	5-37512-004-0	01	1	0009-0305	●
41	COVER; CENTER BRG,PROP SHAFT THA	5-37512-004-0	01	1	0009-0305		●	●
41	COVER; CENTER BRG,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	5-37512-004-0	01	1	0306-0306	●
41	COVER; CENTER BRG,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	5-37512-004-0	01	1	0306-0306	●
41	COVER; CENTER BRG,PROP SHAFT THA	5-37512-004-0	01	1	0306-0306		●
41	COVER; CENTER BRG,PROP SHAFT 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	5-37512-004-0	01	1	0307-	●
41	COVER; CENTER BRG,PROP SHAFT 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	5-37512-004-0	01	1	0307-	●
41	COVER; CENTER BRG,PROP SHAFT THA	5-37512-004-0	01	1	0307-		●	●
59	NUT; RET TO SUPPORT 4HG1 ENG<RJH> M/T MXA5T<RNQ> M30 H=23 THA	1-09449-068-0	01	1	0009-0306	●
59	NUT; RET TO SUPPORT M30 H=23 THA	1-09449-068-0	01	1	0009-0306		●
59	NUT; RET TO SUPPORT 4HG1 ENG<RJH> M/T MXA5T<RNQ> M27 H=25	8-97253-126-0	01	1	0307-	●
59	NUT; RET TO SUPPORT 4HE1 ENG<RLY> M/T MXA5S<RNA> M27 H=25	8-97253-126-0	01	1	0307-	●
59	NUT; RET TO SUPPORT M27 H=25	8-97253-126-0	01	1	0307-		●	●
59	NUT; RET TO SUPPORT 4HE1 ENG<RLY> M/T MXA5S<RNA> M30	8-97160-857-0	01	1	0009-0305	●
59	NUT; RET TO SUPPORT M30	8-97160-857-0	01	1	0009-0305			●
59	NUT; RET TO SUPPORT 4HE1 ENG<RLY> M/T MXA5S<RNA> M30	8-97160-857-0	01	1	0306-0306	●
67	WASHER; PROP SHAFT TO COUPLING DRIVER 4HG1 ENG<RJH> M/T MXA5T<RNQ> ID=30.5 THA	1-09503-025-0	01	1	0009-0306	●
67	WASHER; PROP SHAFT TO COUPLING DRIVER ID=30.5 THA	1-09503-025-0	01	1	0009-0306		●
89	NUT; YOKE TO RR AXLE M12	8-94477-841-0	12	1	0009-	●	●	●
90	WASHER; LK,YOKE TO RR AXLE ID=12.2	9-09150-812-0	12	1	0009-	●	●	●
120	BOLT; YOKE TO RR AXLE M12X35	8-94477-842-0	08	1	0009-	●	●	●
121	RETAINER; CUSHION RUBBER	8-97035-623-1	01	1	0009-	●	●	●
123	BOLT; RET M10X25 FLANGE	0-28681-025-0	04	1	0009-	●	●	●
125	YOKE ASM; SPLINED,PROP SHAFT L=191 THA	8-97036-126-1	01	1	0009-	●	●	●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	0009-0305	●	●	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) THA	1-09600-023-0	01	1	0009-0305	●
126	PLUG; SPLINED YOKE 4HE1 ENG<RLY> M/T MXA5S<RNA> (A) THA	1-09600-023-0	01	1	0009-0305	●
126	PLUG; SPLINED YOKE (A) THA	1-09600-023-0	01	1	0009-0305		●	●
126	PLUG; SPLINED YOKE THA	1-09600-023-0	01	1	0306-0306	●	●	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	1-09600-023-0	01	1	0306-0306	●
126	PLUG; SPLINED YOKE 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	1-09600-023-0	01	1	0306-0306	●
126	PLUG; SPLINED YOKE THA	1-09600-023-0	01	1	0306-0306		●
126	PLUG; SPLINED YOKE THA	1-09600-023-0	01	1	0307-	●	●	●
126	PLUG; SPLINED YOKE 4HG1 ENG<RJH> M/T MXA5T<RNQ> THA	1-09600-023-0	01	1	0307-	●
126	PLUG; SPLINED YOKE 4HE1 ENG<RLY> M/T MXA5S<RNA> THA	1-09600-023-0	01	1	0307-	●
126	PLUG; SPLINED YOKE THA	1-09600-023-0	01	1	0307-		●	●
126	PLUG; SPLINED YOKE (B) THA	8-94366-900-0	01	1	0009-	●	●	●
127	NIPPLE; GREASE,SPLINED YOKE M6 STRAIGHT	9-09031-006-0	01	1	0009-	●	●	●
128	SEAL; SLEEVE THA	8-97145-746-0	01	1	0009-	●	●	●
226	PLATE; LK,CENTER BRG FRAME STRAIGHT TYPE<7KJ>	8-97101-161-0	02	1	0009-0306	●
226	PLATE; LK,CENTER BRG	8-97101-161-0	02	1	0009-0306			●
226	PLATE; LK,CENTER BRG FRAME STRAIGHT TYPE<7KJ>	8-97371-572-0	02	1	0307-	●
226	PLATE; LK,CENTER BRG	8-97371-572-0	02	1	0307-			●
300	SHAFT ASM; PROP,RR 4HG1 ENG<RJH> M/T MXA5T<RNQ> (A) L=830	8-97180-699-1	01	1	0009-	●
300	SHAFT ASM; PROP,RR 4HE1 ENG<RLY> M/T MXA5S<RNA> (A) L=755	8-97214-106-1	01	1	0009-	●
300	SHAFT ASM; PROP,RR (B) L=1037 THA	8-97143-265-0	01	1	0009-	●	●
300	SHAFT ASM; PROP,RR (A) L=1280	8-97180-700-1	01	1	0009-		●
300	SHAFT ASM; PROP,RR (A) L=1205	8-97214-107-1	01	1	0009-			●
300	SHAFT ASM; PROP,RR (B) L=1415	8-97129-516-0	01	1	0009-			●
