Sayfa 3-60 - Isuzu EPC

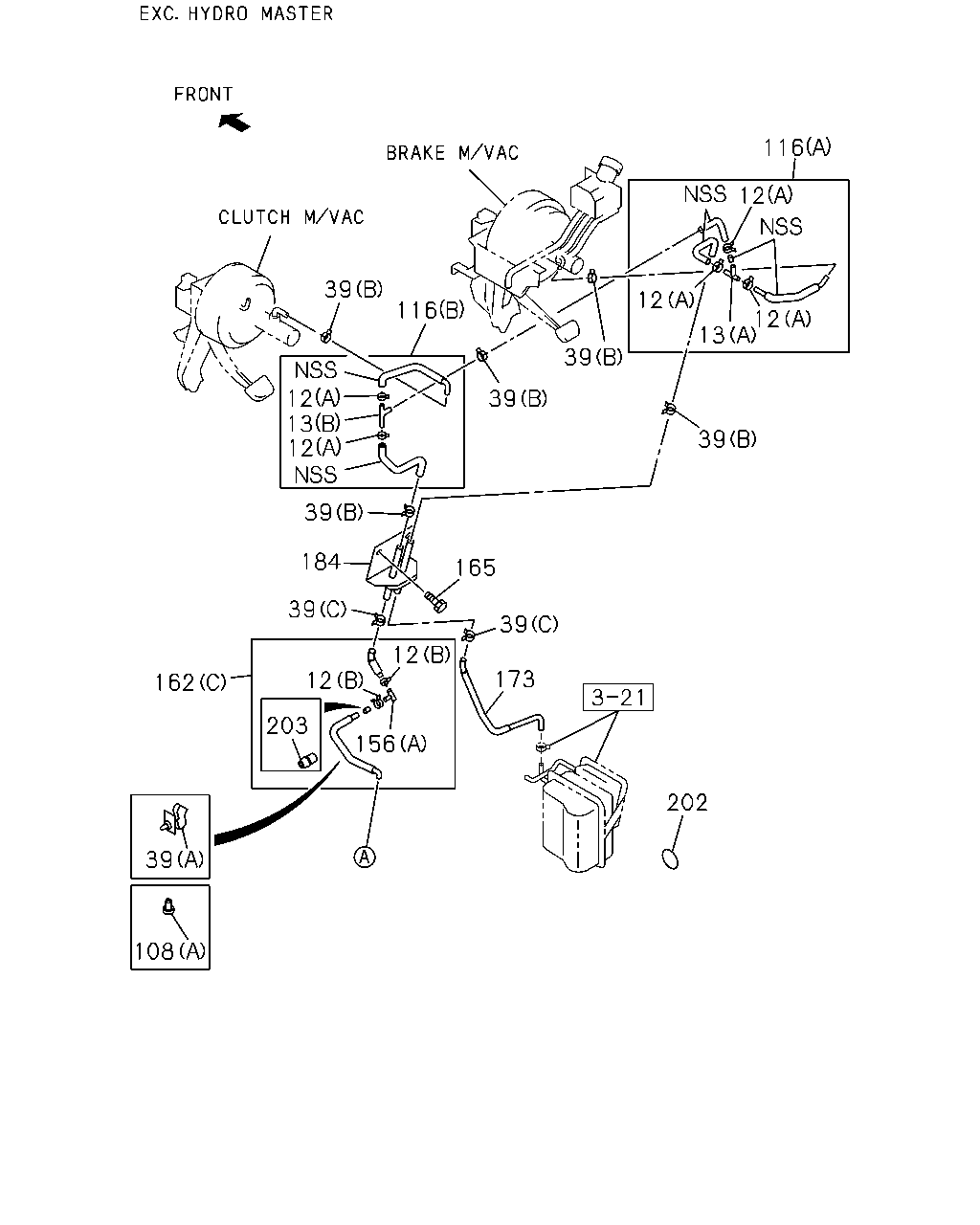

3-60 — BRAKE PIPING; VACUUM (#48678) — 575 parça

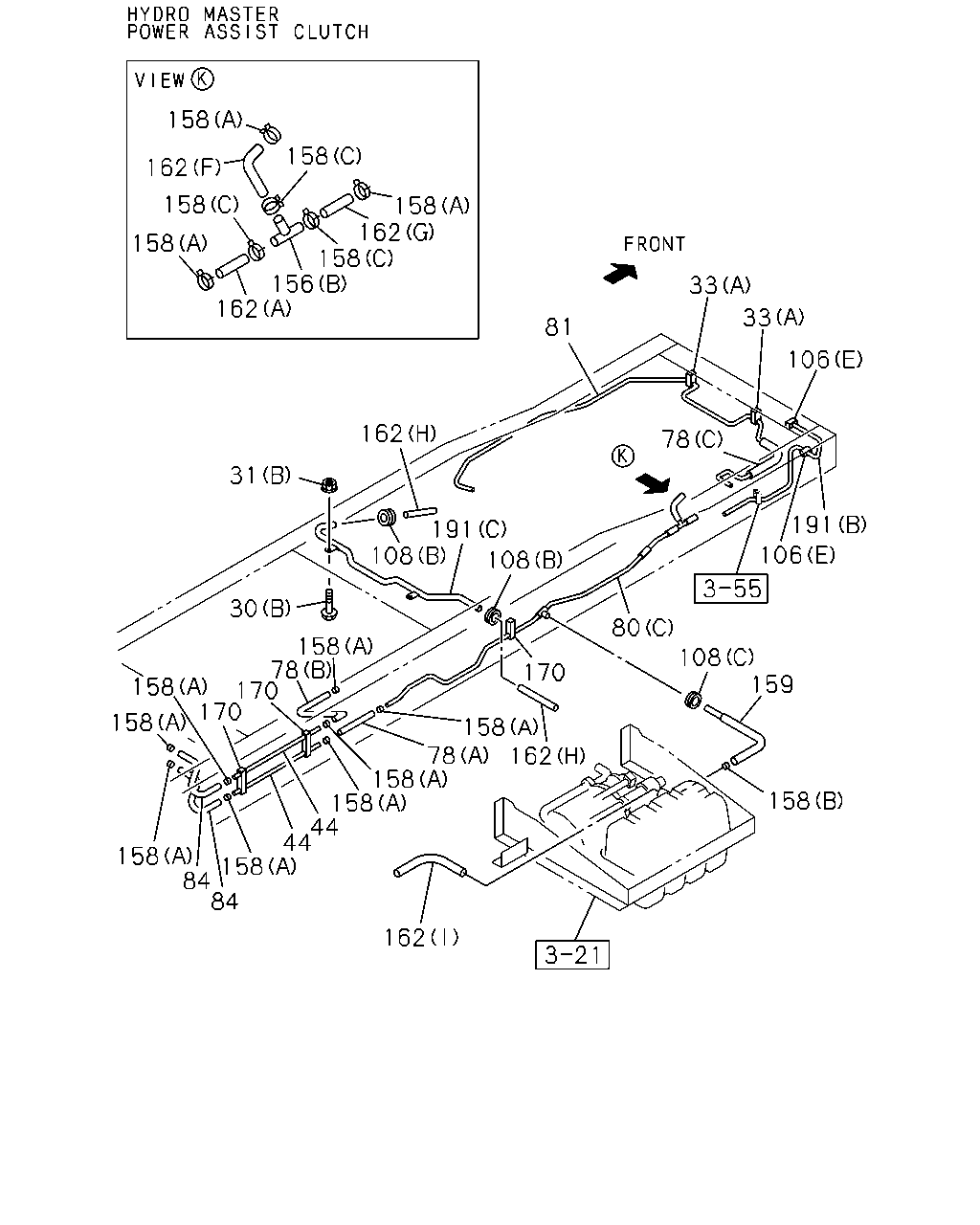

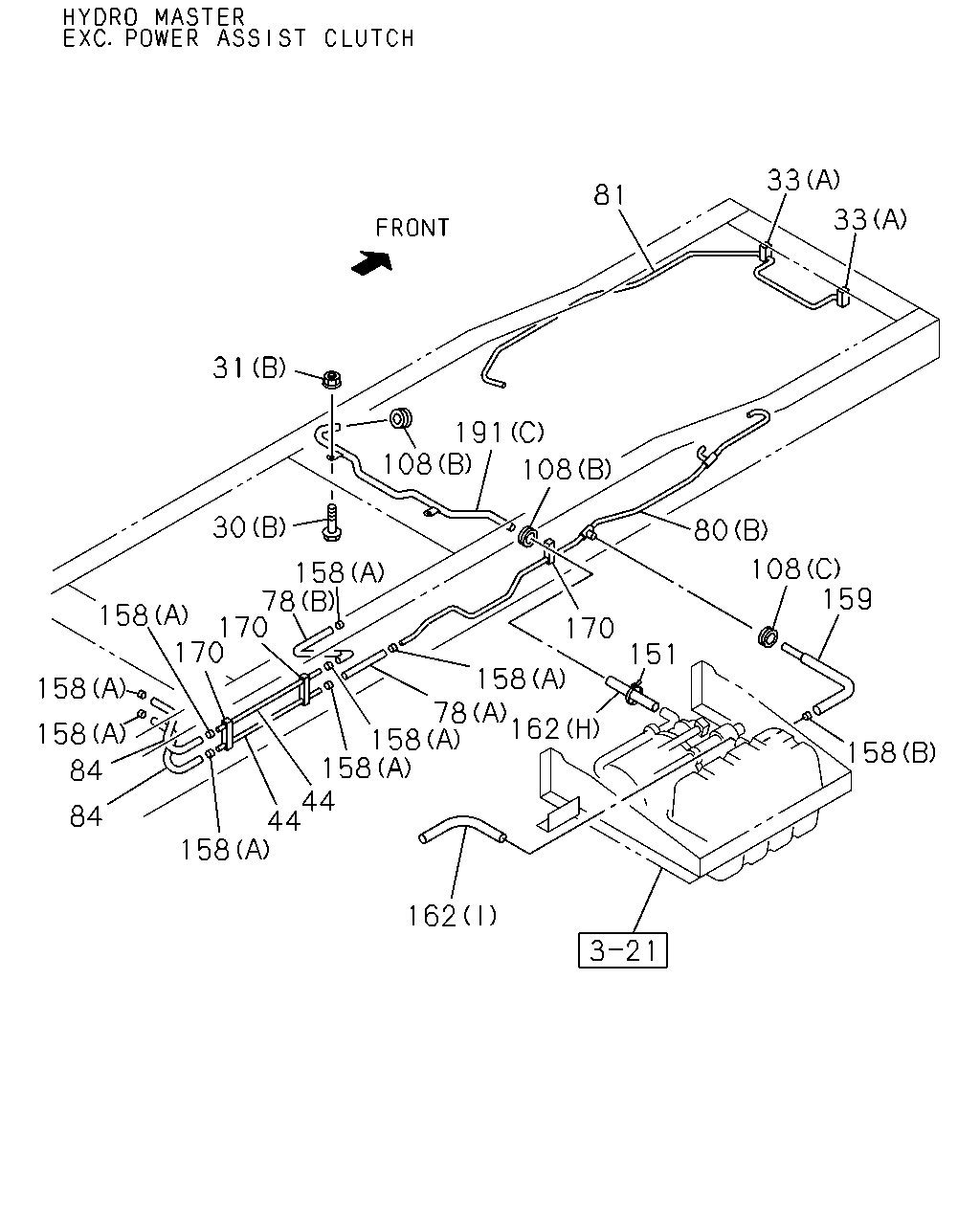

158 158 162 158 158 162 158 156 162 158 33 33 81 106 162 78 31 191 191 108 106 108 30 80 158 78 170 170 108 159 170 158 158 158 78 162 158 158 44 44 158 158 158 84 84 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
30	BOLT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X20 FLANGE	0-28680-620-0	01	1	0009-	●
30	BOLT; CLIP,VAC PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0009-		●
31	NUT; CLIP,VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8 FLANGE	0-91150-108-0	02	1	0009-	●
31	NUT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0009-	●
31	NUT; CLIP,VAC PIPE (A) M6 FLANGE	0-91150-106-0	01	1	0009-		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	01	1	0009-		●
33	CLIP; VAC PIPE CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-			●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE EXC. CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	02	1	0009-			●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●
33	CLIP; VAC PIPE (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-	●
33	CLIP; VAC PIPE (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94455-816-0	01	1	0009-	●
33	CLIP; VAC PIPE (D) ID=4.8X2	8-94455-816-0	01	1	0009-		●
44	PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-971-0	02	1	0009-	●
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE CHARGE AIR COOLER<6PL> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE HYDRO MASTER<7LT> (A) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> (A)	8-97181-831-0	01	1	0009-0209			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-591-0	01	1	0210-0303			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-592-0	01	1	0304-			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97147-487-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-			●
80	PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97129-542-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-324-3	01	1	0009-0302	●
80	PIPE; VAC,ENG SIDE (A)	8-97042-324-3	01	1	0009-0302		●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97360-788-0	01	1	0303-	●
80	PIPE; VAC,ENG SIDE	8-97360-788-0	01	1	0303-		●
81	PIPE; VAC,VSV 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-	●
81	PIPE; VAC,VSV CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-			●
81	PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-	●
81	PIPE; VAC,VSV EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-			●
81	PIPE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ>	8-97042-256-5	01	1	0009-	●
81	PIPE; VAC,VSV	8-97042-256-5	01	1	0009-		●
90	HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
90	HOSE; VAC,MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-			●
102	CLIP; AIR HOSE HYDRO MASTER<7LT> ID=22	8-94382-401-0	03	1	0009-	●
106	CLIP; PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (E) ID=10 H=40	8-94462-219-0	02	1	0009-	●
106	CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (E) ID=10 H=40	8-94462-219-0	02	1	0009-	●
106	CLIP; PIPE POWER ASSIST CLUTCH<S2T> (E) ID=10 H=40	8-94462-219-0	02	1	0009-			●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-	●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0009-	●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=45.5	8-97017-902-0	01	1	0009-	●
106	CLIP; PIPE (B) ID=10 H=45.5	8-97017-902-0	01	1	0009-		●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-	●
106	CLIP; PIPE (D) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-		●
106	CLIP; PIPE (A) ID=10X2 H=22 THA	8-94252-455-2	02	1	0009-		●
106	CLIP; PIPE (C) ID=10X2 H=47.5	8-97018-605-0	02	1	0009-		●
108	GROMMET; PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=20 OD=25 T=12	9-09575-720-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	9-09956-353-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	01	1	0009-			●
108	GROMMET; PIPE HYDRO MASTER<7LT> (C) OD=20	9-09576-716-0	01	1	0009-	●
108	GROMMET; PIPE HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-			●
156	JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A) 3WAY	8-94167-478-0	01	1	0009-	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> (A) 3WAY	8-94167-478-0	01	1	0009-		●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 3WAY	8-94441-184-0	01	1	0009-	●
158	CLIP; HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-	●
158	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-			●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) ID=14.5	8-94167-480-0	03	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	13	1	0009-			●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=21	8-94242-034-0	01	1	0009-	●
158	CLIP; HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE (A) ID=16	8-94238-568-0	11	1	0009-		●
159	HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97129-618-0	01	1	0009-	●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-		●	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97206-299-0	01	1	0009-	●
162	HOSE; VAC (D)	8-97206-299-0	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=60	8-94317-763-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (G)	8-94491-020-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (F)	8-97160-896-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
162	HOSE; VAC HYDRO MASTER<7LT> (I)	8-97129-595-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=138	8-97145-249-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=335	8-97204-759-1	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (C)	8-97040-991-2	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97040-991-2	01	1	0009-		●
170	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> ID=10X2 & 6.4	8-97103-601-0	02	1	0009-	●
170	CLIP; VAC PIPE ID=10X2 & 6.4	8-97103-601-0	03	1	0009-			●
191	PIPE; VAC 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97187-349-0	01	1	0009-	●
191	PIPE; VAC 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97104-170-4	01	1	0009-			●
191	PIPE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B)	8-97147-486-0	01	1	0009-	●

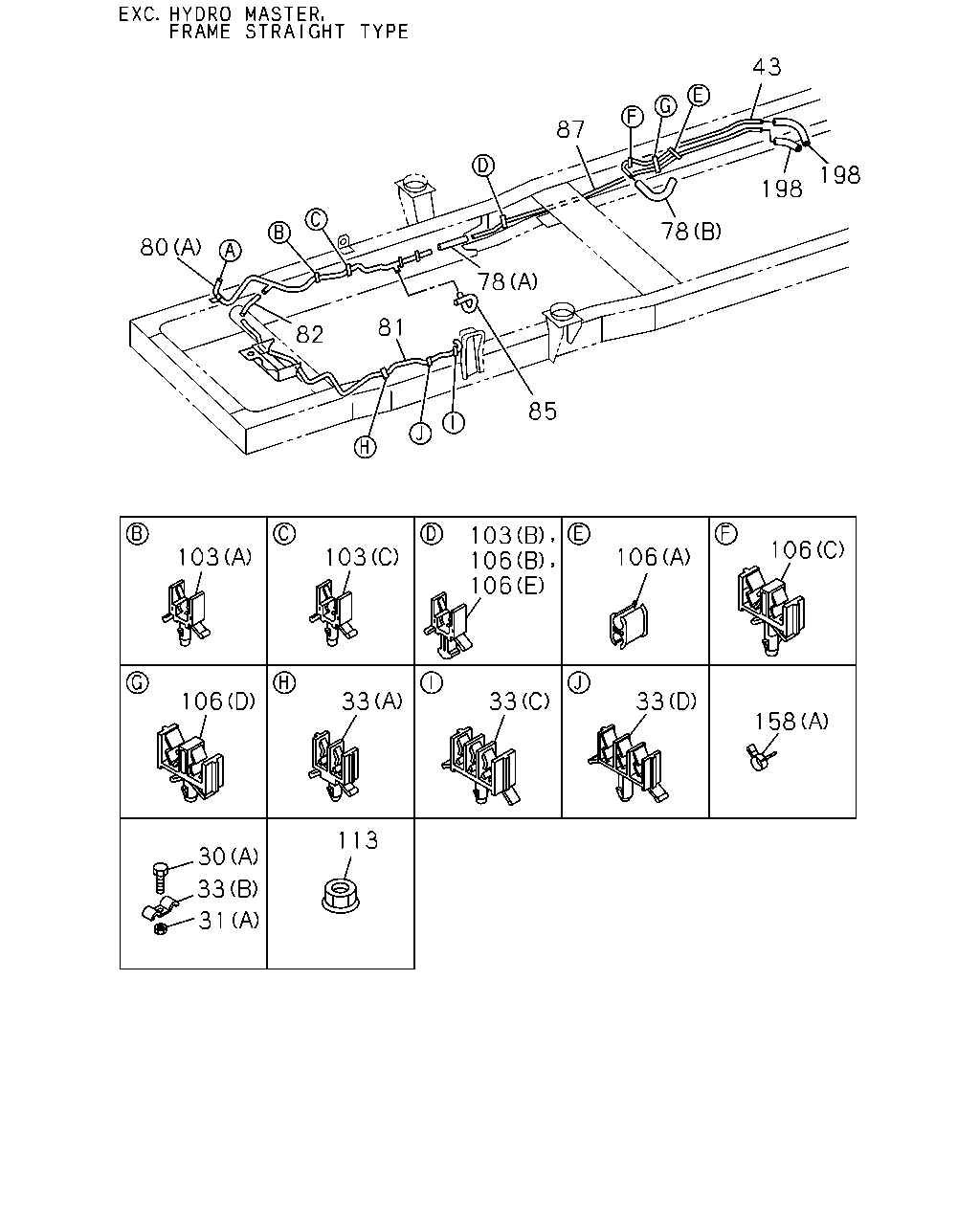

43 87 198 198 78 80 78 81 82 85 103 106 106 106 103 103 106 106 33 33 33 158 113 30 33 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
30	BOLT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X20 FLANGE	0-28680-620-0	01	1	0009-	●
30	BOLT; CLIP,VAC PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0009-		●
31	NUT; CLIP,VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8 FLANGE	0-91150-108-0	02	1	0009-	●
31	NUT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0009-	●
31	NUT; CLIP,VAC PIPE (A) M6 FLANGE	0-91150-106-0	01	1	0009-		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	01	1	0009-		●
33	CLIP; VAC PIPE CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-			●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE EXC. CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	02	1	0009-			●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●
33	CLIP; VAC PIPE (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-	●
33	CLIP; VAC PIPE (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94455-816-0	01	1	0009-	●
33	CLIP; VAC PIPE (D) ID=4.8X2	8-94455-816-0	01	1	0009-		●
43	PIPE; VAC,MAG VLV TO UNION EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-949-2	01	1	0009-	●
43	PIPE; VAC,MAG VLV TO UNION	8-97066-126-4	01	1	0009-		●
78	HOSE; VAC,PIPE TO PIPE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE CHARGE AIR COOLER<6PL> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE HYDRO MASTER<7LT> (A) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> (A)	8-97181-831-0	01	1	0009-0209			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-591-0	01	1	0210-0303			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-592-0	01	1	0304-			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97147-487-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-			●
80	PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97129-542-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-324-3	01	1	0009-0302	●
80	PIPE; VAC,ENG SIDE (A)	8-97042-324-3	01	1	0009-0302		●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97360-788-0	01	1	0303-	●
80	PIPE; VAC,ENG SIDE	8-97360-788-0	01	1	0303-		●
81	PIPE; VAC,VSV 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-	●
81	PIPE; VAC,VSV CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-			●
81	PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-	●
81	PIPE; VAC,VSV EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-			●
81	PIPE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ>	8-97042-256-5	01	1	0009-	●
81	PIPE; VAC,VSV	8-97042-256-5	01	1	0009-		●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
82	HOSE; VAC,VSV EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
82	HOSE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
82	HOSE; VAC,VSV L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-		●
85	HOSE; VAC,ENG SIDE 4HG1 ENG<RJH> TURBOCHARGER<K51> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97109-066-0	01	1	0009-	●
85	HOSE; VAC,ENG SIDE	8-97109-066-0	01	1	0009-		●
87	PIPE; VAC,ENG TO MAG VLV EXC. FRAME STRAIGHT TYPE<7KJ>	8-97106-948-1	01	1	0009-	●
87	PIPE; VAC,ENG TO MAG VLV	8-97164-750-0	01	1	0009-		●
90	HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
90	HOSE; VAC,MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-			●
102	CLIP; AIR HOSE HYDRO MASTER<7LT> ID=22	8-94382-401-0	03	1	0009-	●
103	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10 H=42.5	8-94405-140-0	01	1	0009-	●
103	CLIP; VAC PIPE (C) ID=10 H=42.5	8-94405-140-0	01	1	0009-		●
103	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10 H=40	8-94462-219-0	01	1	0009-	●
103	CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0009-		●
103	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0009-	●
103	CLIP; VAC PIPE (B) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0009-		●
106	CLIP; PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (E) ID=10 H=40	8-94462-219-0	02	1	0009-	●
106	CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (E) ID=10 H=40	8-94462-219-0	02	1	0009-	●
106	CLIP; PIPE POWER ASSIST CLUTCH<S2T> (E) ID=10 H=40	8-94462-219-0	02	1	0009-			●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-	●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0009-	●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=45.5	8-97017-902-0	01	1	0009-	●
106	CLIP; PIPE (B) ID=10 H=45.5	8-97017-902-0	01	1	0009-		●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-	●
106	CLIP; PIPE (D) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-		●
106	CLIP; PIPE (A) ID=10X2 H=22 THA	8-94252-455-2	02	1	0009-		●
106	CLIP; PIPE (C) ID=10X2 H=47.5	8-97018-605-0	02	1	0009-		●
113	NUT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-	●
113	NUT CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-			●
158	CLIP; HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-	●
158	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-			●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) ID=14.5	8-94167-480-0	03	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	13	1	0009-			●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=21	8-94242-034-0	01	1	0009-	●
158	CLIP; HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE (A) ID=16	8-94238-568-0	11	1	0009-		●
198	HOSE; VAC,PIPE TO MAG VLV EXC. FRAME STRAIGHT TYPE<7KJ> L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
198	HOSE; VAC,PIPE TO MAG VLV L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0009-		●

84 44 113 151 80 84 162 162 44 78 78 191 162 82 106 80 81 83 33 158

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
33	CLIP; VAC PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	01	1	0009-		●
33	CLIP; VAC PIPE CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-			●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE EXC. CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	02	1	0009-			●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●
33	CLIP; VAC PIPE (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-	●
33	CLIP; VAC PIPE (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94455-816-0	01	1	0009-	●
33	CLIP; VAC PIPE (D) ID=4.8X2	8-94455-816-0	01	1	0009-		●
44	PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-971-0	02	1	0009-	●
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE CHARGE AIR COOLER<6PL> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE HYDRO MASTER<7LT> (A) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> (A)	8-97181-831-0	01	1	0009-0209			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-591-0	01	1	0210-0303			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-592-0	01	1	0304-			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97147-487-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-			●
80	PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97129-542-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-324-3	01	1	0009-0302	●
80	PIPE; VAC,ENG SIDE (A)	8-97042-324-3	01	1	0009-0302		●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97360-788-0	01	1	0303-	●
80	PIPE; VAC,ENG SIDE	8-97360-788-0	01	1	0303-		●
81	PIPE; VAC,VSV 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-	●
81	PIPE; VAC,VSV CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-			●
81	PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-	●
81	PIPE; VAC,VSV EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-			●
81	PIPE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ>	8-97042-256-5	01	1	0009-	●
81	PIPE; VAC,VSV	8-97042-256-5	01	1	0009-		●
82	HOSE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
82	HOSE; VAC,VSV EXC. POWER ASSIST CLUTCH<S2T> L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
82	HOSE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ> L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
82	HOSE; VAC,VSV L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-		●
83	CLIP; VSV HOSE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> ID=8.3 & 16.5	8-94169-027-0	01	1	0009-	●
83	CLIP; VSV HOSE CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH<S2T> ID=8.3 & 16.5	8-94169-027-0	01	1	0009-			●
90	HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
90	HOSE; VAC,MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-			●
102	CLIP; AIR HOSE HYDRO MASTER<7LT> ID=22	8-94382-401-0	03	1	0009-	●
106	CLIP; PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (E) ID=10 H=40	8-94462-219-0	02	1	0009-	●
106	CLIP; PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (E) ID=10 H=40	8-94462-219-0	02	1	0009-	●
106	CLIP; PIPE POWER ASSIST CLUTCH<S2T> (E) ID=10 H=40	8-94462-219-0	02	1	0009-			●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=10X2 H=22 THA	8-94252-455-2	01	1	0009-	●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=10X2 H=47.5	8-97018-605-0	01	1	0009-	●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=10 H=45.5	8-97017-902-0	01	1	0009-	●
106	CLIP; PIPE (B) ID=10 H=45.5	8-97017-902-0	01	1	0009-		●
106	CLIP; PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-	●
106	CLIP; PIPE (D) ID=10X2 H=37.5	8-97018-546-0	02	1	0009-		●
106	CLIP; PIPE (A) ID=10X2 H=22 THA	8-94252-455-2	02	1	0009-		●
106	CLIP; PIPE (C) ID=10X2 H=47.5	8-97018-605-0	02	1	0009-		●
113	NUT 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-	●
113	NUT CHARGE AIR COOLER<6PL> M8 FLANGE	0-91150-108-0	01	1	0009-			●
151	CLIP; BAND FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0009-	●
151	CLIP; BAND EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0009-			●
158	CLIP; HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-	●
158	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-			●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) ID=14.5	8-94167-480-0	03	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	13	1	0009-			●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=21	8-94242-034-0	01	1	0009-	●
158	CLIP; HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE (A) ID=16	8-94238-568-0	11	1	0009-		●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-		●	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97206-299-0	01	1	0009-	●
162	HOSE; VAC (D)	8-97206-299-0	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=60	8-94317-763-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (G)	8-94491-020-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (F)	8-97160-896-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
162	HOSE; VAC HYDRO MASTER<7LT> (I)	8-97129-595-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=138	8-97145-249-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=335	8-97204-759-1	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (C)	8-97040-991-2	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97040-991-2	01	1	0009-		●
191	PIPE; VAC 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97187-349-0	01	1	0009-	●
191	PIPE; VAC 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97104-170-4	01	1	0009-			●
191	PIPE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B)	8-97147-486-0	01	1	0009-	●

116 12 39 12 116 12 13 39 12 13 12 39 39 39 184 165 39 39 12 173 12 162 203 156 202 39 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0009-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0009-		●	●
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0009-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0009-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0009-		●	●
12	CLIP; HOSE EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0009-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0009-		●
13	JOINT; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0009-	●
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) 3WAY	8-94167-478-0	01	1	0009-		●
13	JOINT; HOSE,VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0009-	●
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0009-		●
39	CLIP; HOSE,VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0009-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0009-	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0009-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0009-			●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0009-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0009-		●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	03	1	0009-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	03	1	0009-	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	03	1	0009-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	03	1	0009-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0009-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (C) ID=16	5-09707-023-2	01	1	0009-			●
39	CLIP; HOSE,VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0009-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0009-		●
90	HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
90	HOSE; VAC,MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-			●
102	CLIP; AIR HOSE HYDRO MASTER<7LT> ID=22	8-94382-401-0	03	1	0009-	●
108	GROMMET; PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=20 OD=25 T=12	9-09575-720-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	9-09956-353-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	01	1	0009-			●
108	GROMMET; PIPE HYDRO MASTER<7LT> (C) OD=20	9-09576-716-0	01	1	0009-	●
108	GROMMET; PIPE HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-			●
116	HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97035-968-0	01	1	0009-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0009-		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97147-495-0	01	1	0009-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97147-495-0	01	1	0009-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97035-972-0	01	1	0009-0109	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97035-972-0	01	1	0009-0109		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-0	01	1	0110-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-0	01	1	0110-		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97048-909-0	01	1	0009-0109	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97048-909-0	01	1	0009-0109		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-597-0	01	1	0110-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-0	01	1	0110-		●
156	JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A) 3WAY	8-94167-478-0	01	1	0009-	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> (A) 3WAY	8-94167-478-0	01	1	0009-		●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 3WAY	8-94441-184-0	01	1	0009-	●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-		●	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97206-299-0	01	1	0009-	●
162	HOSE; VAC (D)	8-97206-299-0	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=60	8-94317-763-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (G)	8-94491-020-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (F)	8-97160-896-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
162	HOSE; VAC HYDRO MASTER<7LT> (I)	8-97129-595-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=138	8-97145-249-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=335	8-97204-759-1	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (C)	8-97040-991-2	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97040-991-2	01	1	0009-		●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0009-	●	●	●
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97129-875-0	01	1	0009-	●
173	HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0009-		●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0009-	●	●	●
202	SEAL EXC. POWER ASSIST CLUTCH<S2T> OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0009-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94386-540-0	01	1	0009-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T>	8-94386-540-0	01	1	0009-		●
203	VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T>	8-94104-021-0	01	1	0009-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T>	8-94104-021-0	01	1	0009-		●	●

116 12 12 116 39 39 165 184 108 162 39 12 175 156 12 39 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0009-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (B) ID=15.5	8-94367-944-0	02	1	0009-		●	●
12	CLIP; HOSE FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0009-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	02	1	0009-	●
12	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=14.5	8-94167-480-0	02	1	0009-		●	●
12	CLIP; HOSE EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0009-	●
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0009-		●
39	CLIP; HOSE,VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0009-	●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=25.5	8-97077-492-0	01	1	0009-	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0009-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (A) ID=25.5	8-97077-492-0	01	1	0009-			●
39	CLIP; HOSE,VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	06	1	0009-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	06	1	0009-		●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	03	1	0009-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	03	1	0009-	●
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	03	1	0009-		●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> ID=16	8-94238-568-0	03	1	0009-			●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	01	1	0009-	●
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH<S2T> (C) ID=16	5-09707-023-2	01	1	0009-			●
39	CLIP; HOSE,VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) ID=16	5-09707-023-2	02	1	0009-	●
39	CLIP; HOSE,VAC (C) ID=16	5-09707-023-2	02	1	0009-		●
90	HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
90	HOSE; VAC,MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-			●
102	CLIP; AIR HOSE HYDRO MASTER<7LT> ID=22	8-94382-401-0	03	1	0009-	●
108	GROMMET; PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=20 OD=25 T=12	9-09575-720-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	9-09956-353-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	01	1	0009-			●
108	GROMMET; PIPE HYDRO MASTER<7LT> (C) OD=20	9-09576-716-0	01	1	0009-	●
108	GROMMET; PIPE HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-			●
116	HOSE; VAC,M/VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B)	8-97035-968-0	01	1	0009-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (B)	8-97035-968-0	01	1	0009-		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C)	8-97147-495-0	01	1	0009-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (C)	8-97147-495-0	01	1	0009-			●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97035-972-0	01	1	0009-0109	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97035-972-0	01	1	0009-0109		●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-596-0	01	1	0110-	●
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH<S2T> (A)	8-97314-596-0	01	1	0110-		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97048-909-0	01	1	0009-0109	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97048-909-0	01	1	0009-0109		●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-597-0	01	1	0110-	●
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97314-597-0	01	1	0110-		●
156	JOINT; 3 WAY FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (A) 3WAY	8-94167-478-0	01	1	0009-	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> (A) 3WAY	8-94167-478-0	01	1	0009-		●	●
156	JOINT; 3 WAY POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) 3WAY	8-94441-184-0	01	1	0009-	●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-		●	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97206-299-0	01	1	0009-	●
162	HOSE; VAC (D)	8-97206-299-0	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=60	8-94317-763-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (G)	8-94491-020-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (F)	8-97160-896-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
162	HOSE; VAC HYDRO MASTER<7LT> (I)	8-97129-595-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=138	8-97145-249-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=335	8-97204-759-1	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (C)	8-97040-991-2	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97040-991-2	01	1	0009-		●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0009-	●	●	●
175	CLIP; BAND,VAC HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> L=170.3 THA	1-09987-182-0	01	1	0009-	●
184	BRACKET; UNION FIX	8-97035-967-3	01	1	0009-	●	●	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94386-540-0	01	1	0009-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T>	8-94386-540-0	01	1	0009-		●
203	VALVE; CHECK FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T>	8-94104-021-0	01	1	0009-	●
203	VALVE; CHECK POWER ASSIST CLUTCH<S2T>	8-94104-021-0	01	1	0009-		●	●

33 81 33 31 191 108 108 30 80 108 159 158 78 170 170 158 170 151 158 78 162 158 158 44 44 158 158 158 84 84 158 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	BOLT; CLIP,VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
30	BOLT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X20 FLANGE	0-28680-620-0	01	1	0009-	●
30	BOLT; CLIP,VAC PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0009-		●
31	NUT; CLIP,VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8 FLANGE	0-91150-108-0	02	1	0009-	●
31	NUT; CLIP,VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6 FLANGE	0-91150-106-0	01	1	0009-	●
31	NUT; CLIP,VAC PIPE (A) M6 FLANGE	0-91150-106-0	01	1	0009-		●
33	CLIP; VAC PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8X2	8-94316-410-0	01	1	0009-	●
33	CLIP; VAC PIPE (A) ID=4.8X2	8-94316-410-0	01	1	0009-		●
33	CLIP; VAC PIPE CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	01	1	0009-			●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>,HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=4.8X2	8-94316-410-0	02	1	0009-	●
33	CLIP; VAC PIPE EXC. CHARGE AIR COOLER<6PL> (A) ID=4.8X2	8-94316-410-0	02	1	0009-			●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-	●
33	CLIP; VAC PIPE (B) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-	●
33	CLIP; VAC PIPE (C) ID=6.5 & 4.8X2	8-94424-234-0	01	1	0009-		●
33	CLIP; VAC PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94455-816-0	01	1	0009-	●
33	CLIP; VAC PIPE (D) ID=4.8X2	8-94455-816-0	01	1	0009-		●
44	PIPE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ>	8-97096-971-0	02	1	0009-	●
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FLOOR REMOTE SHIFT<M11> EXC. FRAME STRAIGHT TYPE<7KJ> (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (B) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
78	HOSE; VAC,PIPE TO PIPE 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE CHARGE AIR COOLER<6PL> (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE POWER ASSIST CLUTCH<S2T> (C) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. CHARGE AIR COOLER<6PL> (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (C) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
78	HOSE; VAC,PIPE TO PIPE HYDRO MASTER<7LT> (A) L=280 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE EXC. FRAME STRAIGHT TYPE<7KJ> (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
78	HOSE; VAC,PIPE TO PIPE (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0009-		●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97181-831-0	01	1	0009-0209	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> (A)	8-97181-831-0	01	1	0009-0209			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-591-0	01	1	0210-0303	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-591-0	01	1	0210-0303			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97356-592-0	01	1	0304-	●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> CHARGE AIR COOLER<6PL>	8-97356-592-0	01	1	0304-			●
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97147-487-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-	●
80	PIPE; VAC,ENG SIDE CHARGE AIR COOLER<6PL> EXC. POWER ASSIST CLUTCH<S2T> (D)	8-97148-808-3	01	1	0009-			●
80	PIPE; VAC,ENG SIDE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (B)	8-97129-542-0	01	1	0009-	●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ> (A)	8-97042-324-3	01	1	0009-0302	●
80	PIPE; VAC,ENG SIDE (A)	8-97042-324-3	01	1	0009-0302		●
80	PIPE; VAC,ENG SIDE EXC. FRAME STRAIGHT TYPE<7KJ>	8-97360-788-0	01	1	0303-	●
80	PIPE; VAC,ENG SIDE	8-97360-788-0	01	1	0303-		●
81	PIPE; VAC,VSV 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-	●
81	PIPE; VAC,VSV CHARGE AIR COOLER<6PL>	8-97181-226-2	01	1	0009-			●
81	PIPE; VAC,VSV FRAME STRAIGHT TYPE<7KJ> EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-	●
81	PIPE; VAC,VSV EXC. CHARGE AIR COOLER<6PL>	8-97096-968-5	01	1	0009-			●
81	PIPE; VAC,VSV EXC. FRAME STRAIGHT TYPE<7KJ>	8-97042-256-5	01	1	0009-	●
81	PIPE; VAC,VSV	8-97042-256-5	01	1	0009-		●
90	HOSE; VAC,MAG VLV FRAME STRAIGHT TYPE<7KJ> L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-	●
90	HOSE; VAC,MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0009-			●
102	CLIP; AIR HOSE HYDRO MASTER<7LT> ID=22	8-94382-401-0	03	1	0009-	●
108	GROMMET; PIPE 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=20 OD=25 T=12	9-09575-720-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	9-09956-353-0	01	1	0009-	●
108	GROMMET; PIPE POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	01	1	0009-			●
108	GROMMET; PIPE HYDRO MASTER<7LT> (C) OD=20	9-09576-716-0	01	1	0009-	●
108	GROMMET; PIPE HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-	●
108	GROMMET; PIPE EXC. POWER ASSIST CLUTCH<S2T> (A)	9-09956-353-0	02	1	0009-			●
151	CLIP; BAND FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0009-	●
151	CLIP; BAND EXC. POWER ASSIST CLUTCH<S2T> L=140	5-09707-031-1	03	1	0009-			●
158	CLIP; HOSE 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-	●
158	CLIP; HOSE EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	10	1	0009-			●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) ID=14.5	8-94167-480-0	03	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	13	1	0009-	●
158	CLIP; HOSE POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	13	1	0009-			●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=21	8-94242-034-0	01	1	0009-	●
158	CLIP; HOSE EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (A) ID=16	8-94238-568-0	11	1	0009-	●
158	CLIP; HOSE (A) ID=16	8-94238-568-0	11	1	0009-		●
159	HOSE ASM; VAC FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97129-618-0	01	1	0009-	●
162	HOSE; VAC FLOOR REMOTE SHIFT<M11> POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (C)	8-97178-658-0	01	1	0009-		●	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HG1 ENG<RJH> TURBOCHARGER<K51> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> EXC. POWER ASSIST CLUTCH<S2T> (E)	8-97230-663-0	01	1	0009-	●
162	HOSE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (D)	8-97206-299-0	01	1	0009-	●
162	HOSE; VAC (D)	8-97206-299-0	01	1	0009-			●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) L=60	8-94317-763-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (G)	8-94491-020-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (F)	8-97160-896-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-	●
162	HOSE; VAC POWER ASSIST CLUTCH<S2T> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0009-			●
162	HOSE; VAC HYDRO MASTER<7LT> (I)	8-97129-595-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=138	8-97145-249-0	01	1	0009-	●
162	HOSE; VAC HYDRO MASTER<7LT> (H) L=335	8-97204-759-1	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (C)	8-97040-991-2	01	1	0009-	●
162	HOSE; VAC EXC. POWER ASSIST CLUTCH<S2T> (C)	8-97040-991-2	01	1	0009-		●
170	CLIP; VAC PIPE FRAME STRAIGHT TYPE<7KJ> ID=10X2 & 6.4	8-97103-601-0	02	1	0009-	●
170	CLIP; VAC PIPE ID=10X2 & 6.4	8-97103-601-0	03	1	0009-			●
191	PIPE; VAC 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C)	8-97187-349-0	01	1	0009-	●
191	PIPE; VAC 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC 4HE1 ENG<RLY> POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO BRAKE BOOSTER<7QQ> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC 4HE1 ENG<RLY> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97104-170-4	01	1	0009-	●
191	PIPE; VAC POWER ASSIST CLUTCH<S2T> (A)	8-97104-170-4	01	1	0009-			●
191	PIPE; VAC POWER ASSIST CLUTCH<S2T> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B)	8-97147-486-0	01	1	0009-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
