3-58 — FIXING PARTS; OIL PIPING (#48677) — 137 parça

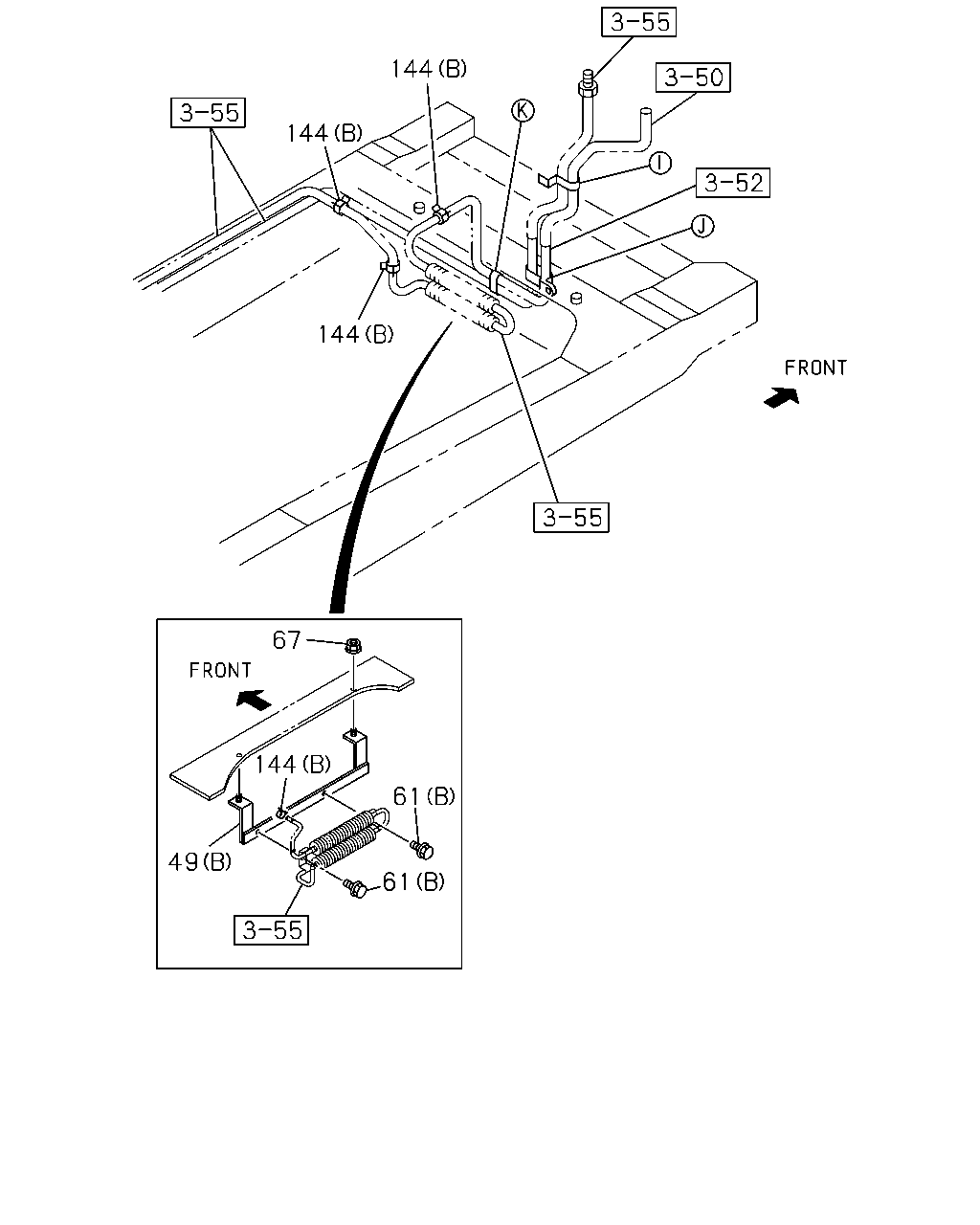

çizim 12445
144 144 144 67 144 61 49 61
BalonParca AdiParca NoAdetTipApplied Date A B C
49 BRACKET; BRK PIPE
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97174-638-0 01 1 0009- ●
49 BRACKET; BRK PIPE
CHARGE AIR COOLER<6PL> (A) 		8-97174-638-0 01 1 0009- ●
49 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97180-993-1 01 1 0009- ●
49 BRACKET; BRK PIPE
(B) 		8-97180-993-1 01 1 0009- ●
61 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
61 BOLT; BRK PIPE
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
61 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE 		0-28681-025-0 02 1 0009- ●
61 BOLT; BRK PIPE
(B) M10X25 FLANGE 		0-28681-025-0 02 1 0009- ●
67 NUT; BRKT
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		0-91150-110-0 01 1 0009- ●
67 NUT; BRKT
CHARGE AIR COOLER<6PL> M10 FLANGE 		0-91150-110-0 01 1 0009- ●
67 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		0-91150-110-0 02 1 0009- ●
67 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 0009- ●
144 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53 		1-09700-681-0 01 1 0009- ●
144 CLIP; HOSE
(A) ID=19 & 19 L=53 		1-09700-681-0 01 1 0009- ●
144 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5 		8-94426-597-0 05 1 0009- ●
144 CLIP; HOSE
(B) ID=11-19.5 		8-94426-597-0 05 1 0009- ●

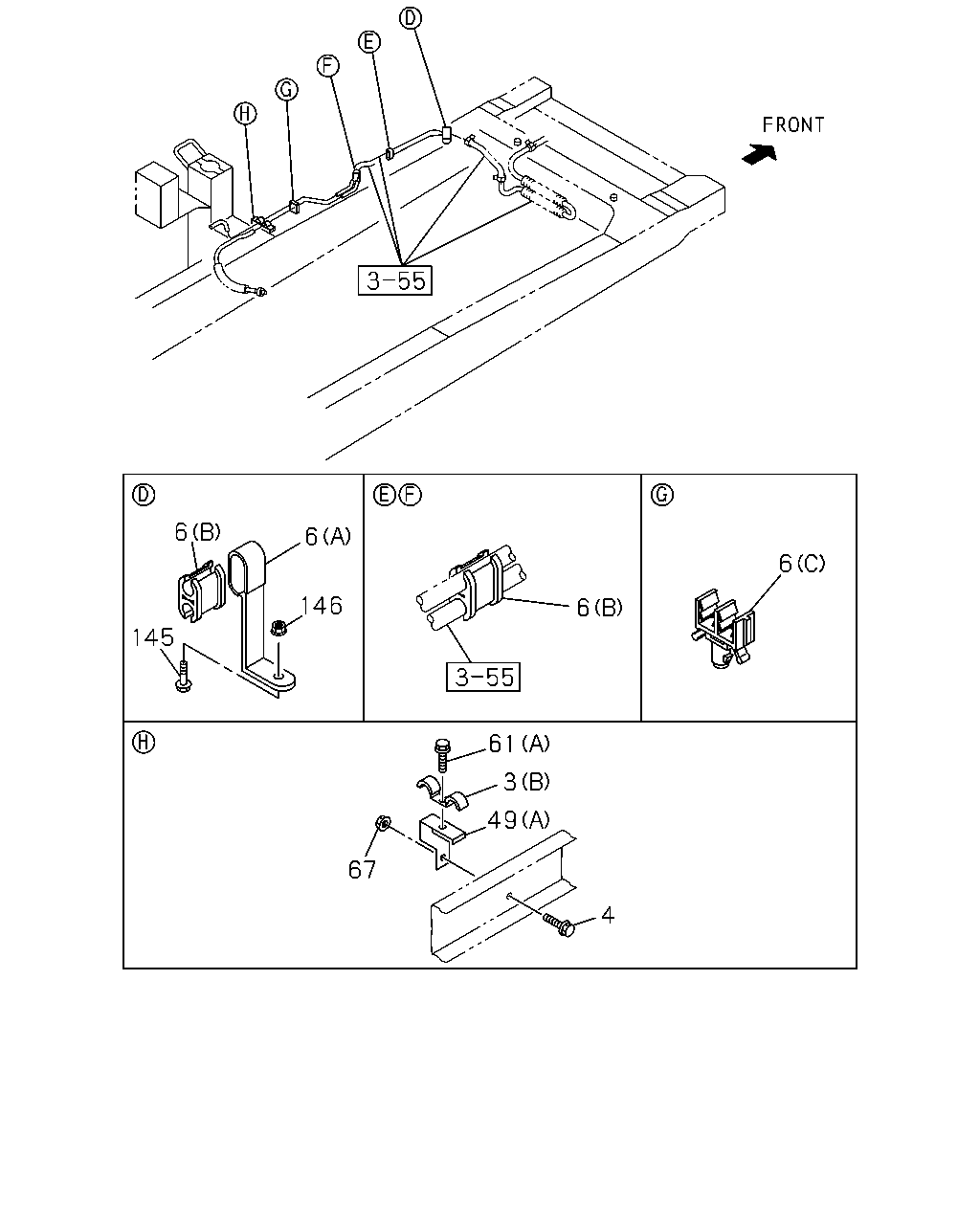

çizim 48702
6 6 6 146 6 145 61 3 49 67 4
BalonParca AdiParca NoAdetTipApplied Date A B C
3 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0009- ●
3 CLIP; BRK PIPE
(B) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0009- ●
3 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 02 1 0009- ●
3 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0009- ●
4 BOLT; BRKT
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
4 BOLT; BRKT
CHARGE AIR COOLER<6PL> M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (D) H=15 ID=14 		1-09700-744-0 01 1 0009- ●
6 CLIP; PIPE
(D) H=15 ID=14 		1-09700-744-0 01 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0009- ●
6 CLIP; PIPE
(A) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22 THA 		8-94252-455-2 05 1 0009- ●
6 CLIP; PIPE
(B) ID=10X2 H=22 THA 		8-94252-455-2 05 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5 		8-97018-546-0 02 1 0009- ●
6 CLIP; PIPE
(C) ID=10X2 H=37.5 		8-97018-546-0 02 1 0009- ●
49 BRACKET; BRK PIPE
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97174-638-0 01 1 0009- ●
49 BRACKET; BRK PIPE
CHARGE AIR COOLER<6PL> (A) 		8-97174-638-0 01 1 0009- ●
49 BRACKET; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97180-993-1 01 1 0009- ●
49 BRACKET; BRK PIPE
(B) 		8-97180-993-1 01 1 0009- ●
61 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
61 BOLT; BRK PIPE
(A) M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
61 BOLT; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE 		0-28681-025-0 02 1 0009- ●
61 BOLT; BRK PIPE
(B) M10X25 FLANGE 		0-28681-025-0 02 1 0009- ●
67 NUT; BRKT
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		0-91150-110-0 01 1 0009- ●
67 NUT; BRKT
CHARGE AIR COOLER<6PL> M10 FLANGE 		0-91150-110-0 01 1 0009- ●
67 NUT; BRKT
HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE 		0-91150-110-0 02 1 0009- ●
67 NUT; BRKT
M10 FLANGE 		0-91150-110-0 02 1 0009- ●
145 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
145 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
146 NUT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91150-108-0 01 1 0009- ●
146 NUT; PIPE
M8 FLANGE 		0-91150-108-0 01 1 0009- ●
çizim 51837
20 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C
19 BRACKET; OIL PIPE
HYDRO MASTER<7LT> (B) THA 		8-97918-329-0 01 1 0009- ●
19 BRACKET; OIL PIPE
EXC. HYDRO MASTER<7LT> (A) THA 		8-97917-182-0 01 1 0009- ●
19 BRACKET; OIL PIPE
(A) THA 		8-97917-182-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
HYDRO MASTER<7LT> (F) 		8-94110-461-1 01 1 0009- ●
20 CLIP; BRK PIPE
HYDRO MASTER<7LT> (E) 		8-97026-150-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ●
20 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0009- ●
20 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0009- ●
20 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 0009- ●
20 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94455-816-0 01 1 0009- ●
20 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94455-816-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0009- ●
20 CLIP; BRK PIPE
(G) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0009- ● ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (I) ID=4.8X2 		8-94113-470-0 01 1 0009- ●
20 CLIP; BRK PIPE
(I) ID=4.8X2 		8-94113-470-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (H) ID=4.6X2 THA 		8-94241-454-0 01 1 0009- ●
20 CLIP; BRK PIPE
(H) ID=4.6X2 THA 		8-94241-454-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0009- ●
20 CLIP; BRK PIPE
(D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0009- ● ●

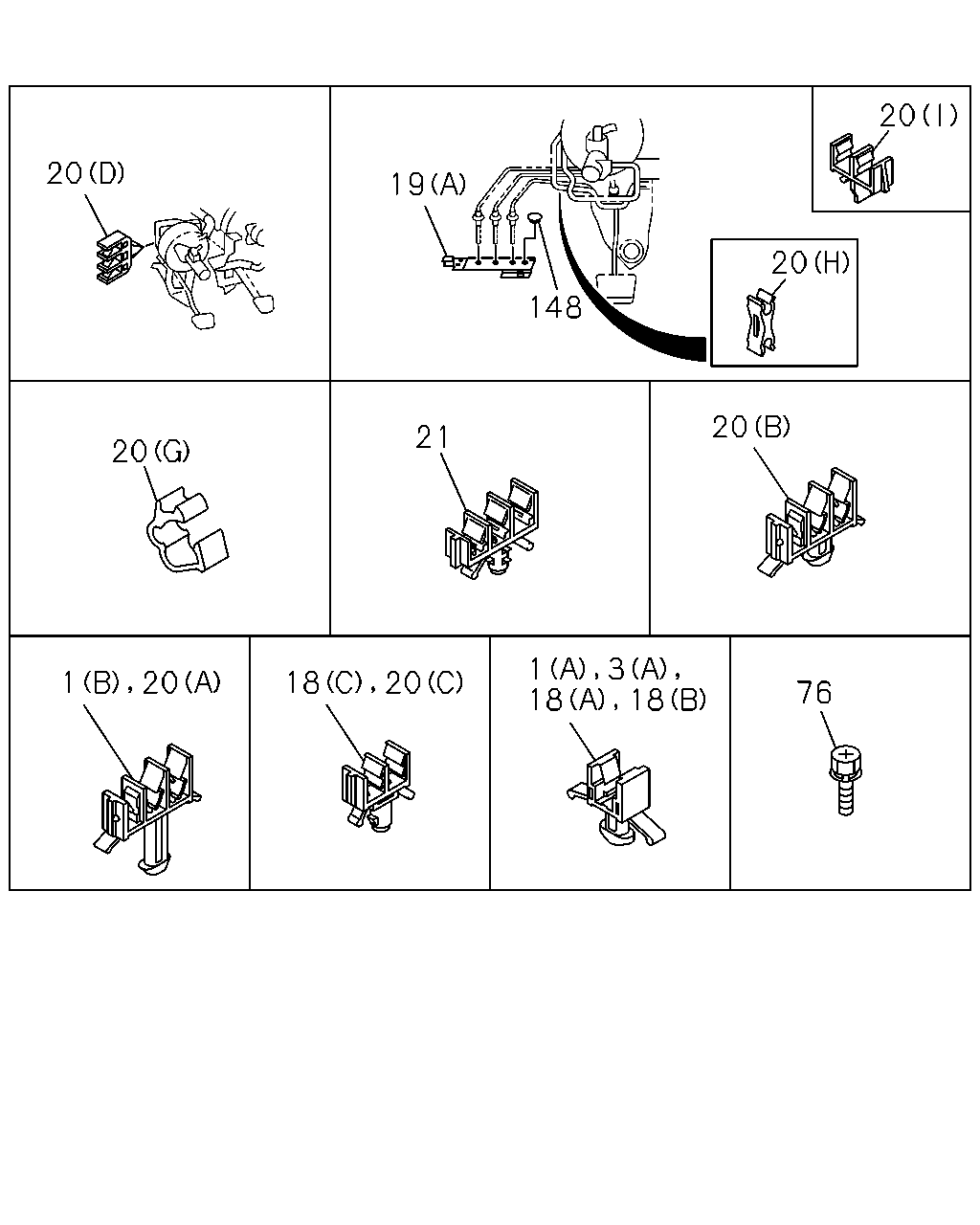

çizim 51864
20 20 19 20 148 20 21 20 18 18 76 1 20 18 20 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CLIP; OIL PIPE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0009- ●
1 CLIP; OIL PIPE TO BODY
(B) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0009- ●
1 CLIP; OIL PIPE TO BODY
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
1 CLIP; OIL PIPE TO BODY
(A) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
3 CLIP; BRK PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0009- ●
3 CLIP; BRK PIPE
(B) ID=13 & 13 L=16 & 16 		1-09700-072-0 01 1 0009- ●
3 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 02 1 0009- ●
3 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0009- ●
18 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=4.8 H=26 		8-94249-685-0 03 1 0009- ●
18 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
18 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
18 CLIP; BRK PIPE
(B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
18 CLIP; BRK PIPE
(B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
18 CLIP; BRK PIPE
(B) ID=4.8 H=32.5 		8-94405-141-0 01 1 0009- ●
18 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94316-410-0 01 1 0009- ●
18 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 01 1 0009- ●
18 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94316-410-0 01 1 0009- ●
18 CLIP; BRK PIPE
(A) ID=4.8 H=26 		8-94249-685-0 02 1 0009- ●
19 BRACKET; OIL PIPE
HYDRO MASTER<7LT> (B) THA 		8-97918-329-0 01 1 0009- ●
19 BRACKET; OIL PIPE
EXC. HYDRO MASTER<7LT> (A) THA 		8-97917-182-0 01 1 0009- ●
19 BRACKET; OIL PIPE
(A) THA 		8-97917-182-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
HYDRO MASTER<7LT> (F) 		8-94110-461-1 01 1 0009- ●
20 CLIP; BRK PIPE
HYDRO MASTER<7LT> (E) 		8-97026-150-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ●
20 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
(B) ID=6.4 & 4.8X2 		8-94146-043-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0009- ●
20 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 H=29 		8-94249-689-2 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0009- ●
20 CLIP; BRK PIPE
(A) ID=6.5 & 4.8X2 H=35.5 		8-94405-139-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 0009- ●
20 CLIP; BRK PIPE
(B) ID=6.5 & 4.8X2 		8-94424-234-0 02 1 0009- ●
20 CLIP; BRK PIPE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=4.8X2 		8-94455-816-0 01 1 0009- ●
20 CLIP; BRK PIPE
(C) ID=4.8X2 		8-94455-816-0 01 1 0009- ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (G) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0009- ●
20 CLIP; BRK PIPE
(G) ID=6.35 & 4.76X2 		8-94107-732-1 01 1 0009- ● ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (I) ID=4.8X2 		8-94113-470-0 01 1 0009- ●
20 CLIP; BRK PIPE
(I) ID=4.8X2 		8-94113-470-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (H) ID=4.6X2 THA 		8-94241-454-0 01 1 0009- ●
20 CLIP; BRK PIPE
(H) ID=4.6X2 THA 		8-94241-454-0 01 1 0009- ● ●
20 CLIP; BRK PIPE
EXC. HYDRO MASTER<7LT> (D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0009- ●
20 CLIP; BRK PIPE
(D) ID=6.35 & 4.76X2 		8-94250-923-2 01 1 0009- ● ●
21 CLIP; BRK PIPE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
21 CLIP; BRK PIPE
ID=10 & 6.4 & 4.8 		8-97064-484-1 01 1 0009- ●
76 BOLT; BRKT,OIL PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ● ● ●
148 GROMMET
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94294-358-0 01 1 0009- ●
148 GROMMET 8-94294-358-0 01 1 0009- ●
çizim 51866
62 6 6 144 145 149 6
BalonParca AdiParca NoAdetTipApplied Date A B C
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (D) H=15 ID=14 		1-09700-744-0 01 1 0009- ●
6 CLIP; PIPE
(D) H=15 ID=14 		1-09700-744-0 01 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0009- ●
6 CLIP; PIPE
(A) ID=14X2 H=30 L=25 THA 		1-09701-101-0 01 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22 THA 		8-94252-455-2 05 1 0009- ●
6 CLIP; PIPE
(B) ID=10X2 H=22 THA 		8-94252-455-2 05 1 0009- ●
6 CLIP; PIPE
HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5 		8-97018-546-0 02 1 0009- ●
6 CLIP; PIPE
(C) ID=10X2 H=37.5 		8-97018-546-0 02 1 0009- ●
62 NUT
HYDRO BRAKE BOOSTER<7QQ> M14 		9-99111-414-0 01 1 0009- ●
62 NUT
M14 		9-99111-414-0 01 1 0009- ●
144 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53 		1-09700-681-0 01 1 0009- ●
144 CLIP; HOSE
(A) ID=19 & 19 L=53 		1-09700-681-0 01 1 0009- ●
144 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5 		8-94426-597-0 05 1 0009- ●
144 CLIP; HOSE
(B) ID=11-19.5 		8-94426-597-0 05 1 0009- ●
145 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
145 BOLT; PIPE
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
149 BOLT; HOSE
HYDRO BRAKE BOOSTER<7QQ> M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
149 BOLT; HOSE
M6X12 FLANGE 		0-28080-612-0 01 1 0009- ●
