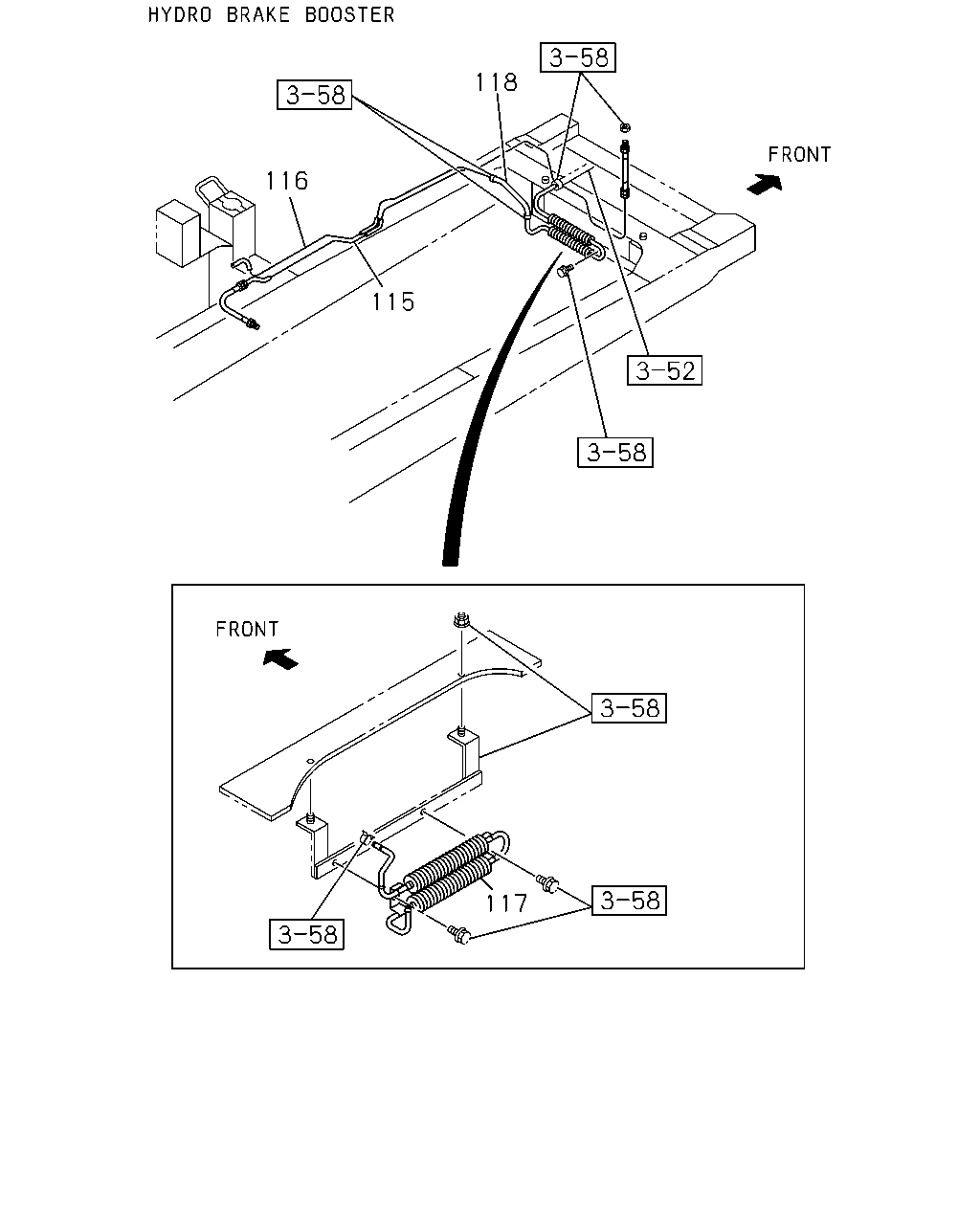

3-55 — BRAKE PIPING; OIL,REAR (#48676) — 41 parça

118 116 115 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	PIPE; PRESS,HYDRAULIC BRK BOOSTER 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ>	8-97201-967-2	01	1	0009-	●
115	PIPE; PRESS,HYDRAULIC BRK BOOSTER CHARGE AIR COOLER<6PL>	8-97201-967-2	01	1	0009-		●
116	PIPE; BRK,PIPE TO TANK 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> THA	8-97920-892-0	01	1	0009-	●
116	PIPE; BRK,PIPE TO TANK CHARGE AIR COOLER<6PL> THA	8-97920-892-0	01	1	0009-		●
117	PIPE; BRK,RETURN HYDRO BRAKE BOOSTER<7QQ>	8-97180-991-2	01	1	0009-	●
117	PIPE; BRK,RETURN	8-97180-991-2	01	1	0009-		●
118	HOSE; PIPE TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97181-217-2	01	1	0009-	●
118	HOSE; PIPE TO PIPE	8-97181-217-2	01	1	0009-		●

15 8 1 14 103 103 103 103 1 4 5 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK FRAME STRAIGHT TYPE<7KJ> L=405	8-97089-061-0	01	1	0009-0012	●
1	HOSE; FLEX,RR BRK L=405	8-97089-061-0	01	1	0009-0012		●
1	HOSE; FLEX,RR BRK FRAME STRAIGHT TYPE<7KJ>	8-97308-913-0	01	1	0101-	●
1	HOSE; FLEX,RR BRK	8-97308-913-0	01	1	0101-		●
1	HOSE; FLEX,RR BRK EXC. FRAME STRAIGHT TYPE<7KJ> L=370	8-97035-574-0	01	1	0009-	●
1	HOSE; FLEX,RR BRK L=370	8-97035-574-0	01	1	0009-			●
3	BRACKET; FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ>	8-97205-714-1	01	1	0009-	●
3	BRACKET; FLEX HOSE,RR BRK	8-97205-714-1	01	1	0009-		●
4	NUT; BRKT,FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0009-	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	01	1	0009-		●
5	BOLT; BRKT,FLEX HOSE,RR BRK FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X25 FLANGE	0-28680-825-0	01	1	0009-		●
8	CLIP; RR BRK	8-94137-662-0	02	1	0009-	●	●	●
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL FRAME STRAIGHT TYPE<7KJ> THA	8-97919-116-1	01	1	0009-	●
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL THA	8-97919-116-1	01	1	0009-		●
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-816-0	01	1	0009-	●
14	PIPE; BRK,FLEX HOSE TO WHEEL CYL THA	8-97916-816-0	01	1	0009-			●
15	PIPE; BRK,WHEEL CYL TO WHEEL CYL FRAME STRAIGHT TYPE<7KJ> THA	8-97912-873-1	01	1	0009-	●
15	PIPE; BRK,WHEEL CYL TO WHEEL CYL THA	8-97912-873-1	01	1	0009-		●
15	PIPE; BRK,WHEEL CYL TO WHEEL CYL EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-842-0	01	1	0009-	●
15	PIPE; BRK,WHEEL CYL TO WHEEL CYL THA	8-97916-842-0	01	1	0009-			●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0009-	●
103	CLIP; PIPE,BRK (C) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0009-		●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (C) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0009-	●
103	CLIP; PIPE,BRK (C) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0009-		●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (D) ID=4.8X2	8-94455-816-0	01	1	0009-	●
103	CLIP; PIPE,BRK (D) ID=4.8X2	8-94455-816-0	01	1	0009-		●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> (B) ID=10 & 4.8X3	8-97103-600-0	08	1	0009-	●
103	CLIP; PIPE,BRK (B) ID=10 & 4.8X3	8-97103-600-0	08	1	0009-		●
103	CLIP; PIPE,BRK (B) ID=10 & 4.8X3	8-97103-600-0	08	1	0009-		●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) ID=10 & 4.8X3	8-97103-600-0	01	1	0009-	●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) ID=10 & 8 & 4.8X2	8-97129-594-0	05	1	0009-	●
103	CLIP; PIPE,BRK FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (B) ID=10 & 4.8X3	8-97103-600-0	06	1	0009-	●
