Sayfa 3-52 - Isuzu EPC

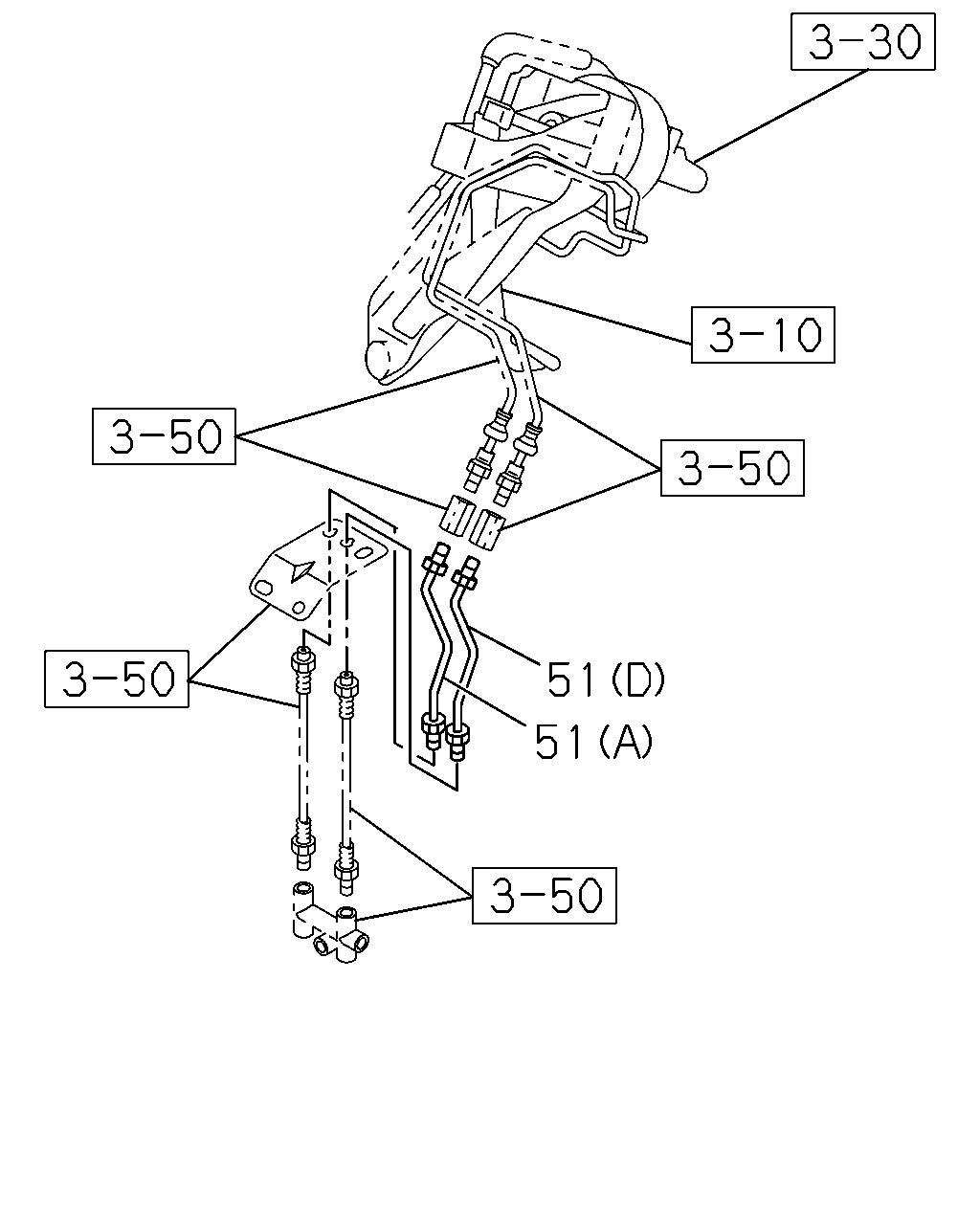

51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	PIPE; BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) THA	8-97915-792-0	01	1	0009-	●
51	PIPE; BRK HYDRO MASTER<7LT> (B) THA	8-97912-874-0	01	1	0009-	●
51	PIPE; BRK EXC. HYDRO MASTER<7LT> (D) THA	8-97917-165-0	01	1	0009-	●
51	PIPE; BRK (D) THA	8-97917-165-0	01	1	0009-		●	●
51	PIPE; BRK EXC. HYDRO MASTER<7LT> (A) THA	8-97917-166-0	01	1	0009-	●
51	PIPE; BRK (A) THA	8-97917-166-0	01	1	0009-		●	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	PIPE; BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) THA	8-97915-792-0	01	1	0009-	●
51	PIPE; BRK HYDRO MASTER<7LT> (B) THA	8-97912-874-0	01	1	0009-	●
51	PIPE; BRK EXC. HYDRO MASTER<7LT> (D) THA	8-97917-165-0	01	1	0009-	●
51	PIPE; BRK (D) THA	8-97917-165-0	01	1	0009-		●	●
51	PIPE; BRK EXC. HYDRO MASTER<7LT> (A) THA	8-97917-166-0	01	1	0009-	●
51	PIPE; BRK (A) THA	8-97917-166-0	01	1	0009-		●	●

106 107 106 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
106	HOSE; FIN PIPE TO PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97181-219-2	01	1	0009-	●
106	HOSE; FIN PIPE TO PIPE	8-97181-219-2	01	1	0009-		●
107	PIPE; RETURN TO FIN PIPE HYDRO BRAKE BOOSTER<7QQ> THA	8-97920-893-1	01	1	0009-	●
107	PIPE; RETURN TO FIN PIPE THA	8-97920-893-1	01	1	0009-		●

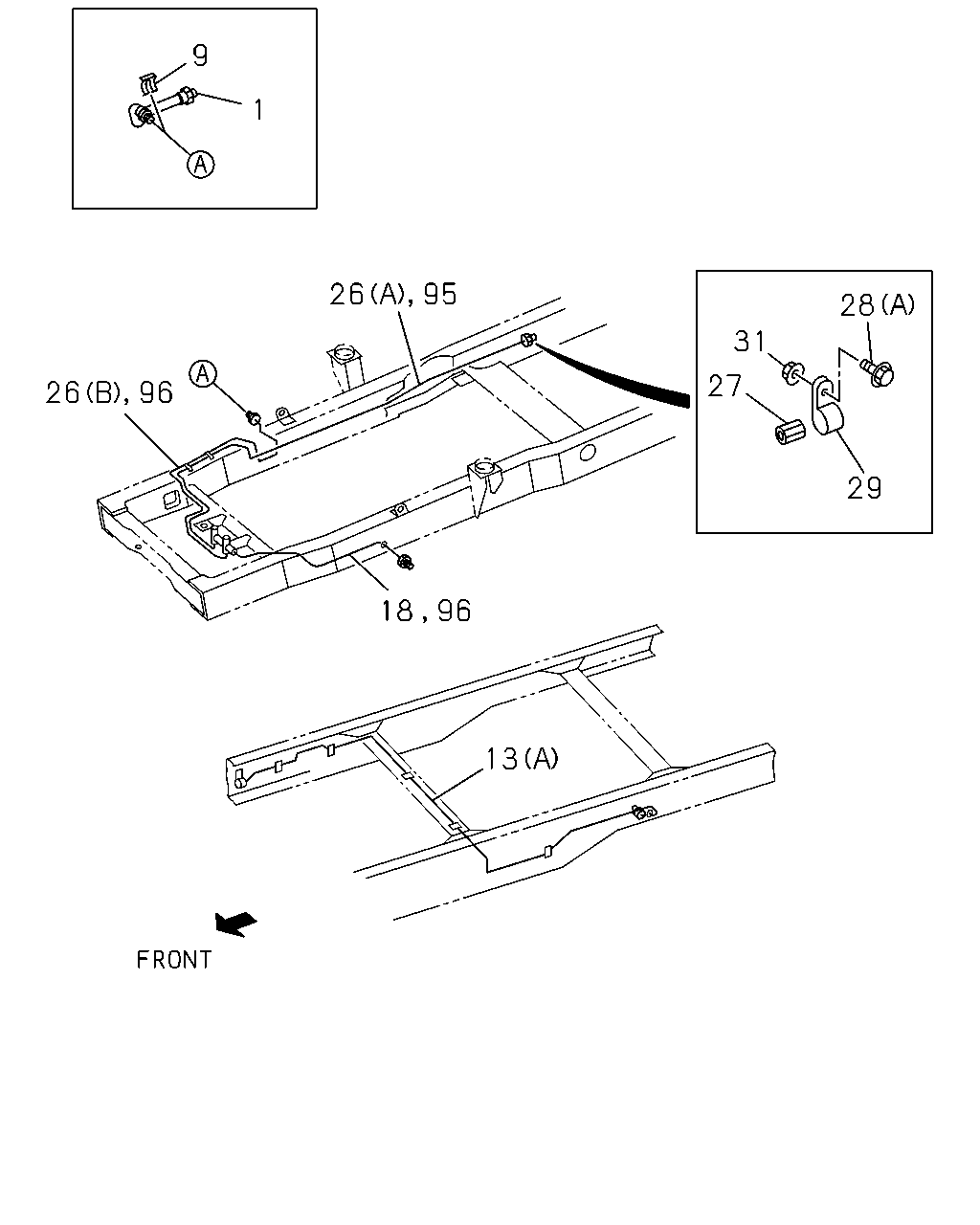

9 1 26 95 28 31 27 29 13 26 96 18 96

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97039-543-1	02	1	0009-	●
1	HOSE; FLEX,FRT BRK G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97039-543-1	02	1	0009-	●
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0009-		●
1	HOSE; FLEX,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP>	8-97039-543-1	02	1	0009-			●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0009-	●	●	●
9	CLIP; FLEX HOSE,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94137-662-0	02	1	0009-	●
9	CLIP; FLEX HOSE,FRT BRK G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94137-662-0	02	1	0009-	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0009-		●
9	CLIP; FLEX HOSE,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP>	8-94137-662-0	02	1	0009-			●
13	PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97919-117-0	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) THA	8-97920-890-0	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-804-1	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION (A) THA	8-97916-805-0	01	1	0009-		●
13	PIPE; OIL,UNION TO UNION (A) THA	8-97920-891-0	01	1	0009-			●
18	PIPE; OIL,UNION TO FRT FLEX HOSE EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97916-839-0	01	1	0009-	●
18	PIPE; OIL,UNION TO FRT FLEX HOSE THA	8-97916-839-0	01	1	0009-		●
26	PIPE; BRK,JOINT TO 2 WAY EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97910-104-2	01	1	0009-	●
26	PIPE; BRK,JOINT TO 2 WAY (A) THA	8-97910-104-2	01	1	0009-		●
26	PIPE; BRK,JOINT TO 2 WAY EXC. FRAME STRAIGHT TYPE<7KJ> (B) THA	8-97916-827-0	01	1	0009-	●
26	PIPE; BRK,JOINT TO 2 WAY (B) THA	8-97916-827-0	01	1	0009-		●
27	UNION; BRK PIPE EXC. HYDRO MASTER<7LT> M10 STRAIGHT	9-09227-005-0	01	1	0009-	●
27	UNION; BRK PIPE M10 STRAIGHT	9-09227-005-0	01	1	0009-		●	●
28	BOLT; UNION CLIP FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
28	BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X25 FLANGE	0-28680-625-0	01	1	0009-	●
28	BOLT; UNION CLIP (A) M6X25 FLANGE	0-28680-625-0	01	1	0009-		●
29	CLIP; UNION EXC. FRAME STRAIGHT TYPE<7KJ> ID=16 L=20	9-09525-532-0	01	1	0009-	●
29	CLIP; UNION ID=16 L=20	9-09525-532-0	01	1	0009-		●
31	NUT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> M6 FLANGE	0-91150-106-0	01	1	0009-	●
31	NUT; UNION CLIP M6 FLANGE	0-91150-106-0	01	1	0009-		●
95	PIPE ASM; BRK,6 WAY 2 WAY 4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97920-889-0	01	1	0009-	●
95	PIPE ASM; BRK,6 WAY 2 WAY 4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97920-889-0	01	1	0009-	●
95	PIPE ASM; BRK,6 WAY 2 WAY CHARGE AIR COOLER<6PL> THA	8-97920-889-0	01	1	0009-			●
96	PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97920-887-0	01	1	0009-	●
96	PIPE ASM; 6 WAY THA	8-97920-887-0	01	1	0009-			●
96	PIPE ASM; 6 WAY FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> THA	8-97920-888-0	01	1	0009-	●
96	PIPE ASM; 6 WAY THA	8-97920-888-0	01	1	0009-			●

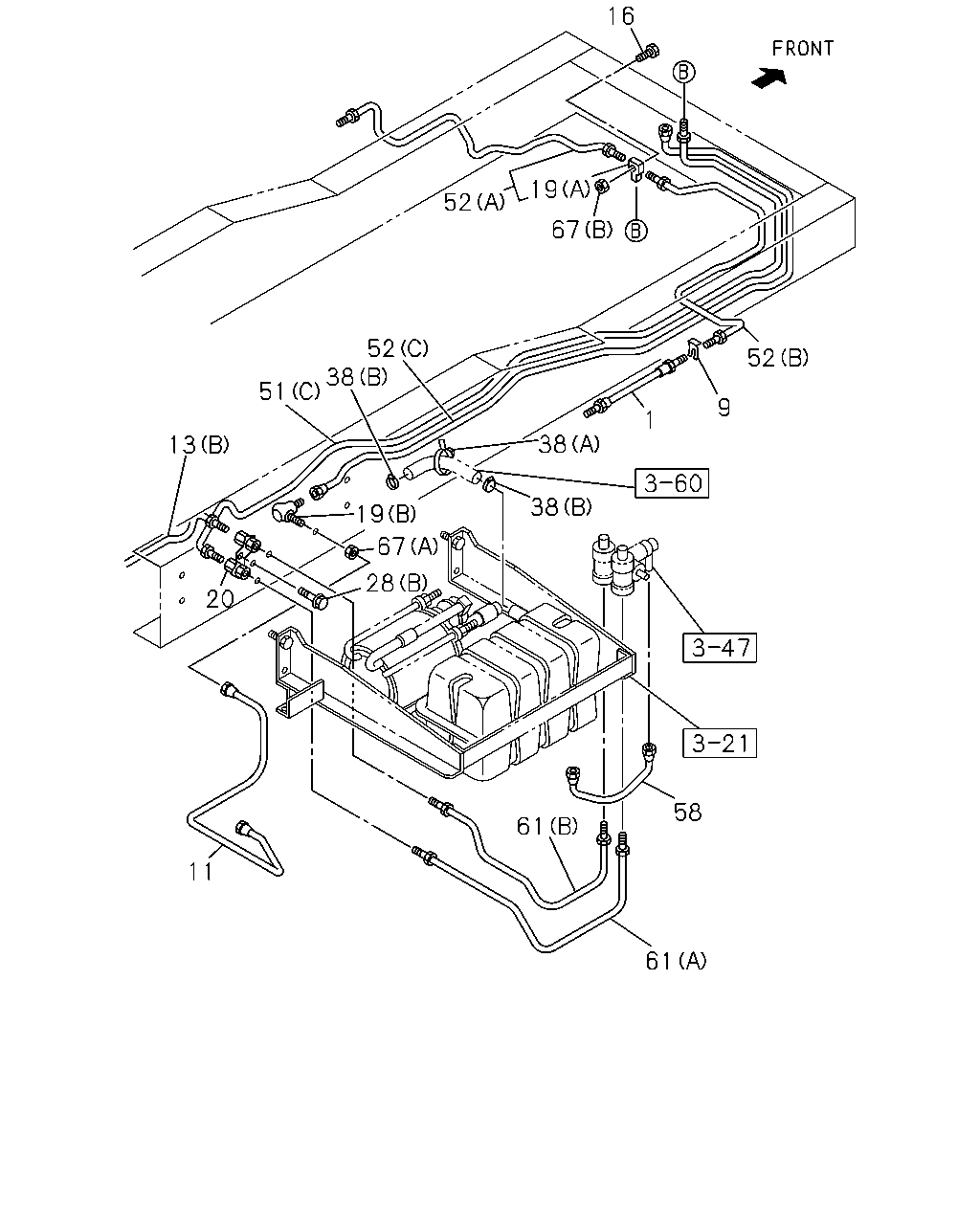

16 19 52 67 52 38 51 52 9 1 38 13 38 19 67 28 20 58 61 11 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97039-543-1	02	1	0009-	●
1	HOSE; FLEX,FRT BRK G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97039-543-1	02	1	0009-	●
1	HOSE; FLEX,FRT BRK	8-97039-543-1	02	1	0009-		●
1	HOSE; FLEX,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP>	8-97039-543-1	02	1	0009-			●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0009-	●	●	●
9	CLIP; FLEX HOSE,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ>	8-94137-662-0	02	1	0009-	●
9	CLIP; FLEX HOSE,FRT BRK G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-94137-662-0	02	1	0009-	●
9	CLIP; FLEX HOSE,FRT BRK	8-94137-662-0	02	1	0009-		●
9	CLIP; FLEX HOSE,FRT BRK FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP>	8-94137-662-0	02	1	0009-			●
11	PIPE; BRK,UNION TO FLEX HOSE,FRT FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-362-0	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97919-117-0	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) THA	8-97920-890-0	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION EXC. FRAME STRAIGHT TYPE<7KJ> (A) THA	8-97916-804-1	01	1	0009-	●
13	PIPE; OIL,UNION TO UNION (A) THA	8-97916-805-0	01	1	0009-		●
13	PIPE; OIL,UNION TO UNION (A) THA	8-97920-891-0	01	1	0009-			●
16	BOLT; 3 WAY CONNECTOR FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> M8X30 FLANGE	0-28680-830-0	01	1	0009-	●
19	UNION; OIL PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M14	9-09225-208-1	01	1	0009-	●
19	UNION; OIL PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) M10 3WAY	9-09227-305-0	01	1	0009-	●
20	BRACKET; UNION,OIL PIPE FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>	8-97129-561-0	01	1	0009-	●
28	BOLT; UNION CLIP FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8X25 FLANGE	0-28680-825-0	01	1	0009-	●
28	BOLT; UNION CLIP EXC. FRAME STRAIGHT TYPE<7KJ> (A) M6X25 FLANGE	0-28680-625-0	01	1	0009-	●
28	BOLT; UNION CLIP (A) M6X25 FLANGE	0-28680-625-0	01	1	0009-		●
38	CLIP HYDRO MASTER<7LT> (A) L=250 THA	5-09707-030-1	01	1	0009-	●
38	CLIP HYDRO MASTER<7LT> (B) ID=32	9-09915-005-1	02	1	0009-	●
51	PIPE; BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) THA	8-97915-792-0	01	1	0009-	●
51	PIPE; BRK HYDRO MASTER<7LT> (B) THA	8-97912-874-0	01	1	0009-	●
51	PIPE; BRK EXC. HYDRO MASTER<7LT> (D) THA	8-97917-165-0	01	1	0009-	●
51	PIPE; BRK (D) THA	8-97917-165-0	01	1	0009-		●	●
51	PIPE; BRK EXC. HYDRO MASTER<7LT> (A) THA	8-97917-166-0	01	1	0009-	●
51	PIPE; BRK (A) THA	8-97917-166-0	01	1	0009-		●	●
52	PIPE; BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) THA	8-97914-368-1	01	1	0009-	●
52	PIPE; BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (C) THA	8-97914-369-0	01	1	0009-	●
52	PIPE; BRK FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97915-793-0	01	1	0009-	●
58	PIPE; OIL,HYDROMASTER TO SAFETY VLV FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> THA	8-97914-364-0	01	1	0009-	●
61	PIPE; BRK,SAFETY VLV FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) THA	8-97914-365-1	01	1	0009-	●
61	PIPE; BRK,SAFETY VLV FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) THA	8-97914-366-0	01	1	0009-	●
67	NUT; UNION FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (B) M8 FLANGE	0-91150-108-0	01	1	0009-	●
67	NUT; UNION FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT> (A) M14	9-99111-414-0	01	1	0009-	●

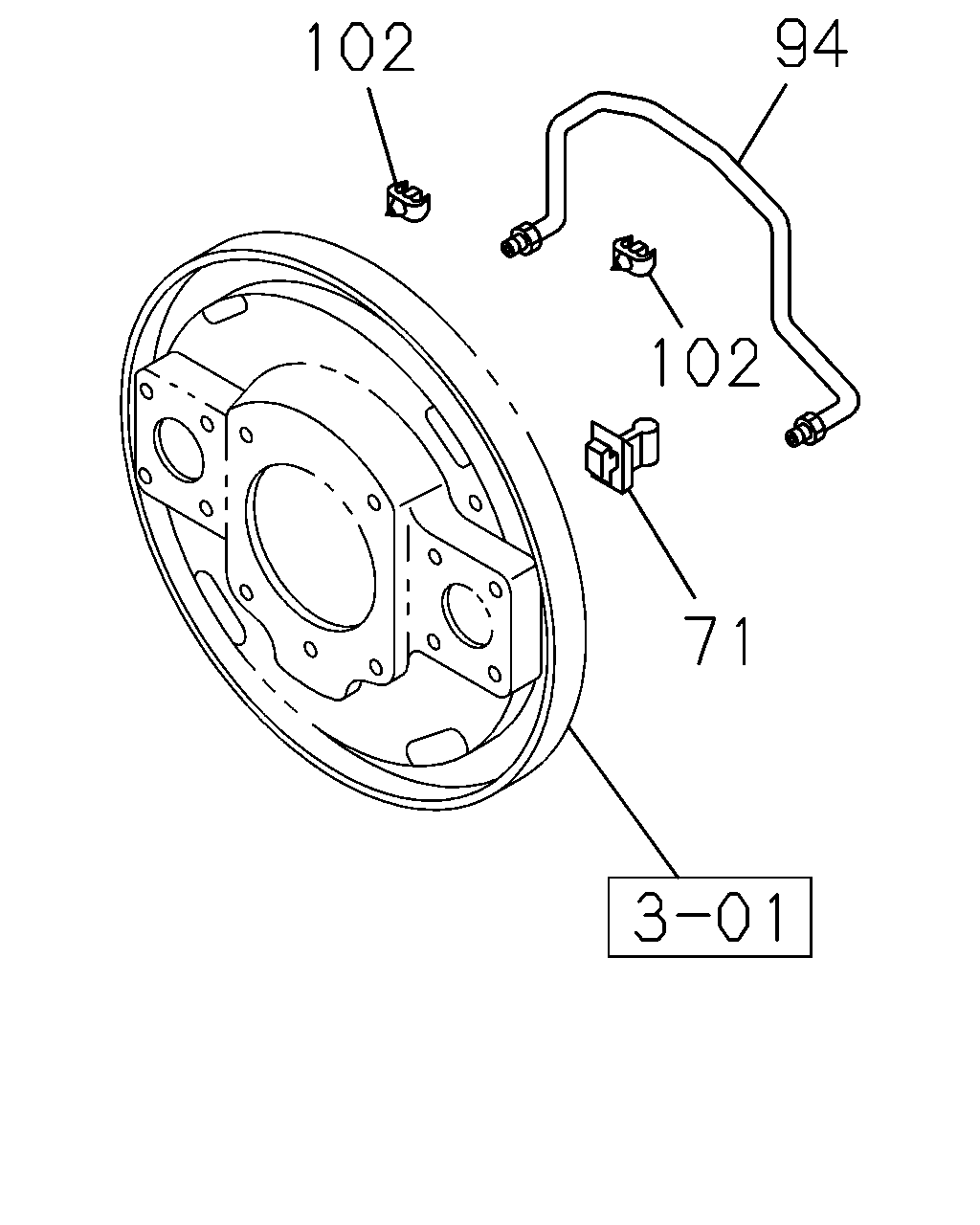

94 102 102 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
71	GROMMET; OIL PIPE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97044-742-1	02	1	0009-	●
71	GROMMET; OIL PIPE G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> THA	8-97044-742-1	02	1	0009-	●
71	GROMMET; OIL PIPE THA	8-97044-742-1	02	1	0009-		●
71	GROMMET; OIL PIPE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> THA	8-97044-742-1	02	1	0009-			●
94	PIPE; BRK,W/C TO W/C FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ> THA	8-97940-705-0	02	1	0009-	●
94	PIPE; BRK,W/C TO W/C FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> THA	8-97940-705-0	02	1	0009-	●
94	PIPE; BRK,W/C TO W/C THA	8-97940-705-0	02	1	0009-		●
94	PIPE; BRK,W/C TO W/C FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> THA	8-97940-705-0	02	1	0009-			●
102	CLIP; PIPE FRT&RR 7.5-16-14 6GSX16-127 6-WHL/NUT<9BP>, FRT&RR7.5-16-10 6GSX16-127 6-WHL/NUT DYNAMIC<97V> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97022-086-0	02	1	0009-	●
102	CLIP; PIPE FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP> G.V.W. 8.0-8.5TON<RPZ> FRAME STRAIGHT TYPE<7KJ> HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ>	8-97022-086-0	02	1	0009-	●
102	CLIP; PIPE	8-97022-086-0	02	1	0009-		●
102	CLIP; PIPE FRT&RR 8.25-16-14 16X6.00GS-135 6-WHL/NUT<9ZP>	8-97022-086-0	02	1	0009-			●
