3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#48674) — 139 parça
çizim 48346

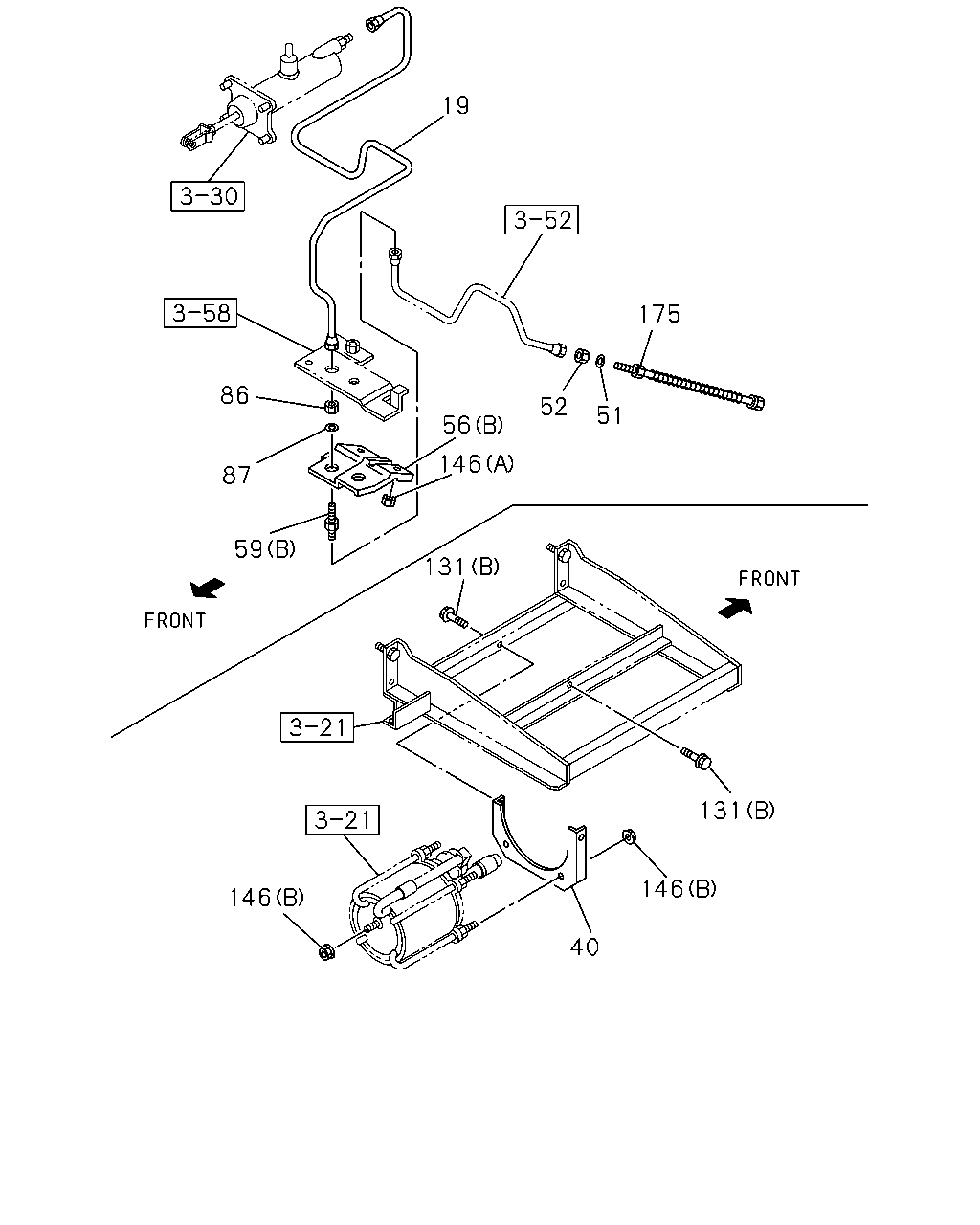

19 175 86 52 51 56 146 87 59 131 131 146 146 40
BalonParca AdiParca NoAdetTipApplied Date A B C
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-089-0 01 1 0105- ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97922-089-0 01 1 0105- ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97149-834-1 01 1 0110- ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97149-834-1 01 1 0110- ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO MASTER<7LT> THA 		8-97915-794-0 01 1 0009- ●
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO MASTER<7LT> THA 		8-97917-181-0 01 1 0009-0104 ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97917-181-0 01 1 0009-0104 ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> THA 		8-97917-181-0 01 1 0105-0210 ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97917-181-0 01 1 0105-0210 ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97917-181-0 01 1 0211- ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97917-181-0 01 1 0211- ●
40 BRACKET
HYDRO MASTER<7LT> 		8-97145-247-1 01 1 0009- ●
50 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
51 WASHER; LK,FLEX HOSE
HYDRO MASTER<7LT> ID=14.2 		9-09150-514-0 02 1 0009- ●
52 NUT; FLEX HOSE
HYDRO MASTER<7LT> M14 		9-99110-414-0 02 1 0009- ●
56 BRACKET; UNION,BRK
HYDRO MASTER<7LT> (B) 		1-71998-934-2 01 1 0009- ●
56 BRACKET; UNION,BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97149-604-1 01 1 0009- ●
56 BRACKET; UNION,BRK
(A) 		8-97149-604-1 01 1 0009- ● ●
59 UNION; BRK PIPE
HYDRO MASTER<7LT> (B) M14 		9-09223-308-1 01 1 0009- ●
59 UNION; BRK PIPE
EXC. HYDRO MASTER<7LT> (A) M10 STRAIGHT 		9-09227-005-0 02 1 0009- ●
59 UNION; BRK PIPE
(A) M10 STRAIGHT 		9-09227-005-0 02 1 0009- ● ●
86 NUT; UNION
HYDRO MASTER<7LT> M14 		9-99111-414-0 01 1 0009- ●
87 WASHER; LK,UNION
HYDRO MASTER<7LT> ID=14.2 		9-09150-514-0 01 1 0009- ●
116 NUT
HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91150-108-0 02 1 0107- ●
116 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107- ●
131 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
131 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
131 BOLT; BRKT
HYDRO MASTER<7LT> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0009- ●
131 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> (C) M8X16 FLANGE 		0-28080-816-0 02 1 0009-0106 ●
131 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0009-0106 ●
146 NUT; BRKT
HYDRO MASTER<7LT> (B) M10 FLANGE 		0-91150-110-0 03 1 0009- ●
146 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ●
175 HOSE; FLEX
HYDRO MASTER<7LT> L=420 		1-09364-615-0 01 1 0009- ●
çizim 51421

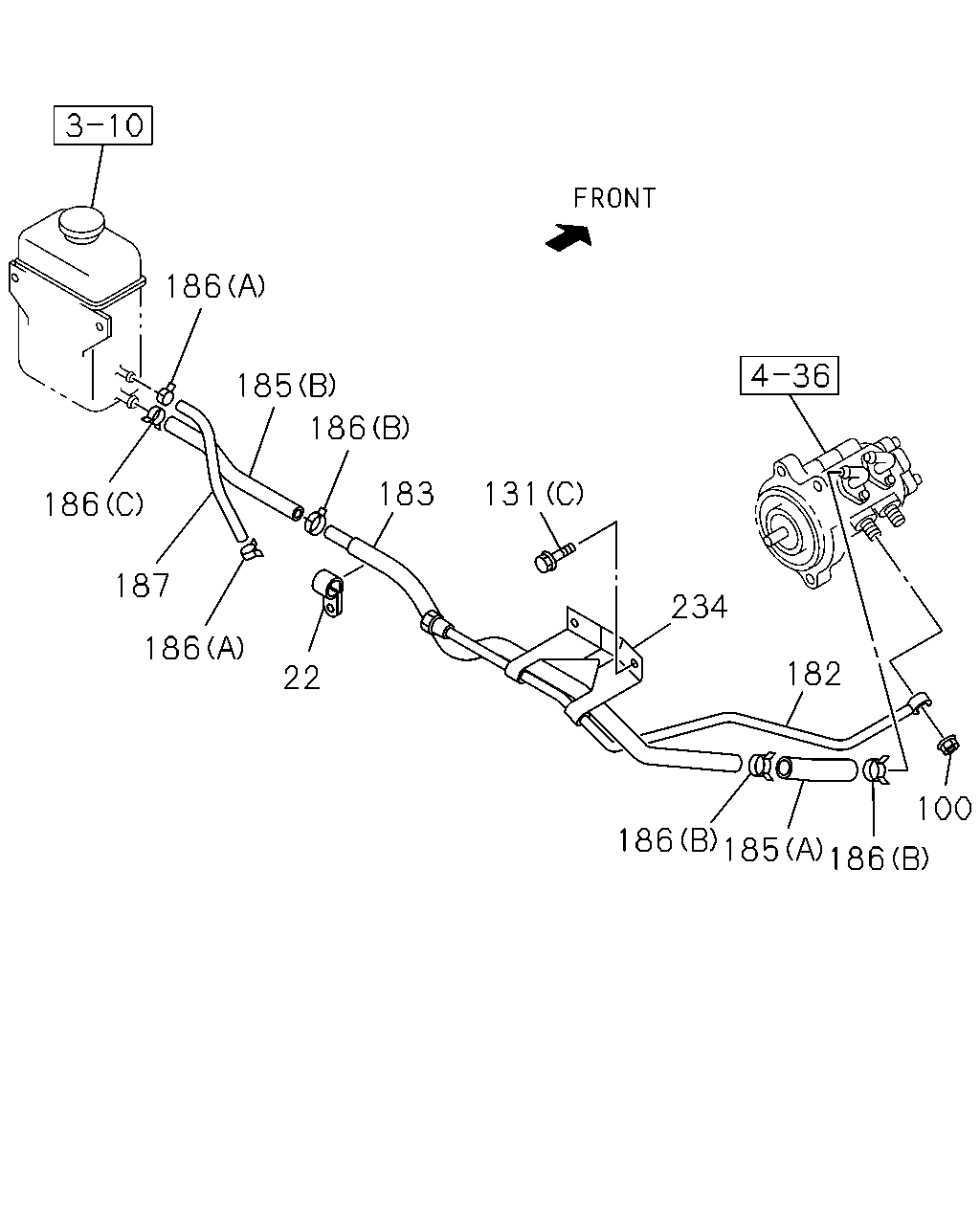

186 185 186 183 131 186 187 234 186 182 22 100 186 185 186
BalonParca AdiParca NoAdetTipApplied Date A B C
22 CLIP
HYDRO BRAKE BOOSTER<7QQ> ID=11 L=16 		9-09525-025-0 02 1 0107- ●
22 CLIP
ID=11 L=16 		9-09525-025-0 02 1 0107- ●
22 CLIP
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> ID=19 L=20 		9-09525-836-0 01 1 0009- ●
22 CLIP
CHARGE AIR COOLER<6PL> ID=19 L=20 		9-09525-836-0 01 1 0009- ●
50 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
100 NUT; HYDRAULIC UNIT
HYDRO BRAKE BOOSTER<7QQ> M12 SELF LOCK 		8-97028-390-1 01 1 0009- ●
100 NUT; HYDRAULIC UNIT
M12 SELF LOCK 		8-97028-390-1 01 1 0009- ●
116 NUT
HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91150-108-0 02 1 0107- ●
116 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107- ●
131 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
131 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
131 BOLT; BRKT
HYDRO MASTER<7LT> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0009- ●
131 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> (C) M8X16 FLANGE 		0-28080-816-0 02 1 0009-0106 ●
131 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0009-0106 ●
182 PIPE; HYDRAULIC BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97252-876-1 01 1 0009-0106 ●
182 PIPE; HYDRAULIC BRK BOOSTER 8-97252-876-1 01 1 0009-0106 ●
182 PIPE; HYDRAULIC BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97312-263-0 01 1 0107- ●
182 PIPE; HYDRAULIC BRK BOOSTER 8-97312-263-0 01 1 0107- ●
183 PIPE; SUCTION
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97252-875-0 01 1 0009-0106 ●
183 PIPE; SUCTION
CHARGE AIR COOLER<6PL> 		8-97252-875-0 01 1 0009-0106 ●
183 PIPE; SUCTION
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> 		8-97312-264-0 01 1 0107- ●
183 PIPE; SUCTION
CHARGE AIR COOLER<6PL> 		8-97312-264-0 01 1 0107- ●
185 HOSE; RUBBER,SUCTION
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> (B) SERVICED BY L=300 		0-09814-300-0 01 1 0009- ●
185 HOSE; RUBBER,SUCTION
CHARGE AIR COOLER<6PL> (B) SERVICED BY L=300 		0-09814-300-0 01 1 0009- ●
185 HOSE; RUBBER,SUCTION
HYDRO BRAKE BOOSTER<7QQ> (A) 		0-09814-120-0 01 1 0009- ●
185 HOSE; RUBBER,SUCTION
(A) 		0-09814-120-0 01 1 0009- ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (A) ID=16 		8-94238-568-0 02 1 0009- ●
186 CLIP; HOSE
(A) ID=16 		8-94238-568-0 02 1 0009- ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (B) ID=21 		8-94242-034-0 03 1 0009- ●
186 CLIP; HOSE
(B) ID=21 		8-94242-034-0 03 1 0009- ●
186 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> (C) ID=22 		8-94382-401-0 01 1 0009- ●
186 CLIP; HOSE
(C) ID=22 		8-94382-401-0 01 1 0009- ●
187 HOSE; RUBBER,OIL TANK
CHARGE AIR COOLER<6PL> HYDRO BRAKE BOOSTER<7QQ> L=270 		0-09809-270-0 01 1 0009- ●
187 HOSE; RUBBER,OIL TANK
CHARGE AIR COOLER<6PL> L=270 		0-09809-270-0 01 1 0009- ●
234 BRACKET; PIPE,HYD BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97252-874-0 01 1 0009-0106 ●
234 BRACKET; PIPE,HYD BRK BOOSTER 8-97252-874-0 01 1 0009-0106 ●
çizim 51872

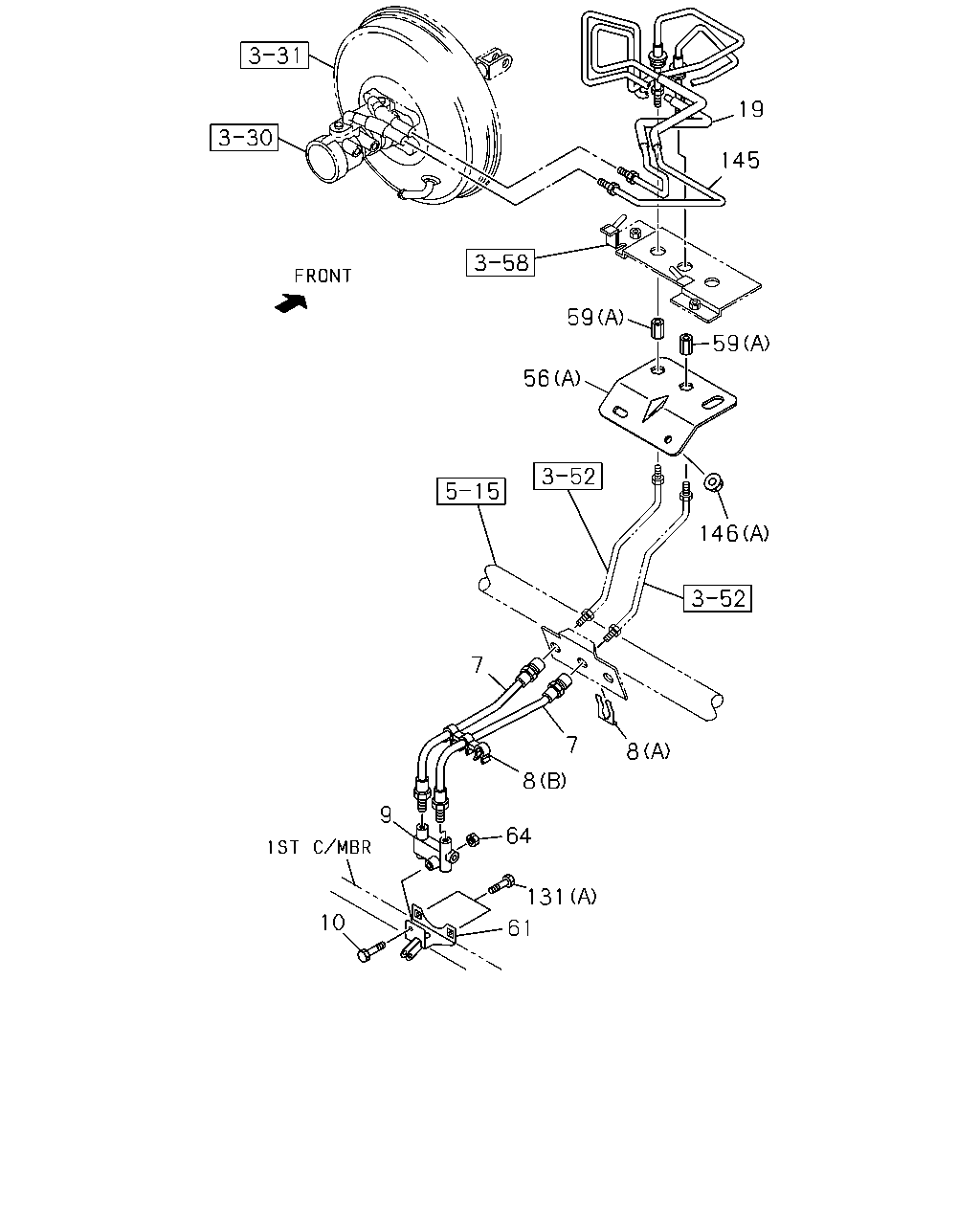

19 145 59 59 56 146 7 7 8 8 9 64 131 10 61
BalonParca AdiParca NoAdetTipApplied Date A B C
7 HOSE; FLEX,PIPE TO 5 WAY JOINT
EXC. HYDRO MASTER<7LT> 		8-97171-031-0 02 1 0009- ●
7 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-97171-031-0 02 1 0009- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
EXC. HYDRO MASTER<7LT> (A) 		8-94167-006-0 02 1 0009- ●
8 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-94167-006-0 02 1 0009- ● ●
8 CLIP; FLEX HOSE,CABLE SIDE
EXC. HYDRO MASTER<7LT> (B) 		8-97076-471-0 01 1 0009- ●
8 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-97076-471-0 01 1 0009- ● ●
9 JOINT; BRK & CLU PIPE,CAB SIDE
EXC. HYDRO MASTER<7LT> 		5-47456-009-1 01 1 0009- ●
9 JOINT; BRK & CLU PIPE,CAB SIDE 5-47456-009-1 01 1 0009- ● ●
10 BOLT; JOINT
EXC. HYDRO MASTER<7LT> M6X40 FLANGE 		0-28680-640-0 01 1 0009- ●
10 BOLT; JOINT
M6X40 FLANGE 		0-28680-640-0 01 1 0009- ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-089-0 01 1 0105- ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97922-089-0 01 1 0105- ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97149-834-1 01 1 0110- ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97149-834-1 01 1 0110- ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO MASTER<7LT> THA 		8-97915-794-0 01 1 0009- ●
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO MASTER<7LT> THA 		8-97917-181-0 01 1 0009-0104 ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97917-181-0 01 1 0009-0104 ● ●
19 PIPE; BRK,M/CYL TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> THA 		8-97917-181-0 01 1 0105-0210 ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97917-181-0 01 1 0105-0210 ●
19 PIPE; BRK,M/CYL TO UNION
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97917-181-0 01 1 0211- ●
19 PIPE; BRK,M/CYL TO UNION
THA 		8-97917-181-0 01 1 0211- ●
50 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
56 BRACKET; UNION,BRK
HYDRO MASTER<7LT> (B) 		1-71998-934-2 01 1 0009- ●
56 BRACKET; UNION,BRK
EXC. HYDRO MASTER<7LT> (A) 		8-97149-604-1 01 1 0009- ●
56 BRACKET; UNION,BRK
(A) 		8-97149-604-1 01 1 0009- ● ●
59 UNION; BRK PIPE
HYDRO MASTER<7LT> (B) M14 		9-09223-308-1 01 1 0009- ●
59 UNION; BRK PIPE
EXC. HYDRO MASTER<7LT> (A) M10 STRAIGHT 		9-09227-005-0 02 1 0009- ●
59 UNION; BRK PIPE
(A) M10 STRAIGHT 		9-09227-005-0 02 1 0009- ● ●
61 BRACKET; 5 WAY JOINT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> 		8-97170-632-0 01 1 0009- ●
61 BRACKET; 5 WAY JOINT 8-97170-632-0 01 1 0009- ●
64 NUT; 5 WAY TO BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> M6 FLANGE 		0-91150-106-0 01 1 0009- ●
64 NUT; 5 WAY TO BRKT
M6 FLANGE 		0-91150-106-0 01 1 0009- ●
116 NUT
HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91150-108-0 02 1 0107- ●
116 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107- ●
131 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> EXC. HYDRO MASTER<7LT> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
131 BOLT; BRKT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
131 BOLT; BRKT
HYDRO MASTER<7LT> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0009- ●
131 BOLT; BRKT
HYDRO BRAKE BOOSTER<7QQ> (C) M8X16 FLANGE 		0-28080-816-0 02 1 0009-0106 ●
131 BOLT; BRKT
(C) M8X16 FLANGE 		0-28080-816-0 02 1 0009-0106 ●
145 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> THA 		8-97922-088-0 01 1 0105- ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97922-088-0 01 1 0105- ●
145 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97149-833-1 01 1 0110- ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97149-833-1 01 1 0110- ●
145 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO MASTER<7LT> THA 		8-97917-180-0 01 1 0009-0104 ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97917-180-0 01 1 0009-0104 ● ●
145 PIPE; BRK,METERING VLV TO UNION
EXC. HYDRO BRAKE BOOSTER<7QQ> THA 		8-97917-180-0 01 1 0105-0210 ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97917-180-0 01 1 0105-0210 ●
145 PIPE; BRK,METERING VLV TO UNION
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97917-180-0 01 1 0211- ●
145 PIPE; BRK,METERING VLV TO UNION
THA 		8-97917-180-0 01 1 0211- ●
146 NUT; BRKT
HYDRO MASTER<7LT> (B) M10 FLANGE 		0-91150-110-0 03 1 0009- ●
146 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ●
çizim 51912
193 188 181 192 195 194
BalonParca AdiParca NoAdetTipApplied Date A B C
50 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
50 BOLT; PIPE
M8X16 FLANGE 		0-28080-816-0 02 1 0107- ●
116 NUT
HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91150-108-0 02 1 0107- ●
116 NUT
M8 FLANGE 		0-91150-108-0 02 1 0107- ●
181 BOLT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M6X16 FLANGE 		0-28680-616-0 01 1 0009- ●
181 BOLT; PIPE
M6X16 FLANGE 		0-28680-616-0 01 1 0009- ●
188 NUT; PIPE
HYDRO BRAKE BOOSTER<7QQ> M6 FLANGE 		0-91150-106-0 01 1 0009- ●
188 NUT; PIPE
M6 FLANGE 		0-91150-106-0 01 1 0009- ●
192 PIPE; PRESSURE
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97920-894-0 01 1 0009- ●
192 PIPE; PRESSURE
THA 		8-97920-894-0 01 1 0009- ●
193 PIPE; RETURN
HYDRO BRAKE BOOSTER<7QQ> THA 		8-97920-895-0 01 1 0009-0009 ●
193 PIPE; RETURN
THA 		8-97920-895-0 01 1 0009-0009 ●
194 HOSE; CAB TO PIPE
HYDRO BRAKE BOOSTER<7QQ> 		8-97177-089-5 01 1 0009- ●
194 HOSE; CAB TO PIPE 8-97177-089-5 01 1 0009- ●
195 CLIP; HOSE
HYDRO BRAKE BOOSTER<7QQ> ID=11-19.5 		8-94426-597-0 01 1 0009- ●
195 CLIP; HOSE
ID=11-19.5 		8-94426-597-0 01 1 0009- ●
