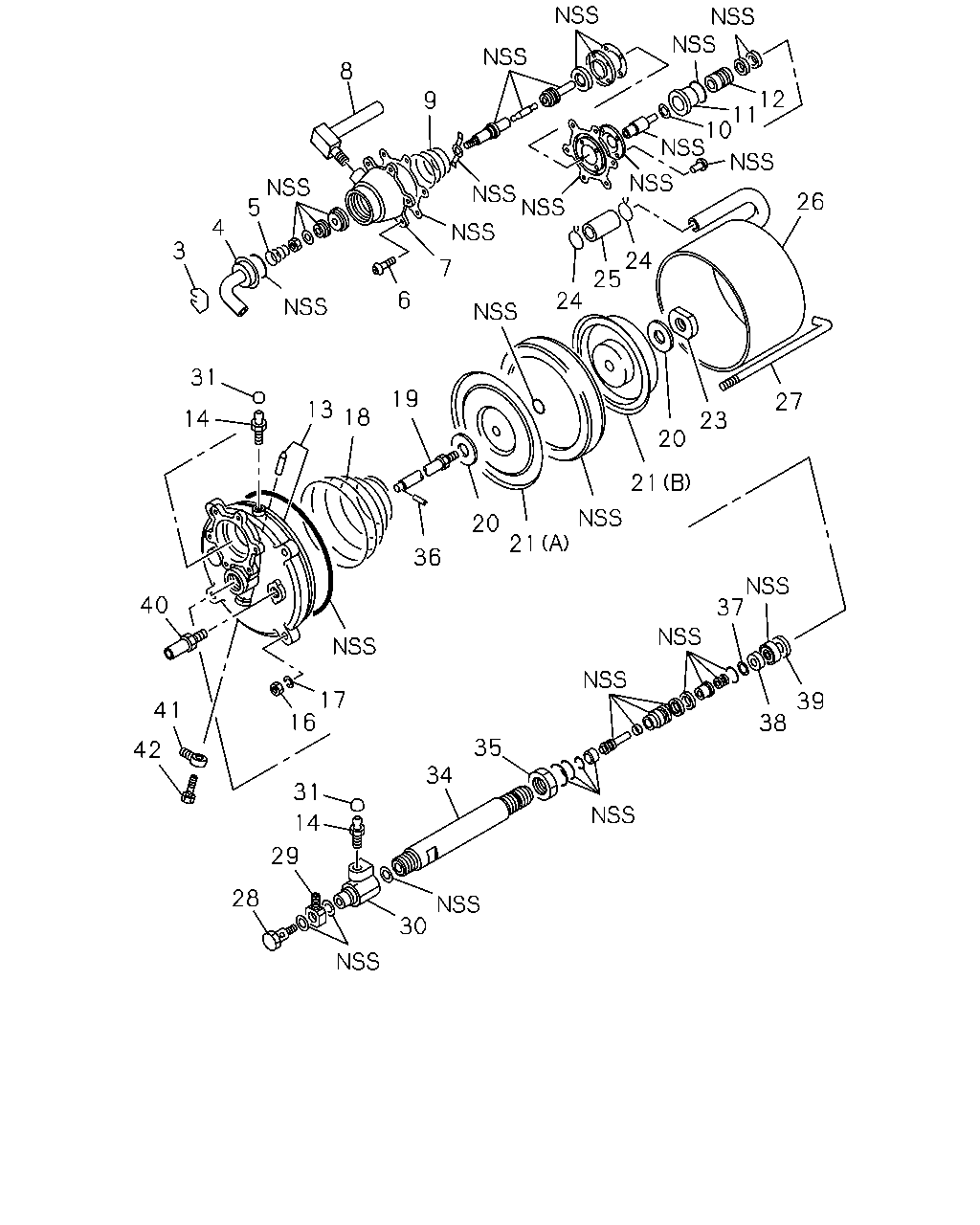

3-32 — HYDRO BOOSTING SYSTEM (#48672) — 43 parça

8 12 11 10 9 5 26 4 3 24 25 7 6 24 31 19 27 13 18 14 23 20 21 20 21 36 37 40 17 16 39 38 41 35 42 34 31 14 29 28 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	RETAINER; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-061-0	01	1	-
4	PIPE; HYDROMASTER ASM PART: A = 8-97129-512-0	1-47849-004-0	01	1	-
5	SPRING; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83341-308-0	01	1	-
6	SCREW; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0	9-88510-210-0	06	1	-
7	BODY; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-052-0	01	1	-
8	ELBOW; SHELL,HYDROMASTER T=0.925 ASM PART: A = 8-97129-512-0	8-97174-159-0	01	1	-
9	SPRING; DIAPH,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-056-0	01	1	-
10	RING; RET,FITTING,HYDROMASTER ASM PART: A = 8-97129-512-0	1-22189-193-0	01	1	-
11	FITTING; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-069-0	01	1	-
12	PISTON; POPPET VLV,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-071-0	01	1	-
13	PLATE; END,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-054-0	01	1	-
14	PLUG; CAP,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83331-704-0	02	1	-
16	NUT; END PLATE TO SHELL,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83315-080-0	04	1	-
17	WASHER; END PLATE TO SHELL,HYDROMASTER ID=10.2 ASM PART: A = 8-97129-512-0	9-09150-510-0	04	1	-
18	SPRING; CYL SHELL,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83321-402-0	01	1	-
19	ROD; PUSH,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47825-003-0	01	1	-
20	WASHER; LK,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83325-031-0	02	1	-
21	PLATE; PISTON,SHELL,HYDROMASTER (B) ASM PART: A = 8-97129-512-0	1-47811-084-0	01	1	-
21	PLATE; PISTON,SHELL,HYDROMASTER (A) ASM PART: A = 8-97129-512-0	1-47811-085-0	01	1	-
23	NUT; PUSH ROD,SHELL,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83325-032-0	01	1	-
24	CLAMP; HOSE,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83315-023-0	02	1	-
25	HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83315-007-0	01	1	-
26	SHELL; CYL,HYDROMASTER T=0.850 ASM PART: A = 8-97129-512-0	8-97174-156-0	01	1	-
27	BOLT; HOOK,HYDROMASTER T=0.825 ASM PART: A = 8-97129-512-0	8-97174-155-0	04	1	-
28	BOLT; EYE,CAP,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83315-047-0	01	1	-
29	CONNECTOR; EYE,CAP,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-118-0	01	1	-
30	CAP; CYL,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-047-0	01	1	-
31	PROTECTOR; CAP,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83335-044-0	02	1	-
34	CYLINDER; HYDROMASTER T=0.900 ASM PART: A = 8-97129-512-0	8-97174-158-0	01	1	-
35	NUT; CYL,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83335-012-0	01	1	-
36	PIN; PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83325-023-0	01	1	-
37	WASHER; PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-028-0	01	1	-
38	RETAINER; PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-029-0	01	1	-
39	WASHER; OIL SEAL,PISTON,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-031-0	01	1	-
40	CONNECTOR; HOSE,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-047-0	01	1	-
41	CONNECTOR; EYE,END PLATE,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47819-119-0	01	1	-
42	BOLT; EYE,END PLATE,HYDROMASTER ASM PART: A = 8-97129-512-0	1-47811-088-0	01	1	-

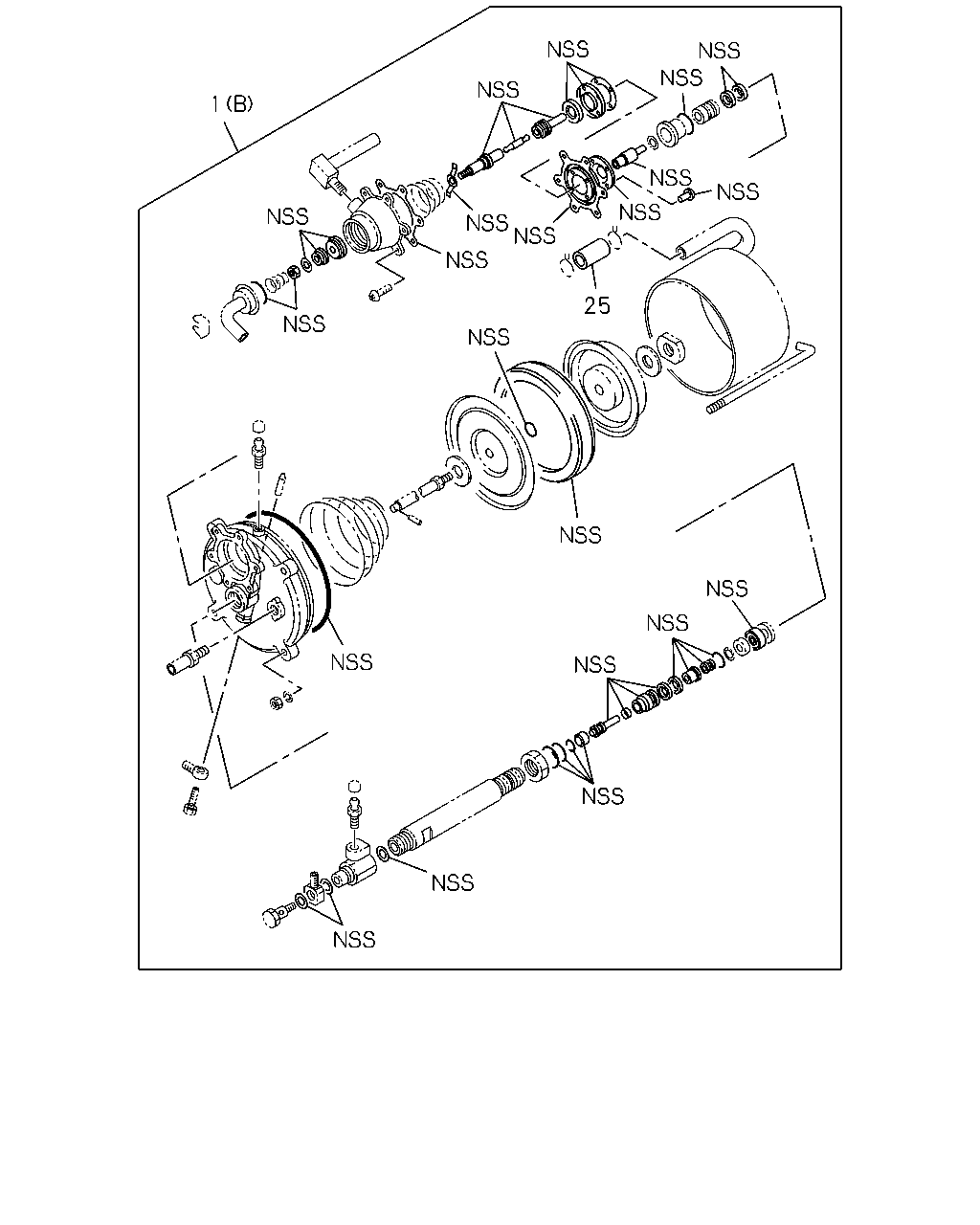

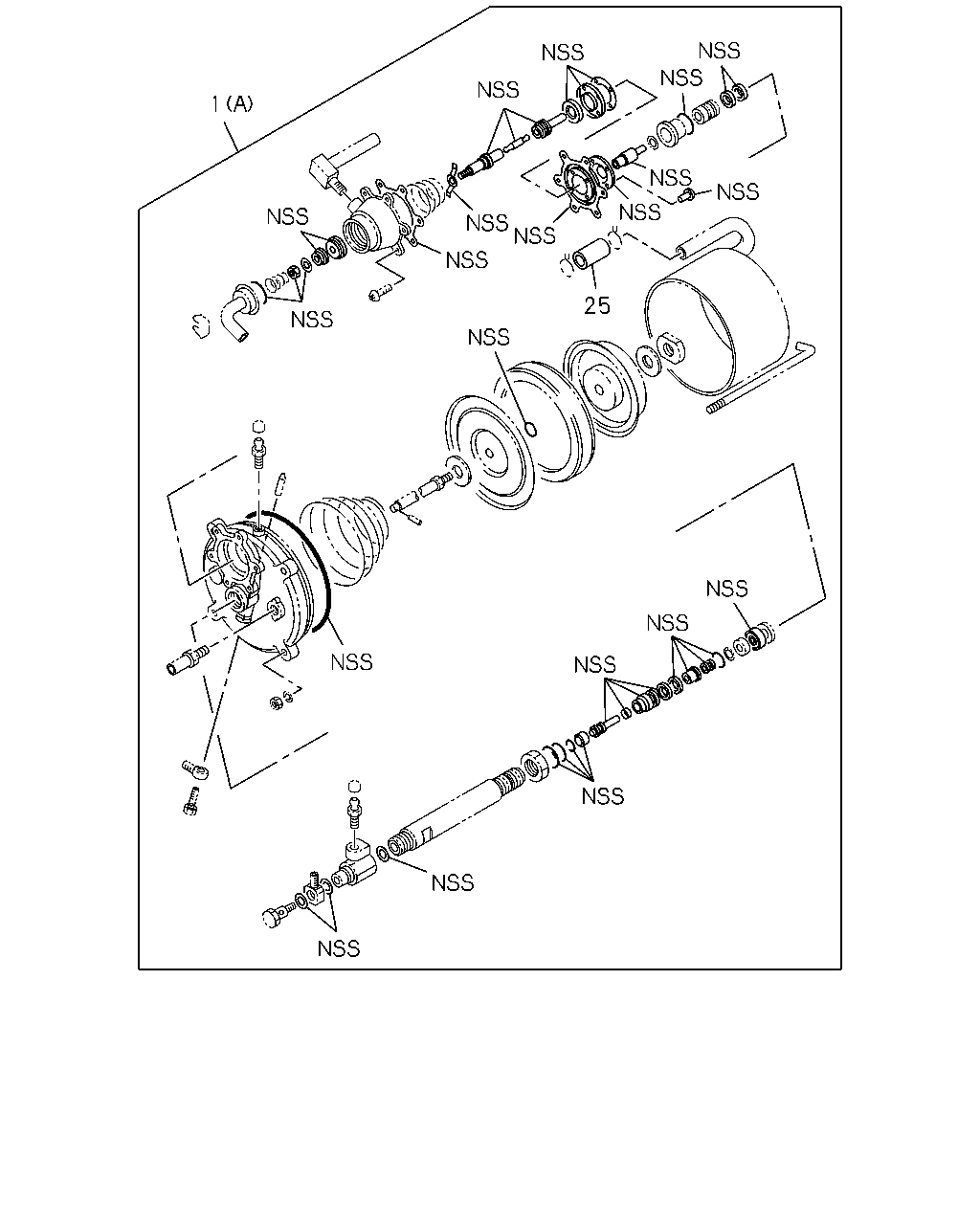

1 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; HYDROMASTER (A) ASM PART: A = 8-97129-512-0	8-97174-081-0	01	1	-
1	REPAIR KIT; HYDROMASTER (B) ASM PART: A = 8-97129-512-0	8-97174-082-0	01	1	-
25	HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83315-007-0	01	1	-

1 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; HYDROMASTER (A) ASM PART: A = 8-97129-512-0	8-97174-081-0	01	1	-
1	REPAIR KIT; HYDROMASTER (B) ASM PART: A = 8-97129-512-0	8-97174-082-0	01	1	-
25	HOSE; SHELL TO ELBOW,HYDROMASTER ASM PART: A = 8-97129-512-0	9-83315-007-0	01	1	-
