3-31 — BRAKE MASTER VAC AND BRAKE BOOSTER (#48671) — 46 parça
çizim 46827
17 16 24 15 11 12 11 23 3 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 MASTER VAC ASM; BRK
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97177-974-0 01 1 0009-0109 ●
1 MASTER VAC ASM; BRK 8-97177-974-0 01 1 0009-0109 ●
1 MASTER VAC ASM; BRK
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97162-800-1 01 1 0110- ●
1 MASTER VAC ASM; BRK 8-97162-800-1 01 1 0110- ●
3 RETAINER; FRT SHELL,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83315-319-0 01 1 0009- ●
3 RETAINER; FRT SHELL,M/VAC 9-83315-319-0 01 1 0009- ●
11 FILTER; M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		9-83345-063-0 02 1 0009-0109 ●
11 FILTER; M/VAC 9-83345-063-0 02 1 0009-0109 ●
11 FILTER; M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-576-0 01 1 0110- ●
11 FILTER; M/VAC 8-97205-576-0 01 1 0110- ●
12 SILENCER; M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94465-510-0 01 1 0009-0109 ●
12 SILENCER; M/VAC 8-94465-510-0 01 1 0009-0109 ●
12 SILENCER; M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> THA 		8-97205-577-0 01 1 0110- ●
12 SILENCER; M/VAC
THA 		8-97205-577-0 01 1 0110- ●
15 RETAINER; GUARD,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94123-119-0 01 1 0009-0109 ●
15 RETAINER; GUARD,M/VAC 8-94123-119-0 01 1 0009-0109 ●
15 RETAINER; GUARD,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-94375-083-0 01 1 0110- ●
15 RETAINER; GUARD,M/VAC 8-94375-083-0 01 1 0110- ●
16 NUT; VLV ROD,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> M10 		1-52139-008-0 01 1 0009- ●
16 NUT; VLV ROD,M/VAC
M10 		1-52139-008-0 01 1 0009- ●
17 CLEVIS; YOKE,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		5-47829-011-0 01 1 0009-0109 ●
17 CLEVIS; YOKE,M/VAC 5-47829-011-0 01 1 0009-0109 ●
17 CLEVIS; YOKE,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-610-0 01 1 0110- ●
17 CLEVIS; YOKE,M/VAC 8-97224-610-0 01 1 0110- ●
23 SEAL; M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-350-0 01 1 0009- ●
23 SEAL; M/VAC 8-97079-350-0 01 1 0009- ●
24 GUARD; VLV BODY,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97079-349-0 01 1 0009-0109 ●
24 GUARD; VLV BODY,M/VAC 8-97079-349-0 01 1 0009-0109 ●
24 GUARD; VLV BODY,M/VAC
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97205-578-0 01 1 0110- ●
24 GUARD; VLV BODY,M/VAC 8-97205-578-0 01 1 0110- ●

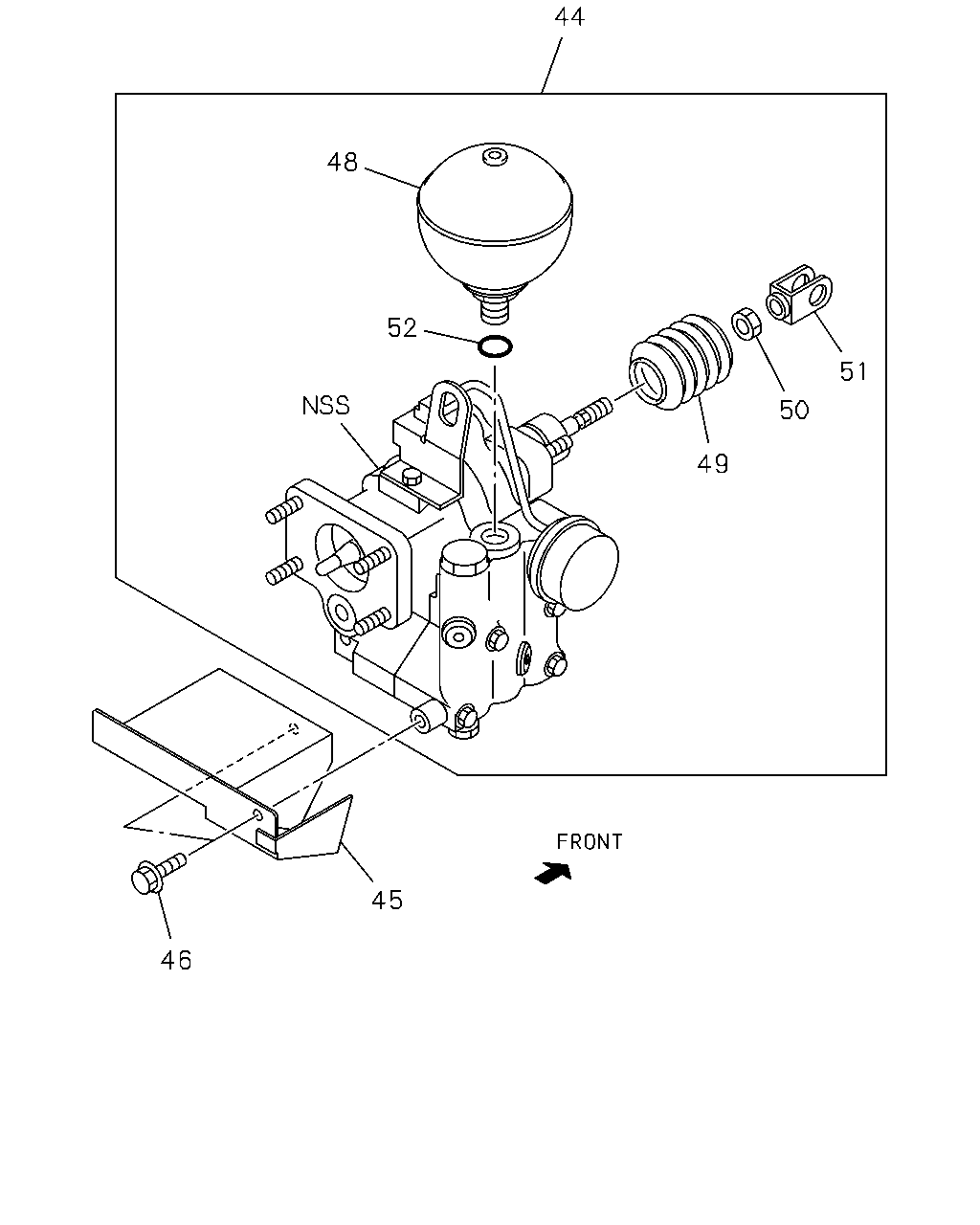

çizim 50220
44 48 52 51 50 49 45 46
BalonParca AdiParca NoAdetTipApplied Date A B C
44 BOOSTER; HYDRAULIC BRK
HYDRO BRAKE BOOSTER<7QQ> 		8-97209-212-0 01 1 0009- ●
44 BOOSTER; HYDRAULIC BRK 8-97209-212-0 01 1 0009- ●
45 PROTECTOR; HEAT
HYDRO BRAKE BOOSTER<7QQ> 		8-97182-354-1 01 1 0009- ●
45 PROTECTOR; HEAT 8-97182-354-1 01 1 0009- ●
46 BOLT; HEAT PROTECTOR
HYDRO BRAKE BOOSTER<7QQ> M6X10 FLANGE 		0-28080-610-0 02 1 0009- ●
46 BOLT; HEAT PROTECTOR
M6X10 FLANGE 		0-28080-610-0 02 1 0009- ●
48 ACCUMULATOR; HYDRO BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-040-0 01 1 0009- ●
48 ACCUMULATOR; HYDRO BOOSTER 8-97191-040-0 01 1 0009- ●
49 GUARD; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-043-0 01 1 0009- ●
49 GUARD; HYDRO BRK BOOSTER 8-97191-043-0 01 1 0009- ●
50 NUT; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-042-0 01 1 0009- ●
50 NUT; HYDRO BRK BOOSTER 8-97191-042-0 01 1 0009- ●
51 CLEVIS; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-041-0 01 1 0009- ●
51 CLEVIS; HYDRO BRK BOOSTER 8-97191-041-0 01 1 0009- ●
52 GASKET; HYDRO BRK BOOSTER
HYDRO BRAKE BOOSTER<7QQ> 		8-97191-038-0 01 1 0009- ●
52 GASKET; HYDRO BRK BOOSTER 8-97191-038-0 01 1 0009- ●
