3-30 — BRAKE MASTER CYLINDER (#48670) — 74 parça
çizim 11447
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; BRK,M/CYL
HYDRO MASTER<7LT> (B) 		8-97149-377-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97254-775-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
(A) 		8-97254-775-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-471-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
(A) 		8-97130-471-0 01 1 0009- ●
çizim 47287
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; BRK,M/CYL
HYDRO MASTER<7LT> (B) 		8-97149-377-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97254-775-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
(A) 		8-97254-775-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-471-0 01 1 0009- ●
2 REPAIR KIT; BRK,M/CYL
(A) 		8-97130-471-0 01 1 0009- ●
çizim 51915
1 35 59 23 24
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; BRK MASTER
HYDRO MASTER<7LT> (B) 		8-97129-517-1 01 1 0009- ●
1 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97254-770-0 01 1 0009- ●
1 CYLINDER ASM; BRK MASTER
(A) 		8-97254-770-0 01 1 0009- ●
1 CYLINDER ASM; BRK MASTER
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97224-372-0 01 1 0009-0109 ●
1 CYLINDER ASM; BRK MASTER
(A) 		8-97224-372-0 01 1 0009-0109 ●
1 CYLINDER ASM; BRK MASTER
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97224-370-0 01 1 0110- ●
1 CYLINDER ASM; BRK MASTER
(A) 		8-97224-370-0 01 1 0110- ●
23 CONNECTOR; BRK M/CYL TO RESERVE TANK
HYDRO MASTER<7LT> 		8-97083-129-0 01 1 0009- ●
24 CLIP; CONN TO BRK M/CYL
HYDRO MASTER<7LT> 		8-94147-279-0 01 1 0009- ●
35 ROD; PUSH,M/CYL
HYDRO MASTER<7LT> 		8-97168-798-0 01 1 0009- ●
59 JOINT; BRK M/CYL
HYDRO MASTER<7LT> 		8-97149-374-0 01 1 0009- ●

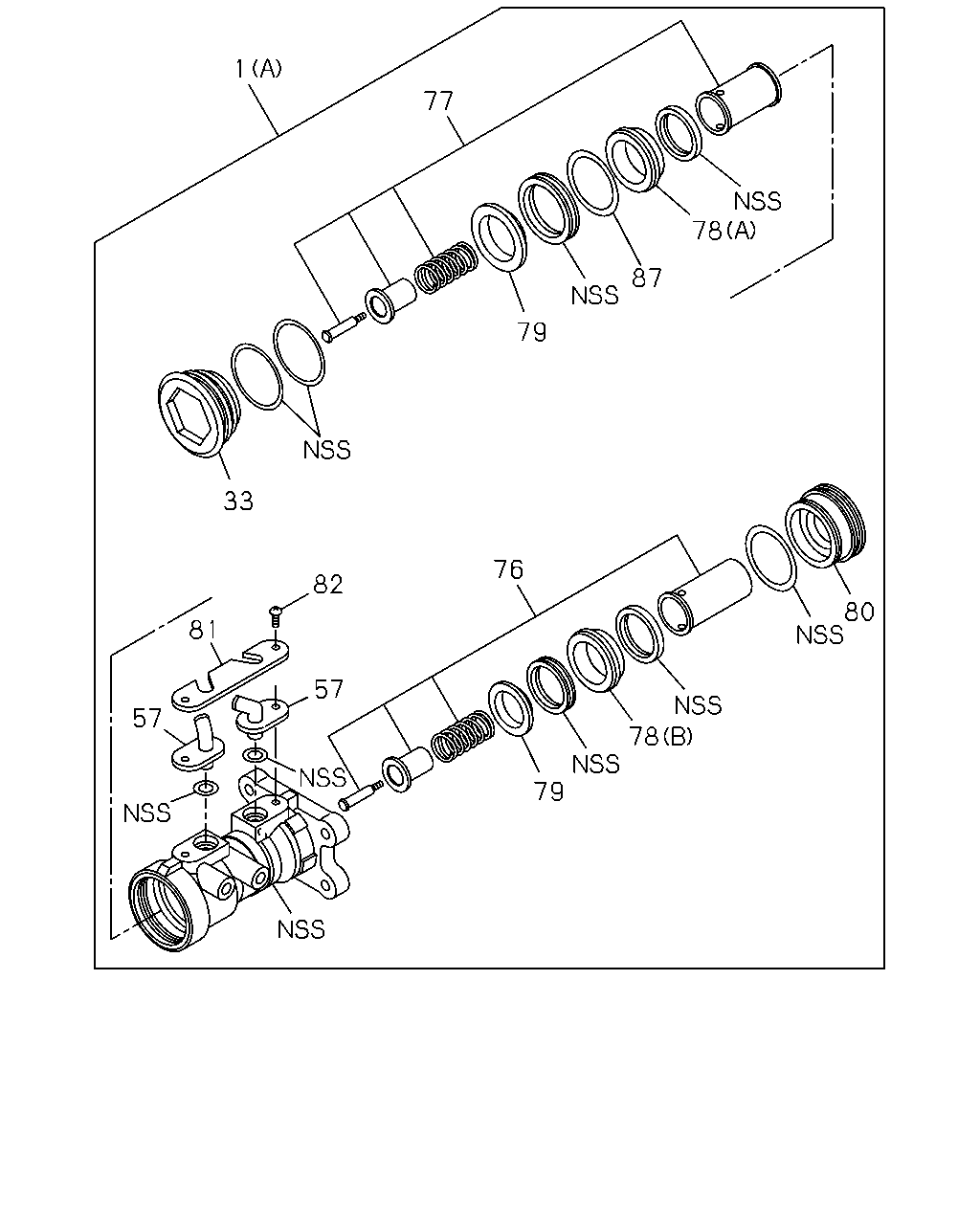

çizim 52064
1 77 78 87 79 33 76 82 80 81 57 78 79 57
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; BRK MASTER
HYDRO MASTER<7LT> (B) 		8-97129-517-1 01 1 0009- ●
1 CYLINDER ASM; BRK MASTER
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97254-770-0 01 1 0009- ●
1 CYLINDER ASM; BRK MASTER
(A) 		8-97254-770-0 01 1 0009- ●
1 CYLINDER ASM; BRK MASTER
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97224-372-0 01 1 0009-0109 ●
1 CYLINDER ASM; BRK MASTER
(A) 		8-97224-372-0 01 1 0009-0109 ●
1 CYLINDER ASM; BRK MASTER
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97224-370-0 01 1 0110- ●
1 CYLINDER ASM; BRK MASTER
(A) 		8-97224-370-0 01 1 0110- ●
33 PLUG; END,M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97186-699-0 01 1 0009- ●
33 PLUG; END,M/CYL 8-97186-699-0 01 1 0009- ●
33 PLUG; END,M/CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97186-697-0 01 1 0009- ●
33 PLUG; END,M/CYL 8-97186-697-0 01 1 0009- ●
57 NIPPLE; BRK M/CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-442-0 02 1 0110- ●
57 NIPPLE; BRK M/CYL 8-97130-442-0 02 1 0110- ●
57 NIPPLE; BRK M/CYL
EXC. HYDRO MASTER<7LT> 		8-97130-441-0 02 1 0009-0109 ●
57 NIPPLE; BRK M/CYL 8-97130-441-0 02 1 0009-0109 ● ●
57 NIPPLE; BRK M/CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97130-441-0 02 1 0110- ●
57 NIPPLE; BRK M/CYL 8-97130-441-0 02 1 0110- ●
76 PISTON ASM; PRIMARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-641-0 01 1 0009- ●
76 PISTON ASM; PRIMARY 8-97224-641-0 01 1 0009- ●
76 PISTON ASM; PRIMARY
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-643-0 01 1 0009- ●
76 PISTON ASM; PRIMARY 8-97224-643-0 01 1 0009- ●
77 PISTON ASM; SECONDARY
HYDRO BRAKE BOOSTER<7QQ> 		8-97224-640-0 01 1 0009- ●
77 PISTON ASM; SECONDARY 8-97224-640-0 01 1 0009- ●
77 PISTON ASM; SECONDARY
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97224-642-0 01 1 0009- ●
77 PISTON ASM; SECONDARY 8-97224-642-0 01 1 0009- ●
78 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97170-695-0 01 1 0009- ●
78 BUSHING; MASTER CYL
(A) 		8-97170-695-0 01 1 0009- ●
78 BUSHING; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97207-685-0 01 1 0009- ●
78 BUSHING; MASTER CYL
(B) 		8-97207-685-0 01 1 0009- ●
78 BUSHING; MASTER CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) 		8-97130-455-0 01 1 0009- ●
78 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 0009- ●
78 BUSHING; MASTER CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) 		8-97217-312-0 01 1 0009- ●
78 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 0009- ●
79 SUPPORTER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-698-0 02 1 0009- ●
79 SUPPORTER; CUP 8-97170-698-0 02 1 0009- ●
79 SUPPORTER; CUP
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-463-0 02 1 0009- ●
79 SUPPORTER; CUP 8-97130-463-0 02 1 0009- ●
80 COVER; MASTER CYL
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-692-0 01 1 0009- ●
80 COVER; MASTER CYL 8-97170-692-0 01 1 0009- ●
80 COVER; MASTER CYL
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-449-0 01 1 0009- ●
80 COVER; MASTER CYL 8-97130-449-0 01 1 0009- ●
81 HOLDER; NIPPLE
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-445-0 01 1 0110- ●
81 HOLDER; NIPPLE 8-97130-445-0 01 1 0110- ●
81 HOLDER; NIPPLE
EXC. HYDRO MASTER<7LT> 		8-97130-444-0 01 1 0009-0109 ●
81 HOLDER; NIPPLE 8-97130-444-0 01 1 0009-0109 ● ●
81 HOLDER; NIPPLE
HYDRO BRAKE BOOSTER<7QQ> 		8-97130-444-0 01 1 0110- ●
81 HOLDER; NIPPLE 8-97130-444-0 01 1 0110- ●
82 SCREW; HOLDER
EXC. HYDRO MASTER<7LT> 		8-97130-446-0 02 1 0009- ●
82 SCREW; HOLDER 8-97130-446-0 02 1 0009- ● ●
87 SPACER; CUP
HYDRO BRAKE BOOSTER<7QQ> 		8-97170-696-0 01 1 0009- ●
87 SPACER; CUP 8-97170-696-0 01 1 0009- ●
87 SPACER; CUP
EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> 		8-97130-459-0 01 1 0009- ●
87 SPACER; CUP 8-97130-459-0 01 1 0009- ●
