3-21 — VACUUM TANK (#48669) — 84 parça

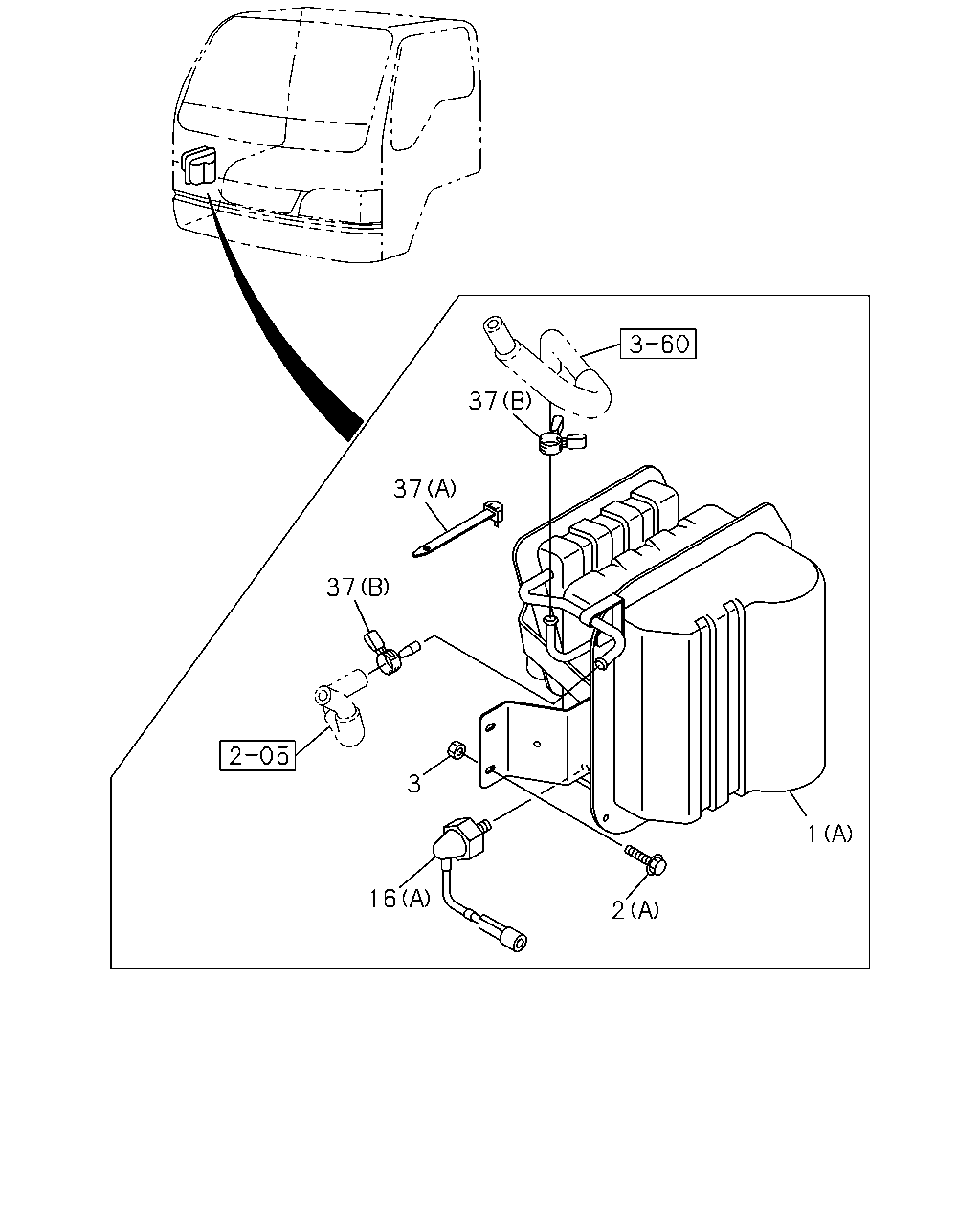

1 37 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT> (C)	8-97172-122-1	01	1	0009-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0009-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (A)	8-97062-399-5	01	1	0009-		●
1	TANK; VAC,MAIN HYDRO MASTER<7LT> (B)	1-48330-477-0	01	1	0009-0206	●
1	TANK; VAC,MAIN HYDRO MASTER<7LT>	8-97355-424-0	01	1	0207-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-471-4	01	1	0009-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97073-471-4	01	1	0009-		●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109	●		●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109	●
2	BOLT; VAC TANK (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109		●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-	●		●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-	●
2	BOLT; VAC TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-		●
2	BOLT; VAC TANK HYDRO MASTER<7LT> (B) M8X20 FLANGE	0-28680-820-0	06	1	0009-	●
2	BOLT; VAC TANK HYDRO MASTER<7LT> (C) M10X30 FLANGE	0-28681-030-0	02	1	0009-	●
3	NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH<S2T> M8 FLANGE	0-91150-108-0	02	1	0009-0212	●		●
3	NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	02	1	0009-0212	●
3	NUT; VAC TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0009-0212		●
3	NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH<S2T> M8 FLANGE	0-91150-108-0	01	1	0301-	●		●
3	NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	01	1	0301-	●
3	NUT; VAC TANK TO BRKT M8 FLANGE	0-91150-108-0	01	1	0301-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT> (B) ID=16	8-94238-568-0	01	1	0009-	●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	01	1	0009-	●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	01	1	0009-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) L=219.5	1-09987-136-0	01	1	0009-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (A) L=219.5	1-09987-136-0	01	1	0009-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	02	1	0009-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	02	1	0009-		●

37 37 37 3 1 16 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT> (C)	8-97172-122-1	01	1	0009-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0009-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (A)	8-97062-399-5	01	1	0009-		●
1	TANK; VAC,MAIN HYDRO MASTER<7LT> (B)	1-48330-477-0	01	1	0009-0206	●
1	TANK; VAC,MAIN HYDRO MASTER<7LT>	8-97355-424-0	01	1	0207-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-471-4	01	1	0009-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97073-471-4	01	1	0009-		●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109	●		●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109	●
2	BOLT; VAC TANK (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109		●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-	●		●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-	●
2	BOLT; VAC TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-		●
2	BOLT; VAC TANK HYDRO MASTER<7LT> (B) M8X20 FLANGE	0-28680-820-0	06	1	0009-	●
2	BOLT; VAC TANK HYDRO MASTER<7LT> (C) M10X30 FLANGE	0-28681-030-0	02	1	0009-	●
3	NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH<S2T> M8 FLANGE	0-91150-108-0	02	1	0009-0212	●		●
3	NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	02	1	0009-0212	●
3	NUT; VAC TANK TO BRKT M8 FLANGE	0-91150-108-0	02	1	0009-0212		●
3	NUT; VAC TANK TO BRKT POWER ASSIST CLUTCH<S2T> M8 FLANGE	0-91150-108-0	01	1	0301-	●		●
3	NUT; VAC TANK TO BRKT EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	01	1	0301-	●
3	NUT; VAC TANK TO BRKT M8 FLANGE	0-91150-108-0	01	1	0301-		●
16	SWITCH; VAC HYDRO MASTER<7LT> (B)	1-82420-006-4	01	1	0009-	●
16	SWITCH; VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	0009-	●
16	SWITCH; VAC (A)	8-97073-374-1	01	1	0009-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT> (B) ID=16	8-94238-568-0	01	1	0009-	●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	01	1	0009-	●
37	CLIP; RUBBER HOSE EXC. POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	01	1	0009-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A) L=219.5	1-09987-136-0	01	1	0009-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (A) L=219.5	1-09987-136-0	01	1	0009-		●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	8-94238-568-0	02	1	0009-	●
37	CLIP; RUBBER HOSE POWER ASSIST CLUTCH<S2T> (B) ID=16	8-94238-568-0	02	1	0009-		●

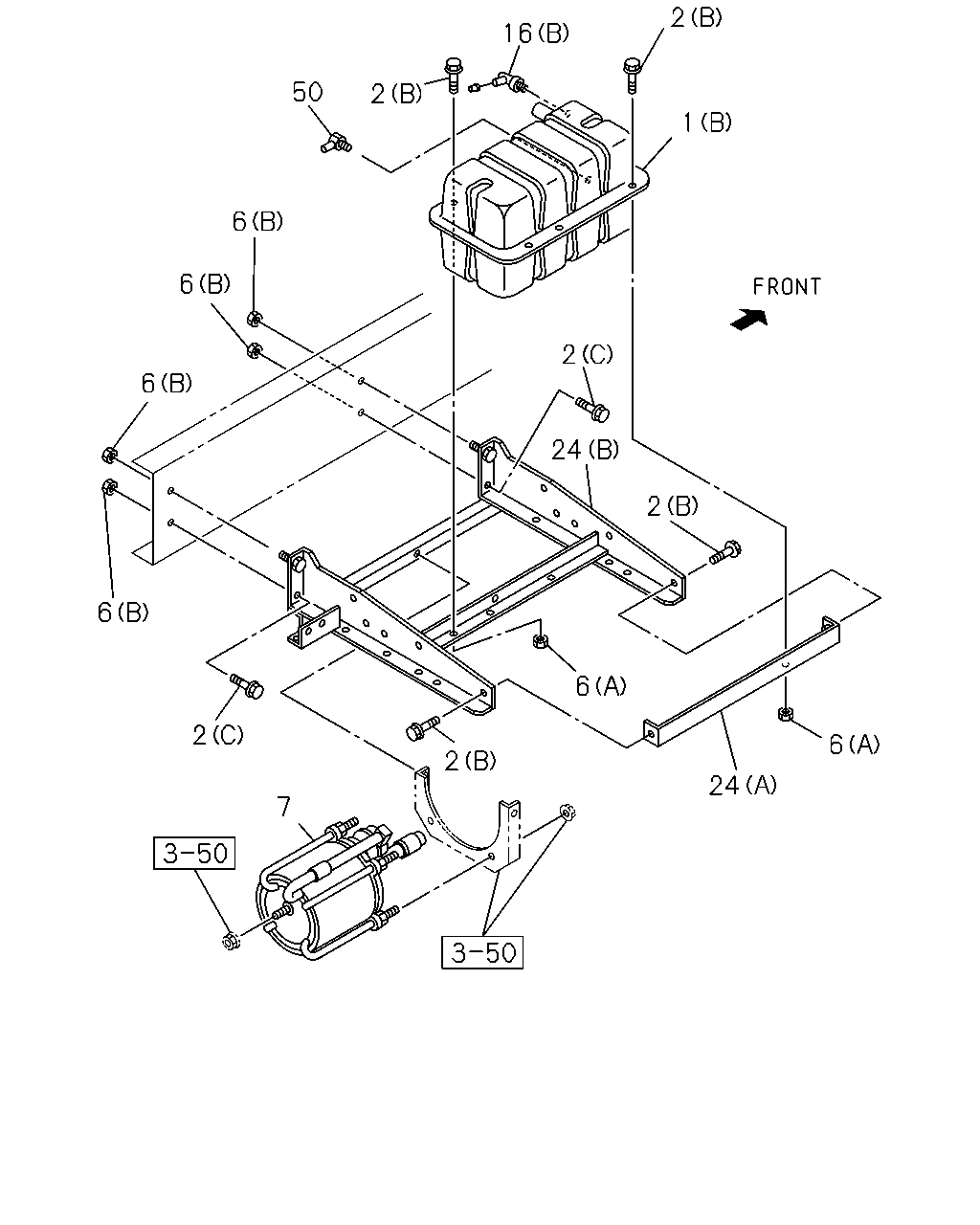

2 16 50 2 1 6 6 2 6 24 2 6 6 2 6 2 24 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> HYDRO MASTER<7LT> (C)	8-97172-122-1	01	1	0009-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97062-399-5	01	1	0009-	●
1	TANK; VAC,MAIN POWER ASSIST CLUTCH<S2T> (A)	8-97062-399-5	01	1	0009-		●
1	TANK; VAC,MAIN HYDRO MASTER<7LT> (B)	1-48330-477-0	01	1	0009-0206	●
1	TANK; VAC,MAIN HYDRO MASTER<7LT>	8-97355-424-0	01	1	0207-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-471-4	01	1	0009-	●
1	TANK; VAC,MAIN EXC. POWER ASSIST CLUTCH<S2T> (A)	8-97073-471-4	01	1	0009-		●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109	●		●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109	●
2	BOLT; VAC TANK (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0009-0109		●
2	BOLT; VAC TANK POWER ASSIST CLUTCH<S2T> (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-	●		●
2	BOLT; VAC TANK EXC. POWER ASSIST CLUTCH<S2T>,HYDRO MASTER<7LT>, HYDRO BRAKE BOOSTER<7QQ> (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-	●
2	BOLT; VAC TANK (A) M8X20 FLANGE	0-28680-820-0	02	1	0110-		●
2	BOLT; VAC TANK HYDRO MASTER<7LT> (B) M8X20 FLANGE	0-28680-820-0	06	1	0009-	●
2	BOLT; VAC TANK HYDRO MASTER<7LT> (C) M10X30 FLANGE	0-28681-030-0	02	1	0009-	●
6	NUT; BRKT HYDRO MASTER<7LT> (A) M8 FLANGE	0-91150-108-0	04	1	0009-	●
6	NUT; BRKT HYDRO MASTER<7LT> (B) M10 FLANGE	0-91150-110-0	04	1	0009-	●
7	HYDROMASTER ASM; BRK SEE FIG-NO 3-32 FOR COMPONENT. HYDRO MASTER<7LT>	8-97129-512-0	01	1	0009-	●
16	SWITCH; VAC HYDRO MASTER<7LT> (B)	1-82420-006-4	01	1	0009-	●
16	SWITCH; VAC EXC. HYDRO MASTER<7LT>,HYDRO BRAKE BOOSTER<7QQ> (A)	8-97073-374-1	01	1	0009-	●
16	SWITCH; VAC (A)	8-97073-374-1	01	1	0009-		●
24	BRACKET; VAC TANK HYDRO MASTER<7LT> (A)	8-97145-245-1	01	1	0009-	●
24	BRACKET; VAC TANK HYDRO MASTER<7LT> (B)	8-97145-246-2	01	1	0009-0212	●
24	BRACKET; VAC TANK HYDRO MASTER<7LT>	8-97363-083-0	01	1	0301-	●
50	VALVE; CHECK HYDRO MASTER<7LT>	1-48410-083-0	01	1	0009-	●
