◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#48668) — 114 parça

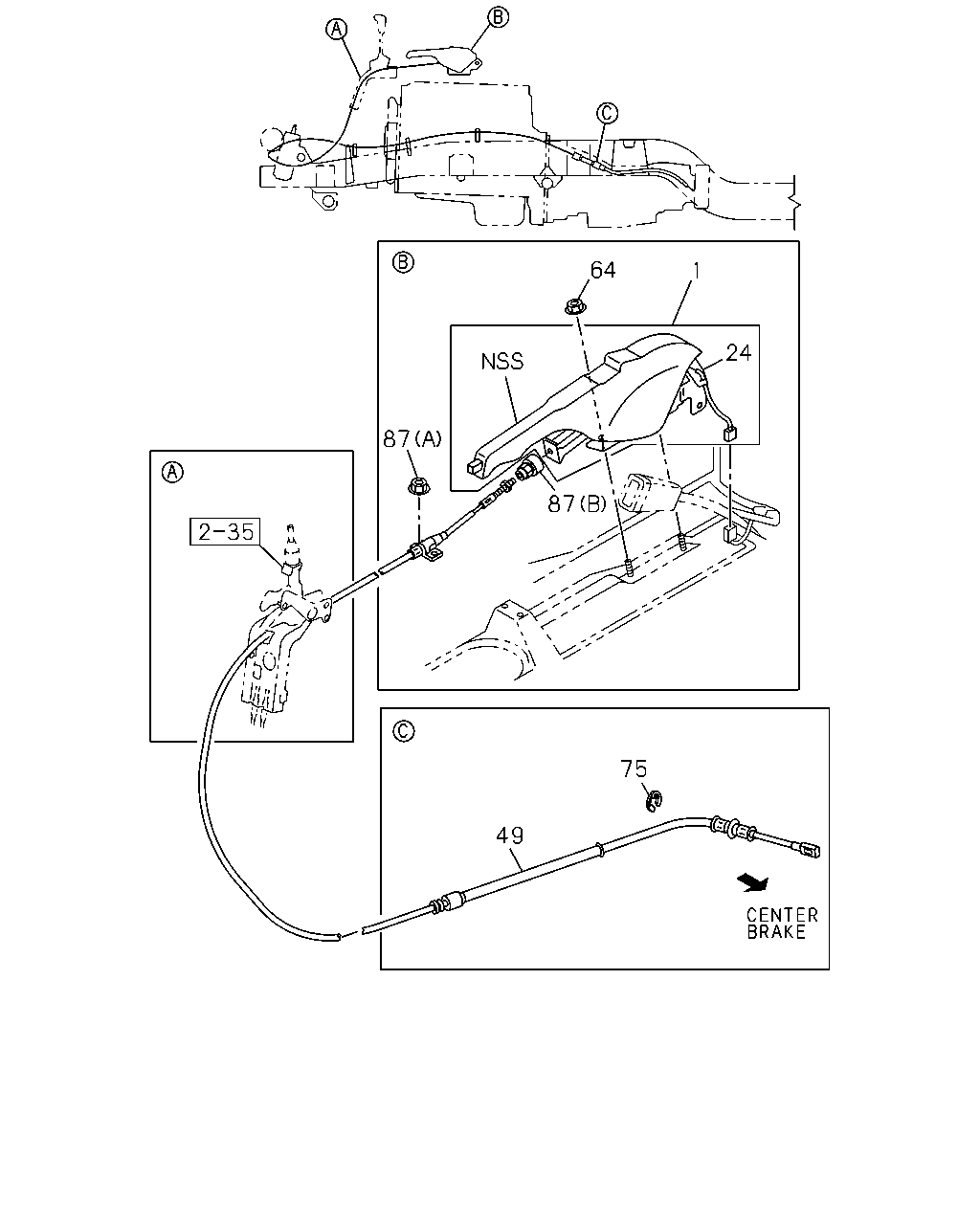

çizim 47063
64 1 24 87 87 75 49
BalonParca AdiParca NoAdetTipApplied Date A B C
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97890-438-1 01 1 0009-0108 ● ● ●
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97995-846-0 01 1 0109-0110 ● ● ●
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-1 01 1 0111- ● ● ●
24 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 0009-0108 ● ● ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109- ● ● ●
49 CABLE; PARKING BRK
4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-298-1 01 1 0009- ●
49 CABLE; PARKING BRK
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> THA 		8-97940-297-0 01 1 0009- ●
49 CABLE; PARKING BRK
THA 		8-97940-297-0 01 1 0009- ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> THA 		8-97215-434-0 01 1 0009-0009 ●
49 CABLE; PARKING BRK
CHARGE AIR COOLER<6PL> THA 		8-97215-434-0 01 1 0009-0009 ●
49 CABLE; PARKING BRK
4HE1 ENG<RLY> M/T MXA5S<RNA> CHARGE AIR COOLER<6PL> THA 		8-97941-896-0 01 1 0010- ●
49 CABLE; PARKING BRK
CHARGE AIR COOLER<6PL> THA 		8-97941-896-0 01 1 0010- ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0009- ● ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0009- ● ● ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0009- ● ● ●
87 NUT
(B) 		8-97088-730-1 01 1 0009-0308 ● ● ●
87 NUT
M6 		1-71996-312-0 01 1 0309- ● ● ●

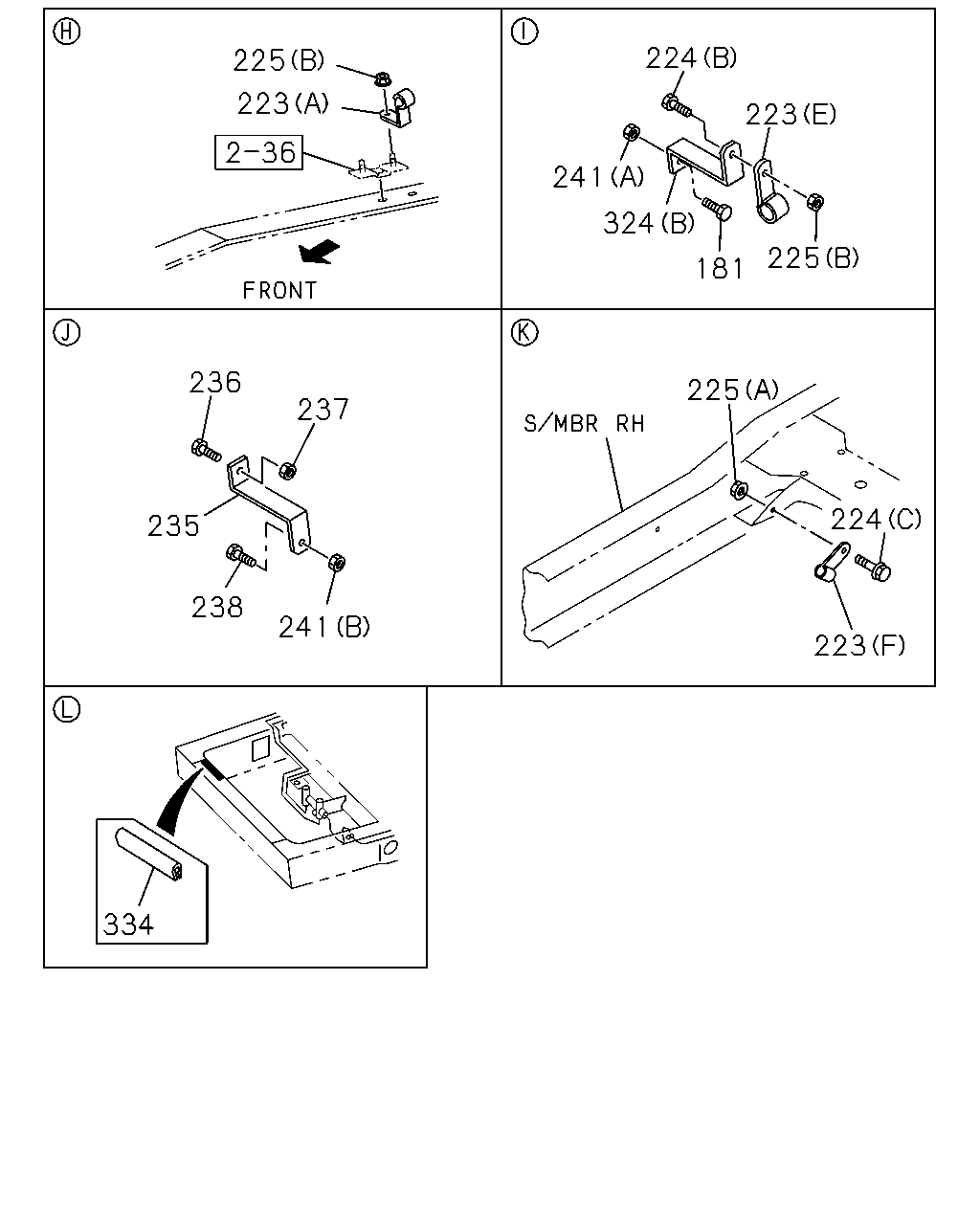

çizim 48194
224 225 223 223 241 225 181 236 225 237 224 235 238 241 223 334 324
BalonParca AdiParca NoAdetTipApplied Date A B C
181 BOLT; BRKT
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28681-030-0 01 1 0009- ●
181 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=13 L=20 		1-09701-138-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(F) ID=13 L=20 		1-09701-138-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28 		9-09525-556-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(E) ID=16 L=28 		9-09525-556-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0009- ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
224 BOLT; CABLE CLIP
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
224 BOLT; CABLE CLIP
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
224 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
224 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0009- ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0009- ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
POWER STEERING<N40> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0009- ●
225 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0009- ●
235 BRACKET; CONT CABLE TO FRAME
FRAME STRAIGHT TYPE<7KJ> 		8-97148-597-3 01 1 0009- ●
235 BRACKET; CONT CABLE TO FRAME 8-97148-597-3 01 1 0009- ●
236 BOLT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10X35 FLANGE 		0-28681-035-0 01 1 0009- ●
236 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 01 1 0009- ●
237 NUT; BRKT TO FRAME
FRAME STRAIGHT TYPE<7KJ> M10 FLANGE 		0-91150-110-0 01 1 0009- ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 01 1 0009- ●
238 BOLT; CLIP TO BRKT
FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
241 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
241 NUT; BRKT
FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0009- ●
241 NUT; BRKT
(A) M10 FLANGE 		0-91150-110-0 01 1 0009- ●
324 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
POWER STEERING<N40> (A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97103-822-1 01 1 0009- ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0009- ●
324 BRACKET
(C) 		8-97042-771-0 01 1 0009- ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97071-354-2 01 1 0009- ●
324 BRACKET
(D) 		8-97071-354-2 01 1 0009- ●
324 BRACKET
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) 		8-97188-151-0 01 1 0009- ●
324 BRACKET
CHARGE AIR COOLER<6PL> (B) 		8-97188-151-0 01 1 0009- ●
334 PROTECTOR; EDGE
L=200 		8-97096-423-0 01 1 0009- ● ● ●

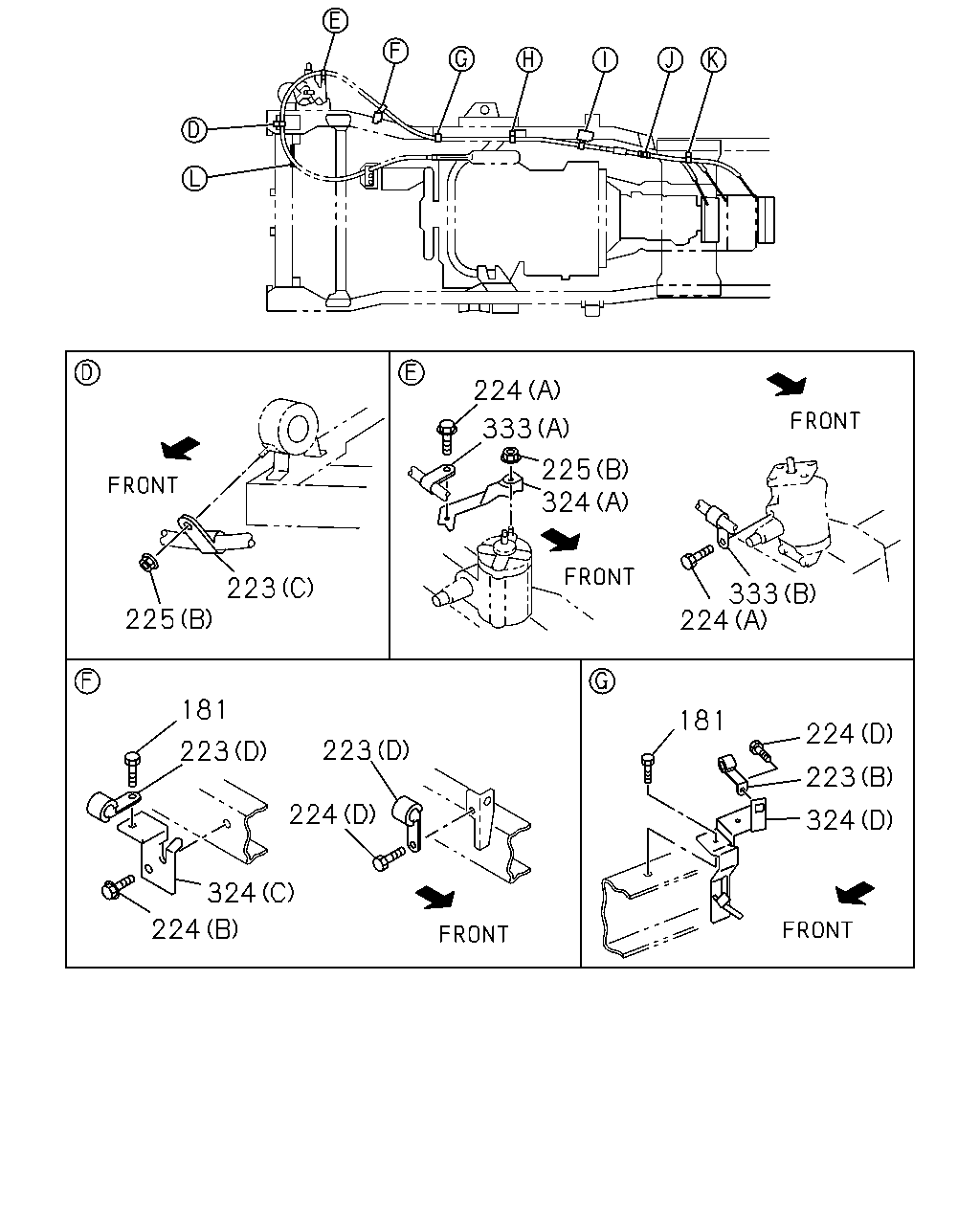

çizim 51910
224 333 225 324 223 333 224 225 181 181 224 223 223 223 224 324 324 224
BalonParca AdiParca NoAdetTipApplied Date A B C
181 BOLT; BRKT
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
181 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
181 BOLT; BRKT
FRAME STRAIGHT TYPE<7KJ> M10X30 FLANGE 		0-28681-030-0 01 1 0009- ●
181 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(B) ID=11 H=20 L=25 		1-09700-848-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=16 		1-09701-075-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(A) ID=16 		1-09701-075-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (F) ID=13 L=20 		1-09701-138-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(F) ID=13 L=20 		1-09701-138-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
FRAME STRAIGHT TYPE<7KJ> (E) ID=16 L=28 		9-09525-556-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(E) ID=16 L=28 		9-09525-556-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(C) ID=19 L=39 H=21 		1-09700-972-1 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
EXC. FRAME STRAIGHT TYPE<7KJ> (D) ID=11 L=28 		9-09525-055-0 01 1 0009- ●
223 CLIP; PARKING BRK CABLE
(D) ID=11 L=28 		9-09525-055-0 01 1 0009- ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
224 BOLT; CABLE CLIP
(D) M8X25 FLANGE 		0-28680-825-0 02 1 0009- ●
224 BOLT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
224 BOLT; CABLE CLIP
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0009- ●
224 BOLT; CABLE CLIP
FRAME STRAIGHT TYPE<7KJ> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
224 BOLT; CABLE CLIP
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0009- ●
224 BOLT; CABLE CLIP
EXC. FRAME STRAIGHT TYPE<7KJ> (A) M8X20 FLANGE 		0-28680-820-0 01 1 0009- ●
224 BOLT; CABLE CLIP
(A) M8X20 FLANGE 		0-28680-820-0 01 1 0009- ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0009- ● ● ●
225 NUT; CABLE CLIP
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
POWER STEERING<N40> (B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
(B) M8 FLANGE 		0-91150-108-0 01 1 0009- ●
225 NUT; CABLE CLIP
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (A) M10 FLANGE 		0-91150-110-0 01 1 0009- ●
225 NUT; CABLE CLIP
(A) M10 FLANGE 		0-91150-110-0 01 1 0009- ●
324 BRACKET
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
POWER STEERING<N40> (A) 		8-97288-446-0 01 1 0009- ●
324 BRACKET
4HG1 ENG<RJH> FRAME STRAIGHT TYPE<7KJ> (B) 		8-97103-822-1 01 1 0009- ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (C) 		8-97042-771-0 01 1 0009- ●
324 BRACKET
(C) 		8-97042-771-0 01 1 0009- ●
324 BRACKET
4HG1 ENG<RJH> EXC. FRAME STRAIGHT TYPE<7KJ> (D) 		8-97071-354-2 01 1 0009- ●
324 BRACKET
(D) 		8-97071-354-2 01 1 0009- ●
324 BRACKET
4HE1 ENG<RLY> CHARGE AIR COOLER<6PL> (B) 		8-97188-151-0 01 1 0009- ●
324 BRACKET
CHARGE AIR COOLER<6PL> (B) 		8-97188-151-0 01 1 0009- ●
333 CLIP; CABLE
POWER STEERING<N40> EXC. FRAME STRAIGHT TYPE<7KJ> (A) ID=11 L=28 		9-09525-055-0 01 1 0009- ●
333 CLIP; CABLE
POWER STEERING<N40> (A) ID=11 L=28 		9-09525-055-0 01 1 0009- ●
333 CLIP; CABLE
EXC. POWER STEERING<N40>,FRAME STRAIGHT TYPE<7KJ> (B) ID=11 L=60 		9-09525-096-0 01 1 0009- ●
333 CLIP; CABLE
EXC. POWER STEERING<N40> (B) ID=11 L=60 		9-09525-096-0 01 1 0009- ●
