Sayfa 3-10 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50819 - NPR/NQR(THAILAND) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶

3-10 — BRAKE PEDAL AND CONTROL (#48667) — 166 parça

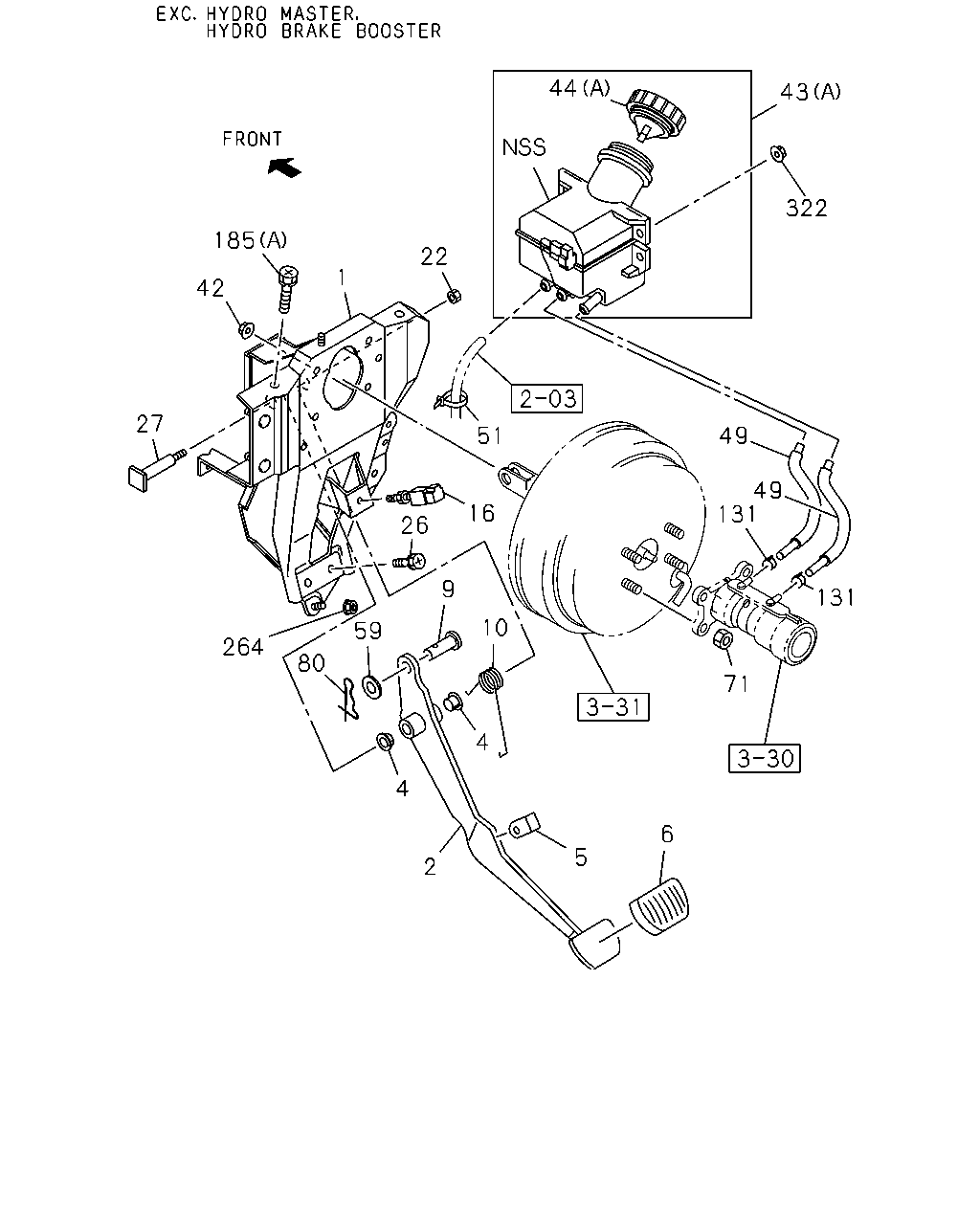

44 43 322 185 22 1 42 51 27 49 49 131 26 16 9 131 59 264 80 71 10 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET ASM; PEDAL	8-97896-968-1	01	1	0009-	●	●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ> THA	8-97920-903-0	01	1	0009-	●
2	PEDAL; BRK THA	8-97920-903-0	01	1	0009-			●
2	PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ> THA	8-97916-493-0	01	1	0009-	●
2	PEDAL; BRK THA	8-97916-493-0	01	1	0009-		●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0009-	●	●	●
5	STOPPER; BRK PEDAL THA	8-97853-602-1	01	1	0009-	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0009-	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0009-	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0009-	●	●	●
16	SWITCH; STOP LAMP THA	8-97855-187-0	01	1	0009-	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0009-	●	●	●
26	BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	0009-0110	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0009-	●	●	●
42	NUT; BRK PEDAL EXC. HYDRO MASTER<7LT> M8 W/LK WASHER	8-94279-050-0	04	1	0009-	●
42	NUT; BRK PEDAL M8 W/LK WASHER	8-94279-050-0	04	1	0009-		●	●
43	TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0009-	●
43	TANK ASM; OIL (A)	8-97179-813-1	01	1	0009-		●	●
43	TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	0009-	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	0009-0010	●
43	TANK ASM; OIL (C)	8-97163-767-3	01	1	0009-0010			●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ>	8-97306-217-0	01	1	0011-	●
43	TANK ASM; OIL	8-97306-217-0	01	1	0011-			●
44	CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0009-		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-94146-153-2	01	1	0009-	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0009-			●
49	HOSE; OIL TANK TO BRK M/CYL EXC. HYDRO MASTER<7LT>	8-97129-583-0	02	1	0009-	●
49	HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0009-		●	●
51	CLIP; HOSE,OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> L=140	5-09707-031-1	01	1	0009-	●
51	CLIP; HOSE,OIL TANK L=140	5-09707-031-1	01	1	0009-		●	●
51	CLIP; HOSE,OIL TANK HYDRO MASTER<7LT> L=250 THA	5-09707-030-1	01	1	0009-	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0009-	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0009-	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0009-	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY EXC. HYDRO MASTER<7LT>	8-97130-480-0	04	1	0009-	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY	8-97130-480-0	04	1	0009-		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0009-	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0009-	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0009-	●	●	●

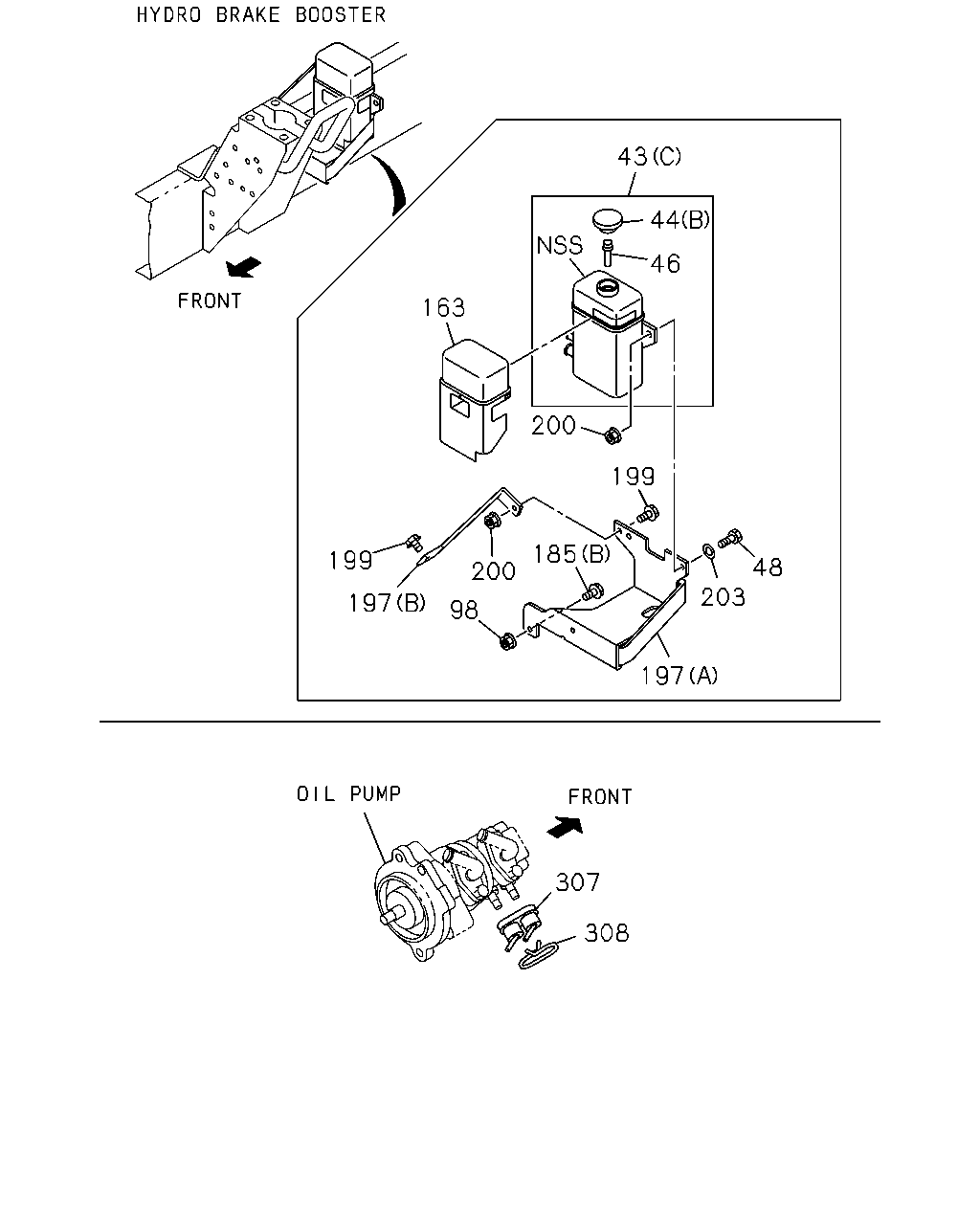

43 44 46 163 200 199 185 199 48 203 200 197 98 197 307 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
43	TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0009-	●
43	TANK ASM; OIL (A)	8-97179-813-1	01	1	0009-		●	●
43	TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	0009-	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	0009-0010	●
43	TANK ASM; OIL (C)	8-97163-767-3	01	1	0009-0010			●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ>	8-97306-217-0	01	1	0011-	●
43	TANK ASM; OIL	8-97306-217-0	01	1	0011-			●
44	CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0009-		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-94146-153-2	01	1	0009-	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0009-			●
46	FILTER; RESERVOIR,BRK HYDRO BRAKE BOOSTER<7QQ>	8-97094-732-0	01	1	0009-	●
46	FILTER; RESERVOIR,BRK	8-97094-732-0	01	1	0009-			●
48	BOLT; OIL TANK TO BRKT HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
48	BOLT; OIL TANK TO BRKT M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
98	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	02	1	0009-	●
98	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0009-			●
163	COVER; OIL TANK HYDRO BRAKE BOOSTER<7QQ>	8-97164-749-1	01	1	0009-	●
163	COVER; OIL TANK	8-97164-749-1	01	1	0009-			●
185	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0009-	●	●	●
197	BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (A)	8-97173-342-2	01	1	0009-	●
197	BRACKET; OIL TANK (A)	8-97173-342-2	01	1	0009-			●
197	BRACKET; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-97181-897-0	01	1	0009-	●
197	BRACKET; OIL TANK (B)	8-97181-897-0	01	1	0009-			●
199	BOLT; OIL TANK BRKT HYDRO BRAKE BOOSTER<7QQ> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
199	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
200	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91150-108-0	03	1	0009-	●
200	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0009-			●
203	WASHER; PL,OIL TANK HYDRO BRAKE BOOSTER<7QQ> ID=8.4 OD=22	9-09160-708-0	02	1	0009-	●
203	WASHER; PL,OIL TANK ID=8.4 OD=22	9-09160-708-0	02	1	0009-			●
307	CAP; EYE JOINT HYDRO BRAKE BOOSTER<7QQ>	8-97166-154-1	01	1	0009-0307	●
307	CAP; EYE JOINT	8-97166-154-1	01	1	0009-0307			●
308	CLAMP; PUMP CAP HYDRO BRAKE BOOSTER<7QQ>	8-97166-181-1	01	1	0009-0307	●
308	CLAMP; PUMP CAP	8-97166-181-1	01	1	0009-0307			●

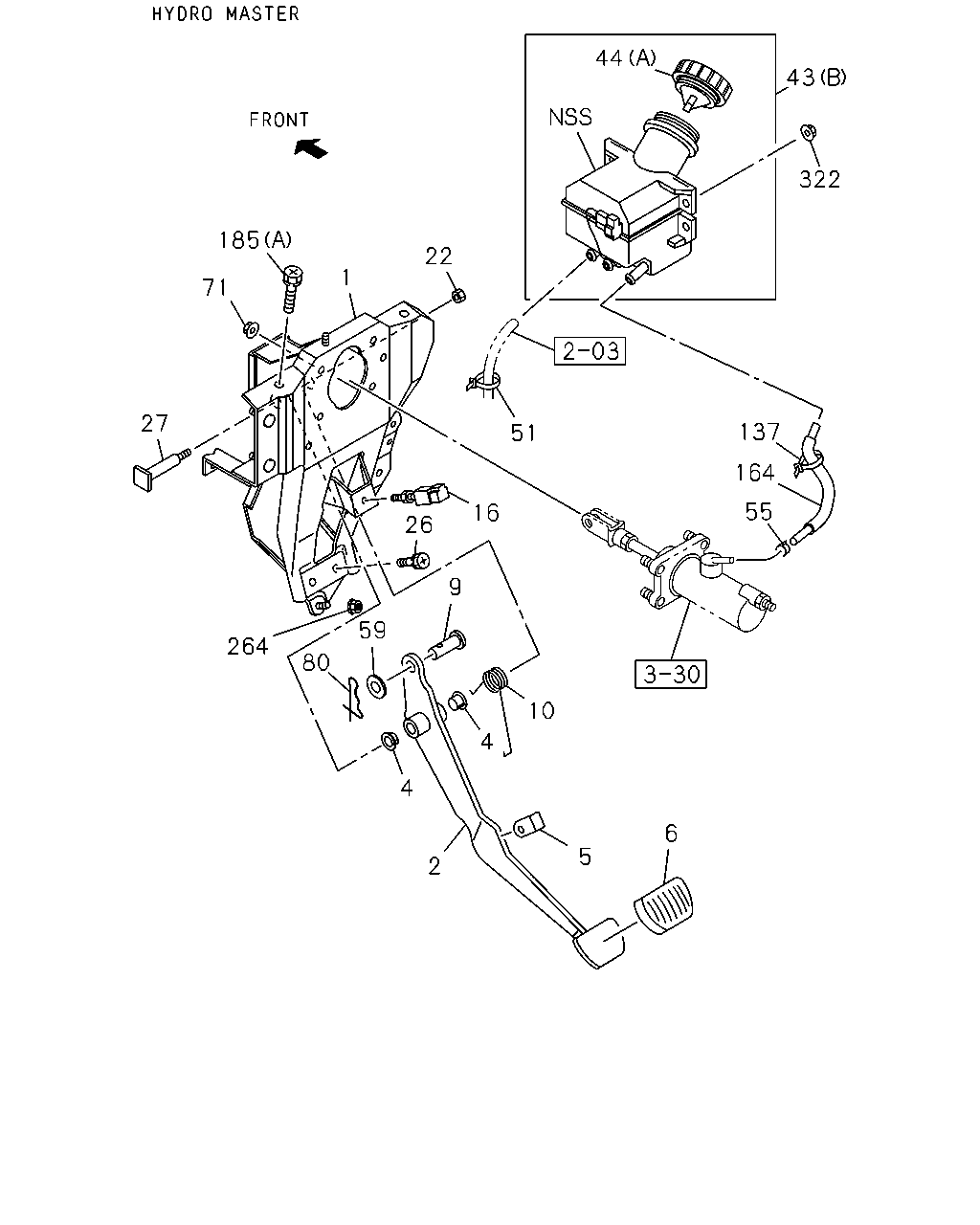

44 43 322 185 22 1 71 27 137 51 164 55 16 26 9 59 264 80 10 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET ASM; PEDAL	8-97896-968-1	01	1	0009-	●	●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ> THA	8-97920-903-0	01	1	0009-	●
2	PEDAL; BRK THA	8-97920-903-0	01	1	0009-			●
2	PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ> THA	8-97916-493-0	01	1	0009-	●
2	PEDAL; BRK THA	8-97916-493-0	01	1	0009-		●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0009-	●	●	●
5	STOPPER; BRK PEDAL THA	8-97853-602-1	01	1	0009-	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0009-	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0009-	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0009-	●	●	●
16	SWITCH; STOP LAMP THA	8-97855-187-0	01	1	0009-	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0009-	●	●	●
26	BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	0009-0110	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0009-	●	●	●
43	TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0009-	●
43	TANK ASM; OIL (A)	8-97179-813-1	01	1	0009-		●	●
43	TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	0009-	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	0009-0010	●
43	TANK ASM; OIL (C)	8-97163-767-3	01	1	0009-0010			●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ>	8-97306-217-0	01	1	0011-	●
43	TANK ASM; OIL	8-97306-217-0	01	1	0011-			●
44	CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0009-		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-94146-153-2	01	1	0009-	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0009-			●
51	CLIP; HOSE,OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> L=140	5-09707-031-1	01	1	0009-	●
51	CLIP; HOSE,OIL TANK L=140	5-09707-031-1	01	1	0009-		●	●
51	CLIP; HOSE,OIL TANK HYDRO MASTER<7LT> L=250 THA	5-09707-030-1	01	1	0009-	●
55	CLIP; RUBBER HOSE HYDRO MASTER<7LT>	8-97130-480-0	02	1	0009-	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0009-	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0009-	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0009-	●	●	●
137	CLIP; BAND,RUBBER HOSE HYDRO MASTER<7LT> L=250 THA	5-09707-030-1	01	1	0009-	●
164	HOSE; RUBBER,OIL TANK HYDRO MASTER<7LT>	8-97137-266-1	01	1	0009-	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0009-	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0009-	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0009-	●	●	●

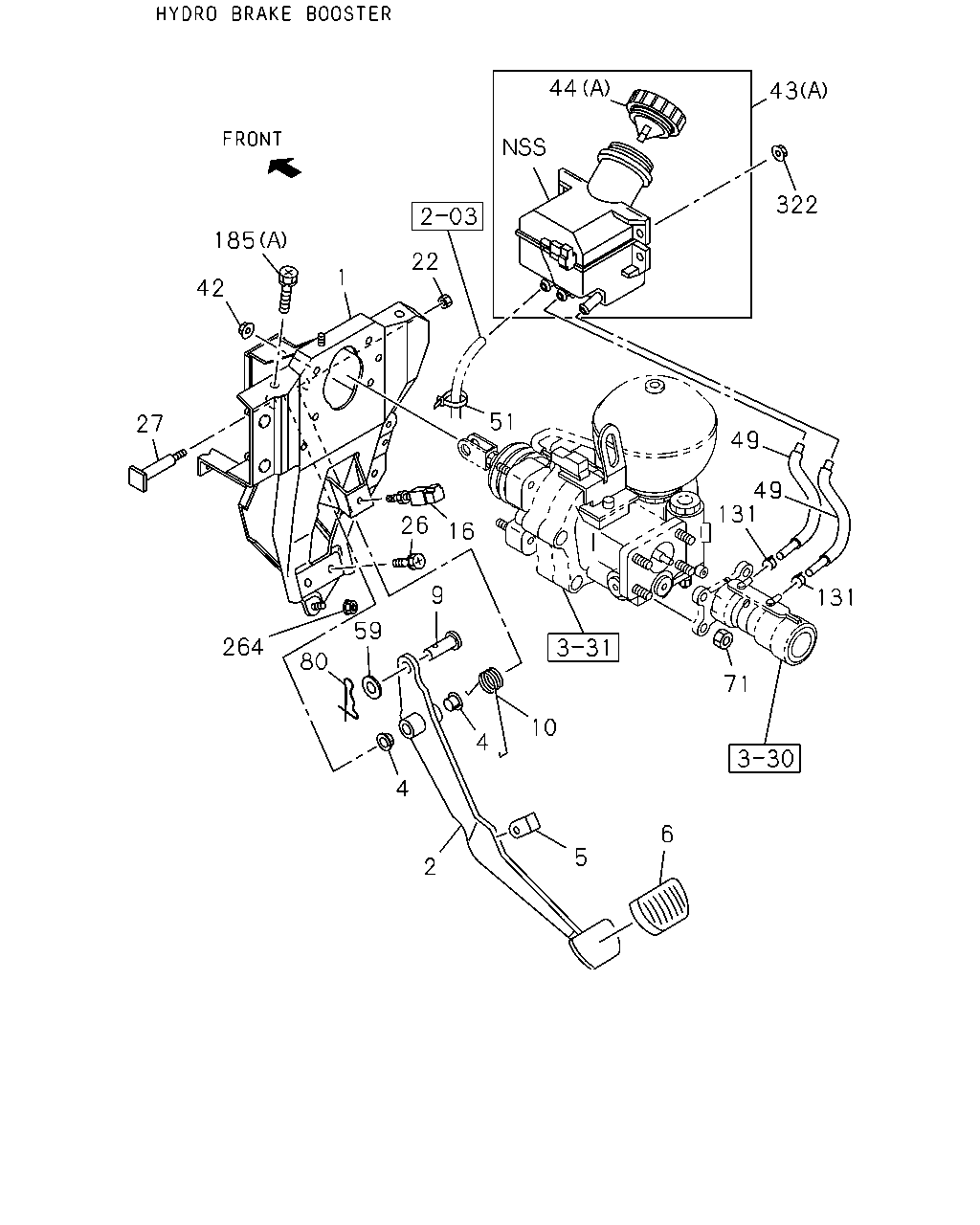

44 43 322 185 22 1 42 27 49 51 49 131 16 26 9 131 59 10 264 80 71 4 4 6 5 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	BRACKET ASM; PEDAL	8-97896-968-1	01	1	0009-	●	●	●
2	PEDAL; BRK HYDRO BRAKE BOOSTER<7QQ> THA	8-97920-903-0	01	1	0009-	●
2	PEDAL; BRK THA	8-97920-903-0	01	1	0009-			●
2	PEDAL; BRK EXC. HYDRO BRAKE BOOSTER<7QQ> THA	8-97916-493-0	01	1	0009-	●
2	PEDAL; BRK THA	8-97916-493-0	01	1	0009-		●
4	BUSHING; BRK PEDAL	8-94238-596-0	02	1	0009-	●	●	●
5	STOPPER; BRK PEDAL THA	8-97853-602-1	01	1	0009-	●	●	●
6	COVER; BRK PEDAL	8-97853-413-2	01	1	0009-	●	●	●
9	PIN; JAW JOINT	8-94410-276-0	01	1	0009-	●	●	●
10	SPRING; RETURN,BRK PEDAL	8-97853-212-1	01	1	0009-	●	●	●
16	SWITCH; STOP LAMP THA	8-97855-187-0	01	1	0009-	●	●	●
22	NUT; SHAFT M10 FLANGE	1-09440-022-0	01	1	0009-	●	●	●
26	BOLT; PEDAL M10X22 W/WASHER	8-94279-099-0	02	1	0009-0110	●	●	●
26	BOLT; PEDAL M10X22 W/PL WASHER	8-97313-188-0	02	1	0111-	●	●	●
27	SHAFT; BRK PEDAL	8-97866-667-0	01	1	0009-	●	●	●
42	NUT; BRK PEDAL EXC. HYDRO MASTER<7LT> M8 W/LK WASHER	8-94279-050-0	04	1	0009-	●
42	NUT; BRK PEDAL M8 W/LK WASHER	8-94279-050-0	04	1	0009-		●	●
43	TANK ASM; OIL FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97179-813-1	01	1	0009-	●
43	TANK ASM; OIL (A)	8-97179-813-1	01	1	0009-		●	●
43	TANK ASM; OIL HYDRO MASTER<7LT> (B)	8-97180-682-1	01	1	0009-	●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ> (C)	8-97163-767-3	01	1	0009-0010	●
43	TANK ASM; OIL (C)	8-97163-767-3	01	1	0009-0010			●
43	TANK ASM; OIL HYDRO BRAKE BOOSTER<7QQ>	8-97306-217-0	01	1	0011-	●
43	TANK ASM; OIL	8-97306-217-0	01	1	0011-			●
44	CAP; OIL TANK HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> (A)	8-97178-291-1	01	1	0009-	●
44	CAP; OIL TANK (A)	8-97178-291-1	01	1	0009-		●	●
44	CAP; OIL TANK HYDRO BRAKE BOOSTER<7QQ> (B)	8-94146-153-2	01	1	0009-	●
44	CAP; OIL TANK (B)	8-94146-153-2	01	1	0009-			●
49	HOSE; OIL TANK TO BRK M/CYL EXC. HYDRO MASTER<7LT>	8-97129-583-0	02	1	0009-	●
49	HOSE; OIL TANK TO BRK M/CYL	8-97129-583-0	02	1	0009-		●	●
51	CLIP; HOSE,OIL TANK FLOOR REMOTE SHIFT<M11> EXC. HYDRO MASTER<7LT> L=140	5-09707-031-1	01	1	0009-	●
51	CLIP; HOSE,OIL TANK L=140	5-09707-031-1	01	1	0009-		●	●
51	CLIP; HOSE,OIL TANK HYDRO MASTER<7LT> L=250 THA	5-09707-030-1	01	1	0009-	●
59	WASHER; PL,JAW JOINT ID=15	9-09160-514-0	01	1	0009-	●	●	●
71	NUT; BRK M/CYL M8 W/LK WASHER	8-94279-050-0	04	1	0009-	●	●	●
80	PIN; SNAP,BRK PEDAL	8-94279-912-0	01	1	0009-	●	●	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY EXC. HYDRO MASTER<7LT>	8-97130-480-0	04	1	0009-	●
131	CLIP; RUBBER HOSE,OIL TANK TO BRK M/CY	8-97130-480-0	04	1	0009-		●	●
185	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-	●
185	BOLT; BRKT (B) M8X25 FLANGE	0-28680-825-0	02	1	0009-			●
185	BOLT; BRKT (A) M10X25 FLANGE	0-28691-025-0	02	1	0009-	●	●	●
264	NUT; BRKT,COLUMN SUPT TO B.PDL M8 FLANGE	8-97046-127-0	01	1	0009-	●	●	●
322	NUT; OIL TANK M6 FLANGE	0-91150-106-0	02	1	0009-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
