Isuzu WW
▶
TRUCKS
▶
NPR
▶
50819 - NPR/NQR(THAILAND)
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

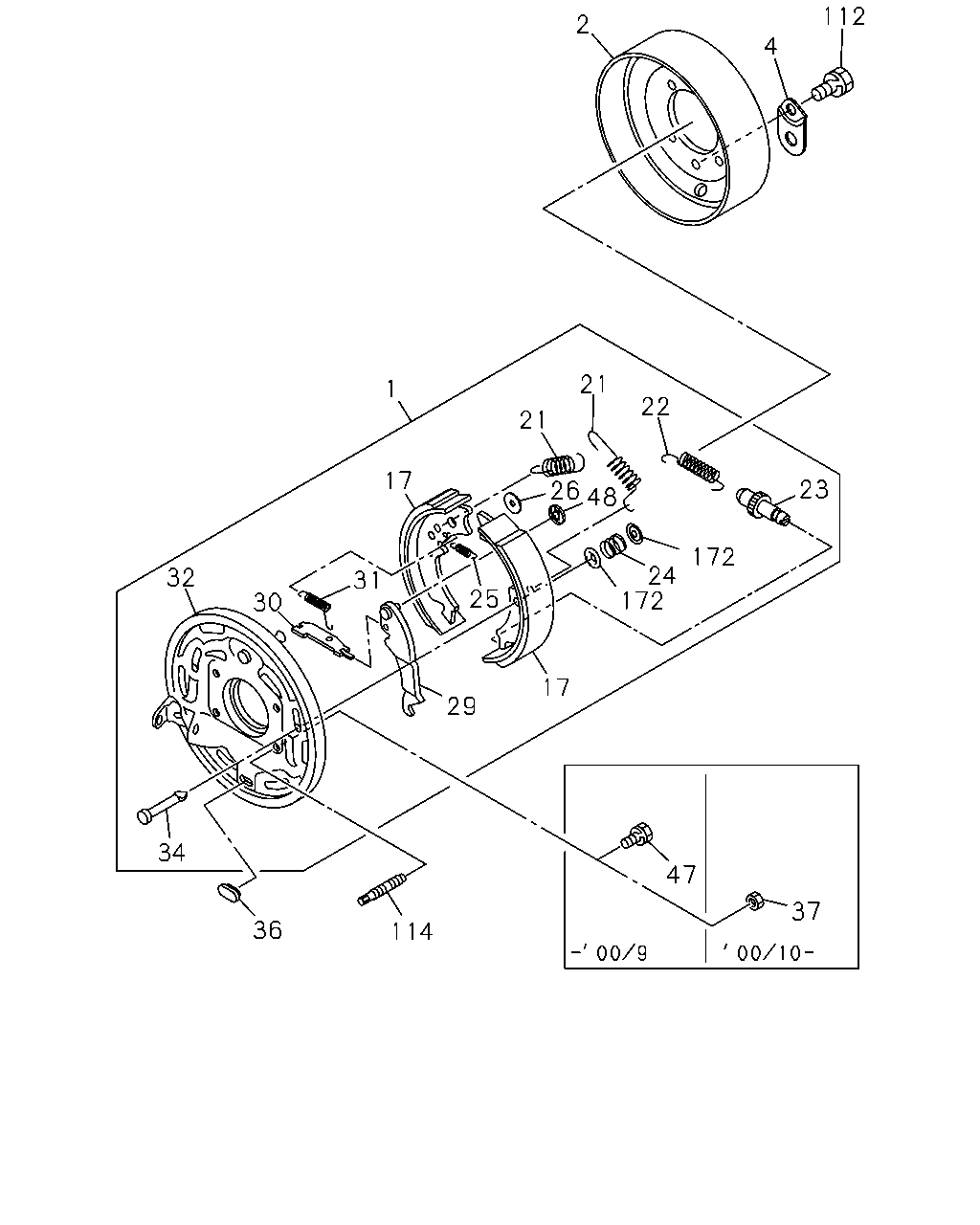

3-08 — PARKING BRAKE
(#48666) — 23 parça
Tümü
A - NPC5SF
B - NPC5SK
C - NPC5SN
112
2
4
21
1
22
21
17
23
26
48
172
31
24
172
32
25
30
17
29
34
47
37
36
114
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
BRAKE ASM; CENTER,PARKING
8-97100-212-2
01
1
0009-
●
●
●
2
DRUM; PARKING BRK
THA
8-97916-628-0
01
1
0009-
●
●
●
4
COVER; ADJ HOLE
5-46219-001-0
01
1
0009-
●
●
●
17
SHOE; PARKING BRK
8-97020-250-2
02
1
0009-
●
●
●
21
SPRING; RETURN,PARKING BRK SHOE
8-94132-157-0
02
1
0009-
●
●
●
22
SPRING; ADJ SCREW,PARKING BRK
8-94107-618-0
01
1
0009-
●
●
●
23
SCREW; ADJ,PARKING BRK SHOE
5-47165-025-0
01
1
0009-
●
●
●
24
SPRING; BRK SHOE
8-94132-155-0
02
1
0009-
●
●
●
25
SPRING; SHOE ALIGNMENT
8-94132-156-0
01
1
0009-
●
●
●
26
PLATE; SHOE GUIDE
9-09851-986-0
01
1
0009-
●
●
●
29
LEVER; PARKING BRK
8-97027-125-0
01
1
0009-
●
●
●
30
STRUT; PARKING BRK
8-94311-779-0
01
1
0009-
●
●
●
31
SPRING; SHOE TO STRUT
8-94132-158-0
01
1
0009-
●
●
●
32
PLATE; SUPPORT,PARKING BRK
8-94311-780-1
01
1
0009-
●
●
●
34
PIN; BRK SHOE
8-94132-159-0
02
1
0009-
●
●
●
36
GROMMET; ADJ HOLE
THA
5-47169-002-0
01
1
0009-
●
●
●
37
NUT; SUPPORT PLATE
M12 LOCK NUT
8-97248-173-0
04
1
0010-
●
●
●
47
BOLT; SUPPORT PLATE
M/T MXA5T<RNQ> M12X20 FLANGE
8-97213-401-0
04
1
0009-0009
●
47
BOLT; SUPPORT PLATE
M12X20 FLANGE
8-97213-401-0
04
1
0009-0009
●
48
RETAINER; PIN,PARKING BRK
9-46349-005-1
01
1
0009-
●
●
●
112
BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER
0-50040-616-0
01
1
0009-
●
●
●
114
STUD; SUPPORT PLATE
8-97289-002-0
04
1
0010-
●
●
●
172
CUP; SHOE HOLD
9-47162-033-0
04
1
0009-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
