3-05 — REAR WHEEL BRAKE (#48665) — 114 parça

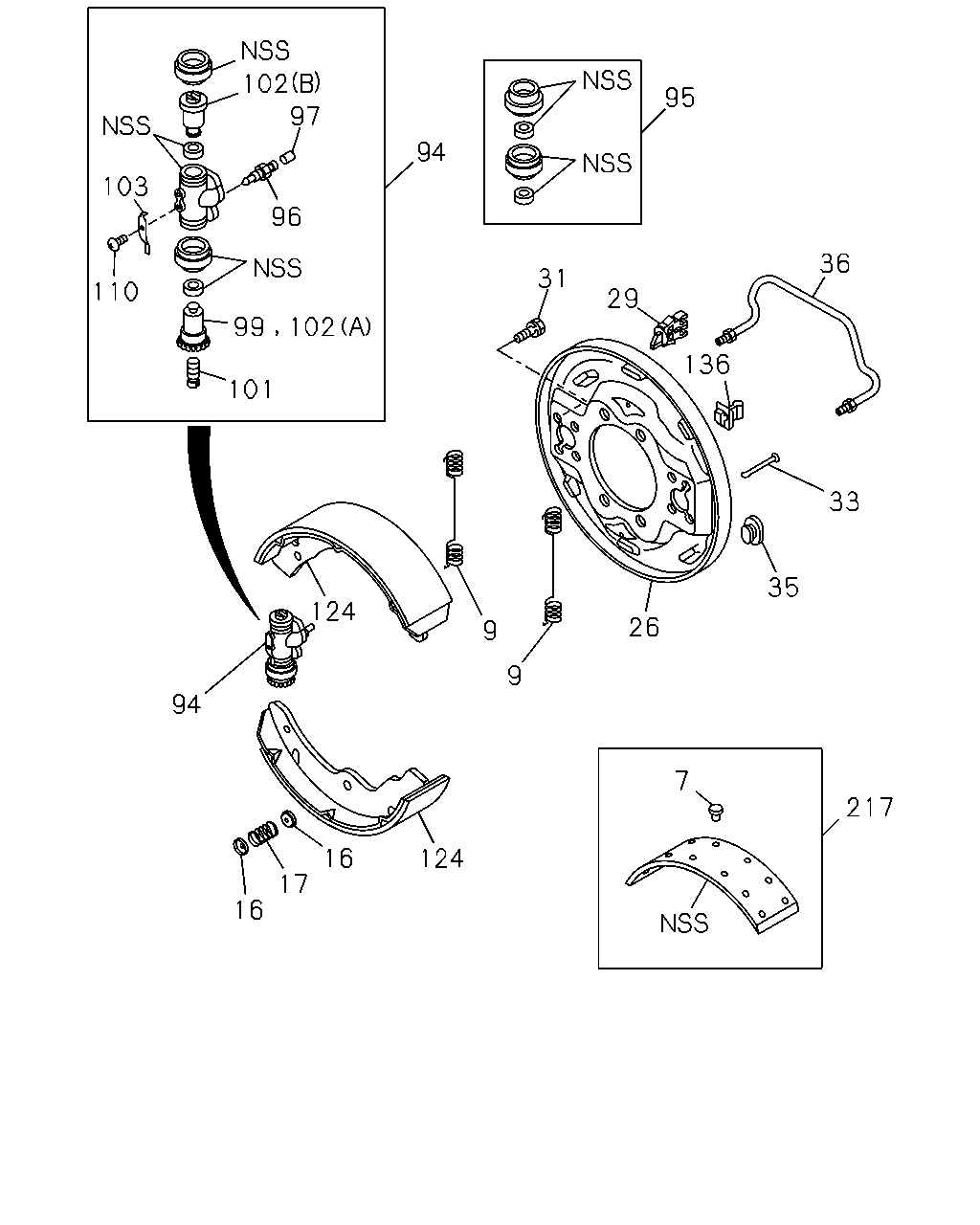

çizim 52027
102 97 95 94 103 96 36 31 110 29 99 102 136 101 33 35 124 26 9 9 94 7 217 16 124 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C
7 RIVET; LINING,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 48 1 0009- ●
7 RIVET; LINING,RR BRK 1-09732-029-0 48 1 0009- ●
7 RIVET; LINING,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		1-09732-029-0 64 1 0009- ●
7 RIVET; LINING,RR BRK 1-09732-029-0 64 1 0009- ●
9 SPRING; RETURN,BRK SHOE
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-087-0 04 1 0009- ●
9 SPRING; RETURN,BRK SHOE 8-97022-087-0 04 1 0009- ●
9 SPRING; RETURN,BRK SHOE
FRAME STRAIGHT TYPE<7KJ> 		8-97122-869-0 04 1 0009- ●
9 SPRING; RETURN,BRK SHOE 8-97122-869-0 04 1 0009- ●
16 CUP; SHOE HOLDING 9-47165-096-0 08 1 0009- ● ● ●
17 SPRING; SHOE HOLD DOWN 5-09580-101-1 04 1 0009- ● ● ●
26 PLATE; BACK,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-500-0 01 1 0009- ●
26 PLATE; BACK,RR BRK 8-97094-500-0 01 1 0009- ●
26 PLATE; BACK,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-501-0 01 1 0009- ●
26 PLATE; BACK,RR BRK 8-97094-501-0 01 1 0009- ●
26 PLATE; BACK,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97134-731-0 01 1 0009- ●
26 PLATE; BACK,RR BRK 8-97134-731-0 01 1 0009- ●
26 PLATE; BACK,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97134-732-0 01 1 0009- ●
26 PLATE; BACK,RR BRK 8-97134-732-0 01 1 0009- ●
29 CLIP; PIPE,BRK 8-97022-086-0 02 1 0009- ● ● ●
31 BOLT; RR WHEEL CYL 8-97081-305-0 16 1 0009- ● ● ●
33 PIN; SHOE HOLD DOWN
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97022-089-0 04 1 0009- ●
33 PIN; SHOE HOLD DOWN 8-97022-089-0 04 1 0009- ●
33 PIN; SHOE HOLD DOWN
FRAME STRAIGHT TYPE<7KJ> 		8-97122-870-0 04 1 0009- ●
33 PIN; SHOE HOLD DOWN 8-97122-870-0 04 1 0009- ●
35 GROMMET; CHECK HOLE 8-97017-507-0 02 1 0009- ● ● ●
36 PIPE; OIL,RR BRK
THA 		8-97940-705-0 02 1 0009- ● ● ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> FRONT 		8-97139-854-0 01 1 0009-0203 ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97139-854-0 01 1 0009-0203 ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> FRONT 		8-97332-225-0 01 1 0204- ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97332-225-0 01 1 0204- ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97139-855-0 01 1 0009-0203 ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97139-855-0 01 1 0009-0203 ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> REAR 		8-97332-226-0 01 1 0204- ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97332-226-0 01 1 0204- ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97139-856-0 02 1 0009-0203 ●
94 CYLINDER; WHEEL,RR BRK 8-97139-856-0 02 1 0009-0203 ●
94 CYLINDER; WHEEL,RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97332-227-0 02 1 0204- ●
94 CYLINDER; WHEEL,RR BRK 8-97332-227-0 02 1 0204- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> FRONT 		8-97147-967-0 01 1 0009-0209 ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97147-967-0 01 1 0009-0209 ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> FRONT 		8-97353-572-0 01 1 0210- ●
94 CYLINDER; WHEEL,RR BRK
FRONT 		8-97353-572-0 01 1 0210- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> REAR 		8-97147-968-0 01 1 0009-0209 ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97147-968-0 01 1 0009-0209 ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> REAR 		8-97353-571-0 01 1 0210- ●
94 CYLINDER; WHEEL,RR BRK
REAR 		8-97353-571-0 01 1 0210- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97147-969-0 02 1 0009-0209 ●
94 CYLINDER; WHEEL,RR BRK 8-97147-969-0 02 1 0009-0209 ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-570-0 02 1 0210- ●
94 CYLINDER; WHEEL,RR BRK 8-97353-570-0 02 1 0210- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-570-0 01 1 0210-0302 ●
94 CYLINDER; WHEEL,RR BRK 8-97353-570-0 01 1 0210-0302 ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-570-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK 8-97353-570-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-571-0 01 1 0210-0302 ●
94 CYLINDER; WHEEL,RR BRK 8-97353-571-0 01 1 0210-0302 ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-571-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK 8-97353-571-0 01 1 0303- ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-572-0 02 1 0210-0302 ●
94 CYLINDER; WHEEL,RR BRK 8-97353-572-0 02 1 0210-0302 ●
94 CYLINDER; WHEEL,RR BRK
FRAME STRAIGHT TYPE<7KJ> 		8-97353-572-0 02 1 0303- ●
94 CYLINDER; WHEEL,RR BRK 8-97353-572-0 02 1 0303- ●
95 CUP SET; RR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87831-604-0 02 1 0009-0203 ●
95 CUP SET; RR WHEEL CYL 5-87831-604-0 02 1 0009-0203 ●
95 CUP SET; RR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87832-051-0 02 1 0204- ●
95 CUP SET; RR WHEEL CYL 5-87832-051-0 02 1 0204- ●
95 CUP SET; RR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		5-87831-567-0 02 1 0009-0209 ●
95 CUP SET; RR WHEEL CYL 5-87831-567-0 02 1 0009-0209 ●
95 CUP SET; RR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		5-87832-080-0 02 1 0210- ●
95 CUP SET; RR WHEEL CYL 5-87832-080-0 02 1 0210- ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0009-0304 ● ● ●
96 SCREW; BLEEDER,RR BRK 9-47615-027-0 01 1 0305- ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0009-0304 ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL 1-47619-009-0 01 1 0305- ● ● ●
99 PISTON; RR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97038-687-0 02 1 0009-0203 ●
99 PISTON; RR WHEEL CYL 8-97038-687-0 02 1 0009-0203 ●
99 PISTON; RR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97332-229-0 02 1 0204- ●
99 PISTON; RR WHEEL CYL 8-97332-229-0 02 1 0204- ●
99 PISTON; RR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97147-973-0 02 1 0009-0209 ●
99 PISTON; RR WHEEL CYL 8-97147-973-0 02 1 0009-0209 ●
99 PISTON; RR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97353-579-0 02 1 0210- ●
99 PISTON; RR WHEEL CYL 8-97353-579-0 02 1 0210- ●
101 SCREW; ADJ,RR WHEEL CYL 8-94414-702-0 04 1 0009- ● ● ●
102 PISTON; REAR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> (B) 		8-97038-686-0 04 1 0009-0203 ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97038-686-0 04 1 0009-0203 ●
102 PISTON; REAR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97332-043-0 04 1 0204- ●
102 PISTON; REAR WHEEL CYL 8-97332-043-0 04 1 0204- ●
102 PISTON; REAR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> (A) 		8-97038-687-0 02 1 0009-0203 ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97038-687-0 02 1 0009-0203 ●
102 PISTON; REAR WHEEL CYL
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97332-229-0 02 1 0204- ●
102 PISTON; REAR WHEEL CYL 8-97332-229-0 02 1 0204- ●
102 PISTON; REAR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> (B) 		8-97147-972-0 04 1 0009-0209 ●
102 PISTON; REAR WHEEL CYL
(B) 		8-97147-972-0 04 1 0009-0209 ●
102 PISTON; REAR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97353-578-0 04 1 0210- ●
102 PISTON; REAR WHEEL CYL 8-97353-578-0 04 1 0210- ●
102 PISTON; REAR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> (A) 		8-97147-973-0 02 1 0009-0209 ●
102 PISTON; REAR WHEEL CYL
(A) 		8-97147-973-0 02 1 0009-0209 ●
102 PISTON; REAR WHEEL CYL
FRAME STRAIGHT TYPE<7KJ> 		8-97353-579-0 02 1 0210- ●
102 PISTON; REAR WHEEL CYL 8-97353-579-0 02 1 0210- ●
103 SPRING; LK,RR WHEEL CYL,ADJ 8-94128-486-0 04 1 0009- ● ● ●
110 SCREW; LOCK SPRING,RR WHEEL CYL 8-94128-727-0 04 1 0009- ● ● ●
124 SHOE ASM; BRK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		8-97094-504-1 04 1 0009- ●
124 SHOE ASM; BRK,RR 8-97094-504-1 04 1 0009- ●
124 SHOE ASM; BRK,RR
FRAME STRAIGHT TYPE<7KJ> 		8-97188-455-0 04 1 0009- ●
124 SHOE ASM; BRK,RR 8-97188-455-0 04 1 0009- ●
136 GROMMET
THA 		8-97044-742-1 04 1 0009- ● ● ●
217 LINING KIT; RR BRK
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87870-028-0 01 1 0009- ●
217 LINING KIT; RR BRK 5-87870-028-0 01 1 0009- ●
217 LINING KIT; RR BRK
FRAME STRAIGHT TYPE<7KJ> 		5-87831-692-0 01 1 0009- ●
217 LINING KIT; RR BRK 5-87831-692-0 01 1 0009- ●
218 SHOE KIT; BRK,RR
EXC. FRAME STRAIGHT TYPE<7KJ> 		5-87090-122-0 01 1 0204- ●
218 SHOE KIT; BRK,RR 5-87090-122-0 01 1 0204- ●
218 SHOE KIT; BRK,RR
FRAME STRAIGHT TYPE<7KJ> 		5-87831-693-0 01 1 0204- ●
218 SHOE KIT; BRK,RR 5-87831-693-0 01 1 0204- ●
