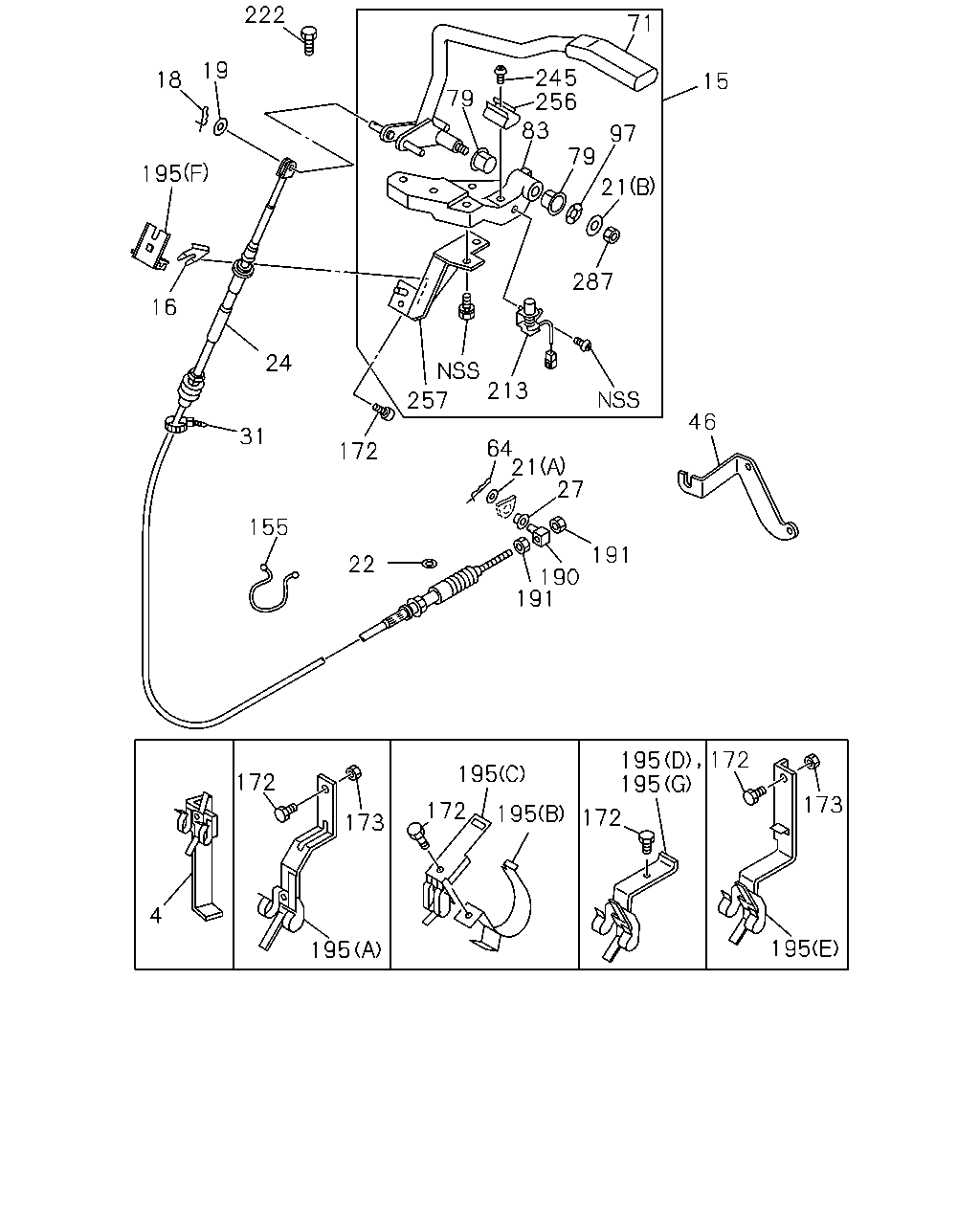

2-85 — POWER TAKE OFF CONTROL (#48663) — 45 parça

222 71 19 245 256 18 15 79 83 97 79 195 21 287 16 24 213 257 46 31 64 21 172 27 155 191 22 190 191 172 195 195 195 172 173 172 195 172 173 4 195 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; PTO CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ>	8-97114-534-1	01	1	0009-	●
15	LEVER ASM; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-805-3	01	1	0009-	●	●
16	CLIP; CABLE,PTO PTO TRANSMISSION SIDE<V66>	8-94152-900-0	01	1	0009-	●	●
18	PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0009-	●	●
19	WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE<V66> ID=8.4	9-09160-508-0	01	1	0009-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (B) ID=8.4 OD=22	9-09160-708-0	01	1	0009-	●	●
21	WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE<V66> (A) ID=8.4 OD=22	9-09164-708-0	01	1	0009-	●	●
22	WASHER; LK,LEVER PTO TRANSMISSION SIDE<V66> ID=8.5 T=0.3	5-09509-001-0	01	1	0009-	●	●
24	CABLE; PTO CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=3259	8-97142-491-1	01	1	0009-	●
24	CABLE; PTO CONT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> L=3077	8-97200-633-0	01	1	0009-	●
24	CABLE; PTO CONT 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=3107	8-97204-987-0	01	1	0009-		●
27	BUSHING; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94367-367-0	01	1	0009-	●	●
31	CLIP; BAND,CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> L=250 THA	5-09707-030-1	01	1	0009-	●	●
31	CLIP; BAND,CABLE 4HE1 ENG<RLY> PTO TRANSMISSION SIDE<V66> CHARGE AIR COOLER<6PL> FRAME STRAIGHT TYPE<7KJ> L=250 THA	5-09707-030-1	01	1	0009-		●
46	BRACKET; PTO,TRANS SIDE PTO TRANSMISSION SIDE<V66>	8-97240-638-0	01	1	0009-	●	●
64	PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE<V66> L=27.7	8-94111-137-0	01	1	0009-	●	●
71	LEVER; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97177-806-1	01	1	0009-	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66> ID=14 OD=16	8-94252-671-0	02	1	0009-0204	●	●
79	BUSHING; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-94238-596-0	02	1	0205-	●	●
83	BRACKET; CONT LEVER PTO TRANSMISSION SIDE<V66>	8-97117-352-0	01	1	0009-	●	●
97	WASHER; LK PTO TRANSMISSION SIDE<V66> ID=15 OD=25	8-11053-111-0	01	1	0009-	●	●
155	CLIP; CABLE PTO TRANSMISSION SIDE<V66> ID=15	1-09709-003-0	01	1	0009-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> M8X16 W/LK WASHER	0-50040-816-0	02	1	0009-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> M6X12 W/LK&PL WASHER	9-03920-612-0	01	1	0009-	●	●
172	BOLT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	02	1	0009-	●	●
172	BOLT; BRKT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8X16 FLANGE	0-28080-816-0	01	1	0009-	●
172	BOLT; BRKT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8X25 FLANGE	0-28680-825-0	04	1	0009-	●
173	NUT; BRKT PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	01	1	0009-	●	●
173	NUT; BRKT 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> M8 FLANGE	0-91150-108-0	02	1	0009-	●
190	BOSS; LEVER,PTO PTO TRANSMISSION SIDE<V66>	8-94366-842-1	01	1	0009-	●	●
191	NUT; BOSS PTO TRANSMISSION SIDE<V66> M6	9-09110-506-0	02	1	0009-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (B)	8-97079-557-3	01	1	0009-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (C)	8-97079-558-3	01	1	0009-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> (F)	8-97088-407-1	01	1	0009-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (A)	8-97229-563-0	01	1	0009-	●	●
195	BRACKET; CONT CABLE PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (D)	8-97079-559-2	01	1	0009-	●	●
195	BRACKET; CONT CABLE 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> FRAME STRAIGHT TYPE<7KJ> (G)	8-97085-695-3	01	1	0009-	●
195	BRACKET; CONT CABLE 4HG1 ENG<RJH> PTO TRANSMISSION SIDE<V66> EXC. FRAME STRAIGHT TYPE<7KJ> (E)	8-97079-560-3	01	1	0009-	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97041-412-1	01	1	0009-0308	●	●
213	SWITCH; PTO CONT PTO TRANSMISSION SIDE<V66>	8-97370-568-0	01	1	0309-	●	●
222	BOLT; LEVER PTO TRANSMISSION SIDE<V66> M8X14 FLANGE	0-28080-814-0	04	1	0009-	●	●
245	SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE<V66> M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0009-	●	●
256	PLATE; LOCK PTO TRANSMISSION SIDE<V66>	8-97117-351-0	01	1	0009-	●	●
257	REINFORCEMENT; PTO PTO TRANSMISSION SIDE<V66>	8-97088-406-3	01	1	0009-	●	●
287	NUT; SWITCH,CONT LEVER PTO TRANSMISSION SIDE<V66> M8 W/LK WASHER	8-94279-050-0	01	1	0009-	●	●
