Sayfa 2-20 - Isuzu EPC

2-20 — MANUAL TRANSMISSION ASM AND CASE (#48661) — 485 parça

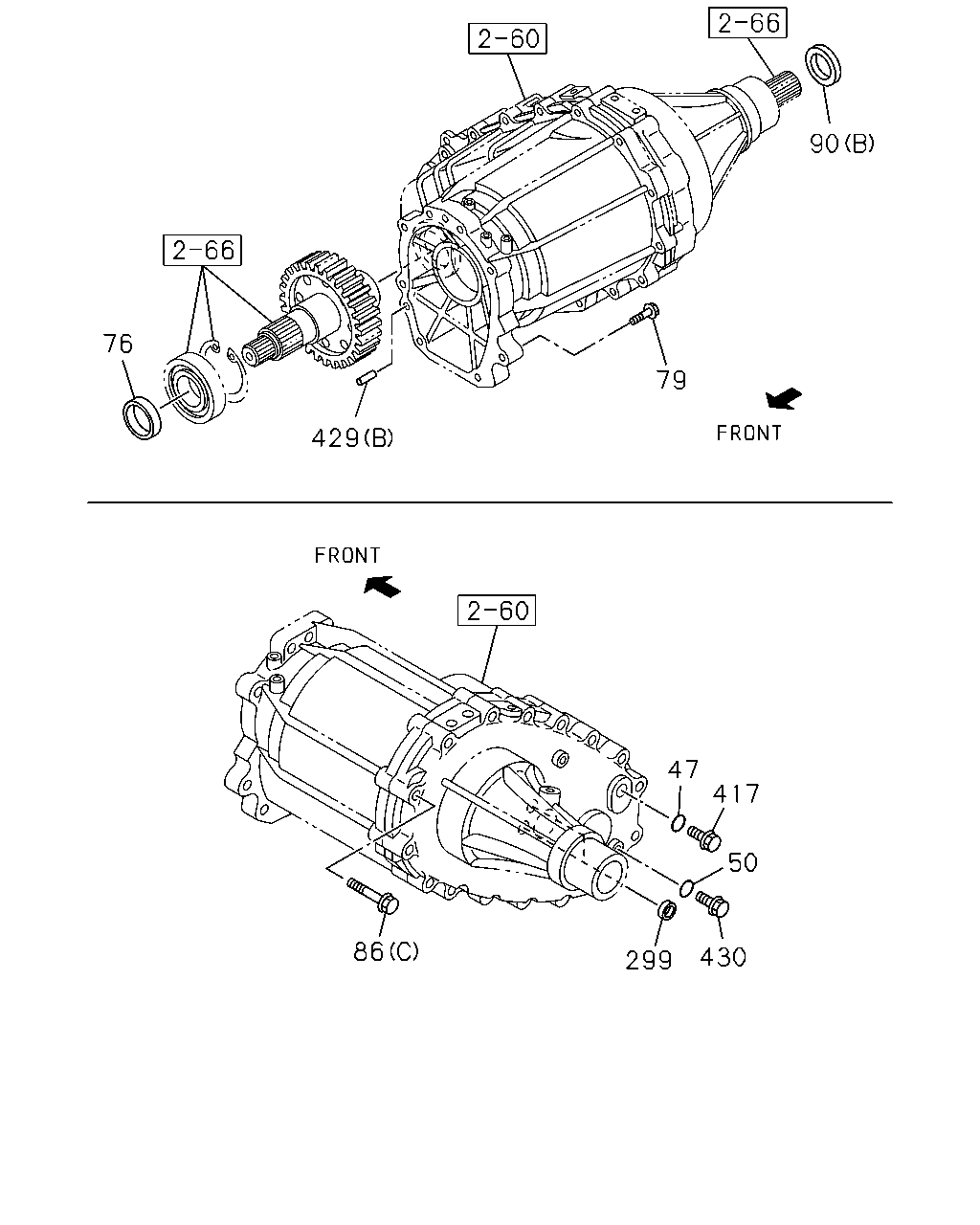

76 79 429 90 47 417 50 430 299 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<TFS***> ID=17 IMA	8-97115-712-0	01	1	0303-0408	●	●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0409-0606	●		●
47	GASKET; FILLER PLUG,TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0607-	●			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	0303-0408	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0303-0408		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0409-0412	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0409-0412			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0501-0606	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0501-0606			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0607-	●			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0607-				●
76	SEAL; OIL,TRANSFER CASE 4X4<TFS***> NOK IMA	8-97238-999-0	01	1	0303-0408	●	●
76	SEAL; OIL,TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> NOK IMA	8-97238-999-0	01	1	0409-0606	●		●
76	SEAL; OIL,TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> NOK IMA	8-97238-999-0	01	1	0607-	●			●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28051-035-0	07	1	0303-	●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28081-035-0	06	1	0303-0408		●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X35 FLANGE THA	0-28081-035-0	06	1	0409-0512			●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0601-0606			●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0607-				●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0303-0408		●
86	BOLT; RR COVER 4JJ1 ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0409-0412			●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0501-0604			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002				●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-				●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0303-0408		●
86	BOLT; RR COVER 4JJ1 ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0409-0412			●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0501-0606			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002				●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-				●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0303-0408	●	●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0409-0601	●		●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606	●		●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	0303-0408	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0409-0412	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0409-0412			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0501-0606	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (B) NOK IMA	8-97046-705-3	01	1	0501-0606			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-1208	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (B) NOK IMA	8-97046-705-3	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	1209-	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0409-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97947-841-0	01	1	1209-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97046-701-2	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0409-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) NOK THA	8-97947-840-0	01	1	1209-				●
299	PLUG; SHIFTER ROD 4X4<TFS***> OD=14 THA	5-09609-004-0	02	1	0303-0408	●	●
299	PLUG; SHIFTER ROD 4X4<TFS***> 4JJ1 ENG<LFB> OD=14 THA	5-09609-004-0	02	1	0409-0603	●		●
299	PLUG; SHIFTER ROD 4X4<TFS***> 4JJ1 ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0604-0606	●		●
299	PLUG; SHIFTER ROD 4X4<TFS***> 4JJ1 ENG<LFB> OD=14 IMA	8-97358-601-0	02	1	0607-	●			●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> THA	8-94310-917-0	01	1	0303-0408	●	●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0303-0408		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> THA	8-94310-917-0	01	1	0409-0412	●		●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0409-0412			●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-94310-917-0	01	1	0501-0603	●		●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0501-0603			●	●
417	PLUG; OIL FILLER,TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-94310-917-0	01	1	0604-0604			●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0604-0604	●		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0605-0606	●		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	0605-0606			●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0607-	●			●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	0607-				●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0303-0408		●
429	PIN; STRAIGHT 4JJ1 ENG<LFB> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0409-0412			●
429	PIN; STRAIGHT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0501-0606			●	●
429	PIN; STRAIGHT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0607-				●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0303-0408		●
429	PIN; STRAIGHT 4X4<TFS***> 4JJ1 ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0409-0606			●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-	●
429	PIN; STRAIGHT 4X4<TFS***> 4JJ1 ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-				●
430	PLUG; OIL DRAIN 4X4<TFS***> THA	9-09662-004-0	01	1	0303-0408	●	●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0303-0408		●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> THA	9-09662-004-0	01	1	0409-0412	●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0409-0412			●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> THA	9-09662-004-0	01	1	0501-0603	●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0501-0603			●	●
430	PLUG; OIL DRAIN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	9-09662-004-0	01	1	0604-0604			●	●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0604-0604	●		●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0605-0606	●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0605-0606			●	●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0607-	●			●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-				●

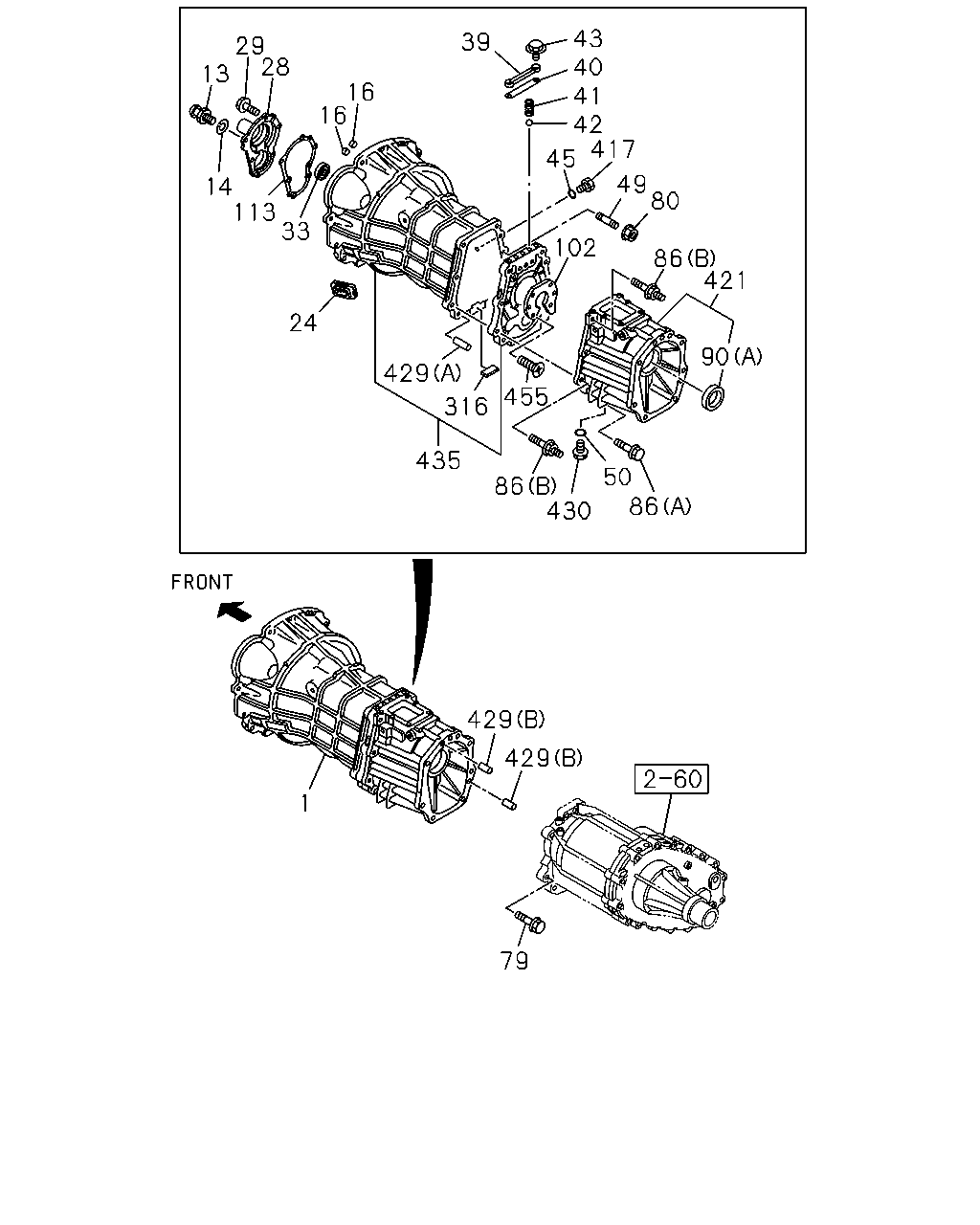

43 40 41 42 417 29 28 113 16 39 16 45 13 14 33 102 421 24 90 42 455 316 50 86 86 435 430 414 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97309-149-0	01	1	0303-0402		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97373-792-0	01	1	0403-0403		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97376-883-0	01	1	0404-0408		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-97376-884-0	01	1	0409-0412			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-97376-884-0	01	1	0501-0606			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98036-628-0	01	1	0607-0712				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98087-317-0	01	1	0801-0809				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98132-809-0	01	1	0810-1004				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98150-173-0	01	1	1005-				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97326-664-0	01	1	0303-0403		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97376-886-0	01	1	0404-0406		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97376-953-0	01	1	0407-0408		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97376-953-0	01	1	0409-0606			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/12<GM0> THA	8-97381-366-0	01	1	0501-0508				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98036-624-0	01	1	0607-0712				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98087-282-0	01	1	0801-0809				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98132-813-0	01	1	0810-1004				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98150-177-0	01	1	1005-				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-97381-366-0	01	1	0509-0606				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98036-626-0	01	1	0607-0712				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98087-315-0	01	1	0801-0809				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98132-807-0	01	1	0810-1004				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98150-171-0	01	1	1005-				●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	0303-0408		●
13	SUPPORT; SHIFT FORK 4JJ1 ENG<LFB> L=47.5 IMA	8-97072-827-0	01	1	0409-0412			●
13	SUPPORT; SHIFT FORK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=47.5 IMA	8-97072-827-0	01	1	0501-0606			●	●
13	SUPPORT; SHIFT FORK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=47.5 IMA	8-97072-827-0	01	1	0607-				●
14	WASHER; LK,SUPPORT ID=12.2 THA	9-09150-512-0	01	1	0303-0408		●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB> ID=12.2 THA	9-09150-512-0	01	1	0409-0412			●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=12.2 THA	9-09150-512-0	01	1	0501-0603			●	●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=12.2 IMA	0-91510-512-0	01	1	0604-0606			●	●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=12.2 IMA	0-91510-512-0	01	1	0607-				●
16	PLUG; SHIFT ROD OD=14 THA	5-09609-004-0	02	1	0303-0408		●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB> OD=14 THA	5-09609-004-0	02	1	0409-0412			●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=14 THA	5-09609-004-0	02	1	0501-0604			●	●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=14 IMA	8-97358-601-0	02	1	0605-0606			●	●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=14 IMA	8-97358-601-0	02	1	0607-				●
24	COVER; CHECK HOLE,DUST THA	8-97977-025-0	01	1	0303-0408		●
24	COVER; CHECK HOLE,DUST 4JJ1 ENG<LFB> THA	8-97977-025-0	01	1	0409-0412			●
24	COVER; CHECK HOLE,DUST 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97977-025-0	01	1	0501-0606			●	●
24	COVER; CHECK HOLE,DUST 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94156-700-0	01	1	0607-				●
28	COVER; FRT,TRANS CASE THA	8-97104-676-0	01	1	0303-0404		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	0405-0408		●
28	COVER; FRT,TRANS CASE 4JJ1 ENG<LFB> THA	8-97381-406-0	01	1	0409-0412			●
28	COVER; FRT,TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97381-406-0	01	1	0501-0606			●	●
28	COVER; FRT,TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97381-406-0	01	1	0607-				●
29	BOLT; FRT COVER M8X22 FLANGE THA	8-94448-815-3	06	1	0303-0408		●
29	BOLT; FRT COVER 4JJ1 ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	06	1	0409-0412			●
29	BOLT; FRT COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	06	1	0501-0604			●	●
29	BOLT; FRT COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	06	1	0605-0606			●	●
29	BOLT; FRT COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	06	1	0607-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	0303-0408		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> TKK THA	8-97046-698-0	01	1	0409-0412			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> TKK THA	8-97046-698-0	01	1	0501-0606			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> TKK THA	8-97046-698-0	01	1	0607-1208				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> NOK THA	8-97947-839-0	01	1	1209-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0303-0408		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> NOK IMA	8-97046-699-3	01	1	0409-0412			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> NOK IMA	8-97046-699-3	01	1	0501-0606			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> NOK IMA	8-97046-699-3	01	1	0607-1208				●
39	PLATE; DETENT SPR THA	8-94373-864-1	01	1	0303-0408		●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB> THA	8-94373-864-1	01	1	0409-0412			●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-94373-864-1	01	1	0501-0604			●	●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98035-571-0	01	1	0605-0606			●	●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98035-571-0	01	1	0607-				●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	0303-0408		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> IMA	8-97083-600-1	01	1	0409-0412			●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-600-1	01	1	0501-0606			●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-600-1	01	1	0607-				●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	03	1	0303-0408		●
41	SPRING; DETENT BALL 4JJ1 ENG<LFB> L=26.8 IMA	8-94320-193-0	03	1	0409-0412			●
41	SPRING; DETENT BALL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=26.8 IMA	8-94320-193-0	03	1	0501-0606			●	●
41	SPRING; DETENT BALL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=26.8 IMA	8-94320-193-0	03	1	0607-				●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	0303-0408		●
42	BALL; DETENT,GEAR SHIFT 4JJ1 ENG<LFB> IMA	8-94435-335-0	03	1	0409-0412			●
42	BALL; DETENT,GEAR SHIFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94435-335-0	03	1	0501-0606			●	●
42	BALL; DETENT,GEAR SHIFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94435-335-0	03	1	0607-				●
43	BOLT; PLATE TO PLATE M8X22 FLANGE THA	8-94448-815-3	02	1	0303-0408		●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	02	1	0409-0412			●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	02	1	0501-0604			●	●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	02	1	0605-0606			●	●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	02	1	0607-				●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0303-0408		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0409-0412			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=17 IMA	8-97115-712-0	01	1	0501-0606			●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=17 IMA	8-97115-712-0	01	1	0607-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	0303-0408	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0303-0408		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0409-0412	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0409-0412			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0501-0606	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0501-0606			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0607-	●			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0607-				●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0303-0408		●
86	BOLT; RR COVER 4JJ1 ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0409-0412			●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0501-0604			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002				●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-				●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0303-0408		●
86	BOLT; RR COVER 4JJ1 ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0409-0412			●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0501-0606			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002				●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-				●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0303-0408	●	●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0409-0601	●		●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606	●		●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	0303-0408	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0409-0412	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0409-0412			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0501-0606	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (B) NOK IMA	8-97046-705-3	01	1	0501-0606			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-1208	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (B) NOK IMA	8-97046-705-3	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	1209-	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0409-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97947-841-0	01	1	1209-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97046-701-2	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0409-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) NOK THA	8-97947-840-0	01	1	1209-				●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	0303-0408		●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1 ENG<LFB> IMA	8-97138-673-0	01	1	0409-0412			●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97138-673-0	01	1	0501-0606			●	●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97138-673-0	01	1	0607-				●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	0303-0408		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> IMA	8-97083-589-0	01	1	0409-0412			●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-589-0	01	1	0501-0606			●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-589-0	01	1	0607-				●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0303-0408		●
316	MAGNET; TRANS CASE 4JJ1 ENG<LFB> IMA	8-94249-524-2	01	1	0409-0412			●
316	MAGNET; TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94249-524-2	01	1	0501-0606			●	●
316	MAGNET; TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94249-524-2	01	1	0607-				●
414	COVER; DUST,RR COVER 4X2<TFB***> THA	8-94310-493-0	01	1	0303-0408		●
414	COVER; DUST,RR COVER 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-94310-493-0	01	1	0409-0412			●
414	COVER; DUST,RR COVER 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-94310-493-0	01	1	0501-0604			●	●
414	COVER; DUST,RR COVER 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98027-802-0	01	1	0605-0606			●	●
414	COVER; DUST,RR COVER 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98027-802-0	01	1	0607-				●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> THA	8-94310-917-0	01	1	0303-0408	●	●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0303-0408		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> THA	8-94310-917-0	01	1	0409-0412	●		●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0409-0412			●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-94310-917-0	01	1	0501-0603	●		●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0501-0603			●	●
417	PLUG; OIL FILLER,TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-94310-917-0	01	1	0604-0604			●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0604-0604	●		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0605-0606	●		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	0605-0606			●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0607-	●			●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	0607-				●
421	COVER; RR,TRANS 4X2<TFB***> THA	8-97039-528-2	01	1	0303-0309		●
421	COVER; RR,TRANS 4X2<TFB***> THA	8-97373-749-0	01	1	0310-0408		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-97373-749-0	01	1	0409-0412			●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97373-749-0	01	1	0501-0504			●	●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98014-386-0	01	1	0505-0606			●	●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98014-386-0	01	1	0607-1202				●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98191-921-0	01	1	1203-1405				●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97978-059-0	01	1	1406-				●
421	COVER; RR,TRANS 4X4<TFS***> THA	8-97301-224-2	01	1	0303-0408		●
421	COVER; RR,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97301-224-2	01	1	0409-0606			●
421	COVER; RR,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97301-224-2	01	1	0607-1208				●
421	COVER; RR,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98214-237-0	01	1	1209-				●
430	PLUG; OIL DRAIN 4X4<TFS***> THA	9-09662-004-0	01	1	0303-0408	●	●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0303-0408		●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> THA	9-09662-004-0	01	1	0409-0412	●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0409-0412			●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> THA	9-09662-004-0	01	1	0501-0603	●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0501-0603			●	●
430	PLUG; OIL DRAIN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	9-09662-004-0	01	1	0604-0604			●	●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0604-0604	●		●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0605-0606	●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0605-0606			●	●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0607-	●			●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-				●
435	CASE; TRANS THA	8-97252-840-1	01	1	0303-0312		●
435	CASE; TRANS THA	8-97376-845-0	01	1	0401-0408		●
435	CASE; TRANS 4JJ1 ENG<LFB> THA	8-97376-845-0	01	1	0409-0412			●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97376-845-0	01	1	0501-0604			●	●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98047-231-0	01	1	0605-0606			●	●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98047-231-0	01	1	0607-1004				●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98047-230-0	01	1	1005-				●
455	SCREW; BRG RET M8X22 THA	8-97062-754-0	04	1	0303-0408		●
455	SCREW; BRG RET 4JJ1 ENG<LFB> M8X22 THA	8-97062-754-0	04	1	0409-0412			●
455	SCREW; BRG RET 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 THA	8-97062-754-0	04	1	0501-0604			●	●
455	SCREW; BRG RET 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 IMA	8-98035-654-0	04	1	0605-0606			●	●
455	SCREW; BRG RET 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 IMA	8-98035-654-0	04	1	0607-				●

43 40 41 42 417 39 29 28 13 16 16 45 49 80 14 113 33 102 86 421 24 90 429 455 316 435 50 86 86 430 429 429 1 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> THA	8-97309-149-0	01	1	0303-0402		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97373-792-0	01	1	0403-0403		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JH1 ENG<RJX> THA	8-97376-883-0	01	1	0404-0408		●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-97376-884-0	01	1	0409-0412			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-97376-884-0	01	1	0501-0606			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98036-628-0	01	1	0607-0712				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98087-317-0	01	1	0801-0809				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98132-809-0	01	1	0810-1004				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JJ1 ENG<LFB> FINAL GEAR RATIO 41/11<GT4> THA	8-98150-173-0	01	1	1005-				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> THA	8-97326-664-0	01	1	0303-0403		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97376-886-0	01	1	0404-0406		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JH1 ENG<RJX> THA	8-97376-953-0	01	1	0407-0408		●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97376-953-0	01	1	0409-0606			●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> FINAL GEAR RATIO 43/12<GM0> THA	8-97381-366-0	01	1	0501-0508				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98036-624-0	01	1	0607-0712				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98087-282-0	01	1	0801-0809				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98132-813-0	01	1	0810-1004				●
1	TRANSMISSION ASM; MANUAL 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98150-177-0	01	1	1005-				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-97381-366-0	01	1	0509-0606				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98036-626-0	01	1	0607-0712				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98087-315-0	01	1	0801-0809				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98132-807-0	01	1	0810-1004				●
1	TRANSMISSION ASM; MANUAL 4X2<TFB***> 4JK1 ENG<LKZ> THA	8-98150-171-0	01	1	1005-				●
13	SUPPORT; SHIFT FORK L=47.5 IMA	8-97072-827-0	01	1	0303-0408		●
13	SUPPORT; SHIFT FORK 4JJ1 ENG<LFB> L=47.5 IMA	8-97072-827-0	01	1	0409-0412			●
13	SUPPORT; SHIFT FORK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=47.5 IMA	8-97072-827-0	01	1	0501-0606			●	●
13	SUPPORT; SHIFT FORK 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=47.5 IMA	8-97072-827-0	01	1	0607-				●
14	WASHER; LK,SUPPORT ID=12.2 THA	9-09150-512-0	01	1	0303-0408		●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB> ID=12.2 THA	9-09150-512-0	01	1	0409-0412			●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=12.2 THA	9-09150-512-0	01	1	0501-0603			●	●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=12.2 IMA	0-91510-512-0	01	1	0604-0606			●	●
14	WASHER; LK,SUPPORT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=12.2 IMA	0-91510-512-0	01	1	0607-				●
16	PLUG; SHIFT ROD OD=14 THA	5-09609-004-0	02	1	0303-0408		●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB> OD=14 THA	5-09609-004-0	02	1	0409-0412			●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=14 THA	5-09609-004-0	02	1	0501-0604			●	●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=14 IMA	8-97358-601-0	02	1	0605-0606			●	●
16	PLUG; SHIFT ROD 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> OD=14 IMA	8-97358-601-0	02	1	0607-				●
24	COVER; CHECK HOLE,DUST THA	8-97977-025-0	01	1	0303-0408		●
24	COVER; CHECK HOLE,DUST 4JJ1 ENG<LFB> THA	8-97977-025-0	01	1	0409-0412			●
24	COVER; CHECK HOLE,DUST 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97977-025-0	01	1	0501-0606			●	●
24	COVER; CHECK HOLE,DUST 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94156-700-0	01	1	0607-				●
28	COVER; FRT,TRANS CASE THA	8-97104-676-0	01	1	0303-0404		●
28	COVER; FRT,TRANS CASE THA	8-97381-406-0	01	1	0405-0408		●
28	COVER; FRT,TRANS CASE 4JJ1 ENG<LFB> THA	8-97381-406-0	01	1	0409-0412			●
28	COVER; FRT,TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97381-406-0	01	1	0501-0606			●	●
28	COVER; FRT,TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97381-406-0	01	1	0607-				●
29	BOLT; FRT COVER M8X22 FLANGE THA	8-94448-815-3	06	1	0303-0408		●
29	BOLT; FRT COVER 4JJ1 ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	06	1	0409-0412			●
29	BOLT; FRT COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	06	1	0501-0604			●	●
29	BOLT; FRT COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	06	1	0605-0606			●	●
29	BOLT; FRT COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	06	1	0607-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). TKK THA	8-97046-698-0	01	1	0303-0408		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> TKK THA	8-97046-698-0	01	1	0409-0412			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> TKK THA	8-97046-698-0	01	1	0501-0606			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> TKK THA	8-97046-698-0	01	1	0607-1208				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> NOK THA	8-97947-839-0	01	1	1209-				●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK IMA	8-97046-699-3	01	1	0303-0408		●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> NOK IMA	8-97046-699-3	01	1	0409-0412			●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> NOK IMA	8-97046-699-3	01	1	0501-0606			●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> NOK IMA	8-97046-699-3	01	1	0607-1208				●
39	PLATE; DETENT SPR THA	8-94373-864-1	01	1	0303-0408		●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB> THA	8-94373-864-1	01	1	0409-0412			●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-94373-864-1	01	1	0501-0604			●	●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98035-571-0	01	1	0605-0606			●	●
39	PLATE; DETENT SPR 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98035-571-0	01	1	0607-				●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-600-1	01	1	0303-0408		●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> IMA	8-97083-600-1	01	1	0409-0412			●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-600-1	01	1	0501-0606			●	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-600-1	01	1	0607-				●
41	SPRING; DETENT BALL L=26.8 IMA	8-94320-193-0	03	1	0303-0408		●
41	SPRING; DETENT BALL 4JJ1 ENG<LFB> L=26.8 IMA	8-94320-193-0	03	1	0409-0412			●
41	SPRING; DETENT BALL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=26.8 IMA	8-94320-193-0	03	1	0501-0606			●	●
41	SPRING; DETENT BALL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> L=26.8 IMA	8-94320-193-0	03	1	0607-				●
42	BALL; DETENT,GEAR SHIFT IMA	8-94435-335-0	03	1	0303-0408		●
42	BALL; DETENT,GEAR SHIFT 4JJ1 ENG<LFB> IMA	8-94435-335-0	03	1	0409-0412			●
42	BALL; DETENT,GEAR SHIFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94435-335-0	03	1	0501-0606			●	●
42	BALL; DETENT,GEAR SHIFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94435-335-0	03	1	0607-				●
43	BOLT; PLATE TO PLATE M8X22 FLANGE THA	8-94448-815-3	02	1	0303-0408		●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB> M8X22 FLANGE THA	8-94448-815-3	02	1	0409-0412			●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE THA	8-94448-815-3	02	1	0501-0604			●	●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	02	1	0605-0606			●	●
43	BOLT; PLATE TO PLATE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 FLANGE IMA	8-97365-376-0	02	1	0607-				●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0303-0408		●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> ID=17 IMA	8-97115-712-0	01	1	0409-0412			●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=17 IMA	8-97115-712-0	01	1	0501-0606			●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> ID=17 IMA	8-97115-712-0	01	1	0607-				●
49	STUD; TRANSFER CASE 4X4<TFS***> THA	1-09300-013-0	01	1	0303-0408		●
49	STUD; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> THA	1-09300-013-0	01	1	0409-0604			●
49	STUD; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X30 L=45 IMA	8-98035-675-0	01	1	0605-0606			●
49	STUD; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X30 L=45 IMA	8-98035-675-0	01	1	0607-				●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***>. ID=17 IMA	8-97115-712-0	01	1	0303-0408	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0303-0408		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0409-0412	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0409-0412			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0501-0606	●		●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0501-0606			●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB>. ID=17 IMA	8-97115-712-0	01	1	0607-	●			●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17 IMA	8-97115-712-0	01	1	0607-				●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28051-035-0	07	1	0303-	●
79	BOLT; TRANSFER CASE 4X4<TFS***> M10X35 FLANGE THA	0-28081-035-0	06	1	0303-0408		●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X35 FLANGE THA	0-28081-035-0	06	1	0409-0512			●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0601-0606			●
79	BOLT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10X35 FLANGE THA	0-28051-035-0	06	1	0607-				●
80	NUT; TRANSFER CASE 4X4<TFS***> M10 FLANGE THA	0-91150-110-0	01	1	0303-0408		●
80	NUT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10 FLANGE THA	0-91150-110-0	01	1	0409-0602			●
80	NUT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0603-0606			●
80	NUT; TRANSFER CASE 4X4<TFS***> 4JJ1 ENG<LFB> M10 FLANGE THA	0-91180-110-0	01	1	0607-				●
86	BOLT; RR COVER (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0303-0408		●
86	BOLT; RR COVER 4JJ1 ENG<LFB> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0409-0412			●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-94473-959-1	03	1	0501-0604			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0605-0606			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	03	1	0607-1002				●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) M10X55 FLANGE THA	8-98035-672-0	06	1	1003-				●
86	BOLT; RR COVER (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0303-0408		●
86	BOLT; RR COVER 4JJ1 ENG<LFB> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0409-0412			●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0501-0606			●	●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	05	1	0607-1002				●
86	BOLT; RR COVER 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) M10X18 M10X55 L=86.8 IMA	8-97305-468-0	02	1	1003-				●
86	BOLT; RR COVER 4X4<TFS***> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0303-0408	●	●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28080-845-0	16	1	0409-0601	●		●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0602-0606	●		●
86	BOLT; RR COVER 4X4<TFS***> 4JJ1 ENG<LFB> (C) M8X45 FLANGE THA	0-28050-845-0	16	1	0607-	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-97046-705-3	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (B) NOK IMA	8-97046-705-3	01	1	0303-0408	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0409-0412	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0409-0412			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0501-0606	●		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (B) NOK IMA	8-97046-705-3	01	1	0501-0606			●	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	0607-1208	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> (B) NOK IMA	8-97046-705-3	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (B) NOK IMA	8-97046-705-3	01	1	1209-	●			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) TKK THA	8-97046-700-0	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0409-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) TKK THA	8-97046-700-0	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97947-841-0	01	1	1209-				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> (A) NOK THA	8-97046-701-2	01	1	0303-0408		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0409-0606			●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X4<TFS***> 4JJ1 ENG<LFB> (A) NOK THA	8-97046-701-2	01	1	0607-1208				●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (B) NOK THA	8-97947-840-0	01	1	1209-				●
102	RETAINER; BRG UPR,MAINSHAFT IMA	8-97138-673-0	01	1	0303-0408		●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1 ENG<LFB> IMA	8-97138-673-0	01	1	0409-0412			●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97138-673-0	01	1	0501-0606			●	●
102	RETAINER; BRG UPR,MAINSHAFT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97138-673-0	01	1	0607-				●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IMA	8-97083-589-0	01	1	0303-0408		●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB> IMA	8-97083-589-0	01	1	0409-0412			●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-589-0	01	1	0501-0606			●	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-97083-589-0	01	1	0607-				●
316	MAGNET; TRANS CASE IMA	8-94249-524-2	01	1	0303-0408		●
316	MAGNET; TRANS CASE 4JJ1 ENG<LFB> IMA	8-94249-524-2	01	1	0409-0412			●
316	MAGNET; TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94249-524-2	01	1	0501-0606			●	●
316	MAGNET; TRANS CASE 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-94249-524-2	01	1	0607-				●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> THA	8-94310-917-0	01	1	0303-0408	●	●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0303-0408		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> THA	8-94310-917-0	01	1	0409-0412	●		●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0409-0412			●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-94310-917-0	01	1	0501-0603	●		●
417	PLUG; OIL FILLER,TRANS THA	8-94310-917-0	01	1	0501-0603			●	●
417	PLUG; OIL FILLER,TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-94310-917-0	01	1	0604-0604			●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0604-0604	●		●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0605-0606	●		●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	0605-0606			●	●
417	PLUG; OIL FILLER,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-373-0	01	1	0607-	●			●
417	PLUG; OIL FILLER,TRANS IMA	8-97365-373-0	01	1	0607-				●
421	COVER; RR,TRANS 4X2<TFB***> THA	8-97039-528-2	01	1	0303-0309		●
421	COVER; RR,TRANS 4X2<TFB***> THA	8-97373-749-0	01	1	0310-0408		●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB> THA	8-97373-749-0	01	1	0409-0412			●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97373-749-0	01	1	0501-0504			●	●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98014-386-0	01	1	0505-0606			●	●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98014-386-0	01	1	0607-1202				●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98191-921-0	01	1	1203-1405				●
421	COVER; RR,TRANS 4X2<TFB***> 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97978-059-0	01	1	1406-				●
421	COVER; RR,TRANS 4X4<TFS***> THA	8-97301-224-2	01	1	0303-0408		●
421	COVER; RR,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97301-224-2	01	1	0409-0606			●
421	COVER; RR,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-97301-224-2	01	1	0607-1208				●
421	COVER; RR,TRANS 4X4<TFS***> 4JJ1 ENG<LFB> THA	8-98214-237-0	01	1	1209-				●
429	PIN; STRAIGHT (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0303-0408		●
429	PIN; STRAIGHT 4JJ1 ENG<LFB> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0409-0412			●
429	PIN; STRAIGHT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0501-0606			●	●
429	PIN; STRAIGHT 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> (A) OD=10 L=40 IMA	5-09740-018-1	02	1	0607-				●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0303-0408		●
429	PIN; STRAIGHT 4X4<TFS***> 4JJ1 ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0409-0606			●
429	PIN; STRAIGHT 4X4<TFS***> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-	●
429	PIN; STRAIGHT 4X4<TFS***> 4JJ1 ENG<LFB> (B) OD=10 L=20 IMA	8-97135-423-0	02	1	0607-				●
430	PLUG; OIL DRAIN 4X4<TFS***> THA	9-09662-004-0	01	1	0303-0408	●	●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0303-0408		●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> THA	9-09662-004-0	01	1	0409-0412	●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0409-0412			●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> THA	9-09662-004-0	01	1	0501-0603	●		●
430	PLUG; OIL DRAIN THA	9-09662-004-0	01	1	0501-0603			●	●
430	PLUG; OIL DRAIN 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	9-09662-004-0	01	1	0604-0604			●	●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0604-0604	●		●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0605-0606	●		●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0605-0606			●	●
430	PLUG; OIL DRAIN 4X4<TFS***> 4JJ1 ENG<LFB> IMA	8-97365-374-0	01	1	0607-	●			●
430	PLUG; OIL DRAIN IMA	8-97365-374-0	01	1	0607-				●
435	CASE; TRANS THA	8-97252-840-1	01	1	0303-0312		●
435	CASE; TRANS THA	8-97376-845-0	01	1	0401-0408		●
435	CASE; TRANS 4JJ1 ENG<LFB> THA	8-97376-845-0	01	1	0409-0412			●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-97376-845-0	01	1	0501-0604			●	●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98047-231-0	01	1	0605-0606			●	●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> THA	8-98047-231-0	01	1	0607-1004				●
435	CASE; TRANS 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> IMA	8-98047-230-0	01	1	1005-				●
455	SCREW; BRG RET M8X22 THA	8-97062-754-0	04	1	0303-0408		●
455	SCREW; BRG RET 4JJ1 ENG<LFB> M8X22 THA	8-97062-754-0	04	1	0409-0412			●
455	SCREW; BRG RET 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 THA	8-97062-754-0	04	1	0501-0604			●	●
455	SCREW; BRG RET 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 IMA	8-98035-654-0	04	1	0605-0606			●	●
455	SCREW; BRG RET 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M8X22 IMA	8-98035-654-0	04	1	0607-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
