Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#4866) — 363 parça

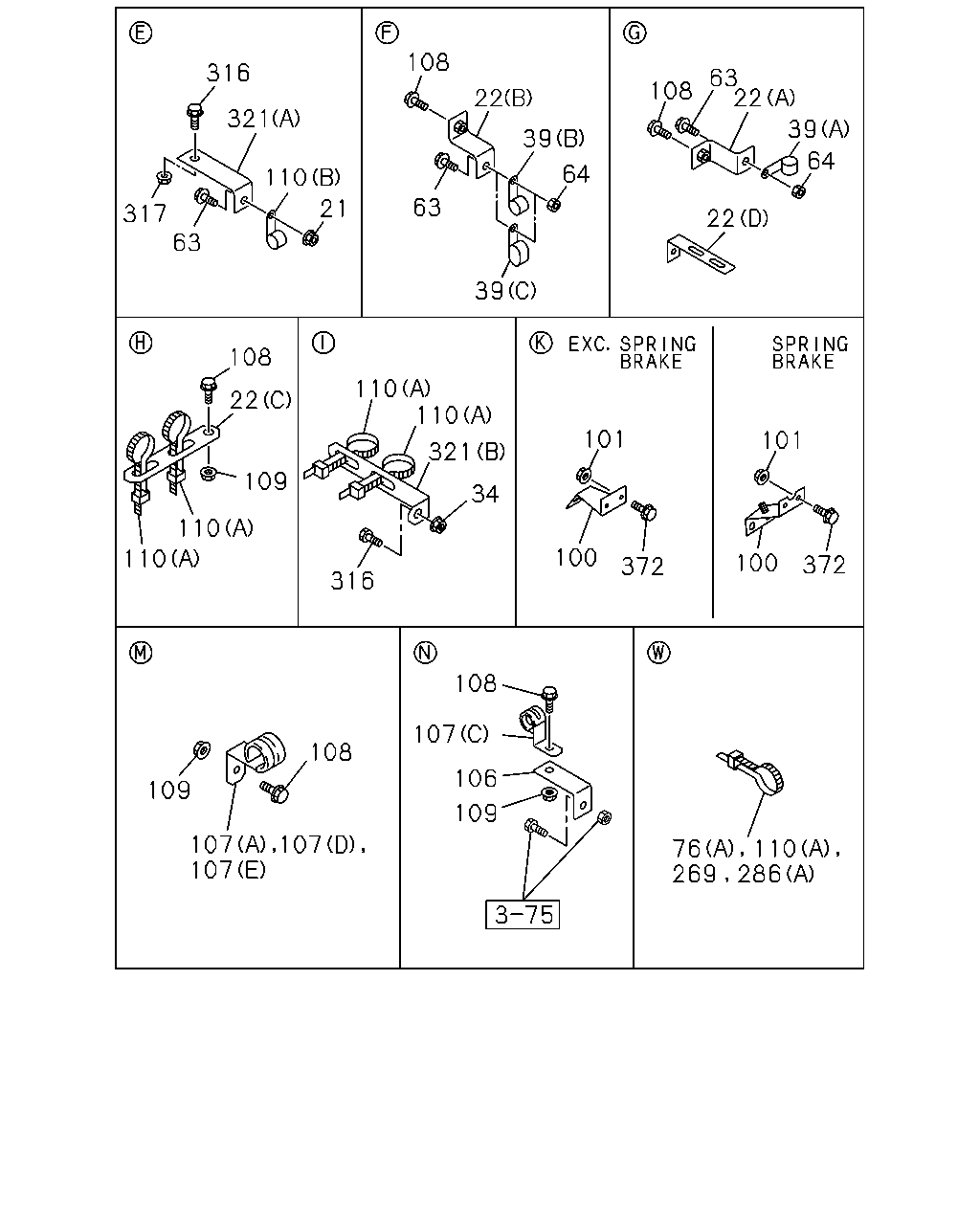

108 316 63 22 108 22 321 39 39 64 64 110 63 21 317 63 22 39 108 110 110 22 101 101 321 109 34 110 100 110 100 372 372 316 108 107 108 106 109 109 107 107 107 76 110 269 286

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; CLIP M8	9-09110-408-0	01	1	9601-9606
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
22	BRACKET; CLIP (A)	1-47475-689-0	01	1	9601-9602
22	BRACKET; CLIP ISUZU M/T<X9A>,FULLER M/T<X9B> (A)	1-47475-689-0	01	1	9603-
22	BRACKET; CLIP (B)	1-47476-200-0	01	1	9601-9601
22	BRACKET; CLIP (C)	1-47477-514-3	02	1	9601-
22	BRACKET; CLIP ZF M/T<X9E> (A)	1-47477-088-1	01	1	9603-
22	BRACKET; CLIP ZF M/T<X9E> (D) L=100 H=30	1-47477-645-1	01	1	9603-9612
22	BRACKET; CLIP FULLER M/T<X9B>,ZF M/T<X9E> (D) L=100 H=30	1-47477-645-2	01	1	9701-
34	NUT; BRKT M8	9-09110-408-0	01	1	9601-9606
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9607-
39	CLIP; AIR PIPE (A) L=250	1-09707-126-0	01	1	9601-9601
39	CLIP; AIR PIPE (A) L=250	1-09707-126-0	02	1	9602-
39	CLIP; AIR PIPE HONG KONG EQUIPMENT(PQ1) (B) ID=9	9-09524-825-0	01	1	9601-9601
39	CLIP; AIR PIPE EXC. HONG KONG EQUIPMENT(PQ1) (C) ID=9X2 L=16	9-09534-825-0	01	1	9601-9601
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	03	1	9601-9601
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9602-9606
63	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-9708
63	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
63	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
64	NUT; CLIP M8	9-09110-408-0	02	1	9601-9601
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	10	1	9601-9601
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9602-
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9602-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9601-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9701-
76	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	01	1	9601-9610
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	01	1	9611-9912
76	CLIP; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	01	1	0001-
100	BRACKET; PIPE CLIP	1-47477-369-1	01	1	9601-9604
100	BRACKET; PIPE CLIP	1-47477-770-0	01	1	9605-9610
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-770-0	01	1	9611-
100	BRACKET; PIPE CLIP	1-47477-365-0	01	1	9601-9610
100	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-365-0	01	1	9611-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-452-0	01	1	9611-
100	BRACKET; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR)	1-47477-481-0	01	1	9611-
101	NUT; CLIP BRKT M8	9-09110-508-0	04	1	9601-9606
101	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	04	1	9607-
106	BRACKET; TUBE CLIP	1-47477-694-0	01	1	9601-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9601-
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-
107	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9601-9610
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9611-9904
107	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9601-9610
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9611-9904
107	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (E) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	9601-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	9607-
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9601-9601
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9602-9606
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	05	1	9607-0103
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0104-
108	BOLT; TUBE CLIP HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	01	1	9601-9601
108	BOLT; TUBE CLIP HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28080-825-0	01	1	9602-9606
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9602-9606
108	BOLT; TUBE CLIP HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28680-830-0	01	1	9607-9610
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-9610
108	BOLT; TUBE CLIP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28680-830-0	01	1	9611-9612
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9611-9612
108	BOLT; TUBE CLIP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28680-830-0	01	1	9701-9912
108	BOLT; TUBE CLIP EXC. ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9912
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9701-9912
108	BOLT; TUBE CLIP EXC. ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	0001-
108	BOLT; TUBE CLIP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28680-830-0	01	1	0001-
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0001-
109	NUT; TUBE CLIP M8	9-09110-408-0	02	1	9601-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	9607-
109	NUT; TUBE CLIP M8	9-09110-408-0	05	1	9601-9606
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	05	1	9607-
109	NUT; TUBE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9601-9601
109	NUT; TUBE CLIP M8	9-09110-408-0	01	1	9601-9601
109	NUT; TUBE CLIP HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	01	1	9602-9606
109	NUT; TUBE CLIP HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	01	1	9607-9610
109	NUT; TUBE CLIP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	01	1	9611-9612
109	NUT; TUBE CLIP NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	01	1	9701-9912
109	NUT; TUBE CLIP EXC. ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9912
109	NUT; TUBE CLIP EXC. ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	0001-
109	NUT; TUBE CLIP BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	01	1	0001-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	01	1	0104-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	16	1	9601-9602
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9603-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	09	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	09	1	9601-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9601-9610
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9611-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9601-9603
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE 6WA1 TC-S(56L) (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE 6WA1 TC-S(56L) (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	02	1	9601-9610
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	02	1	9611-9912
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	02	1	0001-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=40	1-09700-973-0	01	1	9601-9601
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9602-
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=31 L=30	1-09700-969-0	01	1	9601-9601
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	01	1	9602-9602
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09701-261-0	01	1	9905-
269	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	09	1	9601-9610
269	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	11	1	9611-9912
269	CLIP; BAND,NYLON TUBE BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	11	1	0001-
269	CLIP; BAND,NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5) L=250	1-09707-126-0	09	1	9611-9912
269	CLIP; BAND,NYLON TUBE EXC. BRAKE REGULATION ECE<TDV> L=250	1-09707-126-0	09	1	0001-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9611-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9601-9904
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9905-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9601-
316	BOLT; CLIP M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
316	BOLT; CLIP M8X35 FLANGE	0-28080-835-0	01	1	9601-9606
316	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	9607-
316	BOLT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28680-830-0	02	1	9611-9612
317	NUT; CLIP NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	02	1	9611-9612
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	9601-
321	BRACKET; CLIP (A) L=145 B=25	1-47477-697-0	01	1	9601-9601
321	BRACKET; CLIP (D)	1-47477-745-0	01	1	9602-9609
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (D)	1-47477-745-0	01	1	9611-9711
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (D)	1-47477-745-0	01	1	9712-9903
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (D) L=100 H=30	1-47477-645-2	01	1	9701-9908
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (D) L=100 H=30	1-47477-645-2	01	1	9909-
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (D)	1-47477-810-0	01	1	9611-9711
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (D)	1-47477-810-0	01	1	9712-9903
321	BRACKET; CLIP (D)	1-47477-810-0	01	1	9904-
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-2	01	1	9601-
321	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (D) L=100 H=30	1-47477-645-2	02	1	9611-9912
321	BRACKET; CLIP BRAKE REGULATION ECE<TDV> (D) L=100 H=30	1-47477-645-2	02	1	0001-
372	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	04	1	9601-9606
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28680-830-0	04	1	9607-

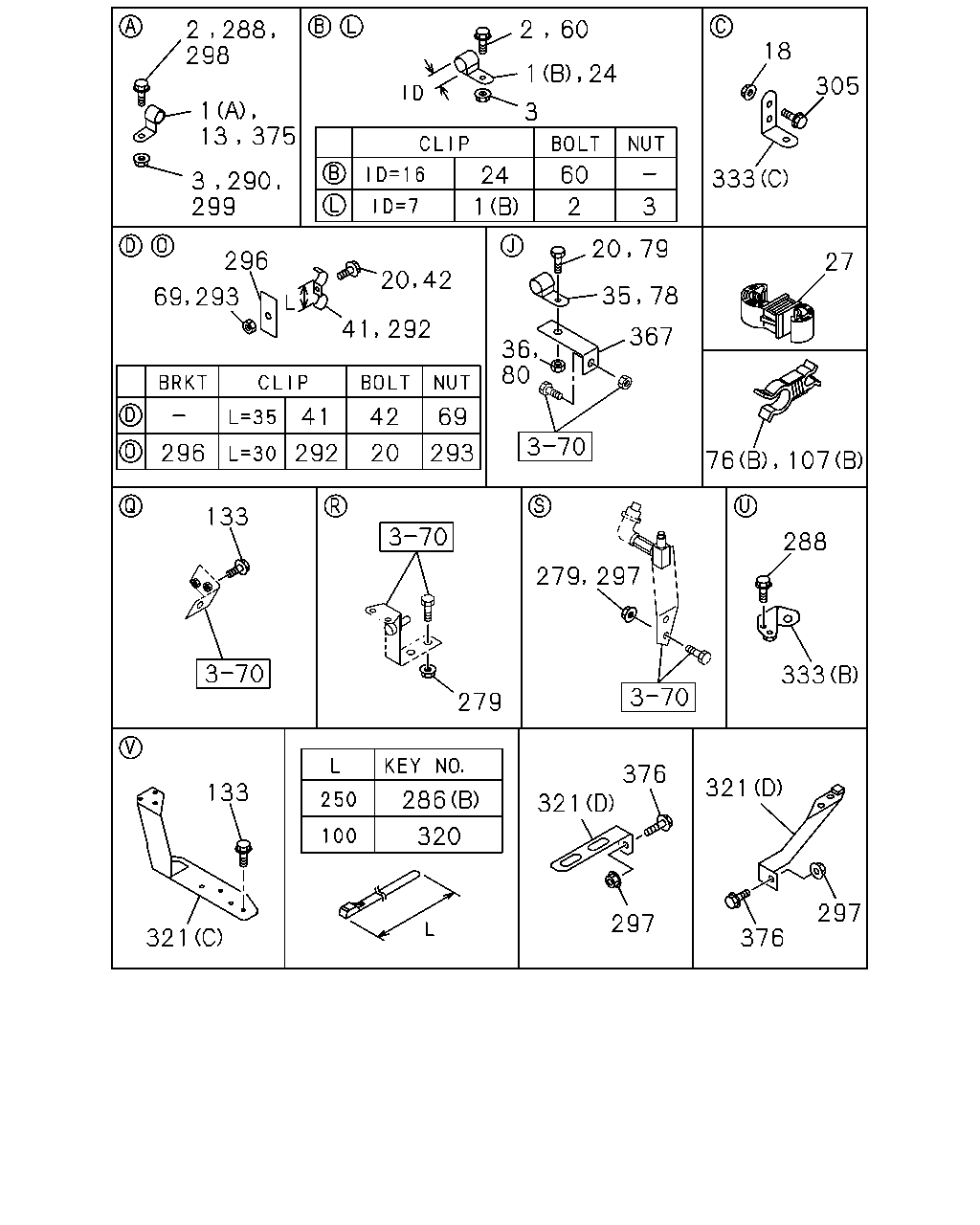

2 60 298 18 305 1 3 60 24 333 299 1 2 3 296 27 367 36 80 42 69 41 296 292 20 293 76 107 133 288 333 279 376 321 321 133 286 320 297 297 321 376 2 288 1 24 13 375 3 290 69 293 20 42 41 292 279 297 20 79 78 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9601-9609
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. EURO2 SPECIFICATION<THN> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9610-9904
1	CLIP; AIR PIPE L TYPE ENG<90L> (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9905-
1	CLIP; AIR PIPE L TYPE ENG<90L> (B) ID=7 L=20	9-09524-635-0	01	1	9601-9609
1	CLIP; AIR PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. EURO2 SPECIFICATION<THN> (B) ID=7 L=20	9-09524-635-0	01	1	9610-9904
1	CLIP; AIR PIPE V TYPE ENG<91L> (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
2	BOLT; CLIP FIX 6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. EURO2 SPECIFICATION<THN> M8X25 FLANGE	0-28680-825-0	02	1	9611-9904
2	BOLT; CLIP FIX L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	02	1	9905-
2	BOLT; CLIP FIX V TYPE ENG<91L> M8X20 FLANGE	0-28680-820-0	01	1	9905-
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8	9-09110-508-0	02	1	9601-9606
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-9609
3	NUT; CLIP,AIR PIPE 6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. EURO2 SPECIFICATION<THN> M8 FLANGE	0-91150-108-0	02	1	9611-9904
3	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-
3	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-
13	CLIP; AIR PIPE 10PE1S(60L) ID=6 H=20 L=20	1-09700-603-0	02	1	9601-9904
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0001
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	01	1	9905-0001
13	CLIP; AIR PIPE V TYPE ENG<91L> ID=6 H=20 L=20	1-09700-603-0	02	1	0002-
18	NUT; CLIP 10PE1S(60L) M8	9-09110-508-0	02	1	9601-9606
18	NUT; CLIP 10PE1S(60L) M8 FLANGE	0-91150-108-0	02	1	9607-9904
18	NUT; CLIP V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9905-
20	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	01	1	9603-9606
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9607-
20	BOLT; CLIP 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	01	1	9601-9606
20	BOLT; CLIP EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	01	1	9601-9606
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	9607-
24	CLIP; PIPE ISUZU M/T<X9A> ID=16 L=20	9-09525-535-0	02	1	9601-0004
24	CLIP; PIPE MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7R M/T(Y2X) ID=16 L=20	9-09525-535-0	02	1	0005-
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=40	9-09525-576-0	01	1	9601-9608
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=20	9-09525-535-0	01	1	9609-9612
24	CLIP; PIPE ZF M/T<X9E> ID=16 L=28	9-09525-556-0	01	1	9701-
27	CLIP; FLEX HOSE 6WA1 TC-C(55L) ID=10 & 10	1-09709-277-1	01	1	0105-
35	CLIP; AIR PIPE 6WA1 TC-S(56L) ID=16 L=28	9-09525-556-0	01	1	9601-9606
35	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9601-9606
36	NUT; CLIP 6WA1 TC-S(56L) M8	9-09110-408-0	03	1	9601-9606
36	NUT; CLIP EXC. AIR DRYER<PS7> M8	9-09110-408-0	03	1	9601-9606
36	NUT; CLIP 6WA1 TC-S(56L) M8 FLANGE	0-91150-108-0	03	1	9607-9607
36	NUT; CLIP EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	03	1	9607-9607
41	CLIP; AIR PIPE L TYPE ENG<90L> ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9601-
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
42	BOLT; CLIP,AIR PIPE L TYPE ENG<90L> M8X20 FLANGE	0-28680-820-0	01	1	9905-
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
60	BOLT; CLIP FIX ISUZU M/T<X9A> M8X25 FLANGE	0-28680-825-0	02	1	9607-0004
60	BOLT; CLIP FIX MJA7U M/T(X6G),MJA6A M/T(X6V),MJD7R M/T(Y2X) M8X25 FLANGE	0-28680-825-0	02	1	0005-
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
60	BOLT; CLIP FIX ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
60	BOLT; CLIP FIX ZF M/T<X9E> M8X20 FLANGE	0-28680-820-0	01	1	9905-
69	NUT; CLIP,AIR PIPE L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9601-
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	10	1	9601-9601
76	CLIP; NYLON TUBE (A) L=250	1-09707-126-0	09	1	9602-
76	CLIP; NYLON TUBE (A) L=350	8-94152-256-1	01	1	9602-
76	CLIP; NYLON TUBE AIR DRYER<PS7> (A) L=250	1-09707-126-0	02	1	9601-
76	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> (B) ID=6 & 8.3	8-94167-742-0	02	1	9701-
76	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	01	1	9601-9610
76	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	01	1	9611-9912
76	CLIP; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	01	1	0001-
78	CLIP; AIR PIPE EXC. AIR DRYER<PS7> ID=16 L=28	9-09525-556-0	01	1	9601-
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
79	BOLT; PIPE CLIP EXC. AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	01	1	9607-
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8	9-09110-508-0	01	1	9601-9606
80	NUT; CLIP,AIR PIPE EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9607-
107	CLIP; NYLON TUBE (C) ID=35 H=45 L=33	1-09701-047-0	03	1	9601-
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	9905-0005
107	CLIP; NYLON TUBE DUAL AIR GAUGE<UG2> ISUZU M/T<X9A>,FULLER M/T<X9B> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=29 H=50 L=45.5	1-09701-027-0	03	1	0006-
107	CLIP; NYLON TUBE FULL FLOATING CAB<W16> (B) ID=11.8 & 7.5	1-09709-182-0	01	1	9601-
107	CLIP; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9601-9610
107	CLIP; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) ID=34.5 H=23 L=27.5	1-09700-905-0	02	1	9611-9904
107	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=39 H=28 L=32	1-09701-263-0	02	1	9905-
107	CLIP; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9601-9610
107	CLIP; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) ID=31.5 H=23 L=25	1-09701-017-0	02	1	9611-9904
107	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (E) ID=27.5 H=23 L=24	1-09700-863-0	02	1	9905-
133	BOLT; BRKT ZF M/T<X9E> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
133	BOLT; BRKT 6WA1 TC-S(56L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
133	BOLT; BRKT ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9607-9610
133	BOLT; BRKT 6WA1 TC-S(56L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9610
133	BOLT; BRKT FULLER M/T<X9B>,ZF M/T<X9E> M8X25 FLANGE	0-28680-825-0	02	1	9611-
133	BOLT; BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	02	1	9611-
279	NUT; BRKT M8	9-09110-508-0	02	1	9601-9606
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9601-9606
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9904
279	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-
286	CLIP; NYLON TUBE FULLER M/T<X9B> (A) L=250	1-09707-126-0	02	1	9611-
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9601-9904
286	CLIP; NYLON TUBE ISUZU M/T<X9A> (B) L=250	5-09707-030-1	01	1	9905-
286	CLIP; NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	05	1	9601-
288	BOLT; CLIP,AIR PIPE 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
288	BOLT; CLIP,AIR PIPE 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	01	1	9607-9904
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	01	1	9905-0001
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	04	1	0002-
288	BOLT; CLIP,AIR PIPE 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	03	1	9601-9606
288	BOLT; CLIP,AIR PIPE 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904
288	BOLT; CLIP,AIR PIPE V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	03	1	9905-0001
290	NUT; CLIP,AIR PIPE 10PE1S(60L) M8	9-09110-508-0	01	1	9601-9606
290	NUT; CLIP,AIR PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9607-9904
290	NUT; CLIP,AIR PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9905-0001
290	NUT; CLIP,AIR PIPE V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	0002-
290	NUT; CLIP,AIR PIPE 10PE1S(60L) M8	9-09110-508-0	03	1	9601-9606
290	NUT; CLIP,AIR PIPE 10PE1S(60L) M8 FLANGE	0-91150-108-0	03	1	9607-9904
292	CLIP; AIR PIPE ID=7 & 7 L=15 & 15	1-09700-652-0	01	1	9601-9904
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9603-9904
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9905-
293	NUT; CLIP M8	9-09110-508-0	05	1	9601-9602
293	NUT; CLIP M8	9-09110-508-0	01	1	9603-9606
293	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9607-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9601-9602
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9603-
296	BRACKET; CLIP L=50	1-47475-299-2	01	1	9603-
297	NUT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8 FLANGE	0-91150-108-0	01	1	9701-9908
297	NUT; BRKT EXC. AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	01	1	9909-
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-110-0	02	1	9601-9606
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9607-9904
297	NUT; BRKT ISUZU M/T<X9A> M10 FLANGE	0-91150-210-0	02	1	9905-
297	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8 FLANGE	0-91150-108-0	02	1	9701-9912
297	NUT; BRKT BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0001-
298	BOLT; CLIP 6WA1 TC-C(55L) M8X20 FLANGE	0-28680-820-0	01	1	9905-
299	NUT; CLIP 6WA1 TC-C(55L) M8 FLANGE	0-91150-108-0	01	1	9905-
305	BOLT; CLIP BRKT 10PE1S(60L) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
305	BOLT; CLIP BRKT 10PE1S(60L) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904
305	BOLT; CLIP BRKT V TYPE ENG<91L> M8X25 FLANGE	0-28680-825-0	02	1	9905-
320	CLIP; BAND,FLEX FIX L=100	5-09707-036-1	01	1	9601-0103
320	CLIP; BAND,FLEX FIX L=140	5-09707-031-1	01	1	0104-0104
321	BRACKET; CLIP (B) L=150 H=30	1-47477-629-2	01	1	9601-
321	BRACKET; CLIP (A) L=145 B=25	1-47477-697-0	01	1	9601-9601
321	BRACKET; CLIP (D)	1-47477-745-0	01	1	9602-9609
321	BRACKET; CLIP EXC. EURO2 SPECIFICATION<THN> (D)	1-47477-745-0	01	1	9611-9711
321	BRACKET; CLIP EXC. ELECTRONIC GOV RED3(KG5) (D)	1-47477-745-0	01	1	9712-9903
321	BRACKET; CLIP EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> (D) L=100 H=30	1-47477-645-2	01	1	9701-9908
321	BRACKET; CLIP EXC. AIR DRYER<PS7> (D) L=100 H=30	1-47477-645-2	01	1	9909-
321	BRACKET; CLIP EURO2 SPECIFICATION<THN> (D)	1-47477-810-0	01	1	9611-9711
321	BRACKET; CLIP ELECTRONIC GOV RED3(KG5) (D)	1-47477-810-0	01	1	9712-9903
321	BRACKET; CLIP (D)	1-47477-810-0	01	1	9904-
321	BRACKET; CLIP L TYPE ENG<90L> (C)	1-47477-386-2	01	1	9601-
321	BRACKET; CLIP NEW ZEALAND EQUIPMENT(PK5) (D) L=100 H=30	1-47477-645-2	02	1	9611-9912
321	BRACKET; CLIP BRAKE REGULATION ECE<TDV> (D) L=100 H=30	1-47477-645-2	02	1	0001-
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9601-
333	BRACKET; BRK AIR PIPE 10PE1S(60L) (B)	1-47477-254-0	01	1	9601-9702
333	BRACKET; BRK AIR PIPE 10PE1S(60L) (B)	1-47477-818-0	01	1	9703-9904
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9905-
333	BRACKET; BRK AIR PIPE 10PE1S(60L) (C)	1-47477-337-0	01	1	9601-9904
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9905-
367	BRACKET ASM 6WA1 TC-S(56L) L=55	1-47475-304-0	01	1	9601-9606
367	BRACKET ASM EXC. AIR DRYER<PS7> L=55	1-47475-304-0	01	1	9601-9606
375	CLIP; AIR PIPE 6WA1 TC-C(55L) ID=6 H=20 L=20	1-09700-603-0	01	1	9905-
376	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9601-9602
376	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9601-9602
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28680-830-0	02	1	9701-9912
376	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28680-830-0	02	1	0001-

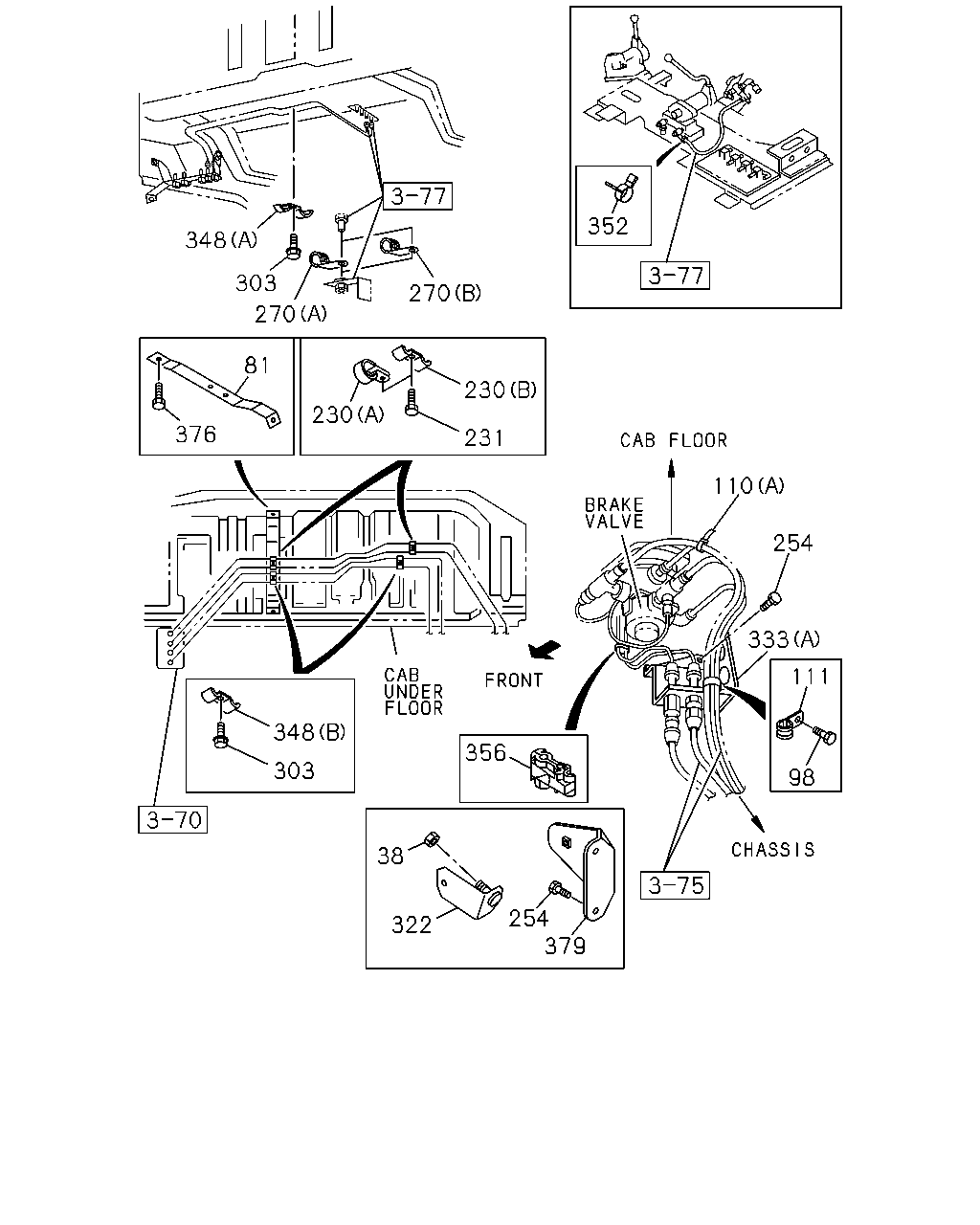

352 348 303 270 270 81 230 230 376 231 110 254 333 111 348 356 303 98 38 254 379 322

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9601-
81	BRACKET; CLIP	1-47477-483-0	02	1	9601-9904
81	BRACKET; CLIP	1-47477-483-0	01	1	9905-
81	BRACKET; CLIP	1-47477-483-0	01	1	9905-
98	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	9607-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	02	1	0104-
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=140	5-09707-031-1	01	1	0104-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	16	1	9601-9602
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9603-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	09	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	09	1	9601-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	05	1	9601-9610
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	07	1	9611-9904
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	17	1	9905-
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9601-9603
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE 6WA1 TC-S(56L) (A) L=250	1-09707-126-0	01	1	9604-9608
110	CLIP; BAND,NYLON TUBE (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE 6WA1 TC-S(56L) (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE ZF M/T<X9E> (A) L=250	1-09707-126-0	01	1	9609-
110	CLIP; BAND,NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	02	1	9601-9610
110	CLIP; BAND,NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) L=250	1-09707-126-0	02	1	9611-9912
110	CLIP; BAND,NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) L=250	1-09707-126-0	02	1	0001-
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=40	1-09700-973-0	01	1	9601-9601
110	CLIP; BAND,NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=35 L=33	1-09700-945-0	01	1	9602-
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=31 L=30	1-09700-969-0	01	1	9601-9601
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	01	1	9602-9602
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09700-995-1	01	1	9603-9904
110	CLIP; BAND,NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=40	1-09701-261-0	01	1	9905-
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	9601-
230	CLIP; PIPE,AIR (B) ID=11 & 9 L=15 & 15	1-09700-062-0	02	1	9601-
230	CLIP; PIPE,AIR PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=9 L=16	9-09524-822-0	02	1	9601-
231	BOLT; CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9601-9602
231	BOLT; CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	05	1	9601-
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9601-9610
254	BOLT; PIPE CLIP BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) EXC. ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9611-
254	BOLT; PIPE CLIP ELECTRONIC GOV RED3(KG5) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	9611-
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	03	1	9601-9601
270	CLIP; NYLON TUBE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=35 L=33	1-09700-945-0	02	1	9602-
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	03	1	9601-9601
270	CLIP; NYLON TUBE EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B) ID=28 L=32	1-09701-107-1	02	1	9602-
303	BOLT; PIPE CLIP M6X16 W/LK WASHER	0-50040-616-0	02	1	9601-9602
303	BOLT; PIPE CLIP M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
322	BRACKET; CLIP	1-79996-311-1	01	1	9601-9612
322	BRACKET; CLIP	1-79996-360-0	01	1	9701-
333	BRACKET; BRK AIR PIPE (A)	1-79997-360-6	01	1	9601-
333	BRACKET; BRK AIR PIPE 10PE1S(60L) (B)	1-47477-254-0	01	1	9601-9702
333	BRACKET; BRK AIR PIPE 10PE1S(60L) (B)	1-47477-818-0	01	1	9703-9904
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (B)	1-47477-818-0	01	1	9905-
333	BRACKET; BRK AIR PIPE 10PE1S(60L) (C)	1-47477-337-0	01	1	9601-9904
333	BRACKET; BRK AIR PIPE V TYPE ENG<91L> (C)	1-47477-337-1	01	1	9905-
348	CLIP; AIR PIPE (B) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9601-
348	CLIP; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48> (A) ID=13X2 L=16	9-09535-225-0	02	1	9601-
352	CLIP; EXH HOSE ID=14	8-94238-572-0	02	1	9601-
356	CLIP; AIR PIPE BLACK	8-94222-876-0	01	1	9601-9912
356	CLIP; AIR PIPE TRANSMISSION-ZF 16S151 OD(Y2N) DUAL AIR GAUGE<UG2> EXC. ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) BLACK	8-94222-876-0	01	1	0001-
356	CLIP; AIR PIPE ISRINGHAUSEN SEAT(SJA),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-
356	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> BLACK	8-94222-876-0	01	1	0001-
376	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9601-9602
376	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	02	1	9601-9602
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
376	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9603-
376	BOLT; BRKT EXC. AIR DRYER<PS7>,ISUZU M/T<X9A> M8X30 FLANGE	0-28680-830-0	01	1	9701-9908
376	BOLT; BRKT EXC. AIR DRYER<PS7> M8X30 FLANGE	0-28680-830-0	01	1	9909-
376	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8X30 FLANGE	0-28680-830-0	02	1	9701-9912
376	BOLT; BRKT BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28680-830-0	02	1	0001-
379	BRACKET; NYLON TUBE	1-79996-110-1	01	1	9601-9610
379	BRACKET; NYLON TUBE BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) EXC. ELECTRONIC GOV RED3(KG5)	1-79996-110-2	01	1	9611-
379	BRACKET; NYLON TUBE ELECTRONIC GOV RED3(KG5)	1-79996-110-2	01	1	9611-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
