2-08 — CLUTCH MASTER CYLINDER (#48659) — 86 parça

1 1 11 12 3 13 10 42 87 4 31 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED<RMN> THA	8-97943-432-0	01	1	0303-0408	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5G<RSP> THA	8-97943-432-0	01	1	0409-0412		●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97943-432-0	01	1	0501-0606		●	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-438-0	01	1	0607-		●	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-94412-201-0	01	1	0303-0408	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-201-0	01	1	0409-0412		●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94412-201-0	01	1	0501-0606		●	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-449-0	01	1	0607-		●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED<RMN> M8 THA	9-09111-408-0	01	1	0303-0408	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5G<RSP> M8 THA	9-09111-408-0	01	1	0409-0412		●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8 THA	9-09111-408-0	01	1	0501-0512		●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8 IMA	0-91111-508-0	01	1	0601-0606		●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ> M8 IMA	0-91111-508-0	01	1	0607-		●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97184-654-0	01	1	0303-0408	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97184-654-0	01	1	0409-0412		●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97184-654-0	01	1	0501-0606		●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-654-0	01	1	0607-		●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97942-836-0	01	1	0303-0408	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-836-0	01	1	0409-0412		●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-836-0	01	1	0501-0606		●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-836-0	01	1	0607-		●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-94412-206-0	01	1	0303-0408	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-206-0	01	1	0409-0412		●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94412-206-0	01	1	0501-0606		●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-206-0	01	1	0607-		●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED<RMN> THA	8-94412-205-0	01	1	0303-0408	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5G<RSP> THA	8-94412-205-0	01	1	0409-0412		●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94412-205-0	01	1	0501-0606		●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-205-0	01	1	0607-		●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97942-992-0	01	1	0303-0408	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-992-0	01	1	0409-0412		●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-992-0	01	1	0501-0606		●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-452-0	01	1	0607-		●	●
42	TANK; OIL,CLU M/T MUA 5 SPEED<RMN> THA	8-97942-835-0	01	1	0303-0408	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5G<RSP> THA	8-97942-835-0	01	1	0409-0412		●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-835-0	01	1	0501-0606		●	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-835-0	01	1	0607-		●	●
83	CYLINDER SUB ASM; CLUTCH MASTER M/T MUA 5 SPEED<RMN> THA	8-97942-830-0	01	1	0303-0408	●
83	CYLINDER SUB ASM; CLUTCH MASTER M/T MUA 5 SPEED 5G<RSP> THA	8-97942-830-0	01	1	0409-0412		●
83	CYLINDER SUB ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-830-0	01	1	0501-0606		●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97942-834-0	01	1	0303-0408	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-834-0	01	1	0409-0412		●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-834-0	01	1	0501-0606		●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-834-0	01	1	0607-		●	●

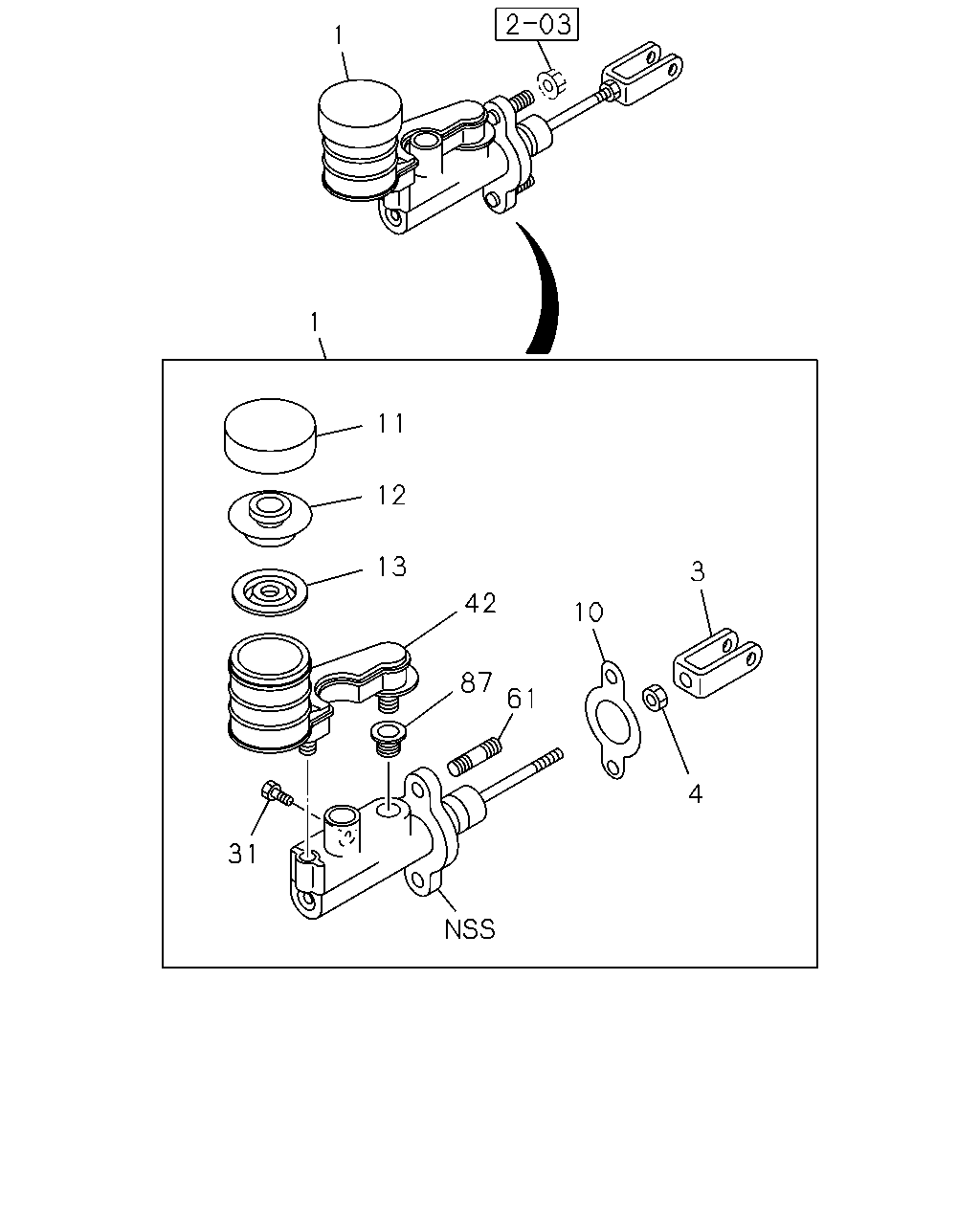

1 1 11 12 13 3 42 10 87 61 4 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED<RMN> THA	8-97943-432-0	01	1	0303-0408	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5G<RSP> THA	8-97943-432-0	01	1	0409-0412		●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97943-432-0	01	1	0501-0606		●	●
1	CYLINDER ASM; CLUTCH MASTER M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-438-0	01	1	0607-		●	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-94412-201-0	01	1	0303-0408	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-201-0	01	1	0409-0412		●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94412-201-0	01	1	0501-0606		●	●
3	JOINT; JAW,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-449-0	01	1	0607-		●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED<RMN> M8 THA	9-09111-408-0	01	1	0303-0408	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5G<RSP> M8 THA	9-09111-408-0	01	1	0409-0412		●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8 THA	9-09111-408-0	01	1	0501-0512		●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8 IMA	0-91111-508-0	01	1	0601-0606		●	●
4	NUT; JAW JOINT M/T MUA 5 SPEED 5H<MWQ> M8 IMA	0-91111-508-0	01	1	0607-		●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97184-654-0	01	1	0303-0408	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97184-654-0	01	1	0409-0412		●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97184-654-0	01	1	0501-0606		●	●
10	GASKET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97184-654-0	01	1	0607-		●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97942-836-0	01	1	0303-0408	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-836-0	01	1	0409-0412		●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-836-0	01	1	0501-0606		●	●
11	CAP; OUTER,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-836-0	01	1	0607-		●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-94412-206-0	01	1	0303-0408	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-94412-206-0	01	1	0409-0412		●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94412-206-0	01	1	0501-0606		●	●
12	CAP; INNER,OIL TANK,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-206-0	01	1	0607-		●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED<RMN> THA	8-94412-205-0	01	1	0303-0408	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5G<RSP> THA	8-94412-205-0	01	1	0409-0412		●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94412-205-0	01	1	0501-0606		●	●
13	GASKET; OIL TANK M/T MUA 5 SPEED 5H<MWQ> THA	8-94412-205-0	01	1	0607-		●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97942-992-0	01	1	0303-0408	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-992-0	01	1	0409-0412		●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-992-0	01	1	0501-0606		●	●
31	BOLT; JOINT,CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-452-0	01	1	0607-		●	●
42	TANK; OIL,CLU M/T MUA 5 SPEED<RMN> THA	8-97942-835-0	01	1	0303-0408	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5G<RSP> THA	8-97942-835-0	01	1	0409-0412		●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-835-0	01	1	0501-0606		●	●
42	TANK; OIL,CLU M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-835-0	01	1	0607-		●	●
61	BOLT; STUD M/T MUA 5 SPEED 5H<MWQ> THA	8-97945-450-0	02	1	0607-		●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED<RMN> THA	8-97942-834-0	01	1	0303-0408	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5G<RSP> THA	8-97942-834-0	01	1	0409-0412		●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-834-0	01	1	0501-0606		●	●
87	GROMMET; CLU M/CYL M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-834-0	01	1	0607-		●	●
