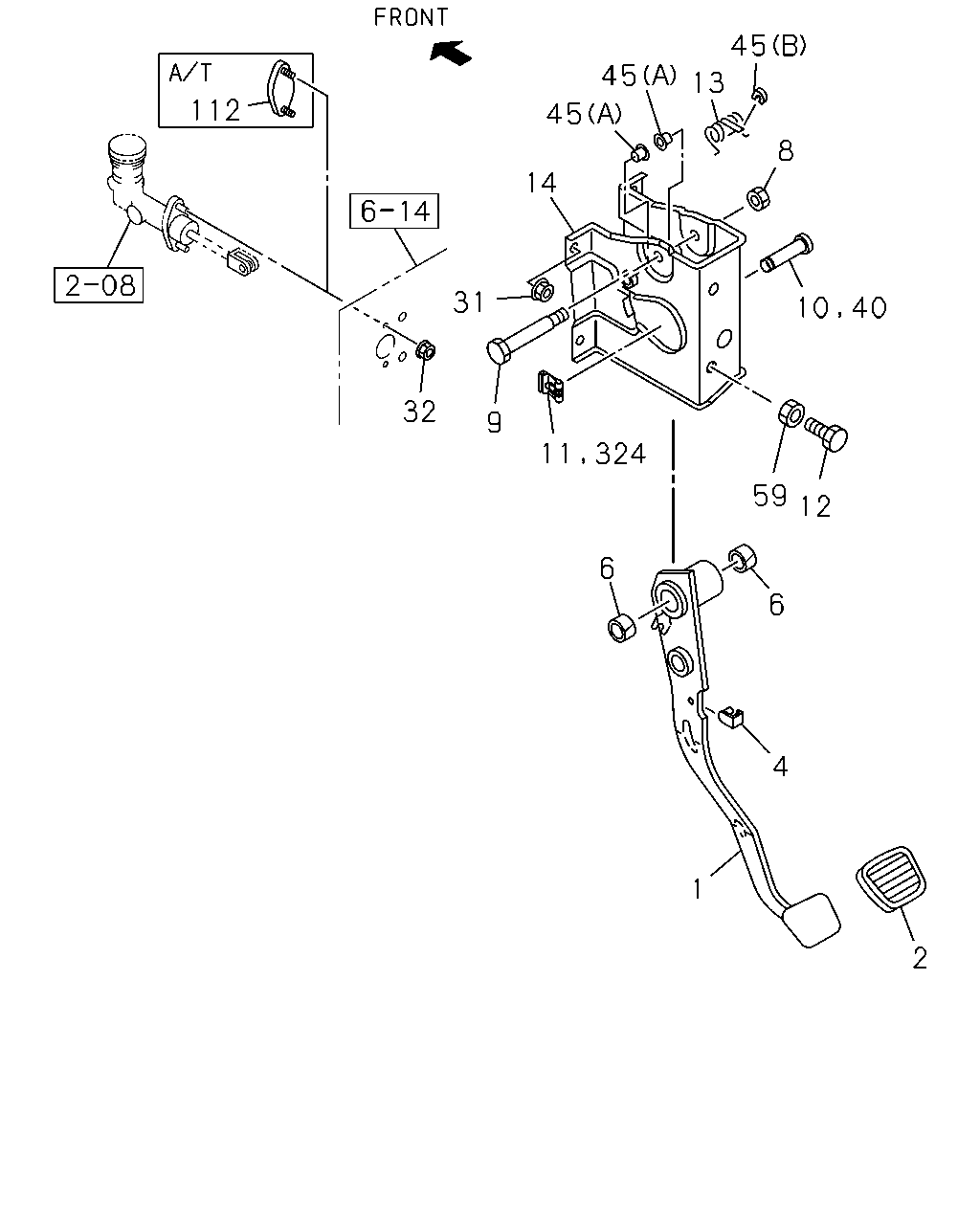

2-03 — CLUTCH PEDAL AND CONTROL (#48656) — 71 parça

45 45 13 112 45 8 14 31 32 9 324 11 59 12 6 6 4 1 2 10 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PEDAL; CLU M/T MUA 5 SPEED<RMN> THA	8-97942-311-0	01	1	0303-0408	●	●
1	PEDAL; CLU 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97942-311-0	01	1	0409-0412	●	●
1	PEDAL; CLU 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-311-0	01	1	0501-0606	●	●
1	PEDAL; CLU 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-311-0	01	1	0607-	●	●
2	COVER; CLU PEDAL M/T MUA 5 SPEED<RMN> THA	8-97318-799-0	01	1	0303-0408	●	●
2	COVER; CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97318-799-0	01	1	0409-0412	●	●
2	COVER; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97318-799-0	01	1	0501-0606	●	●
2	COVER; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97318-799-0	01	1	0607-	●	●
4	STOPPER; CLU PEDAL M/T MUA 5 SPEED<RMN> THA	8-94463-258-0	01	1	0303-0408	●	●
4	STOPPER; CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-94463-258-0	01	1	0409-0412	●	●
4	STOPPER; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-94463-258-0	01	1	0501-0606	●	●
4	STOPPER; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-94463-258-0	01	1	0607-	●	●
6	BUSHING; CLU PEDAL M/T MUA 5 SPEED<RMN> THA	8-97301-688-0	02	1	0303-0408	●	●
6	BUSHING; CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97301-688-0	02	1	0409-0412	●	●
6	BUSHING; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97301-688-0	02	1	0501-0606	●	●
6	BUSHING; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97301-688-0	02	1	0607-0908	●	●
8	NUT; PIN TO PEDAL M/T MUA 5 SPEED<RMN> M10 LOCK NUT FLANGE THA	0-91303-610-0	01	1	0303-0408	●	●
8	NUT; PIN TO PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> M10 LOCK NUT FLANGE THA	0-91303-610-0	01	1	0409-0412	●	●
8	NUT; PIN TO PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 LOCK NUT FLANGE THA	0-91303-610-0	01	1	0501-0606	●	●
8	NUT; PIN TO PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> M10 LOCK NUT FLANGE THA	0-91380-010-0	01	1	0607-	●	●
9	PIN; CLU PEDAL M/T MUA 5 SPEED<RMN> THA	8-97942-315-0	01	1	0303-0408	●	●
9	PIN; CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97942-315-0	01	1	0409-0412	●	●
9	PIN; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-315-0	01	1	0501-0606	●	●
9	PIN; CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-315-0	01	1	0607-	●	●
10	PIN; CLU PEDAL M/T MUA 5 SPEED<RMN> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	0303-0408	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5G<RSP> THA	8-97311-594-0	01	1	0409-0412	●	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97311-594-0	01	1	0501-0606	●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5G<RSP> THA	8-97311-594-0	01	1	0501-0606		●
11	PIN; SNAP,PUSH ROD TO PEDAL M/T MUA 5 SPEED 5H<MWQ> IMA	8-98007-161-0	01	1	0607-	●	●
12	BOLT; CLU PEDAL ADJ M/T MUA 5 SPEED<RMN> M10X35 THA	0-20851-035-0	01	1	0303-0408	●	●
12	BOLT; CLU PEDAL ADJ 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> M10X35 THA	0-20851-035-0	01	1	0409-0412	●	●
12	BOLT; CLU PEDAL ADJ 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10X35 THA	0-20851-035-0	01	1	0501-0606	●	●
12	BOLT; CLU PEDAL ADJ 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> M10X35 FLANGE THA	0-28651-035-0	01	1	0607-0710	●
12	BOLT; CLU PEDAL ADJ 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M10X35 FLANGE THA	0-28651-035-0	01	1	0607-0710		●
12	BOLT; CLU PEDAL ADJ M/T MUA 5 SPEED 5H<MWQ> M10X35 FLANGE THA	0-28651-035-0	01	1	0711-	●	●
13	SPRING; ASSIST,CLU PEDAL M/T MUA 5 SPEED<RMN> THA	8-97942-312-0	01	1	0303-0408	●	●
13	SPRING; ASSIST,CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97942-312-0	01	1	0409-0412	●	●
13	SPRING; ASSIST,CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-312-0	01	1	0501-0606	●	●
13	SPRING; ASSIST,CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-312-0	01	1	0607-	●	●
14	BRACKET ASM; CLU PEDAL MTG M/T MUA 5 SPEED<RMN> THA	8-97942-310-0	01	1	0303-0408	●	●
14	BRACKET ASM; CLU PEDAL MTG 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> THA	8-97942-310-0	01	1	0409-0412	●	●
14	BRACKET ASM; CLU PEDAL MTG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA	8-97942-310-0	01	1	0501-0606	●	●
14	BRACKET ASM; CLU PEDAL MTG 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> THA	8-97942-310-0	01	1	0607-	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED<RMN> M8 FLANGE THA	0-91180-108-0	04	1	0303-0408	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA	0-91180-108-0	04	1	0409-0412	●	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA	0-91180-108-0	04	1	0501-0606	●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5G<RSP> M8 FLANGE THA	0-91180-108-0	04	1	0501-0606		●
31	NUT; MTG BRKT TO BODY M/T MUA 5 SPEED 5H<MWQ> M8 FLANGE THA	0-91180-108-0	04	1	0607-	●	●
32	NUT; BRKT TO CLU M/CYL M8 FLANGE THA	0-91180-108-0	02	1	0303-	●	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5G<RSP> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	0409-0412	●	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	0501-0606	●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5G<RSP> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	0501-0606		●
40	PIN; JOINT,CLU DAMPER M/T MUA 5 SPEED 5H<MWQ> OD=7.9 L=27.5 IMA	8-97312-338-0	01	1	0607-	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED<RMN> (A) THA	8-97942-313-0	02	1	0303-0408	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97942-313-0	02	1	0409-0412	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (A) THA	8-97942-313-0	02	1	0501-0606	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (A) THA	8-97942-313-0	02	1	0607-	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL M/T MUA 5 SPEED<RMN> (B) THA	8-97942-314-0	01	1	0303-0408	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97942-314-0	01	1	0409-0412	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA	8-97942-314-0	01	1	0501-0606	●	●
45	BUSHING; ASSIST SPRING,CLU PEDAL 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> (B) THA	8-97942-314-0	01	1	0607-	●	●
59	NUT; CLU PEDAL ADJ M/T MUA 5 SPEED<RMN> M10 THA	0-91110-510-0	01	1	0303-0408	●	●
59	NUT; CLU PEDAL ADJ 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5G<RSP> M10 THA	0-91110-510-0	01	1	0409-0412	●	●
59	NUT; CLU PEDAL ADJ 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 THA	0-91110-510-0	01	1	0501-0606	●	●
59	NUT; CLU PEDAL ADJ 4JJ1 ENG<LFB>,4JK1 ENG<LKZ> M/T MUA 5 SPEED 5H<MWQ> M10 THA	0-91110-510-0	01	1	0607-0710	●
59	NUT; CLU PEDAL ADJ 4JJ1 ENG<LFB> M/T MUA 5 SPEED 5H<MWQ> M10 THA	0-91110-510-0	01	1	0607-0710		●
59	NUT; CLU PEDAL ADJ M/T MUA 5 SPEED 5H<MWQ> M10 THA	0-91110-510-0	01	1	0711-	●	●
112	PLUG; METAL,M/CYL A/T 4 SPEED-JATCO<RMK> THA	8-97911-271-1	01	1	0303-0408	●	●
112	PLUG; METAL,M/CYL 4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA	8-97911-271-1	01	1	0409-0606	●	●
112	PLUG; METAL,M/CYL A/T 4 SPEED-JATCO<RMK> THA	8-97945-168-0	01	1	0607-	●	●
324	PIN; PIN,CLU PEDAL M/T MUA 5 SPEED<RMN> THA	8-97311-594-0	01	1	0303-0408	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
