Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#48654) — 252 parça

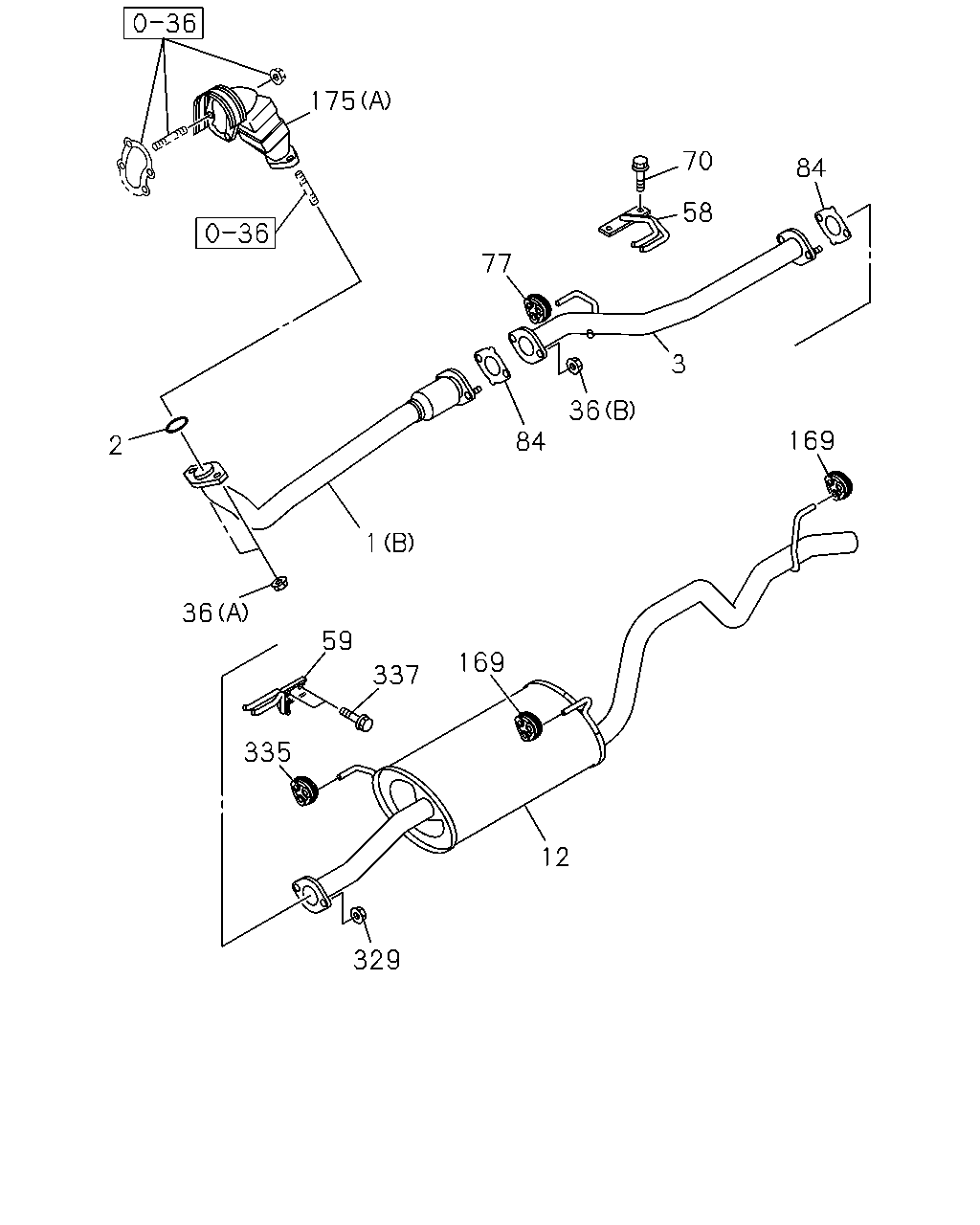

175 70 84 58 77 3 36 169 84 2 1 36 59 169 337 335 12 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4X2<TFB***> (A) THA	8-97329-644-0	01	1	0303-0408	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0409-0508		●
1	PIPE; EXH 4X4<TFS***> (B) THA	8-97329-645-0	01	1	0303-0408	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0409-0412		●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0501-0509		●	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-98008-407-0	01	1	0510-		●	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0509-0509		●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-98008-408-0	01	1	0510-		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0303-0408	●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0409-0412		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0501-0509		●	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0510-		●	●
3	PIPE; EXH,CENTER 4X4<TFS***> THA	8-97308-920-3	01	1	0303-0408	●
3	PIPE; EXH,CENTER 4X4<TFS***> THA	8-97363-498-0	01	1	0409-0509		●
3	PIPE; EXH,CENTER 4X4<TFS***> THA	8-98008-409-0	01	1	0510-		●
12	SILENCER ASM; EXH THA	8-97308-922-2	01	1	0303-0408	●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0409-0412		●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0501-0509		●	●
12	SILENCER ASM; EXH THA	8-98008-410-0	01	1	0510-0708		●	●
12	SILENCER ASM; EXH THA	8-98082-821-0	01	1	0709-		●	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0303-0408	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0409-0412		●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0501-		●	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0409-		●
58	BRACKET; EXH PIPE,RR THA	8-97249-193-0	01	1	0303-0303	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0304-0408	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0409-0412		●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0501-		●	●
59	BRACKET; EXH SILENCER,FRT THA	8-97249-195-0	01	1	0303-0303	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0304-0408	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0409-		●	●
70	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	02	1	0303-0303	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0412		●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0501-0606		●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0303-0408	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0409-0412		●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0501-0908		●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0409-		●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0409-		●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	01	1	0909-		●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0303-0408	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0409-0908		●	●
175	CONVERTER; CATALYST (A) IMA	8-97258-201-3	01	1	0303-0408	●
175	CONVERTER; CATALYST (B) THA	8-97374-822-0	01	1	0409-0510		●
175	CONVERTER; CATALYST (B) THA	8-98005-182-2	01	1	0511-		●
175	CONVERTER; CATALYST (B) THA	8-97383-254-0	01	1	0501-0509			●
175	CONVERTER; CATALYST (B) THA	8-98005-183-2	01	1	0510-			●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0409-		●	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0303-0408	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0409-		●	●
337	BOLT; RUBBER,SUPPORT M10X20 FLANGE THA	0-28651-020-0	02	1	0303-0303	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0606		●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●

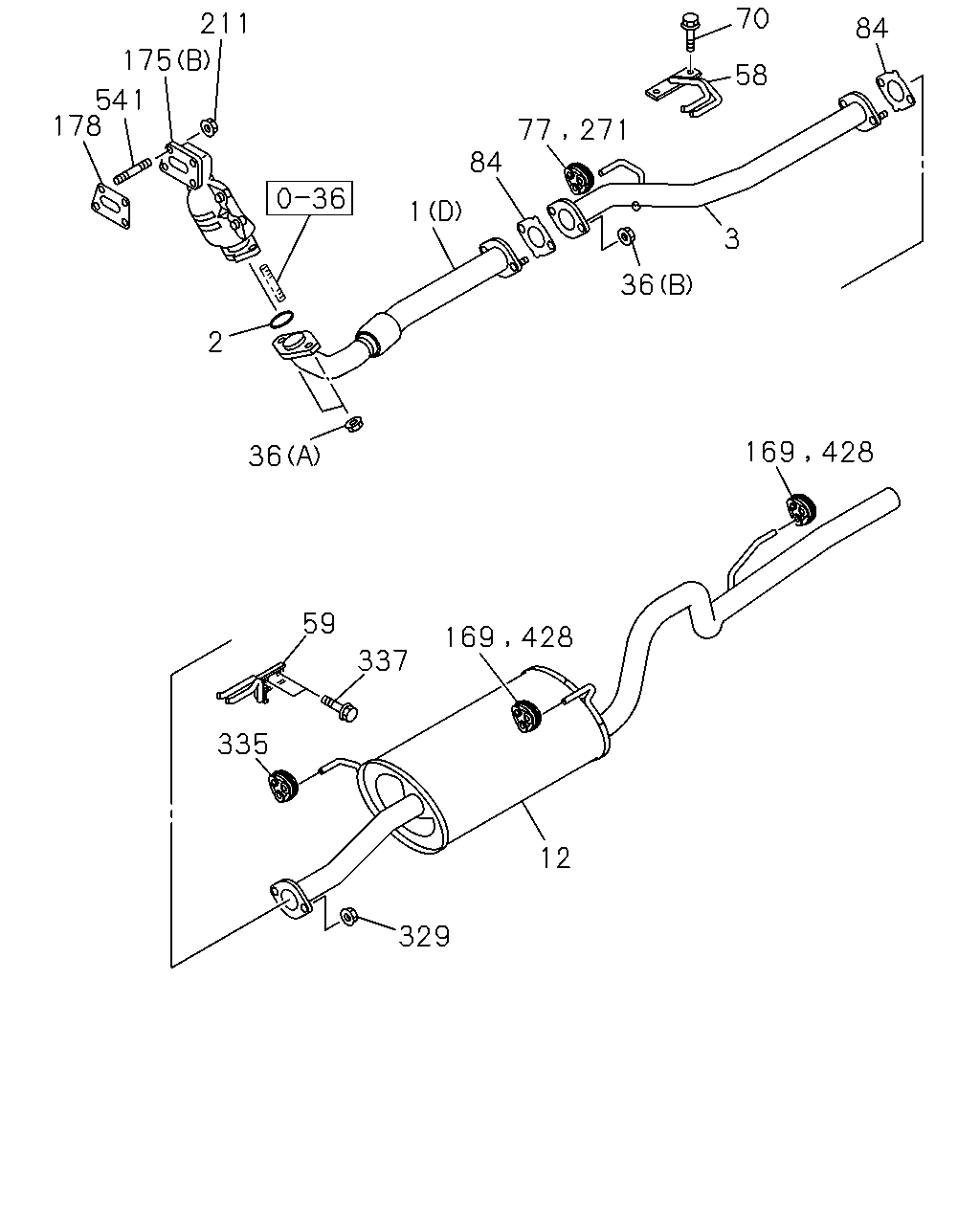

70 211 84 175 58 541 178 84 1 3 36 2 36 59 337 335 12 329 77 271 169 428 169 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4X2<TFB***> (A) THA	8-97329-644-0	01	1	0303-0408	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0409-0508		●
1	PIPE; EXH 4X4<TFS***> (B) THA	8-97329-645-0	01	1	0303-0408	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0409-0412		●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0501-0509		●	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-98008-407-0	01	1	0510-		●	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0509-0509		●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-98008-408-0	01	1	0510-		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0303-0408	●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0409-0412		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0501-0509		●	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0510-		●	●
3	PIPE; EXH,CENTER 4X4<TFS***> THA	8-97308-920-3	01	1	0303-0408	●
3	PIPE; EXH,CENTER 4X4<TFS***> THA	8-97363-498-0	01	1	0409-0509		●
3	PIPE; EXH,CENTER 4X4<TFS***> THA	8-98008-409-0	01	1	0510-		●
12	SILENCER ASM; EXH THA	8-97308-922-2	01	1	0303-0408	●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0409-0412		●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0501-0509		●	●
12	SILENCER ASM; EXH THA	8-98008-410-0	01	1	0510-0708		●	●
12	SILENCER ASM; EXH THA	8-98082-821-0	01	1	0709-		●	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0303-0408	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0409-0412		●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0501-		●	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0409-		●
58	BRACKET; EXH PIPE,RR THA	8-97249-193-0	01	1	0303-0303	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0304-0408	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0409-0412		●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0501-		●	●
59	BRACKET; EXH SILENCER,FRT THA	8-97249-195-0	01	1	0303-0303	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0304-0408	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0409-		●	●
70	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	02	1	0303-0303	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0412		●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0501-0606		●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0303-0408	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0409-0412		●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0501-0908		●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0409-		●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0409-		●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	01	1	0909-		●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0303-0408	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0409-0908		●	●
175	CONVERTER; CATALYST (A) IMA	8-97258-201-3	01	1	0303-0408	●
175	CONVERTER; CATALYST (B) THA	8-97374-822-0	01	1	0409-0510		●
175	CONVERTER; CATALYST (B) THA	8-98005-182-2	01	1	0511-		●
175	CONVERTER; CATALYST (B) THA	8-97383-254-0	01	1	0501-0509			●
175	CONVERTER; CATALYST (B) THA	8-98005-183-2	01	1	0510-			●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0409-0412		●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0501-		●	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0409-0412		●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0501-		●	●
271	RUBBER; HANGER,RR PIPE THA	8-97289-169-0	01	1	0909-		●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0409-		●	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0303-0408	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0409-		●	●
337	BOLT; RUBBER,SUPPORT M10X20 FLANGE THA	0-28651-020-0	02	1	0303-0303	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0606		●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●
428	RUBBER; MTG,CLAMP,EXH PIPE THA	8-97289-169-0	01	1	0909-		●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-94156-470-2	04	1	0409-0409		●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0410-0412		●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0501-		●	●

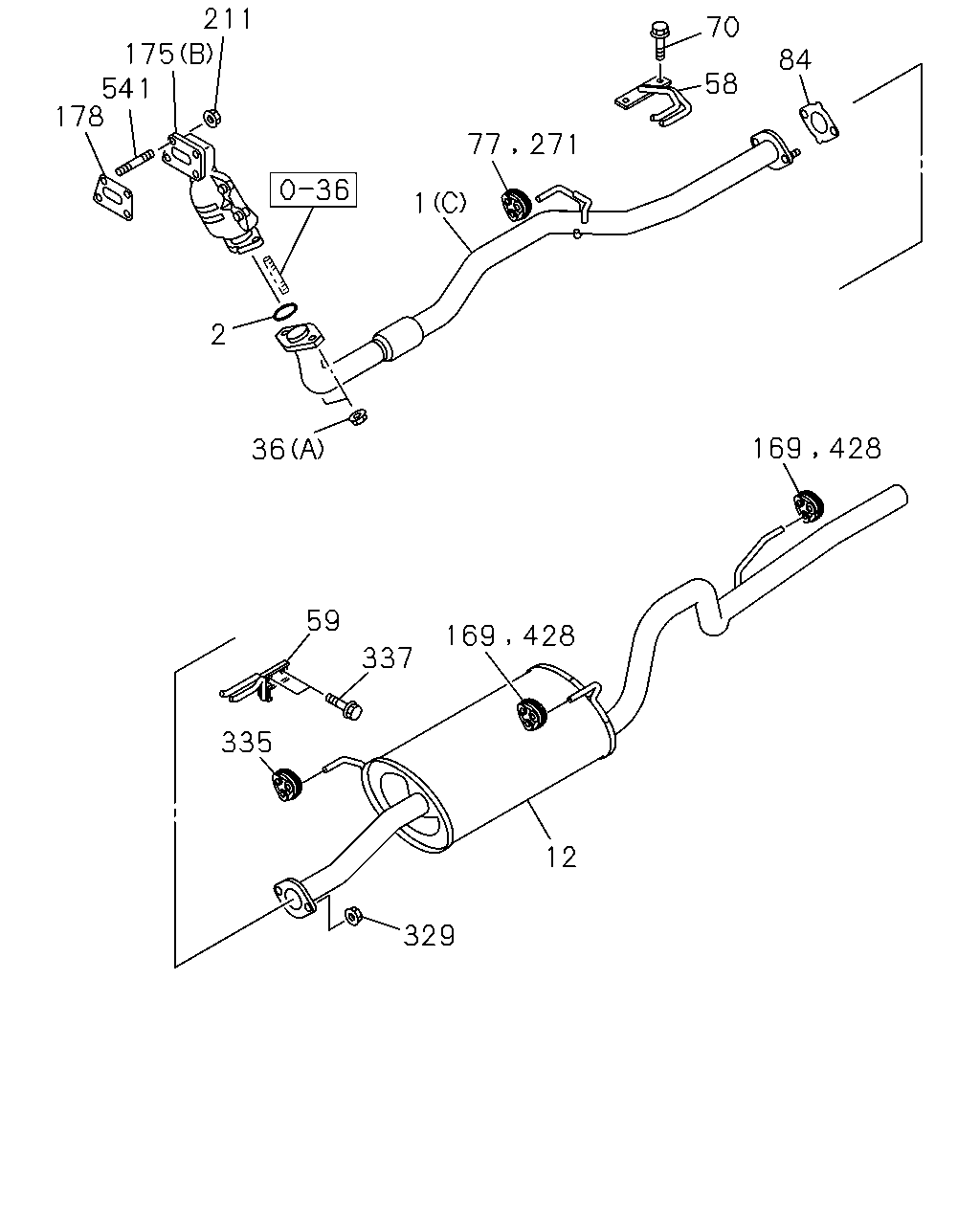

175 70 84 58 77 2 169 1 36 59 169 337 335 12 329

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4X2<TFB***> (A) THA	8-97329-644-0	01	1	0303-0408	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0409-0508		●
1	PIPE; EXH 4X4<TFS***> (B) THA	8-97329-645-0	01	1	0303-0408	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0409-0412		●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0501-0509		●	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-98008-407-0	01	1	0510-		●	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0509-0509		●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-98008-408-0	01	1	0510-		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0303-0408	●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0409-0412		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0501-0509		●	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0510-		●	●
12	SILENCER ASM; EXH THA	8-97308-922-2	01	1	0303-0408	●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0409-0412		●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0501-0509		●	●
12	SILENCER ASM; EXH THA	8-98008-410-0	01	1	0510-0708		●	●
12	SILENCER ASM; EXH THA	8-98082-821-0	01	1	0709-		●	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0303-0408	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0409-0412		●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0501-		●	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0409-		●
58	BRACKET; EXH PIPE,RR THA	8-97249-193-0	01	1	0303-0303	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0304-0408	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0409-0412		●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0501-		●	●
59	BRACKET; EXH SILENCER,FRT THA	8-97249-195-0	01	1	0303-0303	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0304-0408	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0409-		●	●
70	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	02	1	0303-0303	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0412		●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0501-0606		●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0303-0408	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0409-0412		●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0501-0908		●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0409-		●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0409-		●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	01	1	0909-		●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0303-0408	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0409-0908		●	●
175	CONVERTER; CATALYST (A) IMA	8-97258-201-3	01	1	0303-0408	●
175	CONVERTER; CATALYST (B) THA	8-97374-822-0	01	1	0409-0510		●
175	CONVERTER; CATALYST (B) THA	8-98005-182-2	01	1	0511-		●
175	CONVERTER; CATALYST (B) THA	8-97383-254-0	01	1	0501-0509			●
175	CONVERTER; CATALYST (B) THA	8-98005-183-2	01	1	0510-			●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0409-		●	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0303-0408	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0409-		●	●
337	BOLT; RUBBER,SUPPORT M10X20 FLANGE THA	0-28651-020-0	02	1	0303-0303	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0606		●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●

211 175 541 178 70 84 58 1 2 36 59 337 335 12 329 77 271 169 428 169 428

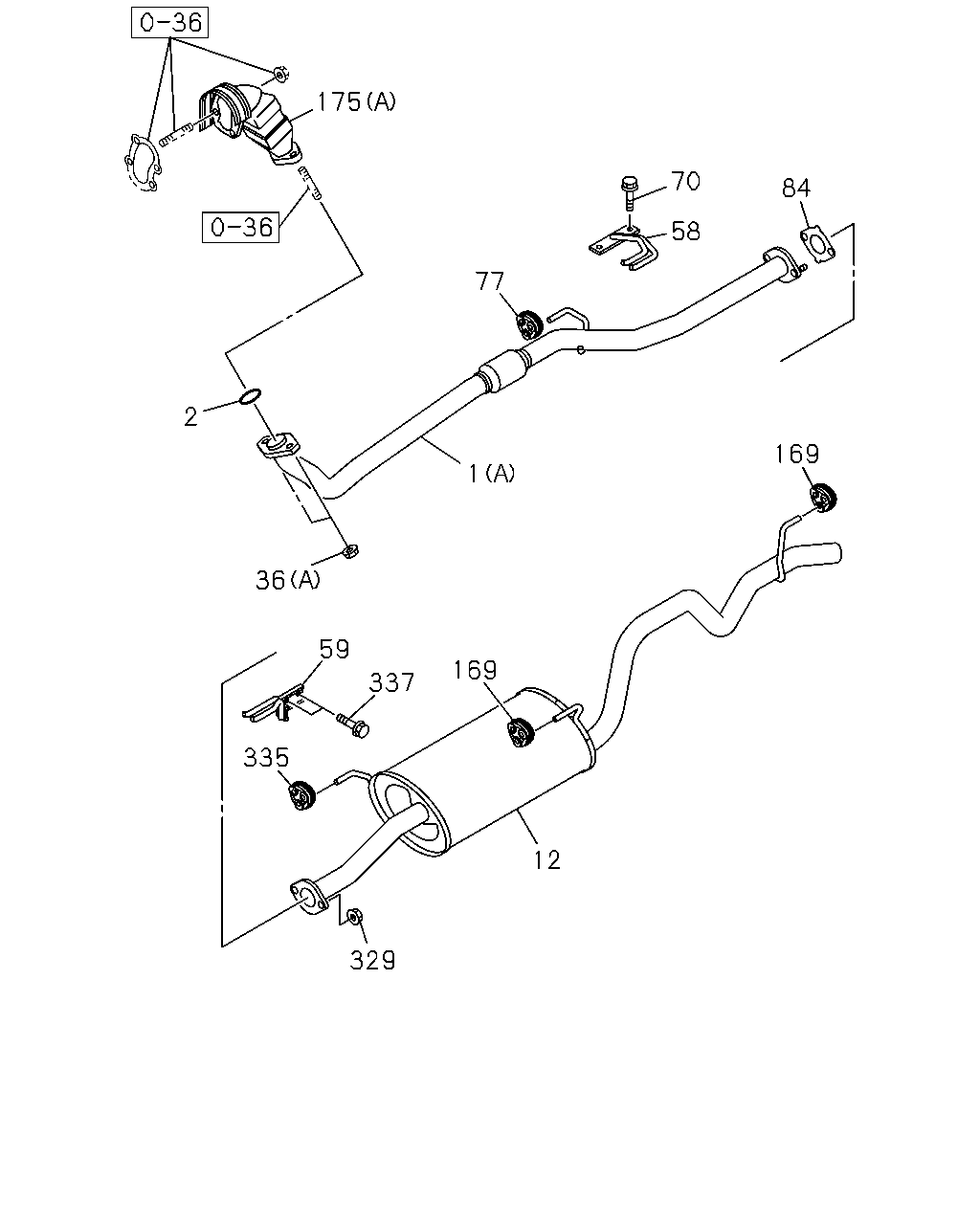

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH 4X2<TFB***> (A) THA	8-97329-644-0	01	1	0303-0408	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0409-0508		●
1	PIPE; EXH 4X4<TFS***> (B) THA	8-97329-645-0	01	1	0303-0408	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0409-0412		●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-97377-745-0	01	1	0501-0509		●	●
1	PIPE; EXH 4X2<TFB***> (C) THA	8-98008-407-0	01	1	0510-		●	●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-97370-792-0	01	1	0509-0509		●
1	PIPE; EXH 4X4<TFS***> (D) THA	8-98008-408-0	01	1	0510-		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0303-0408	●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0409-0412		●
2	GASKET; PIPE TO MANIF THA	8-97069-287-0	01	1	0501-0509		●	●
2	GASKET; PIPE TO MANIF THA	8-98017-270-0	01	1	0510-		●	●
12	SILENCER ASM; EXH THA	8-97308-922-2	01	1	0303-0408	●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0409-0412		●
12	SILENCER ASM; EXH THA	8-97373-422-0	01	1	0501-0509		●	●
12	SILENCER ASM; EXH THA	8-98008-410-0	01	1	0510-0708		●	●
12	SILENCER ASM; EXH THA	8-98082-821-0	01	1	0709-		●	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0303-0408	●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0409-0412		●
36	NUT; EXH PIPE (A) M10 FLANGE IMA	8-97096-192-1	02	1	0501-		●	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
36	NUT; EXH PIPE 4X4<TFS***> (B) M10 FLANGE THA	0-91180-110-0	02	1	0409-		●
58	BRACKET; EXH PIPE,RR THA	8-97249-193-0	01	1	0303-0303	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0304-0408	●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0409-0412		●
58	BRACKET; EXH PIPE,RR THA	8-97368-450-0	01	1	0501-		●	●
59	BRACKET; EXH SILENCER,FRT THA	8-97249-195-0	01	1	0303-0303	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0304-0408	●
59	BRACKET; EXH SILENCER,FRT THA	8-97365-312-0	01	1	0409-		●	●
70	BOLT; BRKT M10X25 FLANGE THA	0-28651-025-0	02	1	0303-0303	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0412		●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0501-0606		●	●
70	BOLT; BRKT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0303-0408	●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0409-0412		●
77	RUBBER; CUSHION,BRKT THA	8-97289-169-0	01	1	0501-0908		●	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0303-0408	●
84	GASKET; EXH PIPE ID=65 THA	8-97263-052-0	01	1	0409-		●
84	GASKET; EXH PIPE 4X4<TFS***> ID=65 THA	8-97263-052-0	01	1	0409-		●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	01	1	0909-		●	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0303-0408	●
169	RING; DAMPER,EXH PIPE THA	8-97289-169-0	02	1	0409-0908		●	●
175	CONVERTER; CATALYST (A) IMA	8-97258-201-3	01	1	0303-0408	●
175	CONVERTER; CATALYST (B) THA	8-97374-822-0	01	1	0409-0510		●
175	CONVERTER; CATALYST (B) THA	8-98005-182-2	01	1	0511-		●
175	CONVERTER; CATALYST (B) THA	8-97383-254-0	01	1	0501-0509			●
175	CONVERTER; CATALYST (B) THA	8-98005-183-2	01	1	0510-			●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0409-0412		●
178	GASKET; CONV TO MANIF THA	8-97312-284-1	01	1	0501-		●	●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0409-0412		●
211	NUT; CONV M8 FLANGE THA	8-97379-384-0	04	1	0501-		●	●
271	RUBBER; HANGER,RR PIPE THA	8-97289-169-0	01	1	0909-		●	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
329	NUT; EXH PIPE TO PIPE M10 FLANGE THA	0-91180-110-0	02	1	0409-		●	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0303-0408	●
335	RUBBER; SUPPORT,SILENCER THA	8-97289-169-0	01	1	0409-		●	●
337	BOLT; RUBBER,SUPPORT M10X20 FLANGE THA	0-28651-020-0	02	1	0303-0303	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0304-0408	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-97104-788-1	02	1	0409-0606		●	●
337	BOLT; RUBBER,SUPPORT M10X28 W/LK&PL WASHER THA	8-98050-928-0	02	1	0607-		●	●
428	RUBBER; MTG,CLAMP,EXH PIPE THA	8-97289-169-0	01	1	0909-		●	●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-94156-470-2	04	1	0409-0409		●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0410-0412		●
541	STUD; CONV TO PIPE M8X25 L=36 THA	8-97378-062-0	04	1	0501-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
