◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-41 - FUEL PIPING; CHASSIS ▶
1-41 — FUEL PIPING; CHASSIS (#48652) — 890 parça

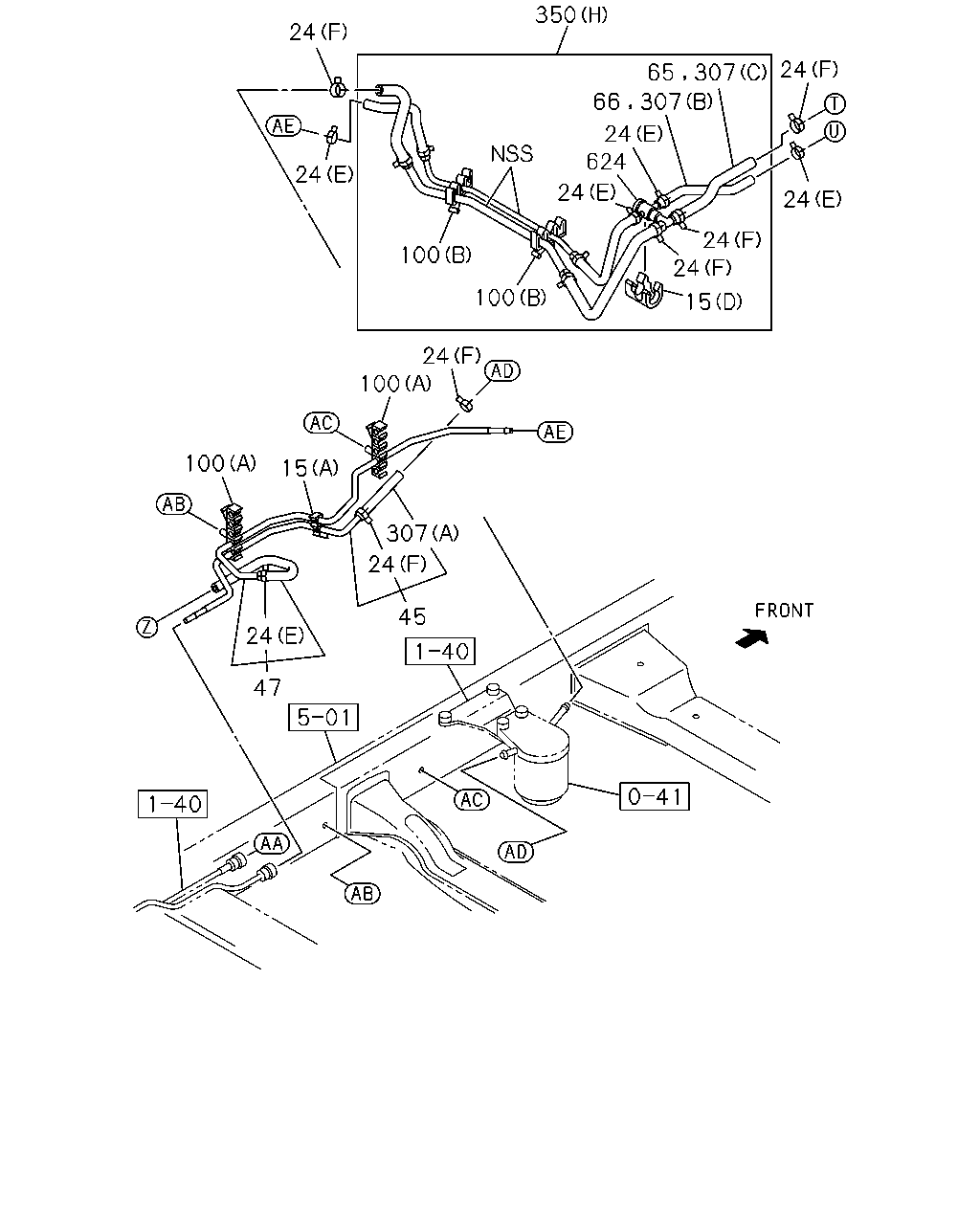

çizim 48981
350 24 24 24 624 24 24 24 24 24 100 100 15 24 100 100 15 307 24 45 24 47 66 65 307 307
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
65 HOSE; FUEL,DELIVERY PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-135-0 01 1 0909- ● ●
65 HOSE; FUEL,DELIVERY PIPE
4X4<TFS***> THA 		8-97944-133-0 01 1 0909- ●
66 HOSE; FUEL,RETURN PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-98060-821-0 01 1 0909- ● ●
66 HOSE; FUEL,RETURN PIPE
4X4<TFS***> THA 		8-97944-134-0 01 1 0909- ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0409-0412 ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0501- ● ●

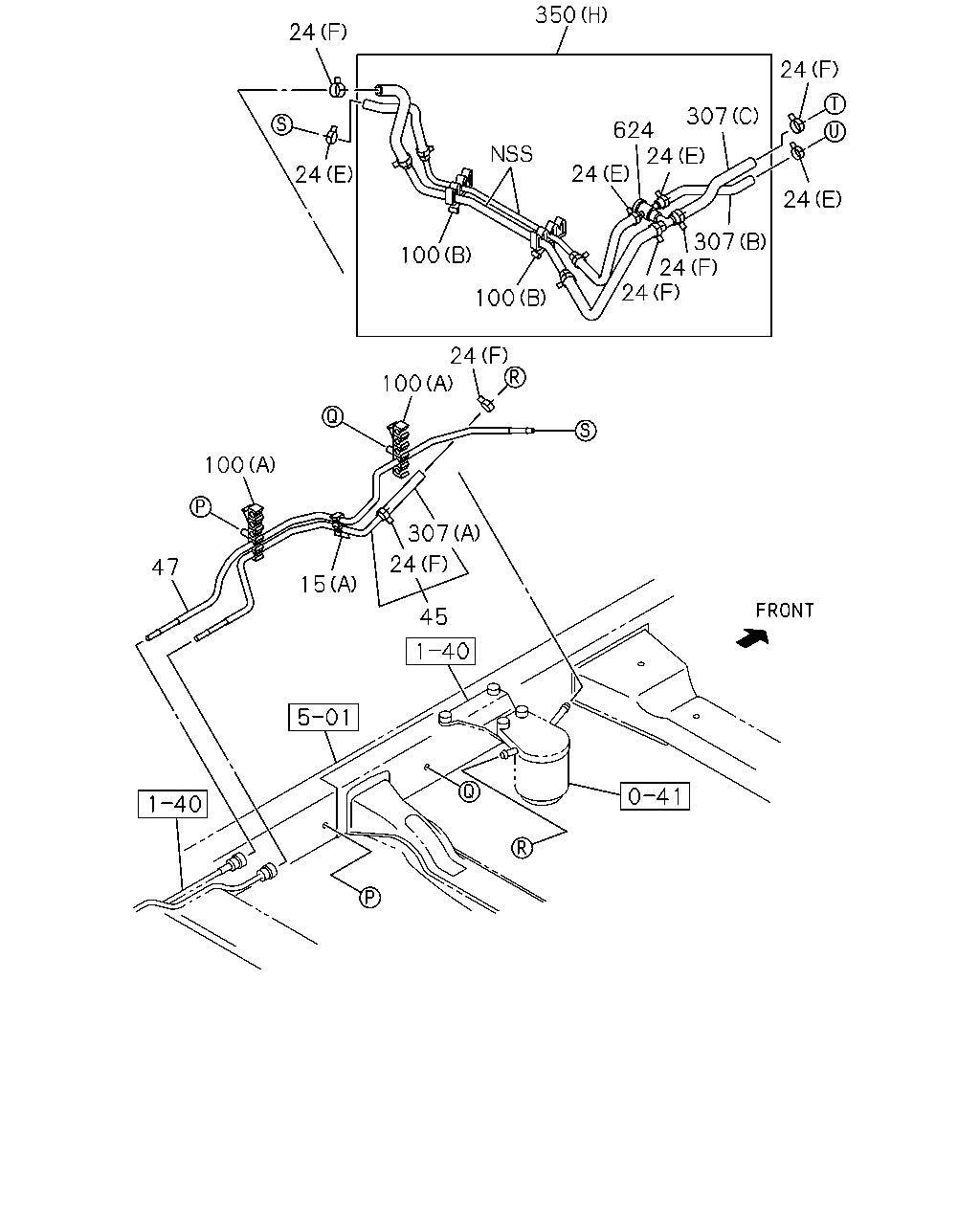

çizim 49511
350 24 24 307 624 24 24 24 24 307 24 24 100 100 24 100 100 307 24 47 15 45
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0409-0412 ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0501- ● ●

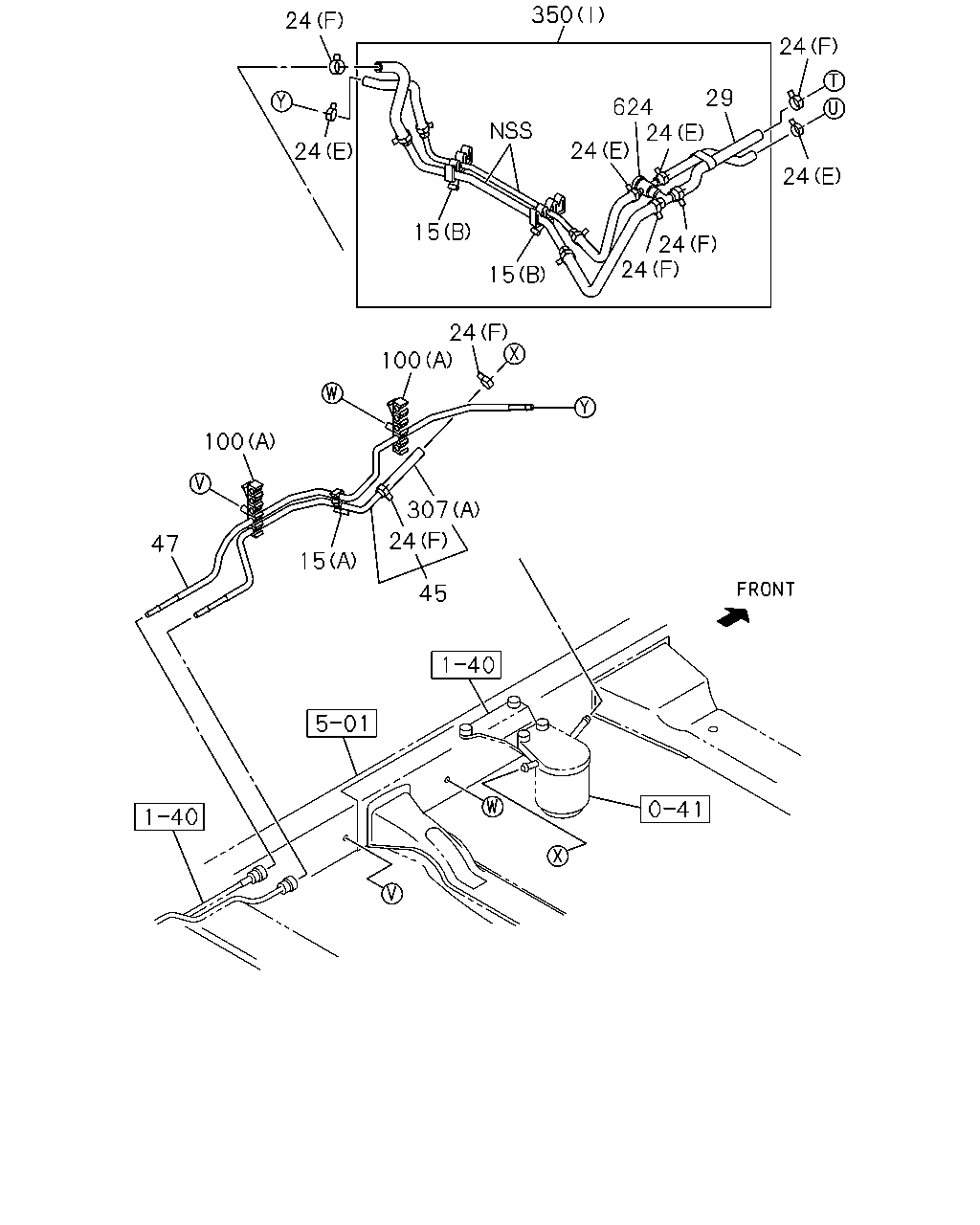

çizim 49512
350 24 24 29 624 24 24 24 24 15 24 24 15 24 100 100 307 24 47 15 45
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
29 HOSE; FUEL
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> THA 		8-97944-132-0 01 1 0409-0612 ●
29 HOSE; FUEL
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> THA 		8-98060-820-0 01 1 0701- ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0409-0412 ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0501- ● ●

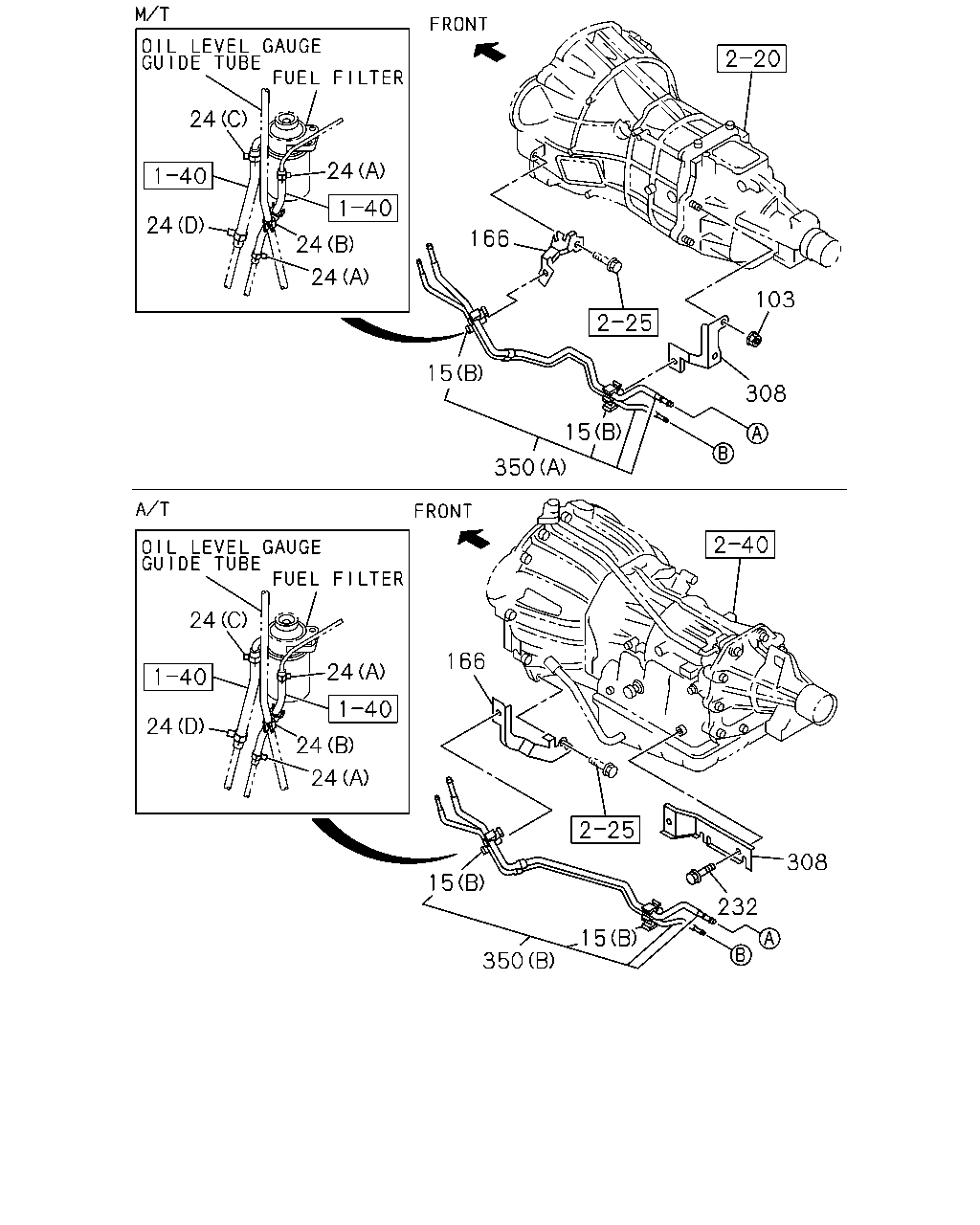

çizim 49538
24 24 24 166 24 24 103 15 308 15 350 24 166 24 24 24 24 308 15 232 15 350
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
103 NUT; BRKT
M/T MUA 5 SPEED<RMN> M10 FLANGE THA 		8-94242-425-0 02 1 0303-0408 ●
103 NUT; BRKT
M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		8-94242-425-0 02 1 0409-0412 ●
103 NUT; BRKT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		8-94242-425-0 02 1 0501-0606 ● ●
103 NUT; BRKT
M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ●
166 PROTECTOR; FUEL HOSE
A/T 4 SPEED-JATCO<RMK> THA 		8-97215-314-2 01 1 0303-0408 ●
166 PROTECTOR; FUEL HOSE
A/T 4 SPEED-JATCO<RMK> THA 		8-97215-314-2 01 1 0409-0606 ●
166 PROTECTOR; FUEL HOSE
A/T 4 SPEED-JATCO<RMK> THA 		8-97944-739-0 01 1 0607- ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED<RMN> THA 		8-97215-311-3 01 1 0303-0408 ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-311-3 01 1 0409-0412 ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-311-3 01 1 0501-0606 ● ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-738-0 01 1 0607- ● ●
232 BOLT; CLIP,PIPE
A/T 4 SPEED-JATCO<RMK> M6X12 FLANGE THA 		0-28050-612-0 01 1 0303-0408 ●
232 BOLT; CLIP,PIPE
A/T 4 SPEED-JATCO<RMK> M6X12 FLANGE THA 		0-28050-612-0 01 1 0409- ●
308 BRACKET; FUEL PIPE
A/T 4 SPEED-JATCO<RMK> THA 		8-97328-217-0 01 1 0303-0408 ●
308 BRACKET; FUEL PIPE
A/T 4 SPEED-JATCO<RMK> THA 		8-97328-217-0 01 1 0409-0608 ●
308 BRACKET; FUEL PIPE
A/T 4 SPEED-JATCO<RMK> THA 		8-98050-708-0 01 1 0609- ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED<RMN> THA 		8-97215-294-1 01 1 0303-0408 ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-294-1 01 1 0409-0412 ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-294-1 01 1 0501-0606 ● ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-746-0 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●

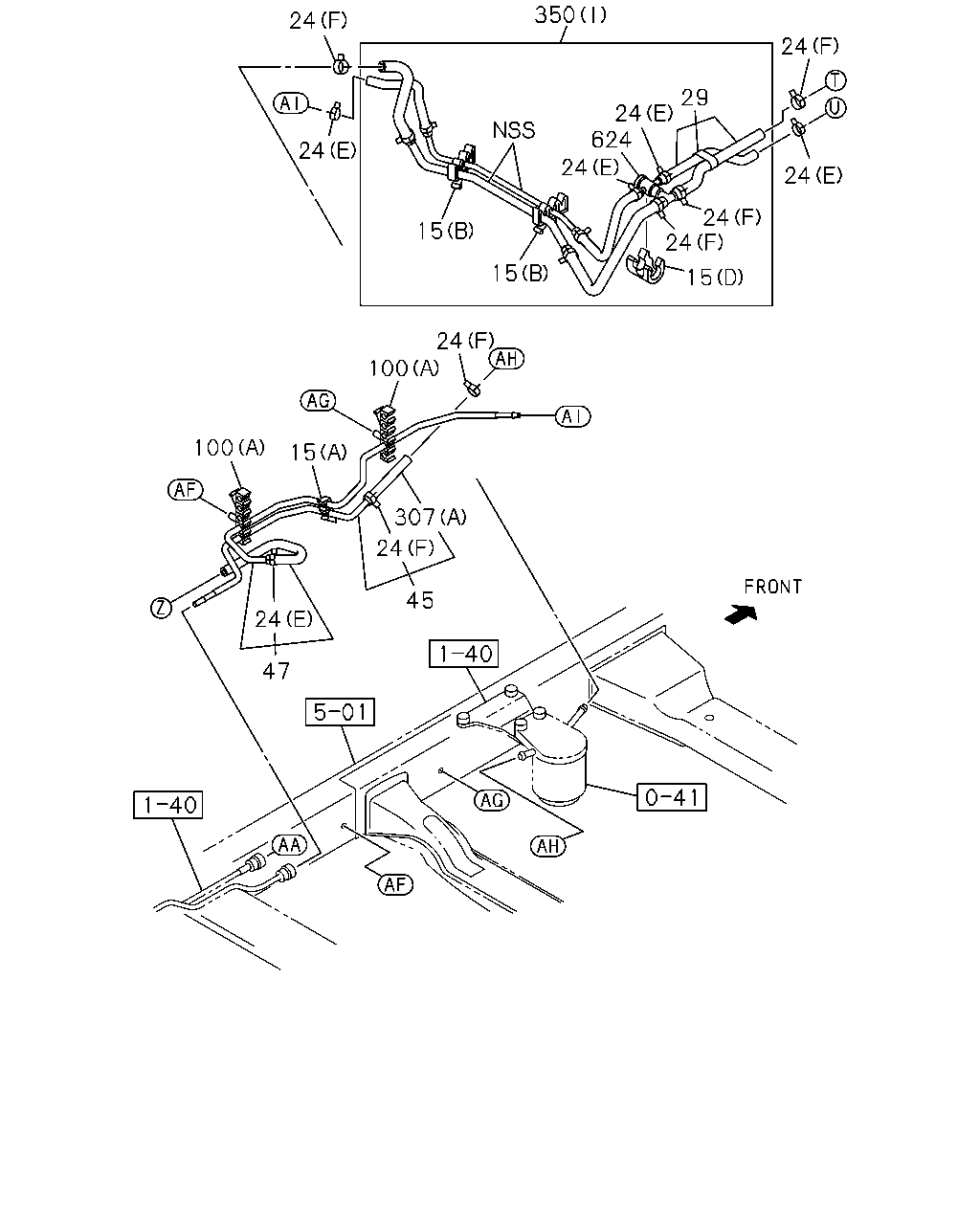

çizim 49587
350 24 24 29 24 624 24 24 24 24 24 15 15 15 24 100 100 15 307 24 45 24 47
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
29 HOSE; FUEL
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> THA 		8-97944-132-0 01 1 0409-0612 ●
29 HOSE; FUEL
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> THA 		8-98060-820-0 01 1 0701- ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0409-0412 ●
624 VALVE; 1 WAY,FUEL
THA 		8-97375-919-0 01 1 0501- ● ●

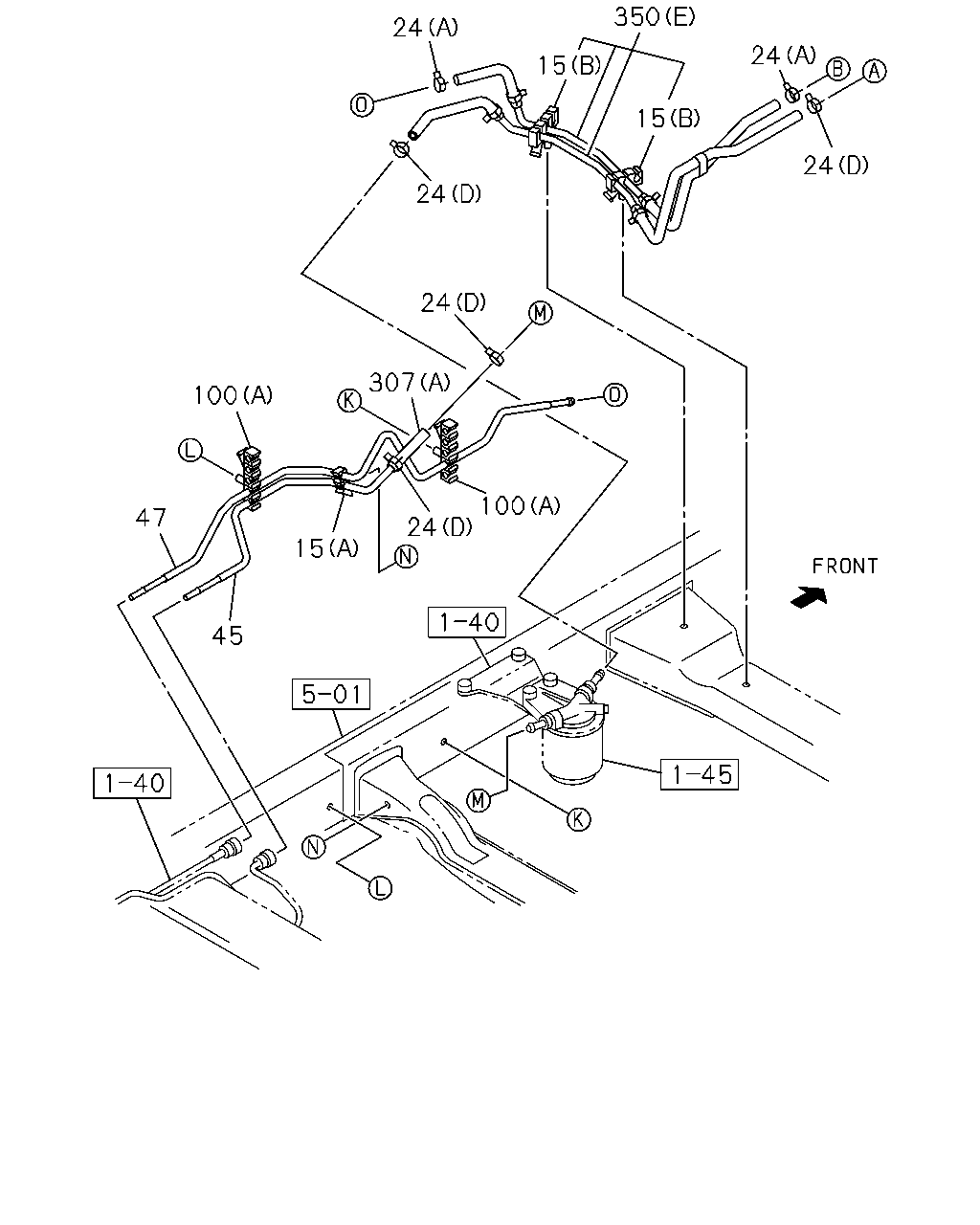

çizim 49918
350 24 24 15 15 24 24 24 307 100 100 24 47 15 45
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
çizim 49919
350 24 15 15 24 24 24 24 307 100 100 47 24 15 45
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
çizim 49959
627 313 629 627 627
BalonParca AdiParca NoAdetTipApplied Date A B C
313 COOLER ASM; FUEL
THA 		8-97945-750-0 01 1 0607-0803 ● ●
313 COOLER ASM; FUEL
THA 		8-97946-973-0 01 1 0804- ● ●
627 BOLT; FUEL CLR
(A) M6X20 FLANGE THA 		0-28650-620-0 04 1 0607- ● ●
627 BOLT; FUEL CLR
(B) M10X28 W/LK&PL WASHER THA 		8-97943-077-0 04 1 0607-0611 ● ●
627 BOLT; FUEL CLR
(B) M10X28 W/LK&PL WASHER THA 		8-97945-706-0 04 1 0612- ● ●
629 BRACKET; FUEL CLR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> THA 		8-97945-720-0 01 1 0607-0907 ●
629 BRACKET; FUEL CLR
4X4<TFS***> A/T 4 SPEED-JATCO<RMK> THA 		8-97945-578-0 01 1 0908- ●
629 BRACKET; FUEL CLR
4X2<TFB***> THA 		8-97945-719-0 01 1 0607-0907 ● ●
629 BRACKET; FUEL CLR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-719-0 01 1 0607-0907 ●
629 BRACKET; FUEL CLR
4X2<TFB***> THA 		8-97945-577-0 01 1 0908- ● ●
629 BRACKET; FUEL CLR
4X4<TFS***> M/T MUA 5 SPEED 5H<MWQ> THA 		8-97945-577-0 01 1 0908- ●
çizim 50062
350 15 24 15 24 24 24 24 307 100 100 47 24 15 45
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97250-551-2 01 1 0303-0408 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-0 01 1 0409-0412 ●
45 PIPE; FUEL,DELIVERY
THA 		8-97375-470-1 01 1 0501-0606 ● ●
45 PIPE; FUEL,DELIVERY
THA 		8-97944-626-1 01 1 0607- ● ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0303-0408 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0409-0412 ●
47 PIPE; FUEL,RETURN
THA 		8-97250-548-3 01 1 0501-0606 ● ●
47 PIPE; FUEL,RETURN
THA 		8-98051-783-1 01 1 0607- ● ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-129-0 02 1 0303-0408 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
(A) THA 		8-97251-128-0 02 1 0501- ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0412 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0501-0508 ● ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0509-0606 ●
100 CLIP; FUEL PIPE
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ● ●
100 CLIP; FUEL PIPE
4X4<TFS***> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=90 SERVICED BY L=3000 THA 		0-01662-300-0 01 1 0303-0408 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (C) THA 		8-97944-133-0 01 1 0509-0908 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0410-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
(A) L=150 SERVICED BY L=3000 THA 		0-01658-300-0 01 1 0501- ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (C) THA 		8-97944-135-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (C) THA 		8-97944-135-0 01 1 0607-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (B) THA 		8-97944-136-0 01 1 0501-0606 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-97944-136-0 01 1 0607-0702 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (B) THA 		8-98060-821-0 01 1 0703-0908 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0409-0412 ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0501-0508 ● ●
307 HOSE ASM; FUEL,DELIVERY & RETURN
4X4<TFS***> (B) THA 		8-97944-134-0 01 1 0509-0908 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
çizim 50074
166 103 15 308 15 24 350 82 24 82 24 24 166 15 308 232 15 350
BalonParca AdiParca NoAdetTipApplied Date A B C
15 CLIP; FUEL PIPE
(D) THA 		8-98179-603-0 01 1 1012- ● ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-126-0 01 1 0303-0408 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0409-0412 ●
15 CLIP; FUEL PIPE
(A) THA 		8-97251-125-0 01 1 0501- ● ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (B) THA 		8-97249-907-0 02 1 0303-0408 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10 & 6.8X2 OR 8.4X3 THA 		8-97249-906-1 02 1 0409-0606 ●
15 CLIP; FUEL PIPE
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (B) ID=10.3X3 THA 		8-98051-899-0 02 1 0607- ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0409-0412 ●
15 CLIP; FUEL PIPE
(C) THA 		8-97944-137-0 02 1 0501- ● ●
24 CLIP; FUEL HOSE
(A) ID=12 THA 		8-97148-892-1 04 1 0303-0408 ●
24 CLIP; FUEL HOSE
(B) ID=13.2 & 11.5 THA 		8-97230-081-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0303-0408 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97351-697-0 01 1 0501-0606 ● ●
24 CLIP; FUEL HOSE
(C) ID=17.8 THA 		8-97944-611-0 01 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 05 1 0303-0401 ●
24 CLIP; FUEL HOSE
(D) ID=17.8 THA 		8-97356-077-0 01 1 0402-0408 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0409-0412 ●
24 CLIP; FUEL HOSE
(G) ID=16 IMA 		8-94392-924-0 01 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 04 1 0605-0606 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 03 1 0607- ● ●
24 CLIP; FUEL HOSE
(D) ID=17.2 THA 		8-97368-293-0 04 1 0402-0408 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 04 1 0501-0604 ● ●
24 CLIP; FUEL HOSE
(G) ID=16 THA 		8-98030-682-0 01 1 0605- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 03 1 0409-0409 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0410-0412 ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-97087-056-1 04 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0409-0412 ●
24 CLIP; FUEL HOSE
(E) ID=11.5 IMA 		8-97138-011-0 02 1 0501-0602 ● ●
24 CLIP; FUEL HOSE
(E) ID=11.5 THA 		8-98008-096-0 02 1 0603- ● ●
24 CLIP; FUEL HOSE
(F) ID=14.2 THA 		8-98035-873-0 04 1 0603- ● ●
24 CLIP; FUEL HOSE
(A) ID=11.5 THA 		8-98051-892-0 01 1 0607- ● ●
82 CLIP; FUEL HOSE
ID=11.8 & ID=18.6 THA 		8-97333-094-0 02 1 0409-0412 ●
82 CLIP; FUEL HOSE
ID=11.8 & ID=18.6 THA 		8-97333-094-0 02 1 0501- ● ●
103 NUT; BRKT
M/T MUA 5 SPEED<RMN> M10 FLANGE THA 		8-94242-425-0 02 1 0303-0408 ●
103 NUT; BRKT
M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		8-94242-425-0 02 1 0409-0412 ●
103 NUT; BRKT
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> M10 FLANGE THA 		8-94242-425-0 02 1 0501-0606 ● ●
103 NUT; BRKT
M/T MUA 5 SPEED 5H<MWQ> M10 FLANGE THA 		0-91180-110-0 02 1 0607- ● ●
166 PROTECTOR; FUEL HOSE
A/T 4 SPEED-JATCO<RMK> THA 		8-97215-314-2 01 1 0303-0408 ●
166 PROTECTOR; FUEL HOSE
A/T 4 SPEED-JATCO<RMK> THA 		8-97215-314-2 01 1 0409-0606 ●
166 PROTECTOR; FUEL HOSE
A/T 4 SPEED-JATCO<RMK> THA 		8-97944-739-0 01 1 0607- ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED<RMN> THA 		8-97215-311-3 01 1 0303-0408 ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-311-3 01 1 0409-0412 ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-311-3 01 1 0501-0606 ● ●
166 PROTECTOR; FUEL HOSE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-738-0 01 1 0607- ● ●
232 BOLT; CLIP,PIPE
A/T 4 SPEED-JATCO<RMK> M6X12 FLANGE THA 		0-28050-612-0 01 1 0303-0408 ●
232 BOLT; CLIP,PIPE
A/T 4 SPEED-JATCO<RMK> M6X12 FLANGE THA 		0-28050-612-0 01 1 0409- ●
308 BRACKET; FUEL PIPE
A/T 4 SPEED-JATCO<RMK> THA 		8-97328-217-0 01 1 0303-0408 ●
308 BRACKET; FUEL PIPE
A/T 4 SPEED-JATCO<RMK> THA 		8-97328-217-0 01 1 0409-0608 ●
308 BRACKET; FUEL PIPE
A/T 4 SPEED-JATCO<RMK> THA 		8-98050-708-0 01 1 0609- ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED<RMN> THA 		8-97215-294-1 01 1 0303-0408 ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-294-1 01 1 0409-0412 ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97215-294-1 01 1 0501-0606 ● ●
308 BRACKET; FUEL PIPE
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97944-746-0 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (B) THA 		8-97309-212-3 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97378-425-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
A/T 4 SPEED-JATCO<RMK> (G) THA 		8-97944-713-1 01 1 0607- ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED<RMN> (A) THA 		8-97215-362-4 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (F) THA 		8-97378-427-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
M/T MUA 5 SPEED 5H<MWQ> (F) THA 		8-97944-716-1 01 1 0607- ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (D) THA 		8-97215-230-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-97378-422-0 01 1 0409-0606 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98051-792-1 01 1 0607-0612 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98060-317-0 01 1 0701-0805 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98097-062-0 01 1 0806-1011 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> A/T 4 SPEED-JATCO<RMK> (I) THA 		8-98177-461-0 01 1 1012- ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED<RMN> (C) THA 		8-97215-229-5 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> (H) THA 		8-97378-413-0 01 1 0501-0606 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98051-786-0 01 1 0607-0702 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98060-307-0 01 1 0703-0804 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-97946-518-0 01 1 0805-1011 ● ●
350 PIPE; FUEL,DEL & RET
4X2<TFB***> M/T MUA 5 SPEED 5H<MWQ> (H) THA 		8-98177-460-0 01 1 1012- ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> (E) THA 		8-97250-528-6 01 1 0303-0408 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0409-0412 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0501-0508 ● ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97378-419-0 01 1 0509-0606 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98051-790-0 01 1 0607-0804 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-97946-526-0 01 1 0805-1011 ●
350 PIPE; FUEL,DEL & RET
4X4<TFS***> (H) THA 		8-98177-463-0 01 1 1012- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
