1-40 — FUEL TANK (#48651) — 104 parça

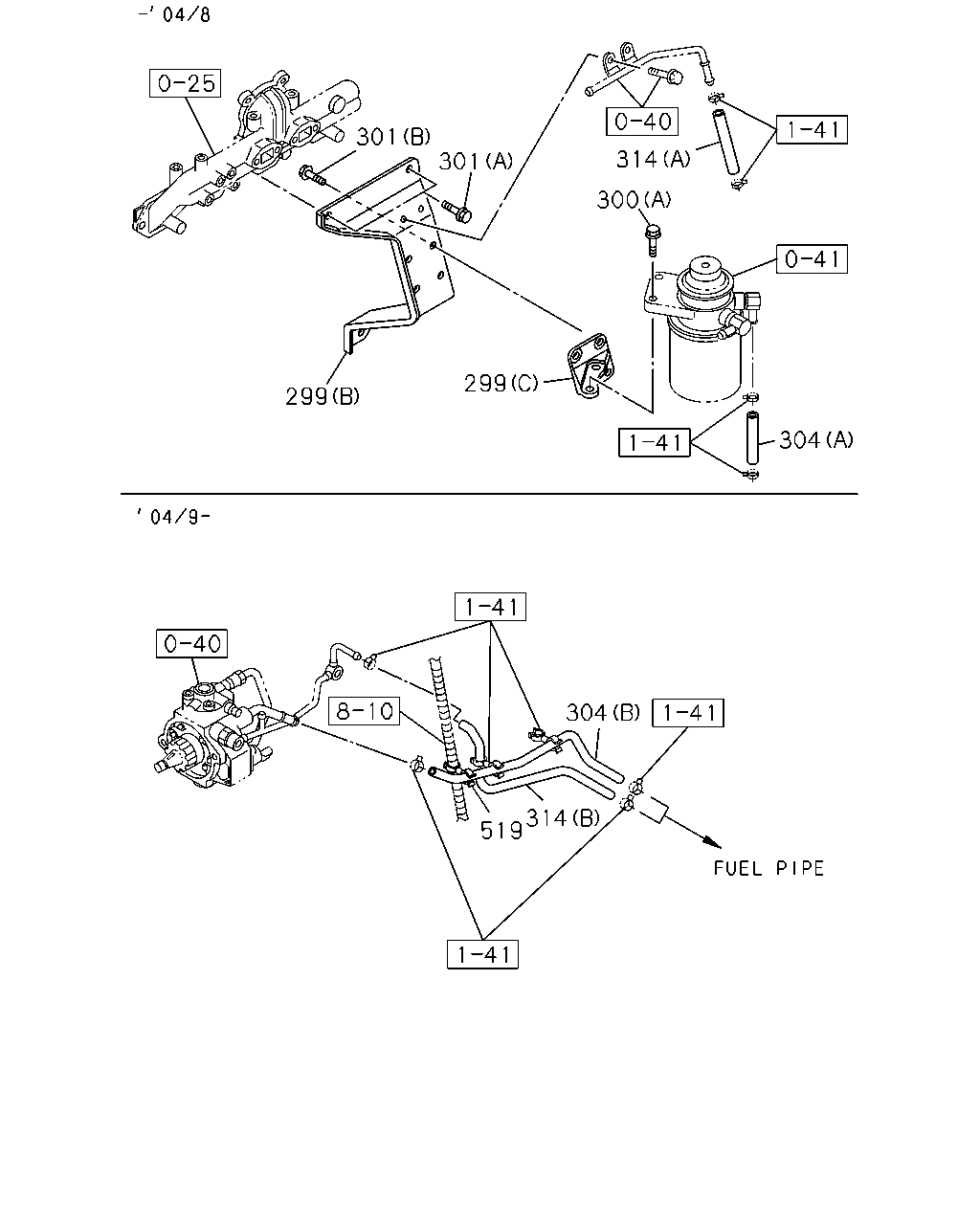

301 301 314 300 299 299 304 304 314 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
299	BRACKET; FUEL FILTER (A) THA	8-97263-630-1	01	1	0303-0408	●
299	BRACKET; FUEL FILTER (D) THA	8-97944-051-0	01	1	0409-0412		●
299	BRACKET; FUEL FILTER (D) THA	8-97944-051-0	01	1	0501-0606		●	●
299	BRACKET; FUEL FILTER (D) THA	8-97945-336-0	01	1	0607-0804		●	●
299	BRACKET; FUEL FILTER (D) THA	8-98099-657-0	01	1	0805-0907		●	●
299	BRACKET; FUEL FILTER (D) THA	8-97945-336-0	01	1	0908-		●	●
299	BRACKET; FUEL FILTER (B) THA	8-97287-514-1	01	1	0303-0408	●
299	BRACKET; FUEL FILTER (C) THA	8-97308-749-0	01	1	0303-0408	●
300	BOLT; BRKT TO BODY (A) M8X30 FLANGE THA	0-28650-830-0	02	1	0303-0408	●
300	BOLT; BRKT TO BODY (B) M10X25 FLANGE THA	0-28681-025-0	02	1	0303-0408	●
301	BOLT; BRKT TO SEDIMENTER (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0303-0408	●
301	BOLT; BRKT TO SEDIMENTER (C) M10X25 FLANGE THA	0-28681-025-0	02	1	0409-0412		●
301	BOLT; BRKT TO SEDIMENTER (C) M10X25 FLANGE THA	0-28681-025-0	02	1	0501-0601		●	●
301	BOLT; BRKT TO SEDIMENTER (C) M10X25 FLANGE THA	0-28651-025-0	02	1	0602-		●	●
301	BOLT; BRKT TO SEDIMENTER (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0303-0408	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (A) THA	8-97321-644-0	01	1	0303-0408	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B) THA	8-97370-498-1	01	1	0409-0412		●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B) THA	8-97370-498-1	01	1	0501-0606		●	●
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP (B) THA	8-97944-783-0	01	1	0607-		●	●
314	HOSE; RUBBER,FUEL RETURN (A) THA	8-97304-071-3	01	1	0303-0408	●
314	HOSE; RUBBER,FUEL RETURN (B) THA	8-97367-164-1	01	1	0409-0412		●
314	HOSE; RUBBER,FUEL RETURN (B) THA	8-97367-164-1	01	1	0501-0606		●	●
314	HOSE; RUBBER,FUEL RETURN (B) THA	8-97944-784-2	01	1	0607-		●	●
519	RETAINER; FUEL PUMP ID=20 & 16.5 IMA	8-94486-835-0	01	1	0607-		●	●

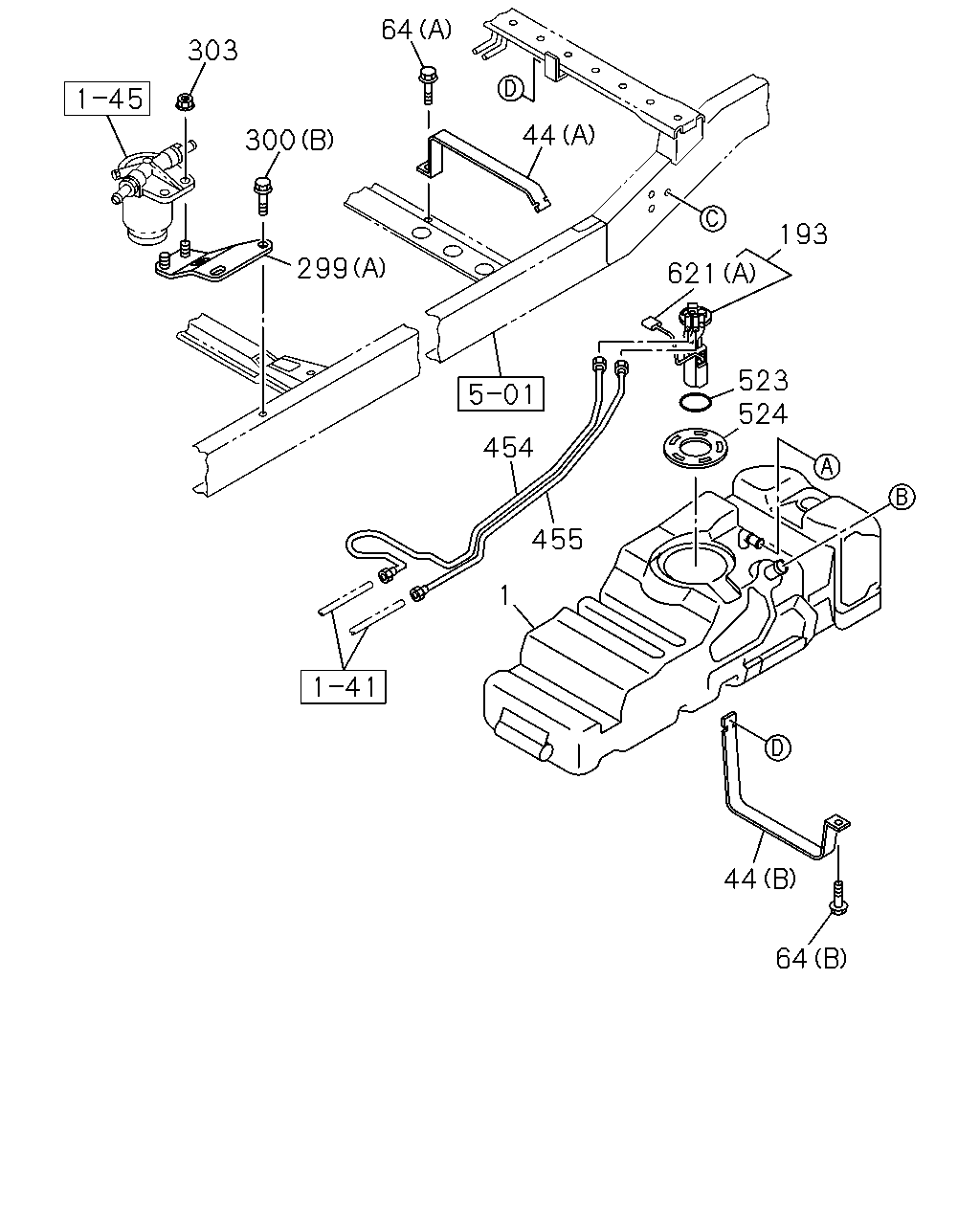

64 303 44 300 193 299 621 523 524 454 455 1 44 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	TANK; FUEL THA	8-97943-134-0	01	1	0303-0303	●
44	BAND; FUEL TANK (A) THA	8-97942-717-0	01	1	0303-0303	●
44	BAND; FUEL TANK (B) THA	8-97942-718-0	01	1	0303-0303	●
64	BOLT; FUEL TANK (A) M10X35 FLANGE THA	0-28661-035-0	01	1	0303-0303	●
64	BOLT; FUEL TANK (B) M10X50 FLANGE THA	8-97301-165-0	01	1	0303-0303	●
193	PUMP; FUEL THA	8-97943-184-0	01	1	0303-0303	●
299	BRACKET; FUEL FILTER (A) THA	8-97263-630-1	01	1	0303-0408	●
299	BRACKET; FUEL FILTER (D) THA	8-97944-051-0	01	1	0409-0412		●
299	BRACKET; FUEL FILTER (D) THA	8-97944-051-0	01	1	0501-0606		●	●
299	BRACKET; FUEL FILTER (D) THA	8-97945-336-0	01	1	0607-0804		●	●
299	BRACKET; FUEL FILTER (D) THA	8-98099-657-0	01	1	0805-0907		●	●
299	BRACKET; FUEL FILTER (D) THA	8-97945-336-0	01	1	0908-		●	●
299	BRACKET; FUEL FILTER (B) THA	8-97287-514-1	01	1	0303-0408	●
299	BRACKET; FUEL FILTER (C) THA	8-97308-749-0	01	1	0303-0408	●
300	BOLT; BRKT TO BODY (A) M8X30 FLANGE THA	0-28650-830-0	02	1	0303-0408	●
300	BOLT; BRKT TO BODY (B) M10X25 FLANGE THA	0-28681-025-0	02	1	0303-0408	●
303	NUT; SEDIMENTER BRKT M10 FLANGE THA	0-91180-110-0	02	1	0303-0408	●
454	PIPE; FUEL,DELIVERY THA	8-97942-271-1	01	1	0303-0303	●
455	PIPE; FUEL,RETURN THA	8-97942-272-0	01	1	0303-0303	●
455	PIPE; FUEL,RETURN THA	8-97943-512-0	01	1	0303-0303	●
523	SEAL; FUEL SENSOR THA	8-97943-141-0	01	1	0303-0303	●
524	RING; RETAINER THA	8-97942-306-0	01	1	0303-0303	●
621	RESISTOR ASM; FUEL PUMP (A) THA	8-97943-178-0	01	1	0303-0303	●
621	RESISTOR ASM; FUEL PUMP (B) THA	8-98041-186-0	01	1	0607-		●	●

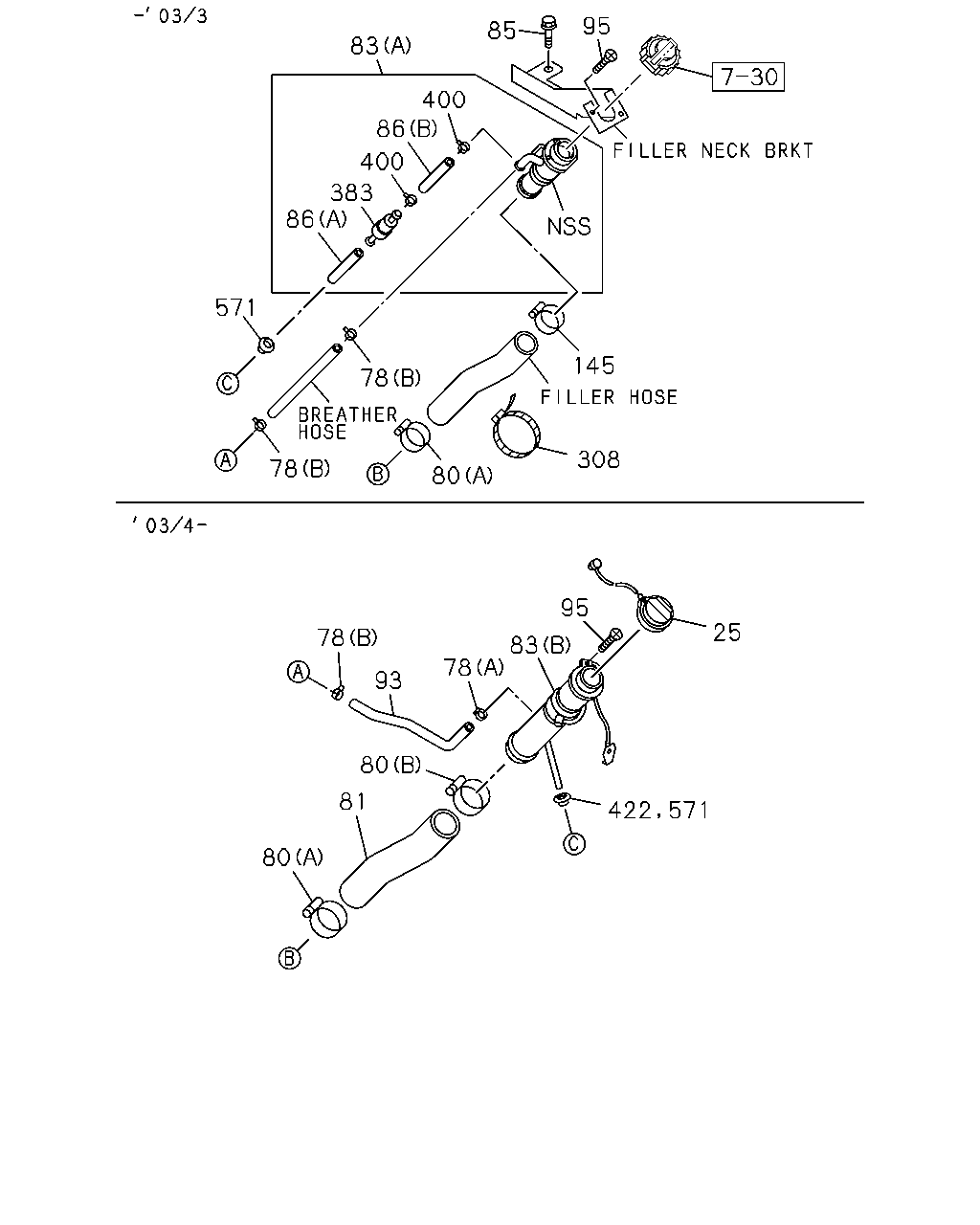

95 85 83 400 86 400 383 86 571 145 78 308 78 80 95 25 78 83 78 93 80 81 80 422 571

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
25	CAP; FILLER,FUEL TANK THA	8-22660-003-0	01	1	0304-0310	●
25	CAP; FILLER,FUEL TANK THA	8-97369-560-0	01	1	0311-0408	●
25	CAP; FILLER,FUEL TANK THA	8-97369-560-0	01	1	0409-		●	●
78	CLIP; BREATHER HOSE (A) THA	8-98097-946-0	01	1	0711-		●	●
78	CLIP; BREATHER HOSE (B) ID=28 THA	9-09915-421-1	02	1	0303-0303	●
78	CLIP; BREATHER HOSE (B) ID=28 THA	9-09915-421-1	01	1	0304-0408	●
78	CLIP; BREATHER HOSE (B) ID=28 THA	9-09915-421-1	01	1	0409-0606		●	●
78	CLIP; BREATHER HOSE (B) ID=24.3 THA	8-97945-557-0	01	1	0607-		●	●
78	CLIP; BREATHER HOSE (A) THA	8-97942-839-0	01	1	0304-0408	●
78	CLIP; BREATHER HOSE (A) THA	8-97942-839-0	01	1	0409-0610		●	●
78	CLIP; BREATHER HOSE (A) THA	8-97945-725-0	01	1	0611-0710		●	●
80	CLIP; FILLER HOSE (B) THA	8-98097-947-0	01	1	0711-		●	●
80	CLIP; FILLER HOSE (A) ID=54 THA	9-09915-412-1	01	1	0303-0408	●
80	CLIP; FILLER HOSE (A) ID=54 THA	9-09915-412-1	01	1	0409-		●	●
80	CLIP; FILLER HOSE (B) THA	8-97942-304-1	01	1	0304-0408	●
80	CLIP; FILLER HOSE (B) THA	8-97942-304-1	01	1	0409-0610		●	●
80	CLIP; FILLER HOSE (B) THA	8-97945-726-0	01	1	0611-0710		●	●
81	HOSE; FUEL FILLER THA	8-97942-301-0	01	1	0304-0408		●
81	HOSE; FUEL FILLER THA	8-97942-301-0	01	1	0409-		●	●
83	NECK; FUEL FILLER (A) THA	8-97305-635-1	01	1	0303-0303	●
83	NECK; FUEL FILLER (B) THA	8-97943-304-0	01	1	0304-0408	●
83	NECK; FUEL FILLER (B) THA	8-97943-304-0	01	1	0409-0509		●	●
83	NECK; FUEL FILLER (B) THA	8-97945-404-0	01	1	0510-		●	●
85	BOLT; FILLER NECK M12X25 FLANGE THA	0-28651-225-0	01	1	0303-0303	●
86	HOSE; EVAP (A) L=300 SERVICED BY L=3000 THA	8-94128-826-0	01	1	0303-0303	●
86	HOSE; EVAP (B) L=80 SERVICED BY L=3000 THA	8-94128-826-0	01	1	0303-0303	●
93	HOSE; BREATHER,FUEL TANK THA	8-97942-303-0	01	1	0304-0408		●
93	HOSE; BREATHER,FUEL TANK THA	8-97942-303-0	01	1	0409-		●	●
95	SCREW; FILLER NECK M6X16 THA	8-94381-646-0	02	1	0303-0303	●
95	SCREW; FILLER NECK THA	8-97301-166-0	01	1	0304-0408	●
95	SCREW; FILLER NECK THA	8-97301-166-0	01	1	0409-0606		●
95	SCREW; FILLER NECK M5X16 TAPPING W/PL WASHER IMA	8-98039-091-0	01	1	0607-		●
145	CLIP; HOSE,FILLER NECK ID=57 THA	9-09915-036-1	01	1	0303-0303	●
308	CLIP; HOSE L=330 IMA	5-09709-118-0	02	1	0303-0303	●
383	VALVE; 2 WAY THA	8-97178-373-0	01	1	0303-0303	●
400	CLIP; HOSE,EVAP ID=8.5 THA	8-94166-071-0	02	1	0303-0303	●
422	PLUG; FUEL TANK THA	8-97313-474-0	01	1	0710-		●	●
571	GROMMET THA	8-97313-474-0	01	1	0303-0408	●
571	GROMMET THA	8-97313-474-0	01	1	0409-0412		●
571	GROMMET THA	8-97313-474-0	01	1	0501-		●	●

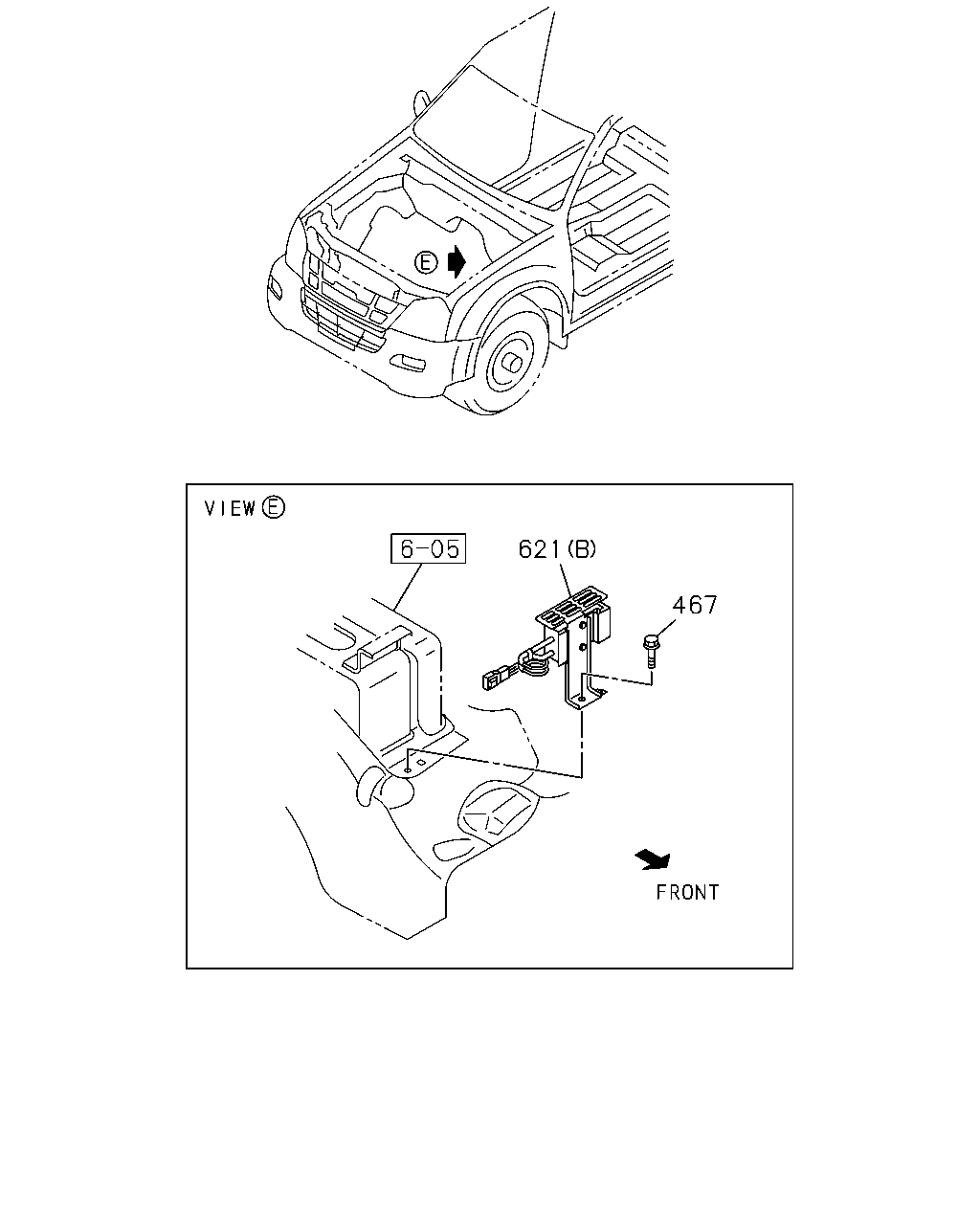

621 467

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
467	BOLT M6X16 FLANGE THA	0-28650-616-0	01	1	0607-		●	●
621	RESISTOR ASM; FUEL PUMP (A) THA	8-97943-178-0	01	1	0303-0303	●
621	RESISTOR ASM; FUEL PUMP (B) THA	8-98041-186-0	01	1	0607-		●	●

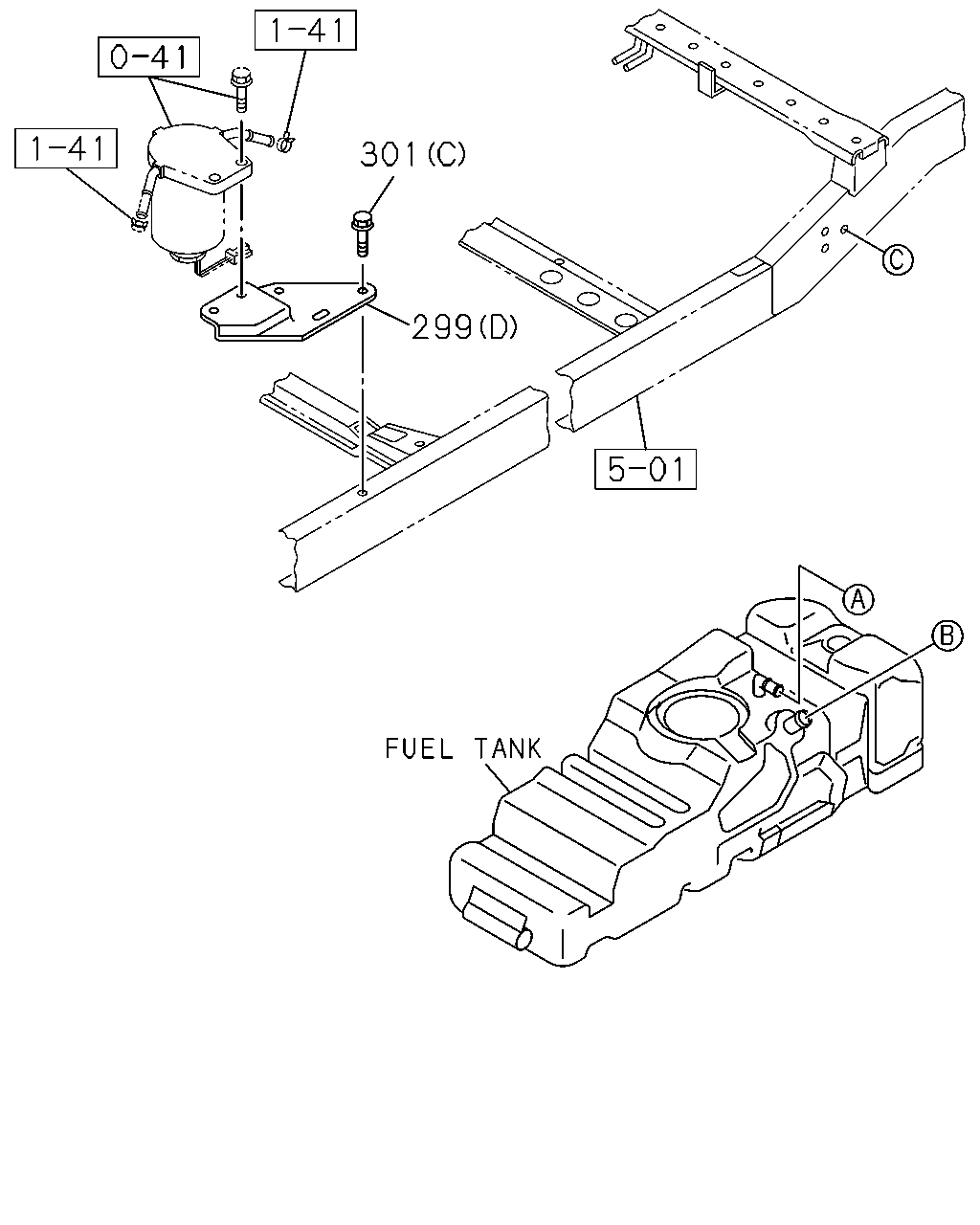

301 299

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
299	BRACKET; FUEL FILTER (A) THA	8-97263-630-1	01	1	0303-0408	●
299	BRACKET; FUEL FILTER (D) THA	8-97944-051-0	01	1	0409-0412		●
299	BRACKET; FUEL FILTER (D) THA	8-97944-051-0	01	1	0501-0606		●	●
299	BRACKET; FUEL FILTER (D) THA	8-97945-336-0	01	1	0607-0804		●	●
299	BRACKET; FUEL FILTER (D) THA	8-98099-657-0	01	1	0805-0907		●	●
299	BRACKET; FUEL FILTER (D) THA	8-97945-336-0	01	1	0908-		●	●
299	BRACKET; FUEL FILTER (B) THA	8-97287-514-1	01	1	0303-0408	●
299	BRACKET; FUEL FILTER (C) THA	8-97308-749-0	01	1	0303-0408	●
301	BOLT; BRKT TO SEDIMENTER (A) M8X20 FLANGE THA	0-28650-820-0	02	1	0303-0408	●
301	BOLT; BRKT TO SEDIMENTER (C) M10X25 FLANGE THA	0-28681-025-0	02	1	0409-0412		●
301	BOLT; BRKT TO SEDIMENTER (C) M10X25 FLANGE THA	0-28681-025-0	02	1	0501-0601		●	●
301	BOLT; BRKT TO SEDIMENTER (C) M10X25 FLANGE THA	0-28651-025-0	02	1	0602-		●	●
301	BOLT; BRKT TO SEDIMENTER (B) M8X25 FLANGE THA	0-28650-825-0	04	1	0303-0408	●
