Sayfa 3-77 - Isuzu EPC

3-77 — BRAKE PIPING; AIR,REAR (#4865) — 219 parça

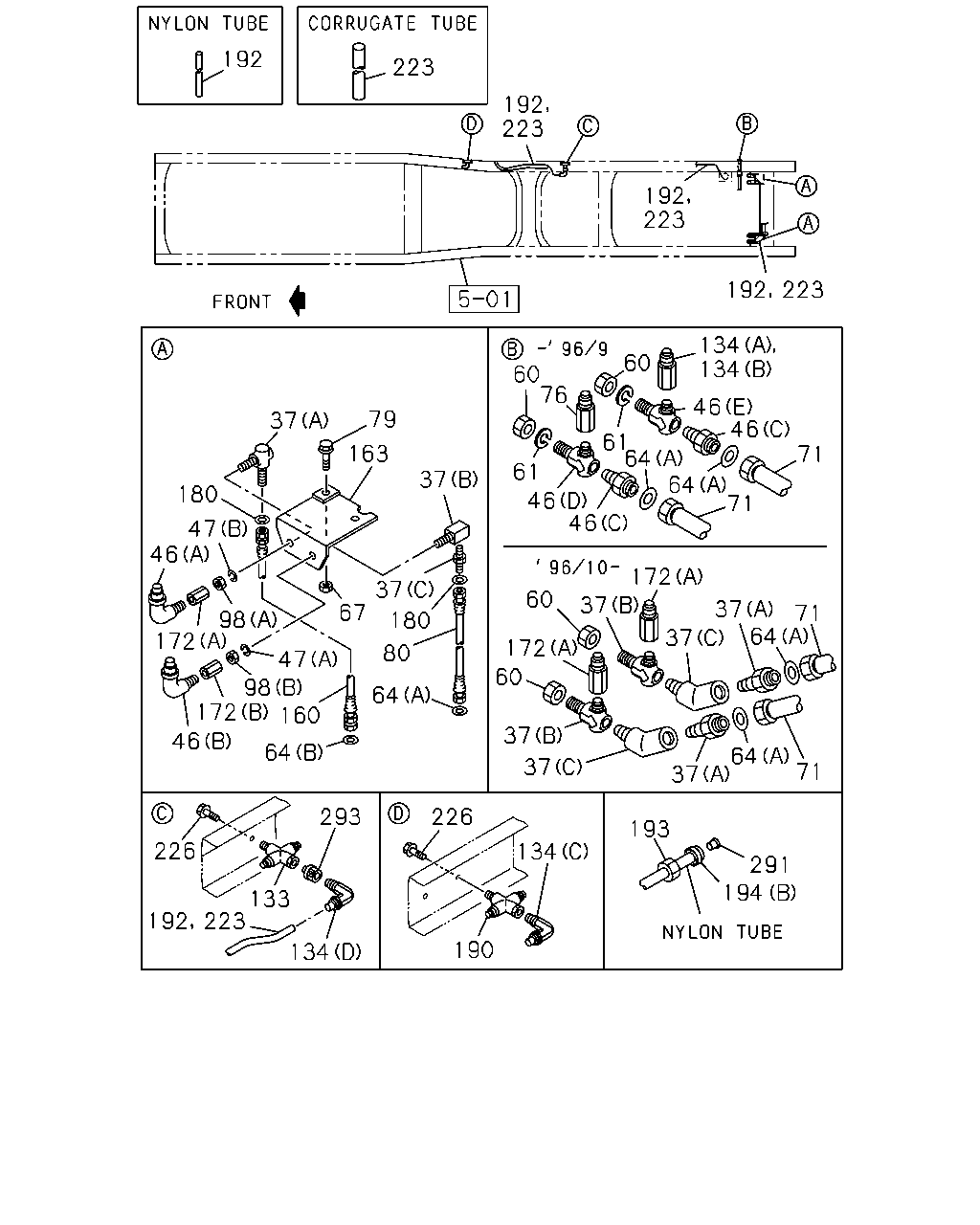

192 223 192 223 192 223 134 134 60 76 60 46 46 71 79 37 61 64 64 163 61 37 71 180 46 46 47 46 172 37 67 60 37 37 71 64 98 180 37 172 172 80 47 98 172 160 60 64 37 46 64 64 71 37 37 293 226 193 226 134 291 194 133 190 134 192 223 192 223

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9610-9904
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (A) M27 & PT3/8 STRAIGHT	1-09650-250-0	01	1	9905-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09664-209-0	02	1	9610-9904
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09664-209-0	01	1	9905-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	01	1	9610-9610
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (B)	1-09650-251-1	01	1	9610-9610
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	01	1	9611-9708
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	01	1	9611-9708
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	01	1	9709-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-09650-251-1	01	1	9709-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-251-1	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-09650-251-1	01	1	0001-
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (B) M14X35	1-09650-272-2	01	1	9610-9610
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) M14X35	1-09650-272-2	01	1	9611-9912
37	UNION; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) M14X35	1-09650-272-2	01	1	0001-
37	UNION; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B)	1-09650-003-1	02	1	9601-
37	UNION; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (C)	1-09656-088-0	02	1	9601-
37	UNION; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A)	9-09903-782-1	02	1	9601-
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (C) M27 & PT3/8 STRAIGHT	1-09650-250-0	02	1	9601-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> (D)	1-09650-251-1	01	1	9601-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D)	1-09650-251-1	01	1	9601-9609
46	NIPPLE; AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (E) M14X35	1-09650-272-2	01	1	9601-9609
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9907
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9908-
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	02	1	9601-9907
46	NIPPLE; AIR PIPE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	9908-
47	WASHER; LK,HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) ID=16.2	9-09150-516-0	02	1	9601-
47	WASHER; LK,HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) ID=20.2	9-09150-520-0	02	1	9601-
60	NUT; NIPPLE,AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	02	1	9601-9904
60	NUT; NIPPLE,AIR PIPE BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	01	1	9905-
61	WASHER; LK,NIPPLE BRAKE POWER CHAMBER FORWARD<BCQ> ID=20.2	9-09150-520-0	01	1	9601-9606
64	GASKET; FLEX HOSE (A) ID=17.5	9-09572-515-0	02	1	9601-
64	GASKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) ID=11 OD=18	9-09572-510-0	02	1	9905-
67	NUT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8	9-09110-408-0	04	1	9601-9606
67	NUT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8 FLANGE	0-91150-108-0	04	1	9607-
71	HOSE; FLEX,RWD RR BRAKE POWER CHAMBER FORWARD<BCQ> L=550	0-07909-550-0	02	1	9601-
76	ADAPTER; NYLON TUBE BRAKE POWER CHAMBER FORWARD<BCQ> DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9601-9609
79	BOLT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X30 FLANGE	0-28080-830-0	03	1	9601-9606
79	BOLT; HOSE BRKT EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X35 FLANGE	0-28680-835-0	03	1	9607-
80	HOSE; FLEX,POWER CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> L=480	0-07909-480-0	02	1	9601-
98	NUT; PIPE UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) M16	9-99111-416-0	02	1	9601-
98	NUT; PIPE UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) M20	9-99111-420-0	02	1	9601-
133	UNION; NIPPLE PARKING BRAKE VALVE LEVER TYPE<W48> DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9601-9610
133	UNION; NIPPLE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NEW ZEALAND EQUIPMENT(PK5) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9611-9904
133	UNION; NIPPLE NEW ZEALAND EQUIPMENT(PK5) DIN12 RC3/8 & M8 3WAY	1-09660-758-1	01	1	9611-9904
133	UNION; NIPPLE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NEW ZEALAND EQUIPMENT(PK5) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-9912
133	UNION; NIPPLE NEW ZEALAND EQUIPMENT(PK5) DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	9905-9912
133	UNION; NIPPLE BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0001-
133	UNION; NIPPLE PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE REGULATION ECE<TDV> DIN12X2 & R3/8 3WAY	1-09661-131-0	01	1	0001-
134	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9601-9609
134	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (B) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9601-9609
134	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9904
134	CONNECTOR (C) DIN8 & R1/4 ELBOW	1-09660-649-1	01	1	9601-9904
134	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
134	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
134	CONNECTOR PARKING BRAKE VALVE LEVER TYPE<W48> (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9610
134	CONNECTOR PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9611-9904
134	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (D) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9611-9904
134	CONNECTOR PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NEW ZEALAND EQUIPMENT(PK5) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
134	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
134	CONNECTOR BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
134	CONNECTOR PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE REGULATION ECE<TDV> (D) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
160	HOSE; FLEX,SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> L=470	0-07847-470-1	02	1	9601-
163	BRACKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47477-060-0	01	1	9601-
163	BRACKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47477-059-0	01	1	9601-
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9610-9610
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9610-9610
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9611-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9611-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-9912
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	9905-9912
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0001-0007
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0001-0007
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9610-9610
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9611-9612
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9701-9904
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9905-9912
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	0001-0007
172	ADAPTER; UNION BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-
172	ADAPTER; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9601-
172	ADAPTER; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) M20 & RC3/8 STRAIGHT	1-09660-883-0	02	1	9601-
180	GASKET; FLEX HOSE EXC. BRAKE POWER CHAMBER FORWARD<BCQ> ID=11 OD=18	9-09572-510-0	02	1	9601-
190	UNION; 3 WAY EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> DIN8 RC1/4 & M8	1-09660-735-1	01	1	9601-9904
190	UNION; 3 WAY DIN8 RC1/4 & M8	1-09660-735-1	01	1	9601-9904
190	UNION; 3 WAY EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-
190	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	9905-
192	TUBE; NYLON PARKING BRAKE VALVE LEVER TYPE<W48> SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	9905-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-
193	NUT; SLEEVE ZF M/T<X9E> M18	1-09660-213-0	01	1	9601-
194	SLEEVE; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (A) ID=23 OD=27 L=40	1-09337-015-0	03	1	9905-9907
194	SLEEVE; TUBE ZF M/T<X9E> (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28680-820-0	01	1	9607-
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28680-820-0	01	1	9607-
291	INSERT ZF M/T<X9E> ID=7.5 OD=8.8 L=18	1-09669-055-0	01	1	9601-
293	VALVE; CHECK PARKING BRAKE VALVE LEVER TYPE<W48>	1-48320-013-0	01	1	9601-9610
293	VALVE; CHECK PARKING BRAKE VALVE LEVER TYPE<W48> EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48320-013-1	01	1	9611-9912
293	VALVE; CHECK NEW ZEALAND EQUIPMENT(PK5)	1-48320-013-1	01	1	9611-9912
293	VALVE; CHECK BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	0001-
293	VALVE; CHECK PARKING BRAKE VALVE LEVER TYPE<W48> EXC. BRAKE REGULATION ECE<TDV>	1-48320-013-2	01	1	0001-

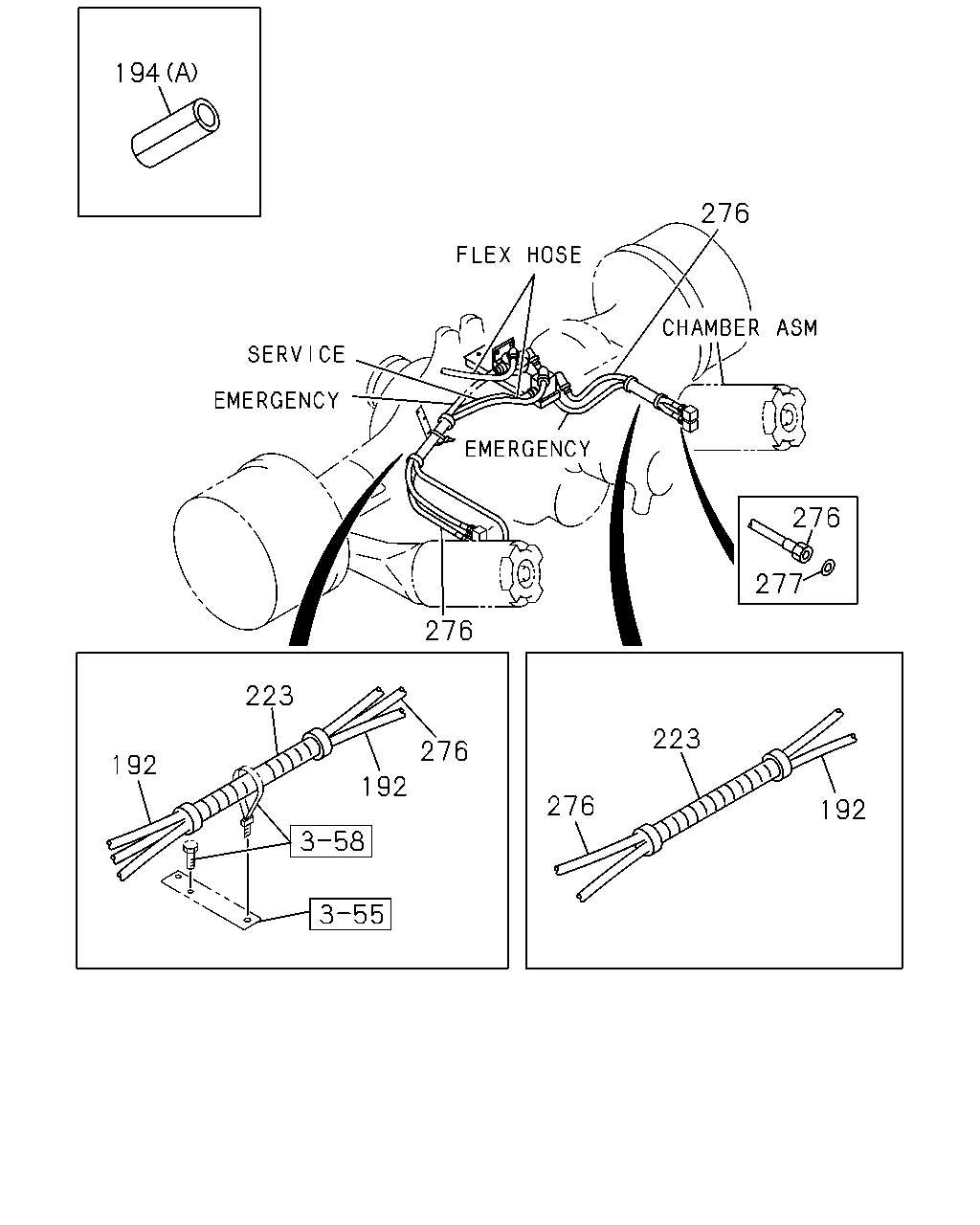

194 276 276 277 276 223 223 276 192 192 276 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
192	TUBE; NYLON PARKING BRAKE VALVE LEVER TYPE<W48> SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	9905-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-
194	SLEEVE; TUBE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> (A) ID=23 OD=27 L=40	1-09337-015-0	03	1	9905-9907
194	SLEEVE; TUBE ZF M/T<X9E> (B) ID=12.15 OD=15 L=10	1-09666-043-0	01	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-
276	HOSE; SERVO BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> L=490	0-07846-490-1	01	1	9905-9907
276	HOSE; SERVO BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> L=770	0-07846-770-1	01	1	9905-9907
277	GASKET; HOSE SERVO BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE SYSTEM RETARDER<RE2> ID=11 OD=18	9-09572-510-0	04	1	9905-9907

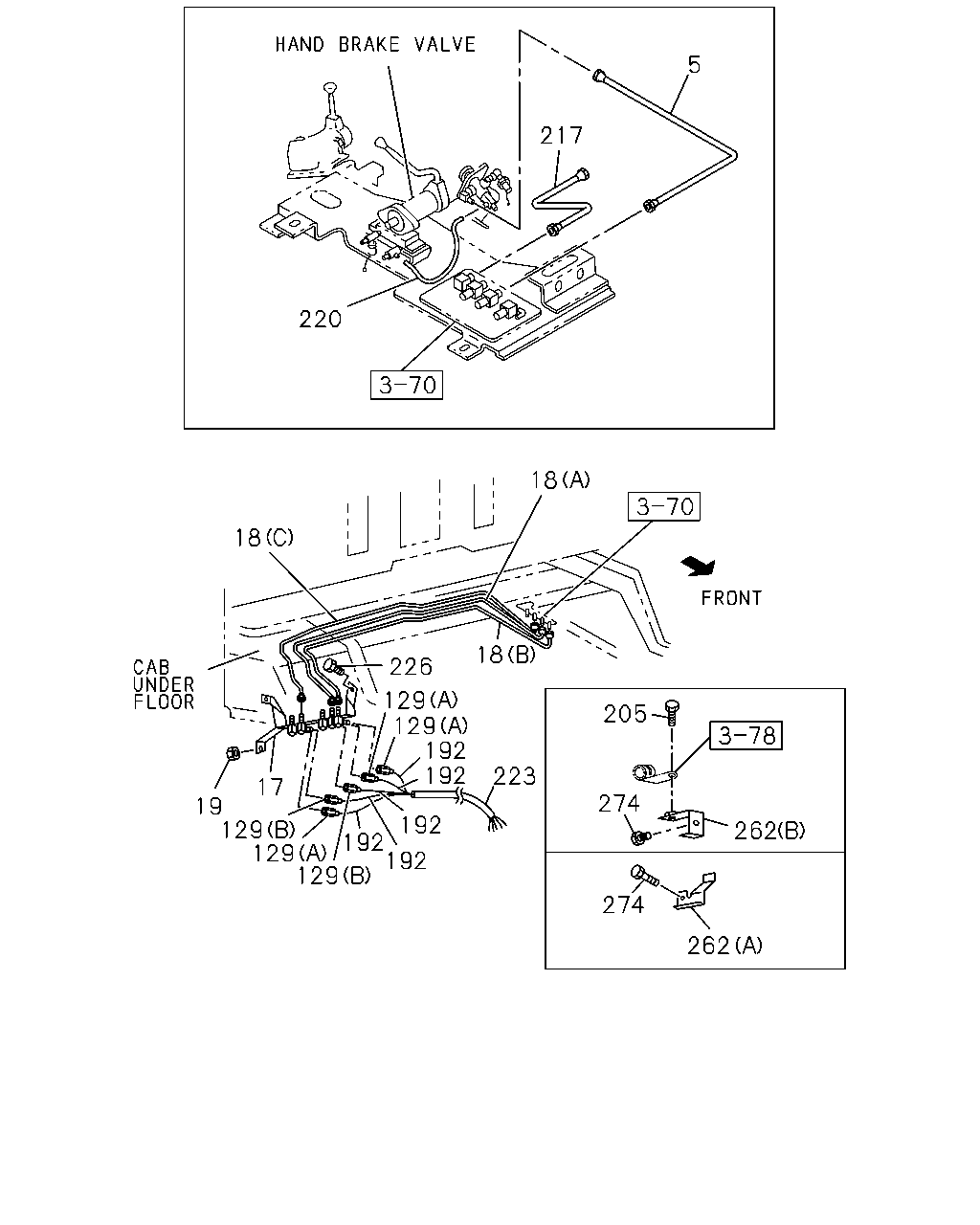

5 217 220 18 18 18 226 129 129 192 192 205 223 17 274 19 129 129 129 192 262 192 192 274 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PIPE; AIR,UNION TO PARKING VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47495-161-0	01	1	9601-
17	UNION; AIR PIPE PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-453-2	01	1	9601-
17	UNION; AIR PIPE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-47470-455-2	01	1	9601-
18	PIPE; AIR,UNION TO UNION (A) L=1677 SERVICED BY L=1700	1-47426-391-0	01	1	9601-9810
18	PIPE; AIR,UNION TO UNION (A) L=1800	1-49121-052-0	01	1	9811-
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1726 SERVICED BY L=1800	1-47426-392-0	01	1	9601-9810
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=1854	1-49121-053-0	01	1	9811-
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1874 SERVICED BY L=1900	1-47426-421-0	01	1	9601-9810
18	PIPE; AIR,UNION TO UNION PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1982	1-49121-055-1	01	1	9811-
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1869 SERVICED BY L=1900	1-47426-421-0	01	1	9601-9810
18	PIPE; AIR,UNION TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C) L=1942	1-49121-057-0	01	1	9811-
19	NUT; PIPE UNION M8	9-09110-408-0	01	1	9601-
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE (A) DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9601-9610
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	04	1	9611-9904
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9911
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9905-9911
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-9912
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-9912
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-0007
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	02	1	9912-0007
129	CONNECTOR; NYLON TUBE HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9601-9610
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9601-9610
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9611-9911
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9611-9911
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0010-
129	CONNECTOR; NYLON TUBE EXC. HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9601-9610
129	CONNECTOR; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9611-0007
129	CONNECTOR; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0008-0009
129	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	0010-
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	9912-0007
129	CONNECTOR; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0008-0009
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0010-
129	CONNECTOR; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09660-874-0	02	1	0010-
129	CONNECTOR; NYLON TUBE EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-9912
129	CONNECTOR; NYLON TUBE EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
129	CONNECTOR; NYLON TUBE (A) DIN8 & M14 STRAIGHT	1-09661-094-0	01	1	9912-0007
192	TUBE; NYLON PARKING BRAKE VALVE LEVER TYPE<W48> SERVICED BY L=2000 OD=8	1-87411-006-0	04	1	9905-
192	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	9601-
192	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	9601-
205	BOLT; TUBE CLIP M8X16 W/LK WASHER	0-50040-816-0	02	1	9601-9702
205	BOLT; TUBE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9703-
217	PIPE; AIR,PARKING BRK VLV TO UNION EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-49114-456-0	01	1	9601-
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. HONG KONG EQUIPMENT(PQ1) L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9601-9603
220	HOSE; VINYL,EXH,PARKING BRK VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	9604-9608
220	HOSE; VINYL,EXH,PARKING BRK VLV PARKING BRAKE VALVE LEVER TYPE<W48> L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9601-9608
220	HOSE; VINYL,EXH,PARKING BRK VLV L=480 SERVICED BY L=10000	9-09914-701-0	01	1	9609-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87410-096-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	9601-
223	TUBE; CORRUGATE SERVICED BY L=2000 ID=15	1-87410-102-0	AR	1	9601-
226	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	9601-9606
226	BOLT; UNION M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9601-
226	BOLT; UNION M8X20 FLANGE	0-28080-820-0	01	1	9607-
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606
226	BOLT; UNION PARKING BRAKE VALVE LEVER TYPE<W48> M8X20 FLANGE	0-28680-820-0	01	1	9607-
226	BOLT; UNION EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION HONG KONG<TCZ> M8X20 FLANGE	0-28680-820-0	01	1	9607-
262	BRACKET (B)	1-79996-143-0	01	1	9601-9610
262	BRACKET BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) (B)	1-79996-143-0	01	1	9611-
262	BRACKET (A)	1-79996-144-0	01	1	9601-
274	BOLT; BRKT M6X16 W/LK WASHER	0-50040-616-0	01	1	9601-9610
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X16 W/LK WASHER	0-50040-616-0	01	1	9611-0102
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M6X19.5 W/LK&PL WASHER	8-94279-201-0	01	1	0103-
274	BOLT; BRKT M8X16 W/LK WASHER	0-50040-816-0	01	1	9601-9610
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X16 W/LK WASHER	0-50040-816-0	01	1	9611-9702
274	BOLT; BRKT BRAKE SYSTEM SPRING BRAKE(BCR),SPRING BRAKE(SU9) M8X16 FLANGE	0-28080-816-0	01	1	9703-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
