1-31 — AIR DUCT (#48649) — 57 parça

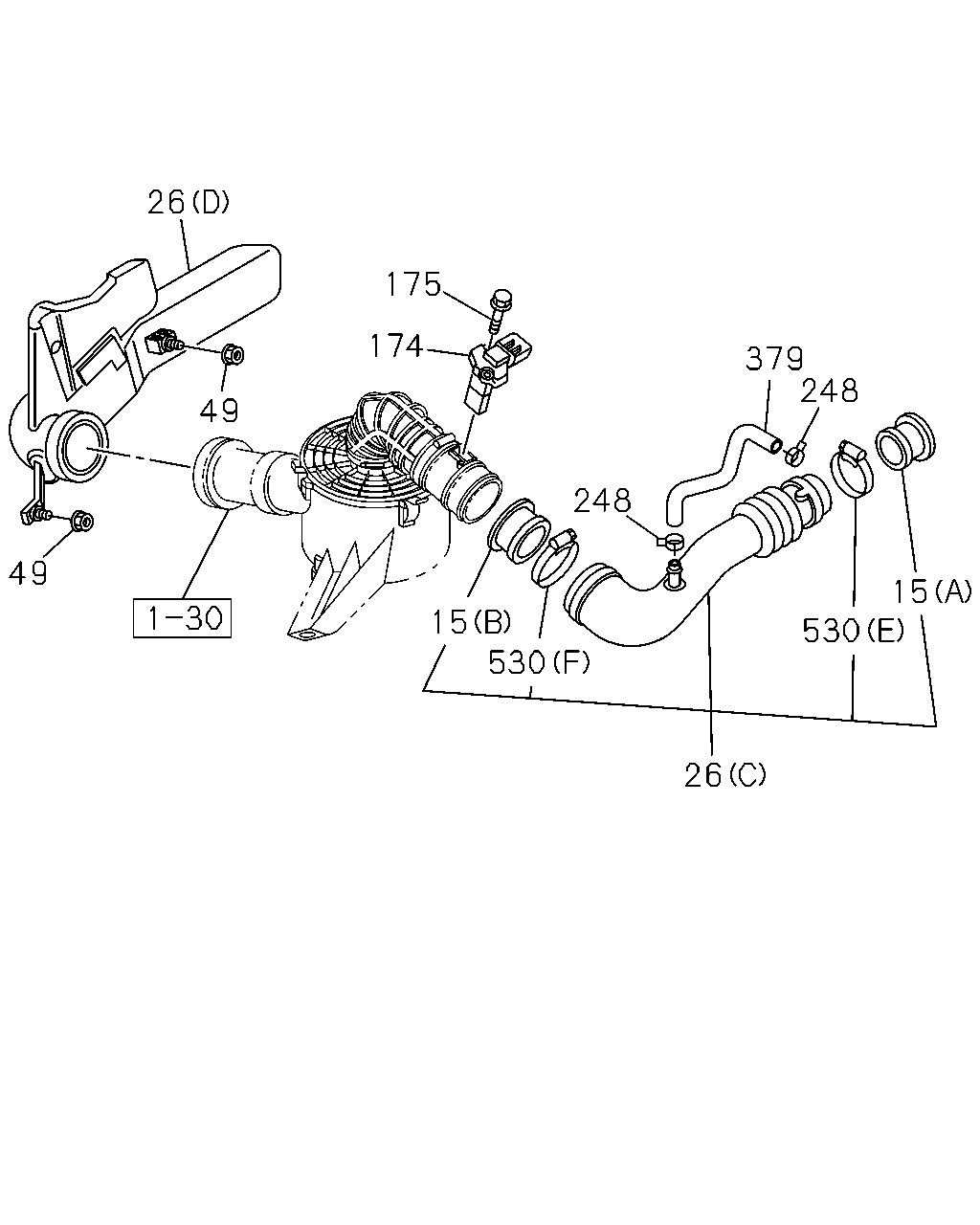

çizim 48391
26 175 174 379 248 49 248 49 15 530 15 530 26
BalonParca AdiParca NoAdetTipApplied Date A B C
15 INSULATOR
(A) THA 		8-98000-142-0 01 1 0409-0412 ●
15 INSULATOR
(A) THA 		8-98000-142-0 01 1 0501- ● ●
15 INSULATOR
(B) THA 		8-98000-143-0 01 1 0409-0412 ●
15 INSULATOR
(B) THA 		8-98000-143-0 01 1 0501- ● ●
26 DUCT; AIR INT
(A) THA 		8-97942-417-0 01 1 0303-0303 ●
26 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0303-0408 ●
26 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0409-0412 ●
26 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0501- ● ●
26 DUCT; AIR INT
(B) THA 		8-97942-418-5 01 1 0303-0408 ●
26 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0409-0412 ●
26 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0501- ● ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0303-0408 ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0409-0412 ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0501- ● ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0409-0412 ●
174 SENSOR; AIR FLOW CONT
IMA 		8-97601-967-0 01 1 0501- ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		9-03920-410-0 02 1 0409-0412 ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		9-03920-410-0 02 1 0501-0606 ● ●
175 BOLT; AIR FLOW CONT SENSOR
M4X10 W/LK&PL WASHER THA 		0-36230-410-0 02 1 0607- ● ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 0409-0412 ●
248 CLIP; RUBBER HOSE
ID=20.4 IMA 		8-94121-113-0 02 1 0501- ● ●
379 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0409-0412 ●
379 HOSE; RUBBER
THA 		8-97370-562-1 01 1 0501- ● ●
530 CLAMP; AIR DUCT
(A) THA 		8-97943-200-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(C) THA 		8-97943-202-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(D) THA 		8-97943-203-0 01 1 0303-0303 ●
530 CLAMP; AIR DUCT
(D) THA 		8-97943-558-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0409-0412 ●
530 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0501- ● ●
530 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0409-0412 ●
530 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0501- ● ●

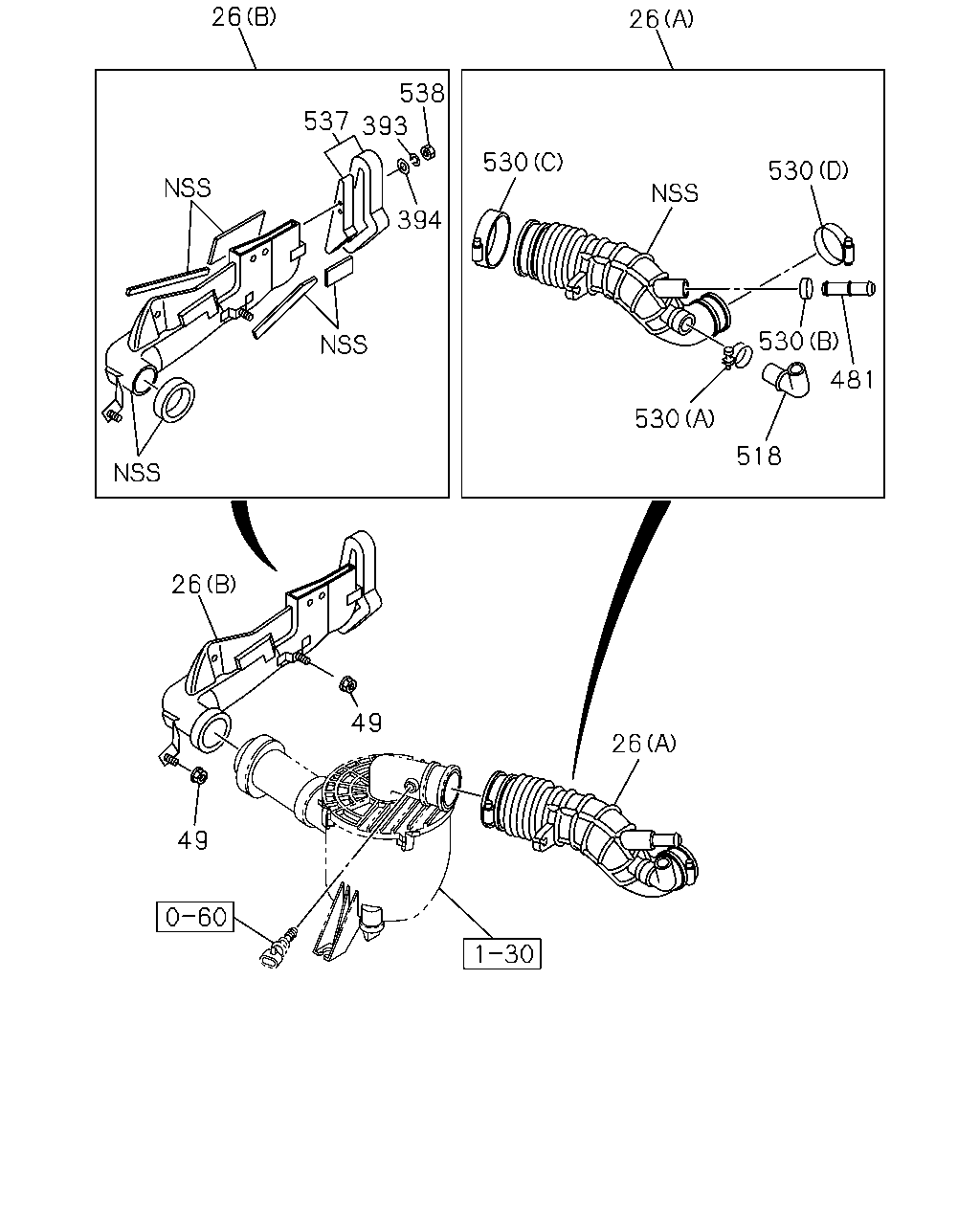

çizim 49989
26 26 538 537 393 530 530 394 530 481 530 518 26 49 26 49
BalonParca AdiParca NoAdetTipApplied Date A B C
26 DUCT; AIR INT
(A) THA 		8-97942-417-0 01 1 0303-0303 ●
26 DUCT; AIR INT
(A) THA 		8-97943-554-0 01 1 0303-0408 ●
26 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0409-0412 ●
26 DUCT; AIR INT
(D) THA 		8-97375-945-2 01 1 0501- ● ●
26 DUCT; AIR INT
(B) THA 		8-97942-418-5 01 1 0303-0408 ●
26 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0409-0412 ●
26 DUCT; AIR INT
(C) THA 		8-97387-946-0 01 1 0501- ● ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0303-0408 ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0409-0412 ●
49 NUT; AIR DUCT
M6 FLANGE THA 		0-91180-106-0 02 1 0501- ● ●
393 WASHER; LK,AIR DUCT
THA 		8-97943-214-0 02 1 0303-0408 ●
394 WASHER; PL,AIR DUCT
THA 		8-97943-213-0 02 1 0303-0408 ●
481 PIPE; PCV
THA 		8-97943-204-0 01 1 0303-0408 ●
518 RESONATOR; AIR INT
THA 		8-97943-199-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(A) THA 		8-97943-200-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(B) THA 		8-97943-201-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(C) THA 		8-97943-202-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(D) THA 		8-97943-203-0 01 1 0303-0303 ●
530 CLAMP; AIR DUCT
(D) THA 		8-97943-558-0 01 1 0303-0408 ●
530 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0409-0412 ●
530 CLAMP; AIR DUCT
(F) THA 		8-98000-140-0 01 1 0501- ● ●
530 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0409-0412 ●
530 CLAMP; AIR DUCT
(E) THA 		8-98000-141-0 01 1 0501- ● ●
537 PLATE; AIR DUCT
THA 		8-97943-211-1 01 1 0303-0408 ●
538 NUT; PLATE,AIR DUCT
THA 		8-97943-215-0 02 1 0303-0408 ●
