◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#48646) — 31 parça

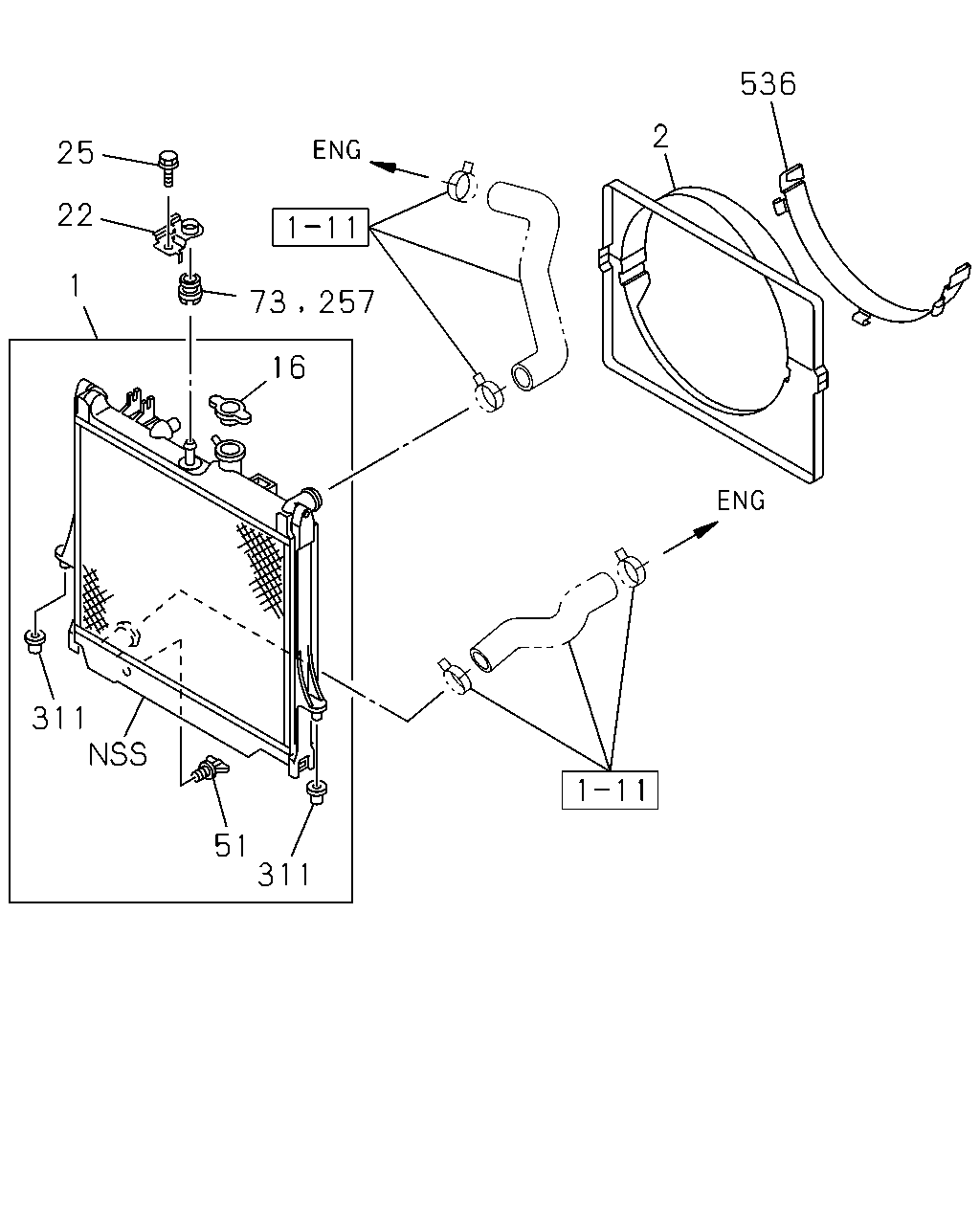

çizim 47988
536 2 25 22 1 16 311 51 311 73 257
BalonParca AdiParca NoAdetTipApplied Date A B C
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97333-349-3 01 1 0303-0408 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-97371-440-1 01 1 0409-1002 ●
1 RADIATOR ASM
A/T 4 SPEED-JATCO<RMK> THA 		8-98164-741-0 01 1 1003- ●
1 RADIATOR ASM
M/T MUA 5 SPEED<RMN> THA 		8-97333-350-3 01 1 0303-0408 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-350-3 01 1 0409-0412 ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97333-350-3 01 1 0501-0606 ● ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97333-350-3 01 1 0607-1002 ● ●
1 RADIATOR ASM
M/T MUA 5 SPEED 5H<MWQ> THA 		8-98164-742-0 01 1 1003- ● ●
2 GUIDE; FAN
THA 		8-97333-348-0 01 1 0303-0408 ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0409-0412 ●
2 GUIDE; FAN
THA 		8-97371-447-2 01 1 0501- ● ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0303-0408 ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0409-0412 ●
16 CAP; RAD
THA 		8-97942-268-1 01 1 0501- ● ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0303-0408 ●
22 BRACKET; RAD MTG
THA 		8-97941-547-0 01 1 0409- ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28080-812-0 01 1 0303-0408 ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28080-812-0 01 1 0409-0601 ● ●
25 BOLT; BRKT
M8X12 FLANGE THA 		0-28050-812-0 01 1 0602- ● ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0303-0408 ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0409-0412 ●
51 PLUG; DRAIN
W/GASKET THA 		8-97171-437-0 01 1 0501- ● ●
73 RUBBER; CUSHION,RAD MTG
THA 		8-97249-541-1 01 1 0303-0408 ●
73 RUBBER; CUSHION,RAD MTG
THA 		8-97249-541-1 01 1 0409-0504 ● ●
257 MOUNTING; RAD STAY
THA 		8-97249-541-1 01 1 0505- ● ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0303-0408 ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0409-0412 ●
311 RUBBER; MTG,RAD
THA 		8-97942-297-0 02 1 0501- ● ●
536 SHROUD; FAN
THA 		8-97941-533-0 01 1 0303-0408 ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0409-0412 ●
536 SHROUD; FAN
THA 		8-97372-866-1 01 1 0501- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
