Isuzu WW
▶
PICKUP
▶
TFR
▶
50958 - TFR/TFS THAI-RUNG
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶
1-01 — ACCELERATOR PEDAL AND CONTROL
(#48645) — 35 parça
Tümü
A - 4JH1 ENG
B - 4JJ1 ENG
C - 4JK1 ENG
◀

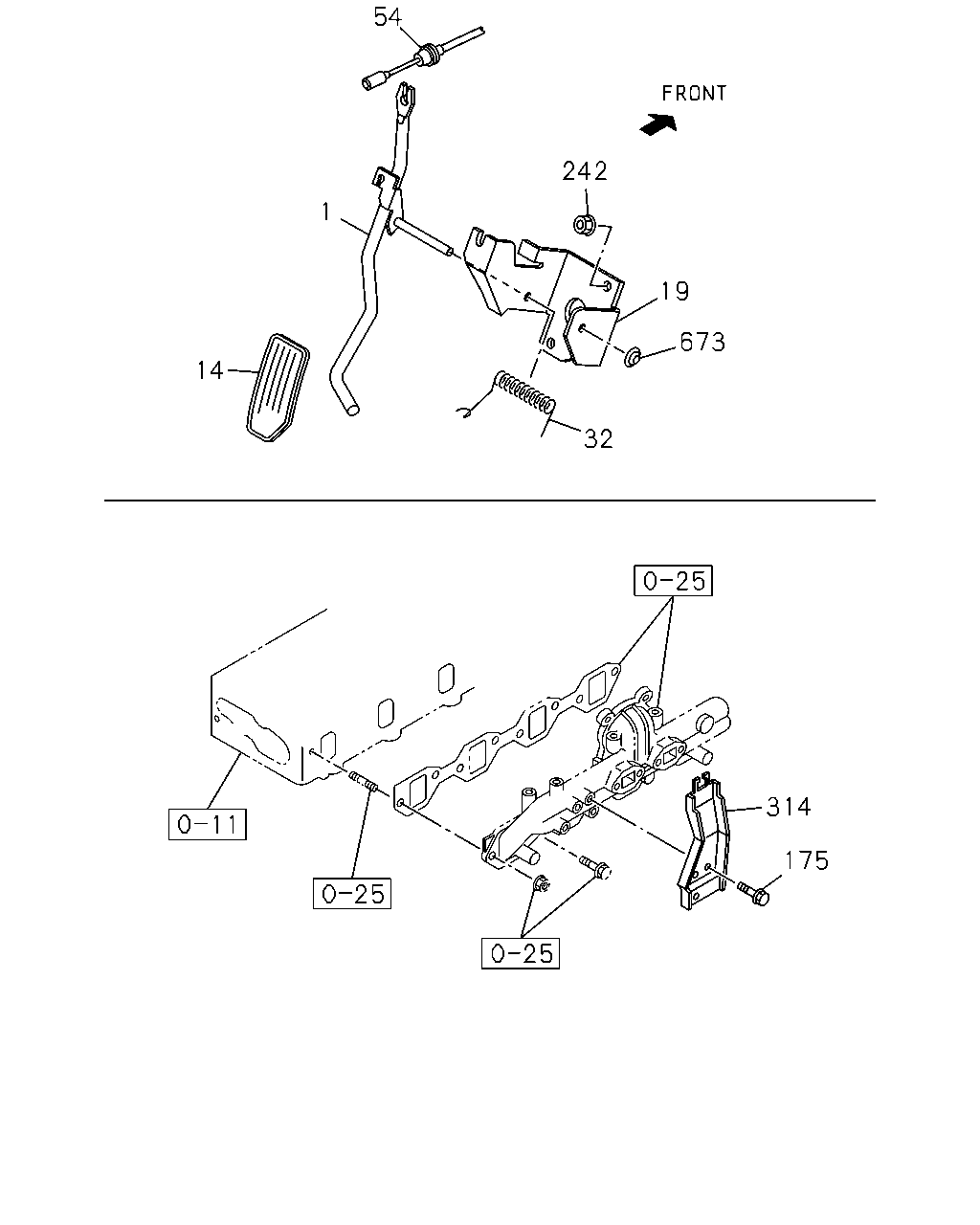

[101A] 4JH1(NO.1) (12 parça)
[101A] 4JH1(NO.2) (8 parça)
[101A] 4JJ1,4JK1 (15 parça)
▶
54
242
1
19
673
14
32
314
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
1
LEVER; PEDAL SIDE
THA
8-97257-591-1
01
1
0303-0408
●
14
PAD; PEDAL,ACCEL
THA
8-97257-598-0
01
1
0303-0408
●
14
PAD; PEDAL,ACCEL
THA
8-97257-598-0
01
1
0409-0412
●
14
PAD; PEDAL,ACCEL
THA
8-97257-598-0
01
1
0501-
●
●
19
BRACKET; ACCEL PEDAL
THA
8-97257-593-3
01
1
0303-0408
●
32
SPRING; RETURN,ACCEL PEDAL
THA
8-97257-597-2
01
1
0303-0408
●
54
CABLE; ENG CONT
THA
8-97360-093-0
01
1
0303-0408
●
175
BOLT; BRKT,ACCEL CABLE
M8X16 FLANGE THA
0-28050-816-0
03
1
0303-0408
●
242
NUT; ACCEL PEDAL
M6 FLANGE THA
0-91180-106-0
02
1
0303-0408
●
242
NUT; ACCEL PEDAL
M6 FLANGE THA
0-91180-106-0
02
1
0409-
●
●
314
BRACKET; ACCEL CABLE
THA
8-97287-651-3
01
1
0303-0408
●
673
NUT; STOPPER
ID=7.9 PUSH NUT THA
8-94368-617-0
01
1
0303-0408
●
54
662
662
662
236
662
662
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
54
CABLE; ENG CONT
THA
8-97360-093-0
01
1
0303-0408
●
236
SCREW; TAP,PEDAL TO BRKT
M6X16 TAPPING W/PL WASHER THA
0-74300-616-0
01
1
0303-0408
●
662
CLIP; ACCEL CONT CABLE
(E) ID=15 & 10 THA
8-94152-804-0
01
1
0303-0408
●
662
CLIP; ACCEL CONT CABLE
(B) ID=10.5 H=60 THA
8-94323-658-1
01
1
0303-0408
●
662
CLIP; ACCEL CONT CABLE
(C) ID=10 THA
8-94450-392-0
01
1
0303-0408
●
662
CLIP; ACCEL CONT CABLE
ANTI LOCK BRAKE SYSTEM<JE5> (D) ID=6 & 4.8 THA
8-94313-325-0
01
1
0303-0408
●
662
CLIP; ACCEL CONT CABLE
EXC. ANTI LOCK BRAKE SYSTEM<JE5> (D) ID=6 & 4.8 THA
8-94313-325-0
02
1
0303-0408
●
662
CLIP; ACCEL CONT CABLE
M/T MUA 5 SPEED<RMN> (A) ID=6 & 10 IMA
8-94154-844-0
01
1
0303-0408
●
243
10
242
14
850
850
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
10
PEDAL ASM; ACCEL
THA
8-97382-784-0
01
1
0409-0412
●
10
PEDAL ASM; ACCEL
THA
8-97382-784-0
01
1
0501-0612
●
●
10
PEDAL ASM; ACCEL
THA
8-98055-655-0
01
1
0701-0902
●
●
10
PEDAL ASM; ACCEL
THA
8-98134-993-0
01
1
0903-
●
●
14
PAD; PEDAL,ACCEL
THA
8-97257-598-0
01
1
0303-0408
●
14
PAD; PEDAL,ACCEL
THA
8-97257-598-0
01
1
0409-0412
●
14
PAD; PEDAL,ACCEL
THA
8-97257-598-0
01
1
0501-
●
●
242
NUT; ACCEL PEDAL
M6 FLANGE THA
0-91180-106-0
02
1
0303-0408
●
242
NUT; ACCEL PEDAL
M6 FLANGE THA
0-91180-106-0
02
1
0409-
●
●
243
SENSOR; ACCEL
THA
8-97193-713-0
01
1
0409-0412
●
243
SENSOR; ACCEL
THA
8-97193-713-0
01
1
0501-
●
●
850
PLUG; HOLE
(A) THA
8-94147-164-1
01
1
0409-0412
●
850
PLUG; HOLE
(A) THA
8-94147-164-1
01
1
0501-0710
●
●
850
PLUG; HOLE
(B) THA
8-97801-635-1
01
1
0409-0412
●
850
PLUG; HOLE
(B) THA
8-97801-635-1
01
1
0501-
●
●
