◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-80 - INJECTION PUMP ▶
0-80 — INJECTION PUMP (#48644) — 11 parça

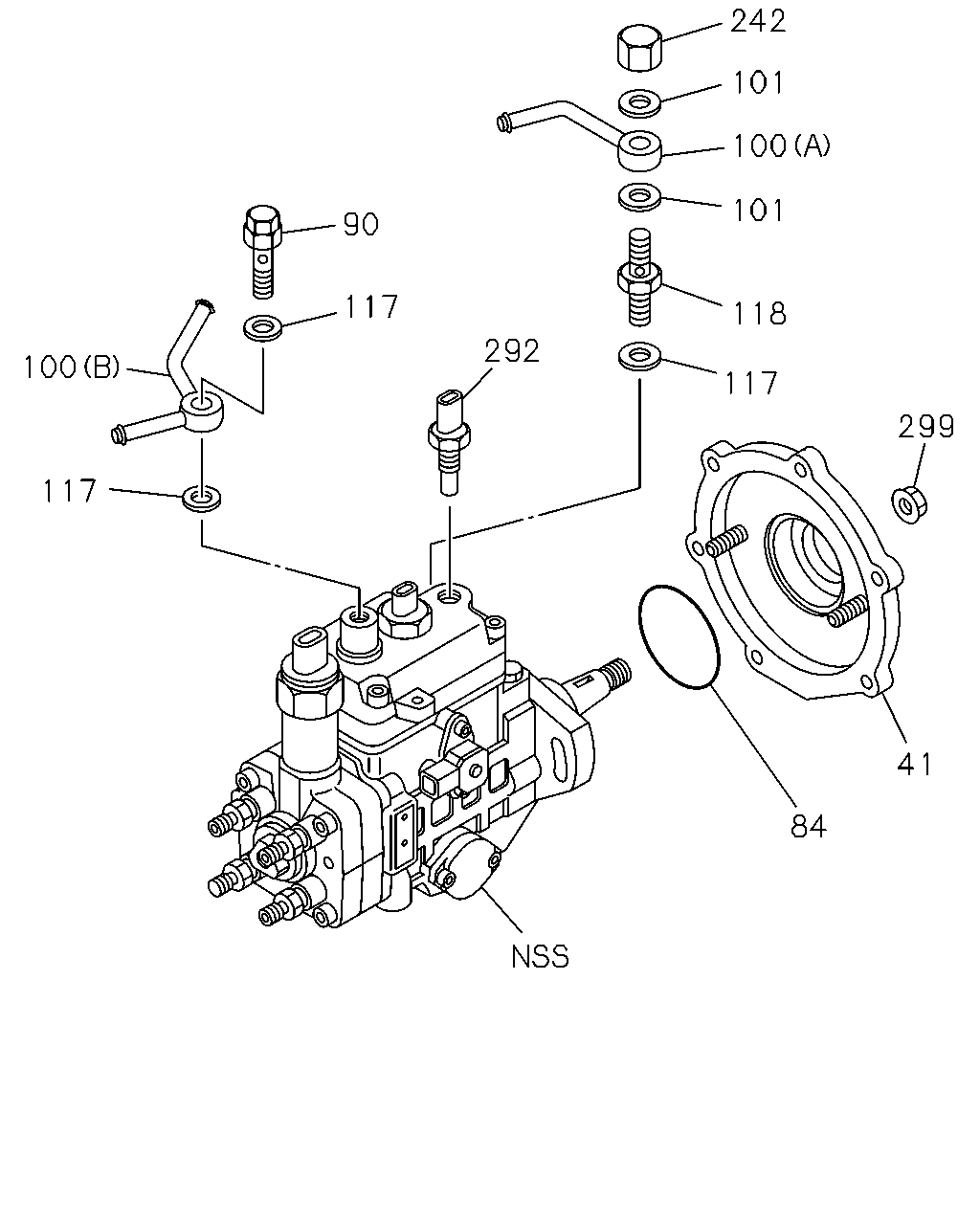

çizim 48385
242 101 100 101 90 117 118 292 100 117 299 117 41 84
BalonParca AdiParca NoAdetTipApplied Date
41 BRACKET; INJ PUMP HSG
THA ASM PART: A = 8-97214-093-5 		8-97357-818-0 01 1 -
84 GASKET; BRKT TO HSG
THA ASM PART: A = 8-97214-093-5 		8-97141-471-0 01 1 -
90 VALVE; OVERFLOW,INJ PUMP
THA ASM PART: A = 8-97214-093-5 		8-97238-595-0 01 1 -
100 PIPE; FUEL INJ PUMP
(A), THA ASM PART: A = 8-97214-093-5 		8-97238-593-0 01 1 -
100 PIPE; FUEL INJ PUMP
(B), THA ASM PART: A = 8-97214-093-5 		8-97238-594-0 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ID=12.2, THA ASM PART: A = 8-97214-093-5 		8-97141-182-0 02 1 -
117 GASKET; EYE BOLT,INJ PUMP
ID=12.2, THA ASM PART: A = 8-97214-093-5 		8-97141-182-0 03 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
THA ASM PART: A = 8-97214-093-5 		8-97261-353-0 01 1 -
242 NUT; CAP
THA ASM PART: A = 8-97214-093-5 		8-97141-252-0 01 1 -
292 SENSOR; FUEL TEMPERATURE
THA ASM PART: A = 8-97214-093-5 		8-97238-596-0 01 1 -
299 NUT; LOCK
THA ASM PART: A = 8-97214-093-5 		8-97141-469-0 01 1 -
