◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-66 - GENERATOR ▶

0-66 — GENERATOR (#48643) — 127 parça

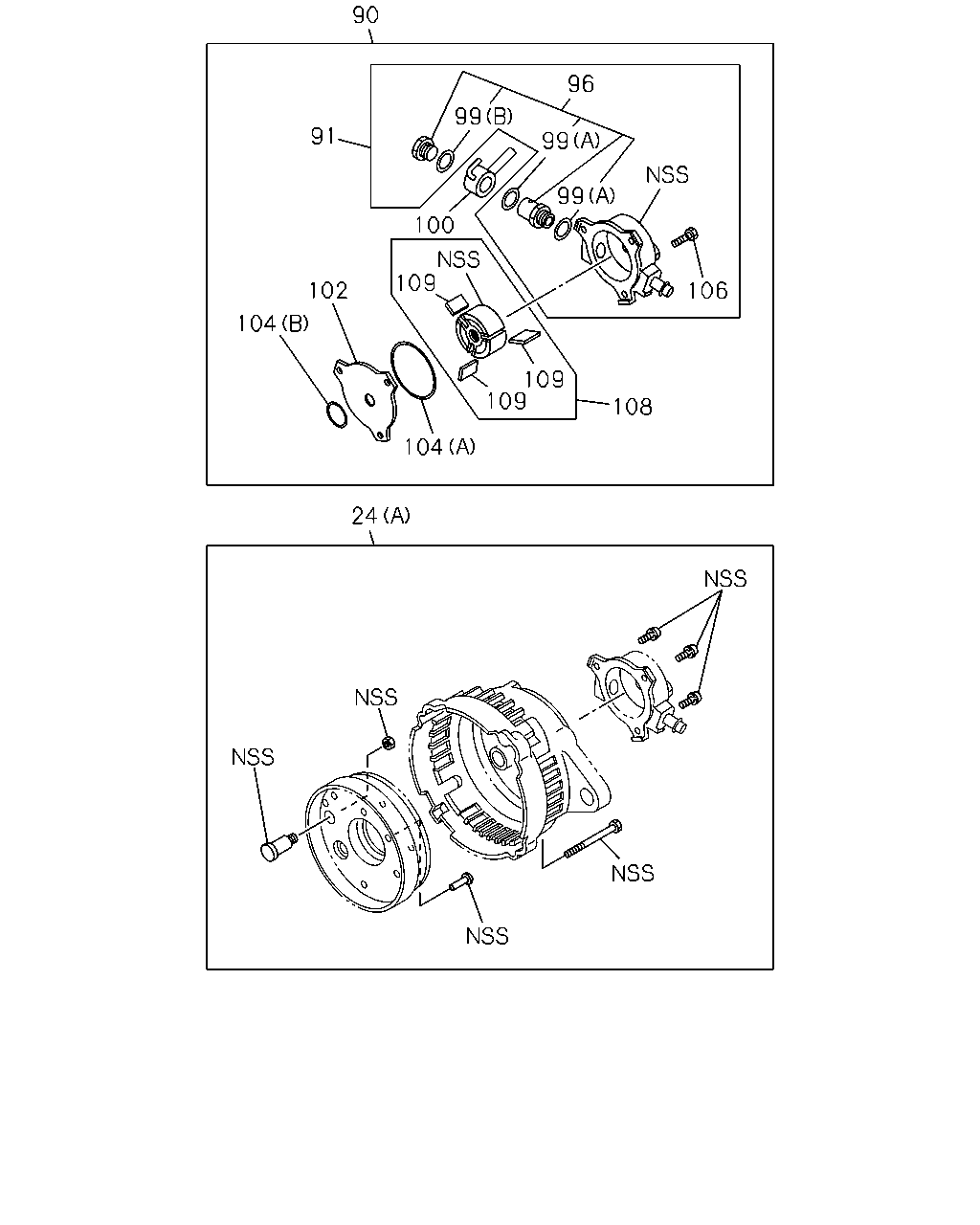

90 96 99 91 99 99 100 109 102 106 104 109 109 108 104 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	SCREW; RECTIFIER,GEN (C), THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (D), IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (B), IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-
90	PUMP ASM; VAC,GEN THA ASM PART: A = 8-97245-850-2	8-97381-613-0	01	1	-
91	BODY; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-937-0	01	1	-
96	VALVE ASM; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-948-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2	5-19679-003-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-615-0	01	1	-
102	COVER; FRT,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-936-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2	8-97941-675-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-614-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-935-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-94462-883-0	03	1	-

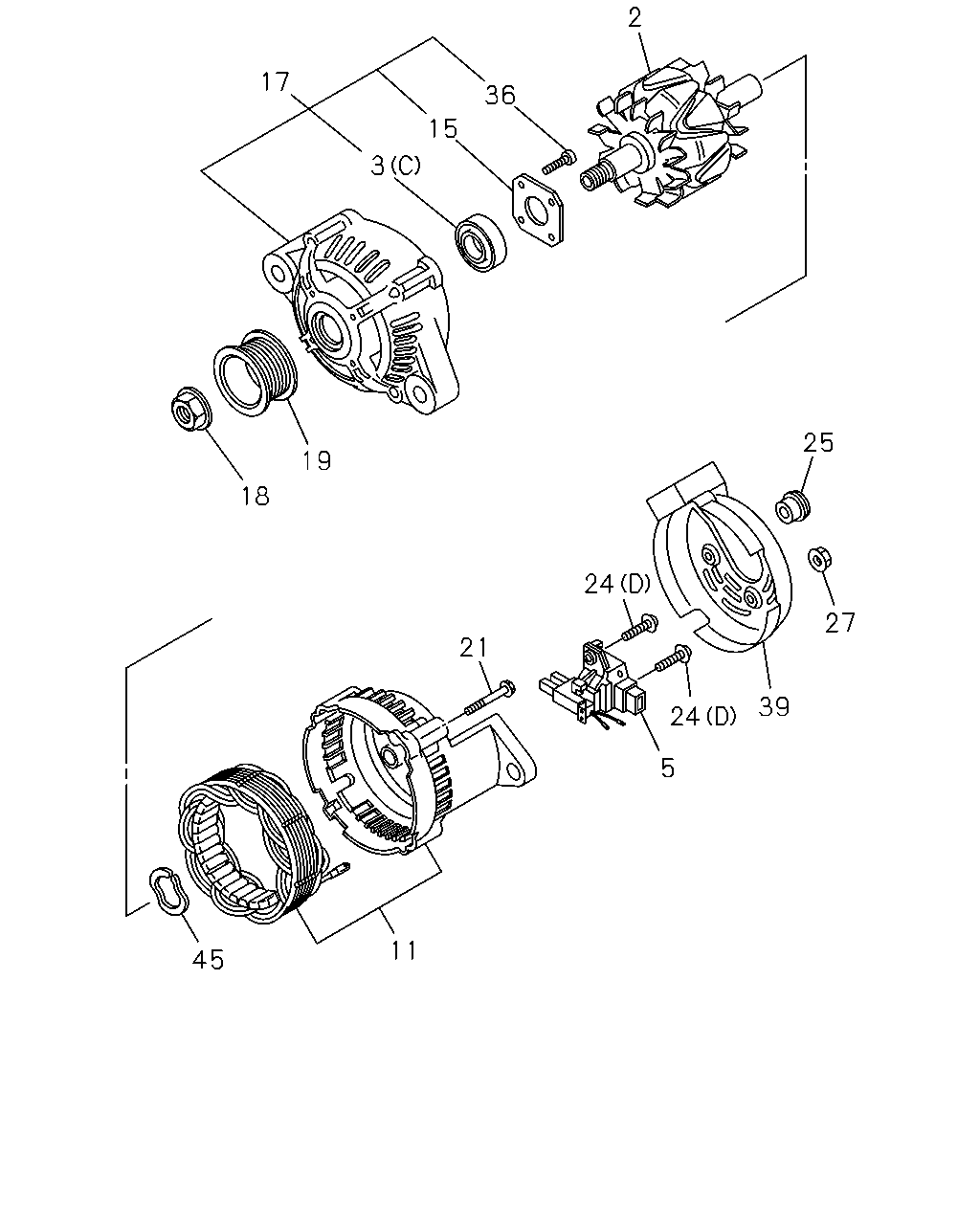

27 25 39 24 5 24 21 11 45 18 19 3 15 36 2 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (C), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, D = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: G = 8-98229-071-1	8-98228-965-0	01	1	-
5	HOLDER; BRUSH,GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97378-926-0	01	1	-
11	COVER; RR,GEN THA ASM PART: C = 8-97369-716-1	8-97378-925-0	01	1	-
11	COVER; RR,GEN THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-086-0	01	1	-
11	COVER; RR,GEN THA ASM PART: G = 8-98229-071-1	8-98159-086-0	01	1	-1403
11	COVER; RR,GEN THA ASM PART: G = 8-98229-071-1	8-98242-367-0	01	1	1404-
15	RETAINER; ROTOR,GEN IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-94406-982-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: G = 8-98229-071-1	8-98229-789-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97074-927-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-98000-022-0	01	1	-
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97182-960-0	04	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97319-752-0	04	1	-
24	SCREW; RECTIFIER,GEN (C), THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (D), IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (B), IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0	8-97378-930-0	01	1	-
25	BUSHING; INSULATION TERMINAL THA ASM PART: F = 8-98196-585-0, G = 8-98229-071-1	8-98196-584-0	01	1	-
27	NUT; RECTIFIER,GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97319-772-0	03	1	-
36	SCREW; FRT COVER IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97142-562-0	04	1	-
39	COVER; END,RR COVER,GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97378-928-0	01	1	-
45	WASHER; INSULATE,RR COVER,GEN THA ASM PART: G = 8-98229-071-1	8-97142-570-0	01	1	-1403
45	WASHER; INSULATE,RR COVER,GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0	8-97142-570-0	01	1	-

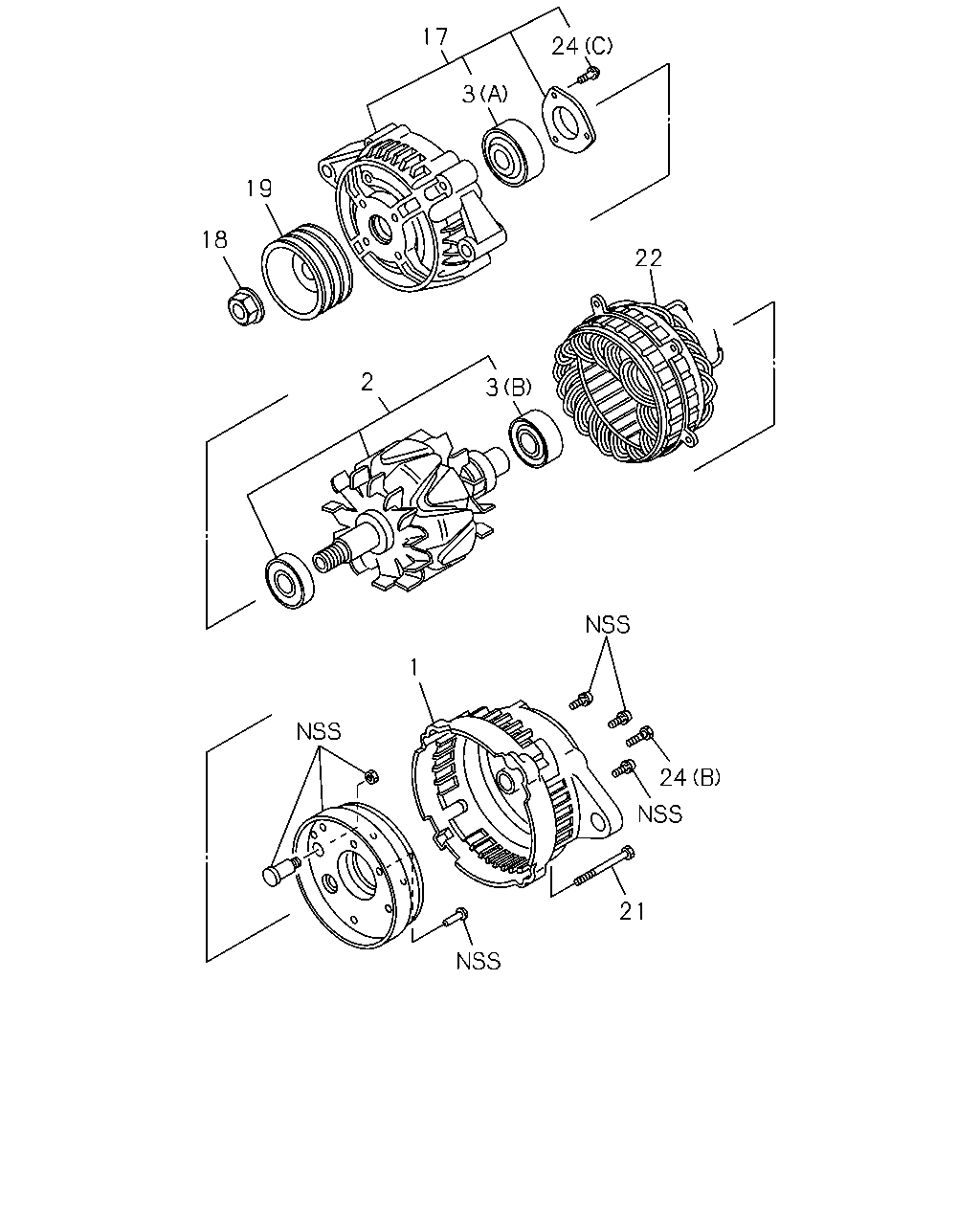

17 24 3 19 18 22 2 3 1 24 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98014-274-0	01	1	-1209
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0	8-98014-277-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: D = 8-98006-084-0	8-98036-867-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98232-047-0	01	1	1210-
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (C), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, D = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: G = 8-98229-071-1	8-98228-965-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: G = 8-98229-071-1	8-98229-789-0	01	1	-
18	NUT; PULLEY,GEN IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-94123-043-0	01	1	-
18	NUT; PULLEY,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97074-927-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-98000-022-0	01	1	-
21	BOLT; THROUGH,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97182-960-0	04	1	-
21	BOLT; THROUGH,GEN IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97319-752-0	04	1	-
22	STATOR; GEN IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97205-067-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97245-850-2	8-97313-437-0	01	1	-
24	SCREW; RECTIFIER,GEN (C), THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-94233-653-0	01	1	-
24	SCREW; RECTIFIER,GEN (D), IMA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97032-313-0	03	1	-
24	SCREW; RECTIFIER,GEN (B), IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97120-257-0	01	1	-
24	SCREW; RECTIFIER,GEN (A), THA ASM PART: A = 8-97245-850-2	8-97941-562-0	01	1	-

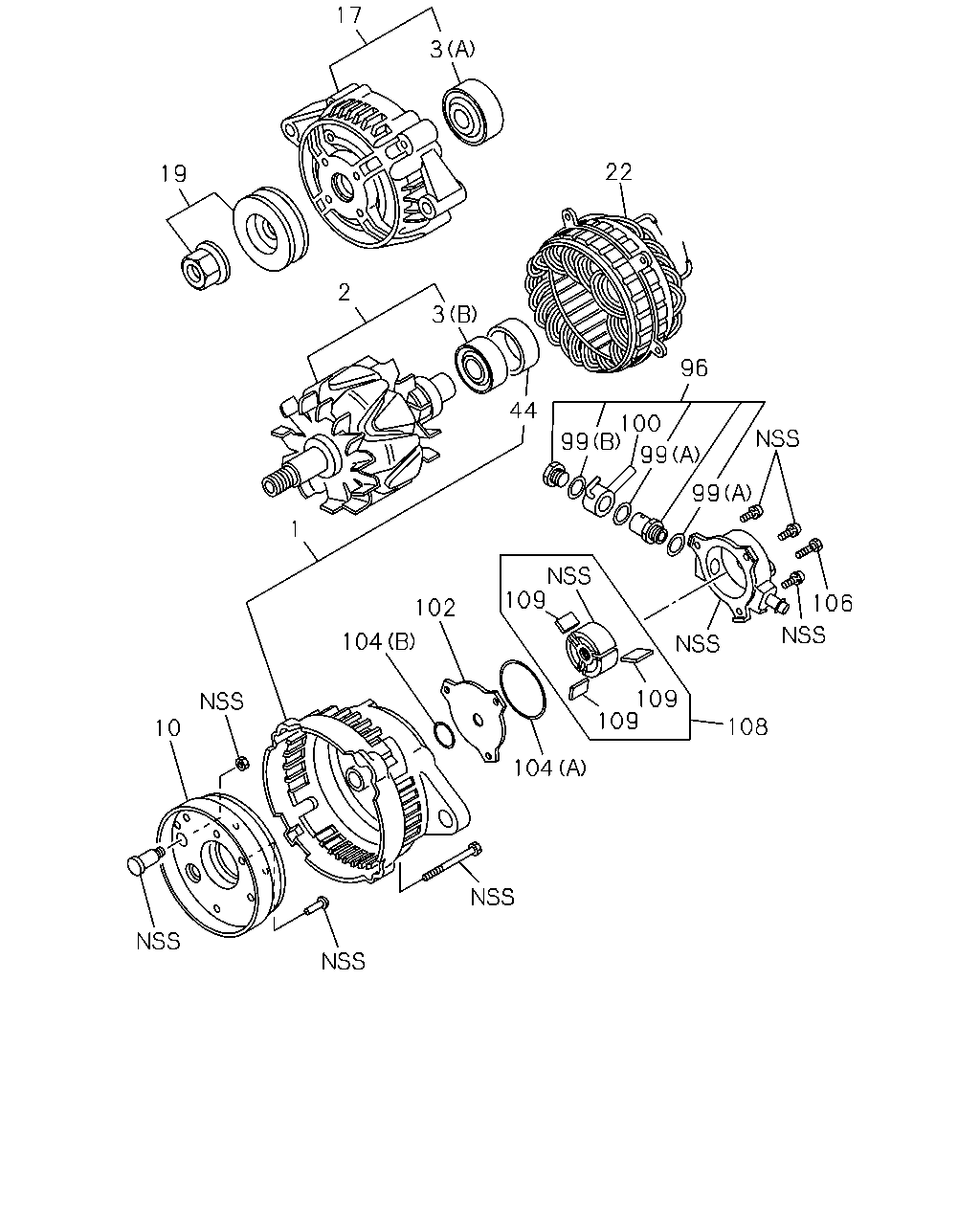

17 3 22 19 2 3 96 44 100 99 99 99 1 109 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98014-274-0	01	1	-1209
1	COVER ASM; RR,GEN THA ASM PART: B = 8-97361-871-0	8-98014-277-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: D = 8-98006-084-0	8-98036-867-0	01	1	-
1	COVER ASM; RR,GEN THA ASM PART: A = 8-97245-850-2	8-98232-047-0	01	1	1210-
2	ROTOR; GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97231-512-0	01	1	-
2	ROTOR; GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-97378-924-0	01	1	-
2	ROTOR; GEN THA ASM PART: A = 8-97245-850-2	8-97381-607-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: B = 8-97361-871-0	8-94462-859-0	01	1	-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: A = 8-97245-850-2	8-97062-744-0	01	1	1210-
3	BEARING; ROTOR,GEN (B), IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97103-807-0	01	1	-
3	BEARING; ROTOR,GEN (B), THA ASM PART: A = 8-97245-850-2	8-97248-128-0	01	1	-1209
3	BEARING; ROTOR,GEN (C), THA ASM PART: C = 8-97369-716-1	8-97379-796-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-188-0	01	1	-
3	BEARING; ROTOR,GEN (A), THA ASM PART: A = 8-97245-850-2, D = 8-98006-084-0	8-98159-457-0	01	1	-
3	BEARING; ROTOR,GEN (C), THA ASM PART: G = 8-98229-071-1	8-98228-965-0	01	1	-
10	RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2	8-98014-279-0	01	1	-1209
10	RECTIFIER; GEN THA ASM PART: A = 8-97245-850-2	8-98232-051-0	01	1	1210-
17	COVER ASM; FRT,GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97231-514-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: A = 8-97245-850-2	8-97313-446-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: C = 8-97369-716-1	8-97378-922-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: E = 8-98153-004-0, F = 8-98196-585-0	8-98159-085-0	01	1	-
17	COVER ASM; FRT,GEN THA ASM PART: G = 8-98229-071-1	8-98229-789-0	01	1	-
19	PULLEY; GEN THA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97379-176-0	01	1	-
19	PULLEY; GEN THA ASM PART: A = 8-97245-850-2	8-97381-612-0	01	1	-
19	PULLEY; GEN THA ASM PART: C = 8-97369-716-1, E = 8-98153-004-0, F = 8-98196-585-0, G = 8-98229-071-1	8-98000-022-0	01	1	-
22	STATOR; GEN IMA ASM PART: B = 8-97361-871-0, D = 8-98006-084-0	8-97205-067-0	01	1	-
22	STATOR; GEN THA ASM PART: A = 8-97245-850-2	8-97313-437-0	01	1	-
44	SEAL; RR COVER,GEN THA ASM PART: A = 8-97245-850-2	8-97941-674-0	01	1	-
96	VALVE ASM; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-948-0	01	1	-
99	GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: A = 8-97245-850-2	5-19679-002-0	02	1	-
99	GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: A = 8-97245-850-2	5-19679-003-0	01	1	-
100	CONNECTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-615-0	01	1	-
102	COVER; FRT,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-936-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (A), THA ASM PART: A = 8-97245-850-2	8-94223-994-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP (B), THA ASM PART: A = 8-97245-850-2	8-97941-675-0	01	1	-
106	BOLT; OIL CONN,VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97381-614-0	01	1	-
108	ROTOR; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-97330-935-0	01	1	-
109	VANE; VAC PUMP THA ASM PART: A = 8-97245-850-2	8-94462-883-0	03	1	-
